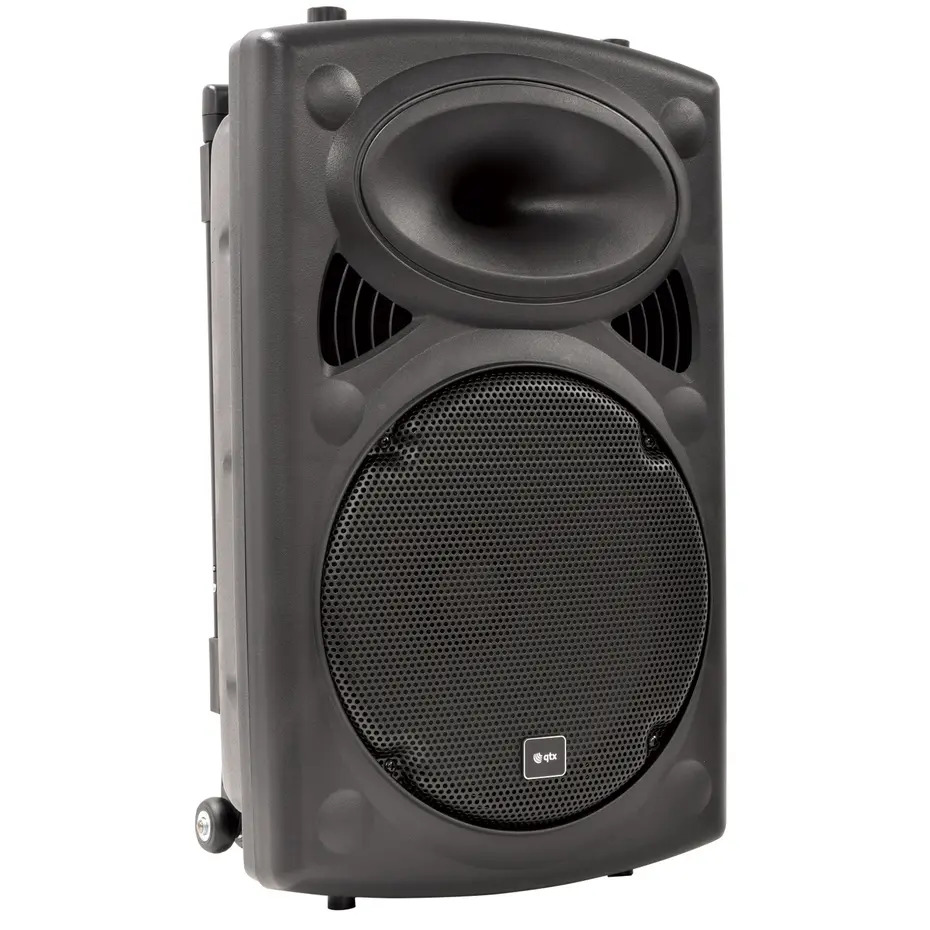

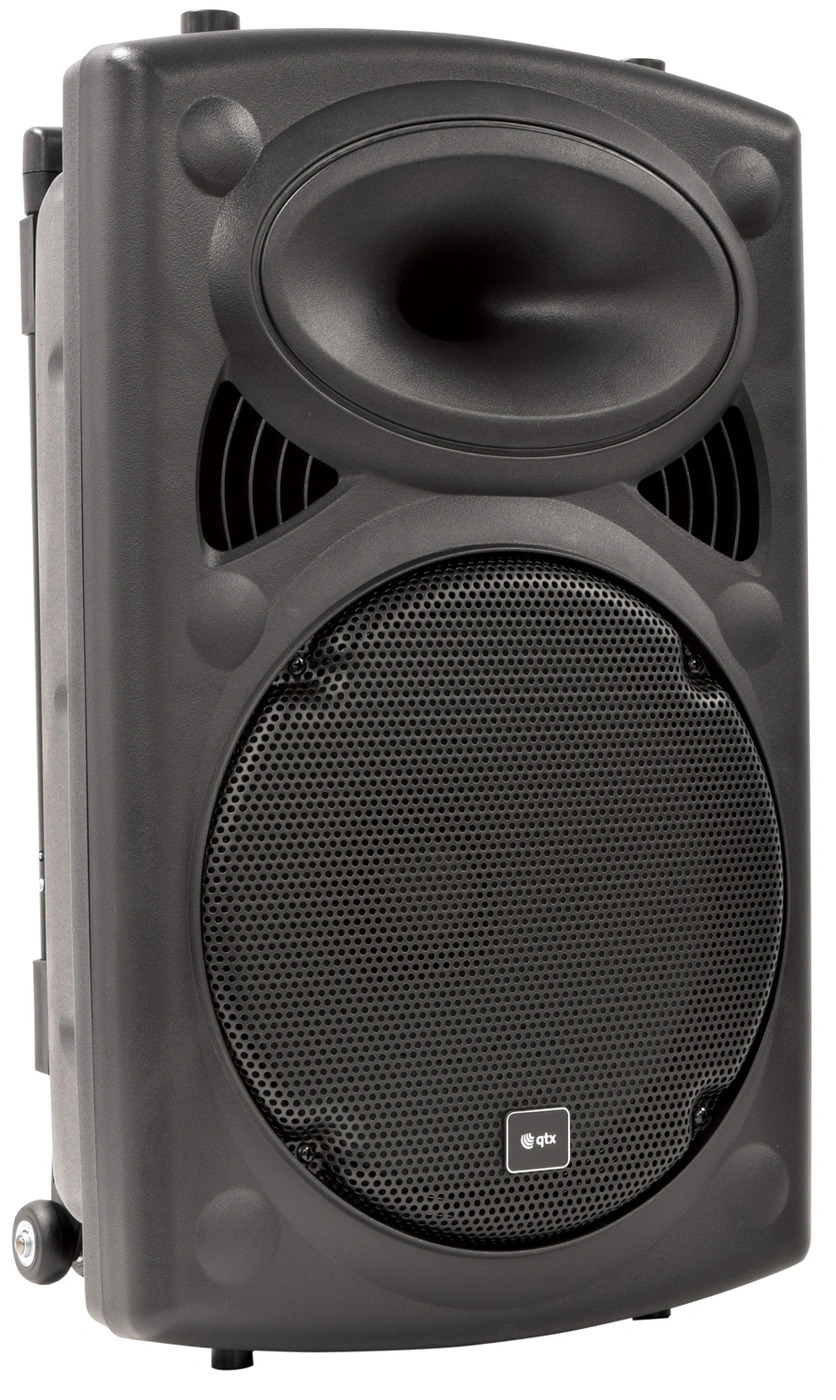

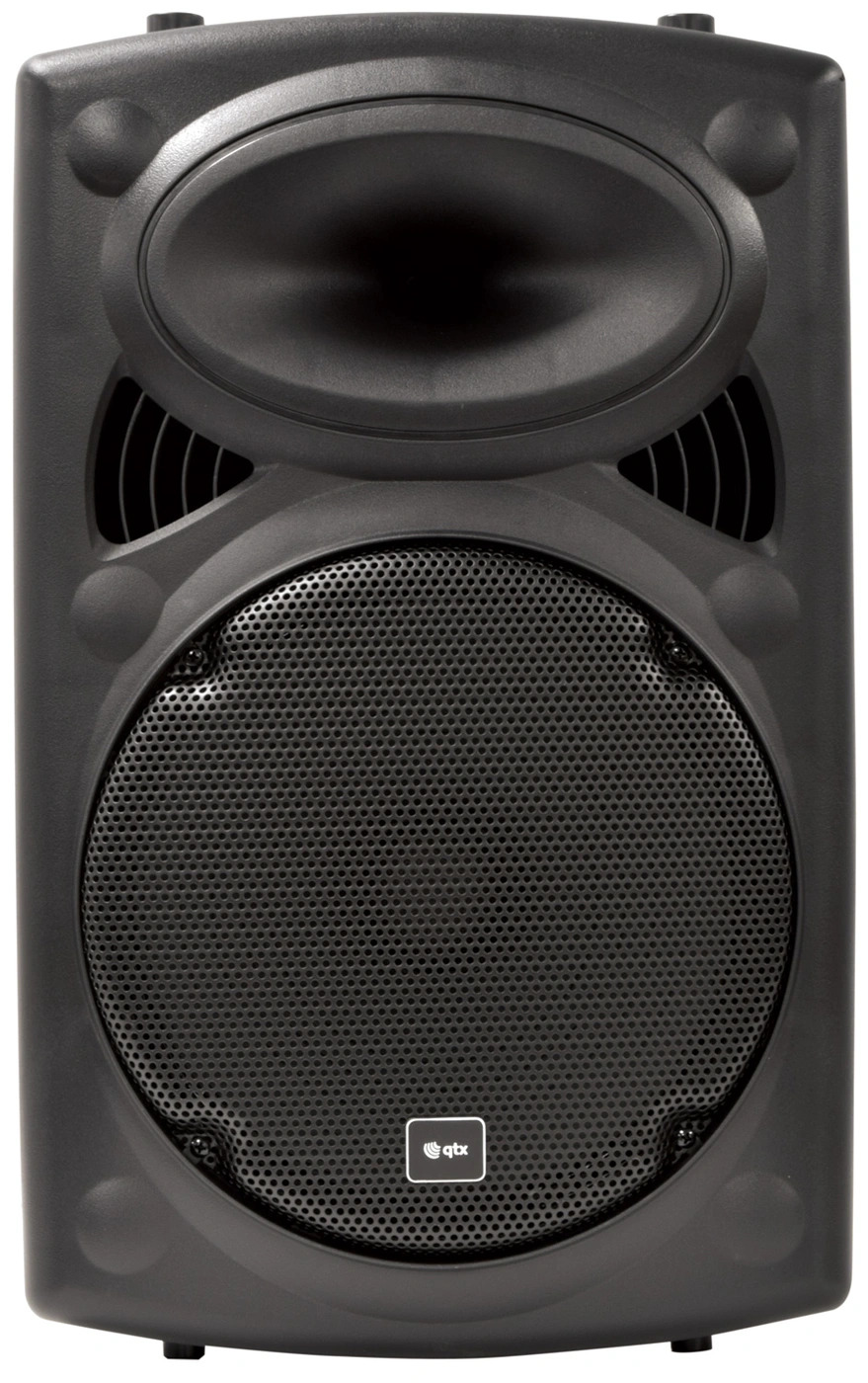

QTX QR12PA Portable PA
TWS + 2x UHF Microphones
- UHF handheld microphone(s) included
- Echo effect for microphones
- Internal audio player with record feature and remote
- Mains/rechargeable operation
- Integral 35mm pole mount
- Built-in trolley facility
- Switchable VCV 'mic override' function
- TWS wireless pairing
- Optional UHF neckband microphones available (178.895UK & 178.896UK)
In the Box
- QRPA portable PA unit
- 1 or 2 x UHF wireless handheld microphones
- Media player remote control handset
- Mains lead(s) IEC or Fig.8 with 15Vdc power adaptor

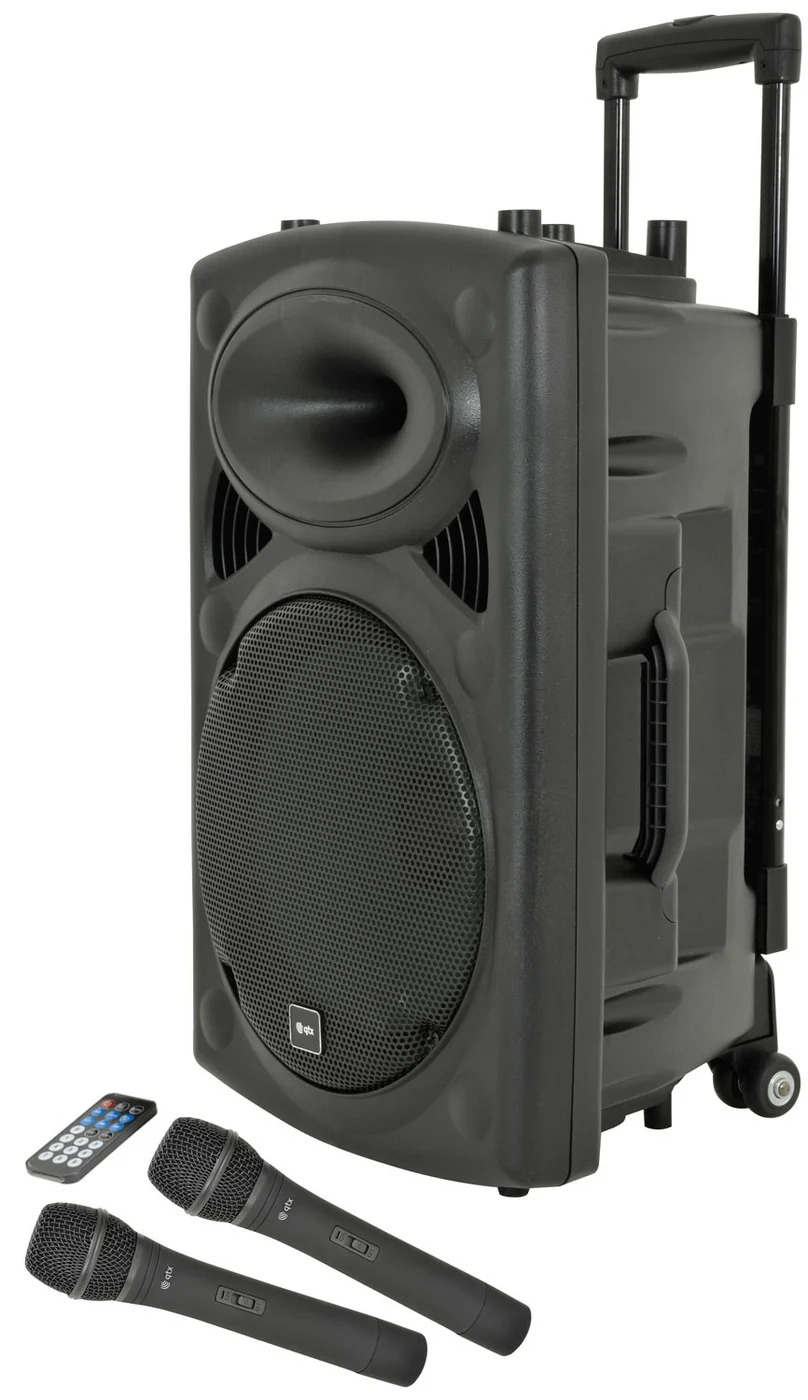

QR12PA Portable PA – TWS with 2 x UHF Wireless Microphones
The QR12PA is a compact, portable PA system built around the robust QR speaker cabinet. It features a built-in amplifier that can run on mains power or an internal rechargeable battery, driving a powerful main driver and a compression horn for clear, dynamic sound.
Included are two handheld UHF wireless microphones, with the receiver integrated into the rear mixer/amplifier section. The unit also offers two additional wired microphone inputs, an auxiliary line input, and a built-in USB/SD/FM media player with recording capabilities.
Bluetooth connectivity allows seamless wireless audio streaming from smartphones or tablets, while TWS (True Wireless Stereo) pairing lets you link two QRPA units for full stereo sound.

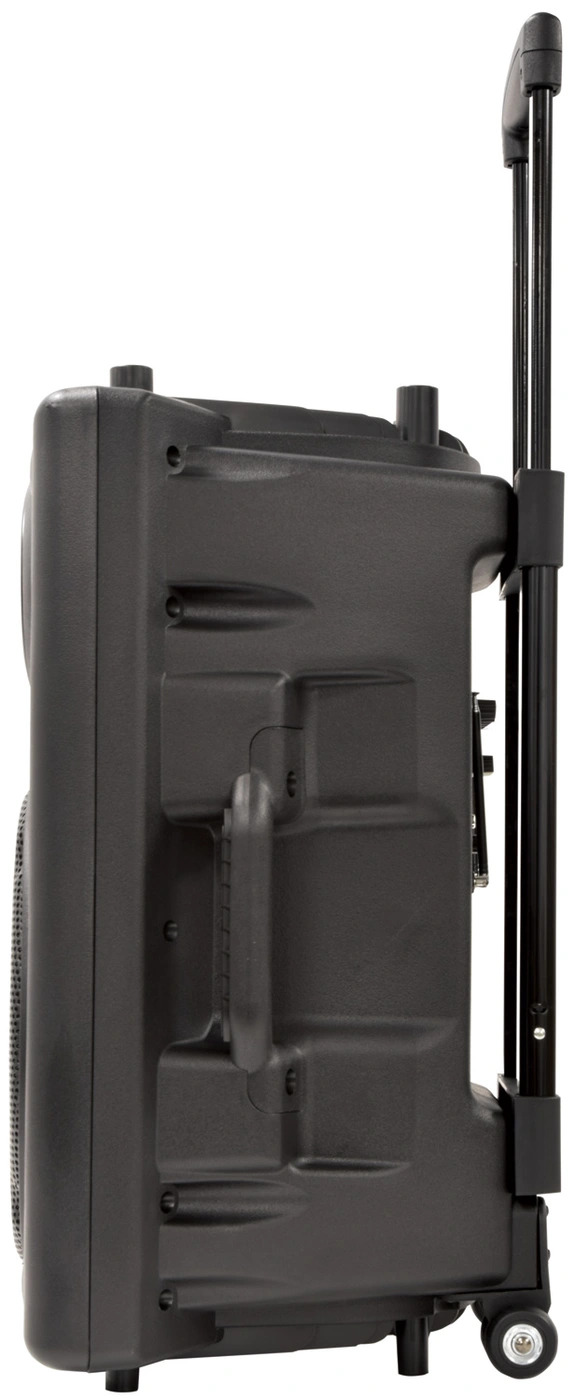

For convenience, the QR12PA comes equipped with a retractable trolley handle and rear wheels, making it easy to transport for any event or performance.
Power Supply:
220–240V AC, 50Hz (IEC) or 12/15V DC @ 3A or internal rechargeable battery
Carrier Frequencies:
863.8 MHz + 864.8 MHz
Amplifier Output:
50W + 50W max.
Main Driver:
300mm (12")
Dimensions:
570 x 350 x 310 mm
Weight:
14.0 kg
Battery Life:
Up to 8 hours
Controls:
MIC.1/Guitar, MIC.2, Echo, Bass, Treble, Master Volume, UHF Mic Volume, VCV
Inputs:
MIC.1/Guitar, MIC.2 (6.3mm jack), Line In (L+R RCA), AUX (3.5mm stereo jack)
