LD Systems CURV 500 ES Portable Array System
CURV 500 ES Specifications:
- Product type: PA Complete Systems
- System output (RMS): 460 W
- Colour: Black
- Number of array satellites: 4
- Number of Smartlink adapters: 1
- Number of subwoofers: 1
- Max. SPL (continuous): 122 dB
- Max. SPL (peak): 128 dB
- Frequency response: 47 - 20000 Hz
- Dispersion (H x V): 110° horizontal, vertical (each satellite) 10
- RMS: Subwoofer: 300 W , Array Satellites: 2 x 160 W
- Peak power: Subwoofer: 1200 W , Array Satellites: 2 x 640 W
- Amplifier: Class D
- Protection circuits: DSP-based multiband limiter, overload, short circuit, thermal overload
- Weight: 26,8 kg
- Accessories (included): Distance bar, Power cord, Speaker cable CURV 500 CABLE 1 (2.2 m)
- Low/mid driver dimensions: 10 "
- Woofer size: 254 mm
- Cabinet construction: Bass Reflex
- Cabinet material: plywood
- Cabinet surface: PA painting
- Dimensions Subwoofer (W x H x D): 325 x 383 x 491 mm
- Subwoofer weight: 16.5 kg
- Subwoofer features: 16 DFX Presets, 3 ergonomic handels, 4 channel mixer, 4 System DSP Presets, Bluetooth, Threaded flange M20
- Mid/Hi system: MF: 1 x 4" / HF: 3 x 1" with WaveAhead® Technology / 16 ohms
- Array Satellite Features: internal crossover, metal grille, WaveAhead® Technology
- Array Satellite Material: Die-cast aluminium
- Array Satellite Surface: Powder coated
- Array Satellite Dimensions (W x H x D): 122 x 122 x 122 mm
- Array Satellite Weight: 1.7 kg
- Smartlink Adapter Features: 2 x 16 mm pole mount socket, 2x M6 thread for optional wall mount
- Smartlink Adapter Connectors: 1 x Speakon-compatible, 1x Phoenix
- Smartlink Adapter Material: Die-cast aluminium
- Smartlink Adapter Surface: Powder coated
- Smartlink Adapter Dimensions (W x H x D): 122 x 57 x 122 mm
- Smartlink Adapter Weight: 0.6 kg
Standard 2-year warranty
A truly portable array system, the LD Systems CURV 500 ES features WaveAhead technology for high definition audio and built-in 4 channel mixer with DFX and Bluetooth technology. Consisting of 4 interlocking satellites with smartlink plug and play giving you universal mounting options, a great entertainer set for mobile and fixed applications.
The CURV 500® Entertainer Set consists of a high-performance 10" bass reflex subwoofer and an easily configurable array system with four satellites. Featuring a power of 460 watts RMS and a maximum sound pressure level of 128 dB, the CURV 500® ES Set is the ideal sound system for small events or conferences and meetings.

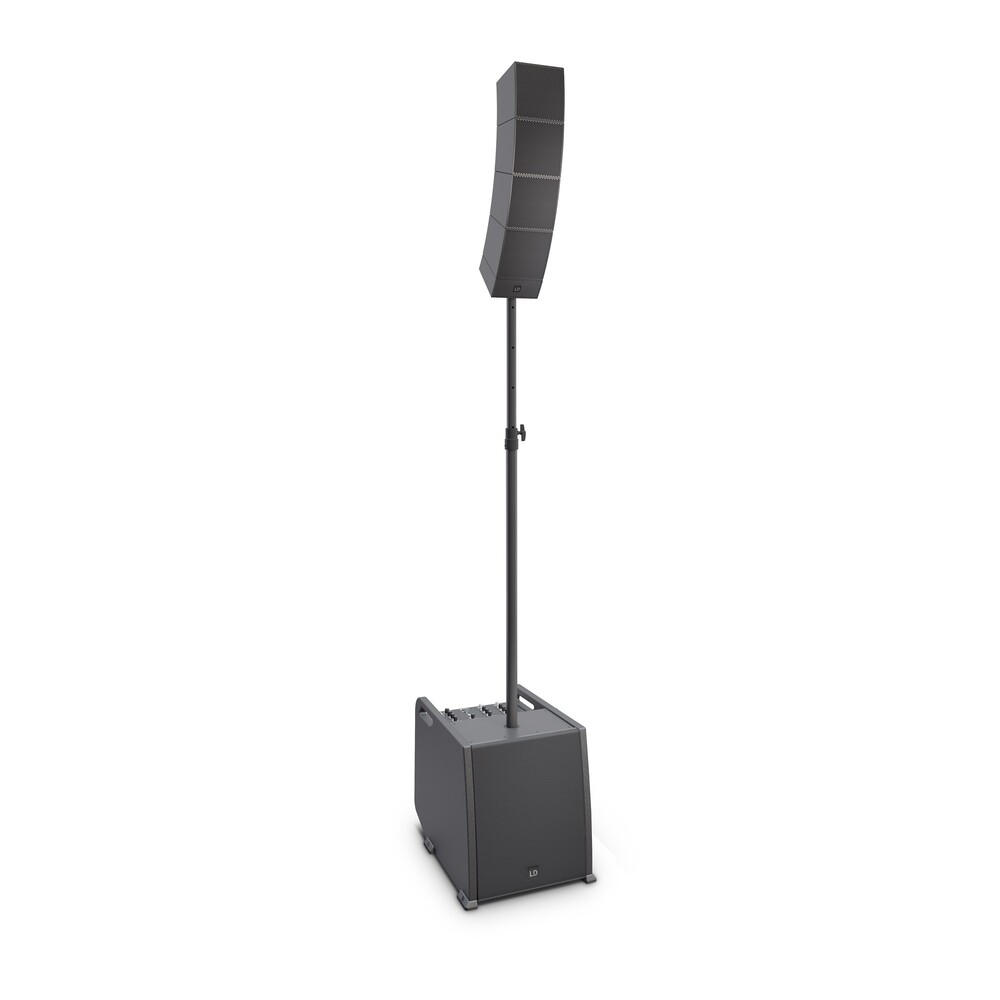

The compact, transport-friendly CURV 500® is an array system with 4 interlocking satellites, which are operated via a SmartLink® adapter. The elements, only 12 x 12 cm in size, are equipped with LD System's own WaveAhead® technology. One 4" and three 1" drivers provide a coherent and extremely detailed playback with high pressure and dynamics.
The 10" bass-reflex subwoofer houses the Class D power amplifier and includes a limiter, protection against short circuit, overheating, over-voltage, as well as a 4-channel mixer with 16 digital effect presets and Bluetooth®. Combo, and Speakon- compatible sockets offer extensive connectivity options, and the subwoofer features four digital system presets, an M20 threaded flange and three ergonomic carrying handles.
The Entertainer Set can be operated in stereo mode with a total of eight array satellites (max. four on each side). This variant is particularly useful in voice applications, where bass playback is not in the foreground. Speakers or moderators especially appreciate the clarity, transparency and typical benefits of array systems. With the Power Extension set, the Entertainer Set can provide even more power at any time, especially in the bass range, thus expanding to a high-performance Power Set.
The CURV 500® Entertainer Set includes a subwoofer with a mixer unit, four satellites, SmartLink® adapters, distance bar and speaker cables.
