RCF EVOX J9

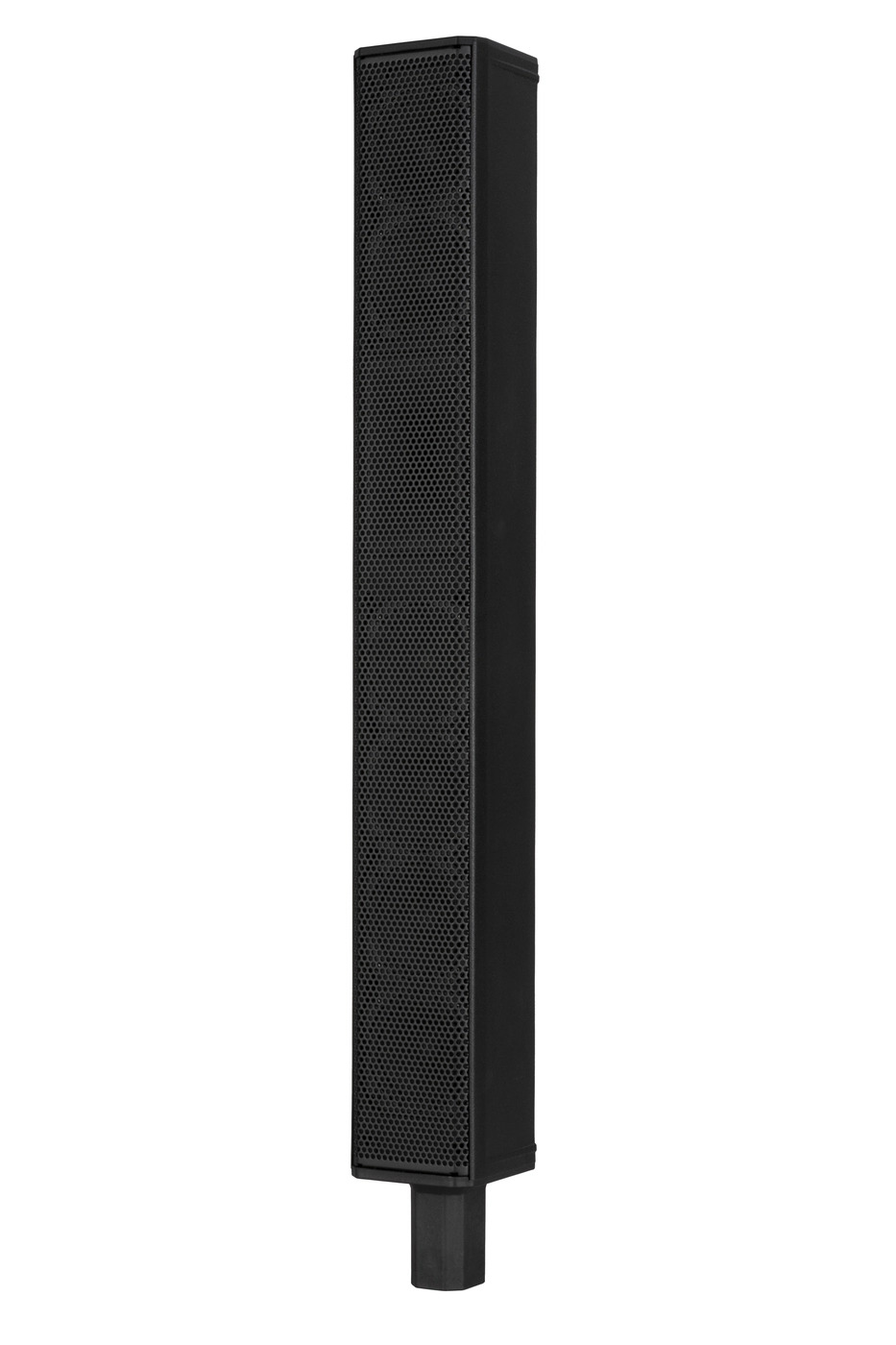

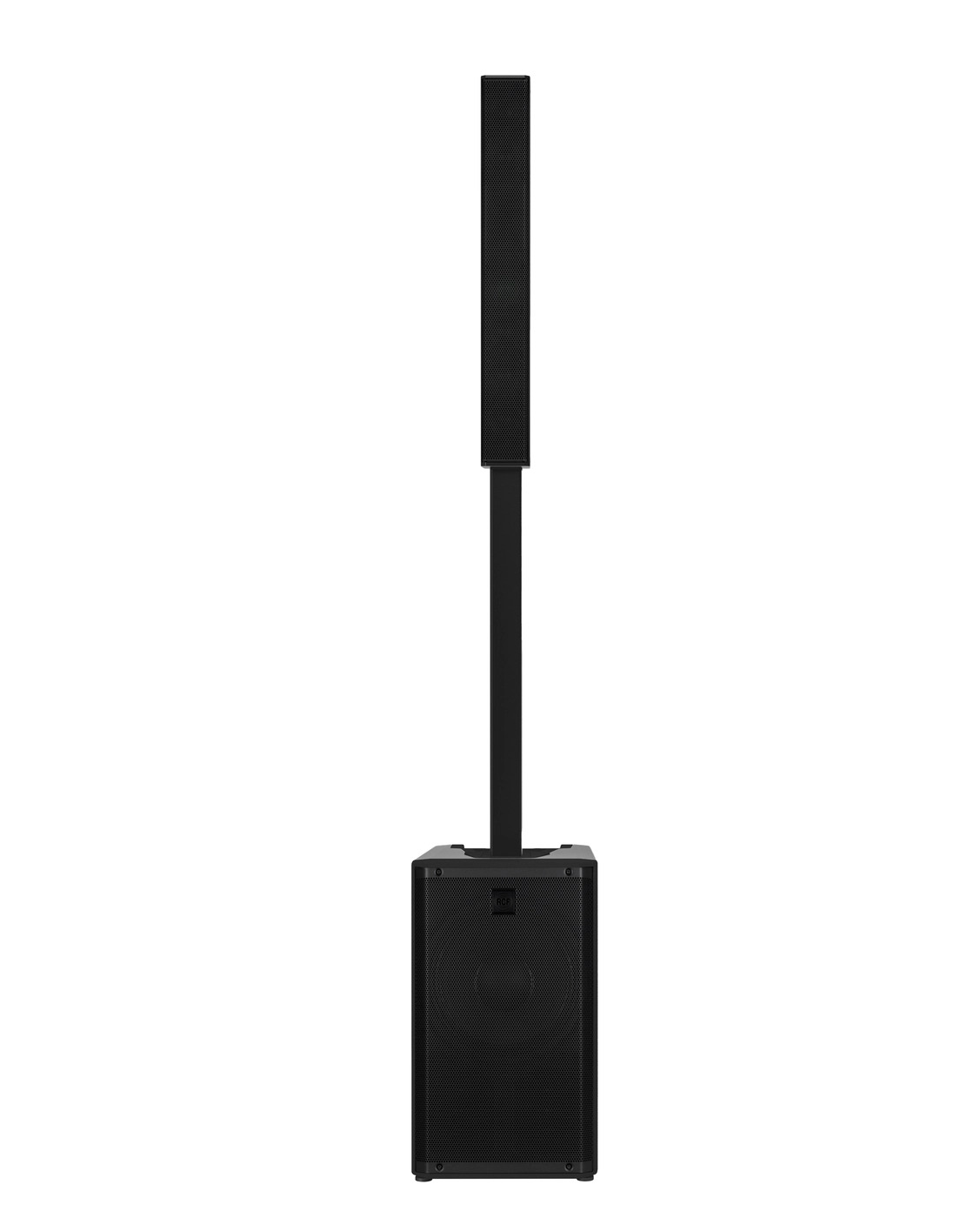

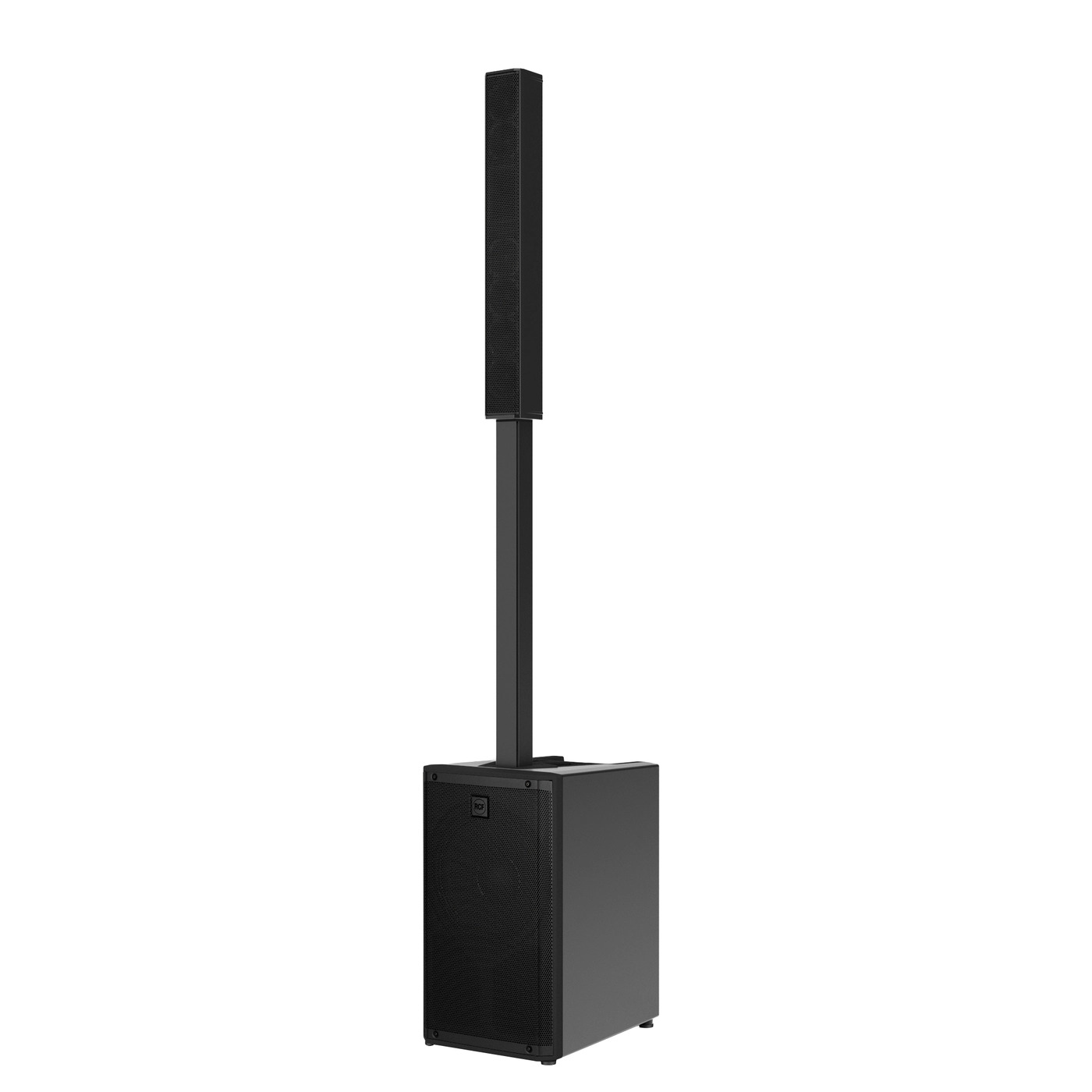

EVOX J9 is a compact, high-performance active three-way column system engineered for exceptional clarity and power. A 1.75" compression driver paired with a 120° × 40° True Resistive Waveguide provides wide, uniform coverage, while six 3" full-range drivers and a high-output 12" bass-reflex woofer deliver detailed mids and tight, extended low frequencies. Powered by a 2100W onboard dual-channel Class-D amplifier, EVOX J9 achieves an impressive maximum SPL of 130 dB. As part of the EVOX J Series, it integrates RCF’s tour-grade technology into a sleek, discreet design, offering pristine vocals, natural sound reproduction, and fast, effortless setup for bands, DJs, and live performers.

Acoustical Specifications
Frequency Response: 40 Hz – 20,000 Hz
Max SPL @ 1 m: 130 dB
Horizontal Coverage Angle: 120°
Vertical Coverage Angle: 40°

Transducers

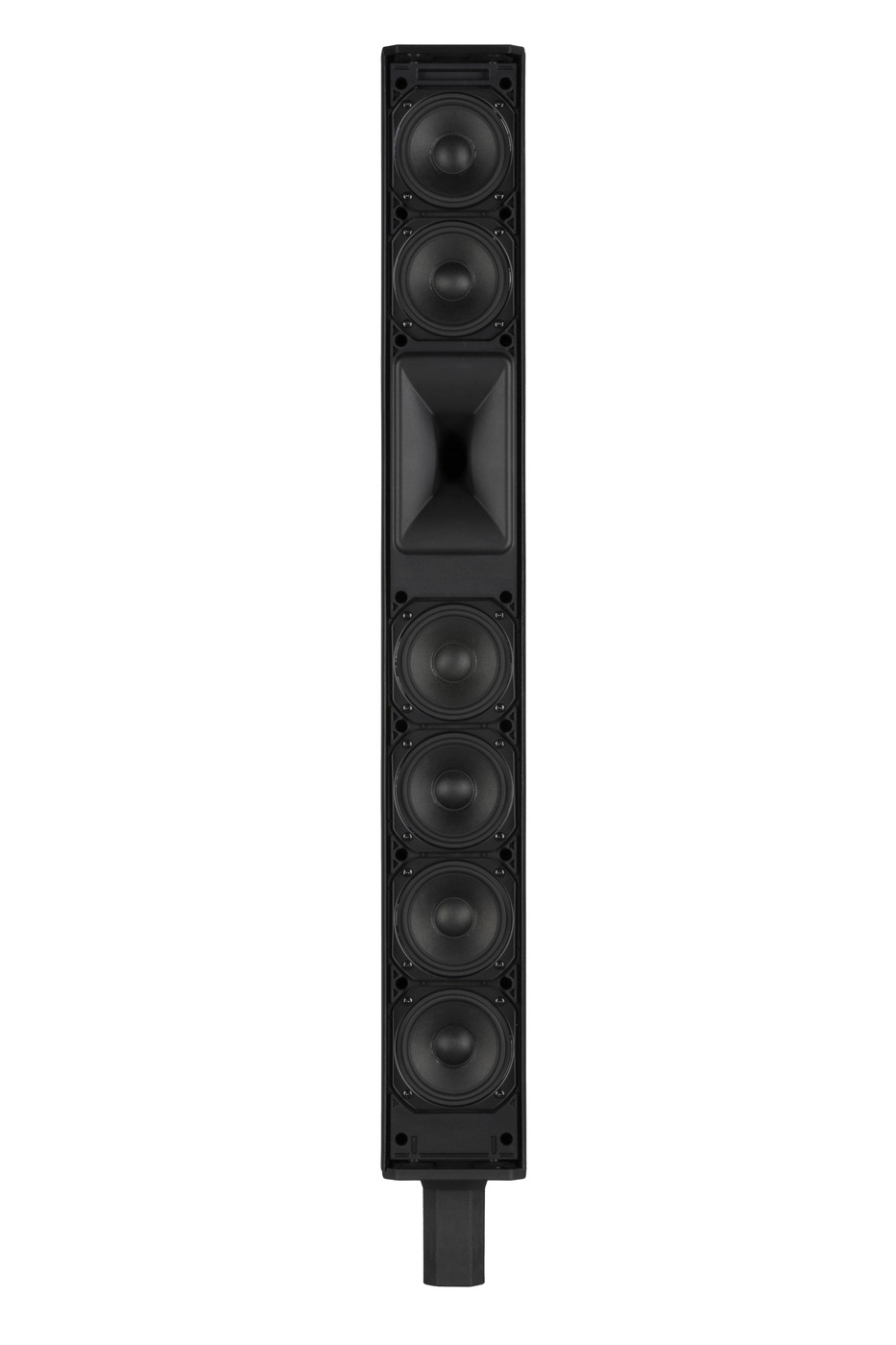

Compression Driver: 1 × 0.75" neo, 1.75" v.c

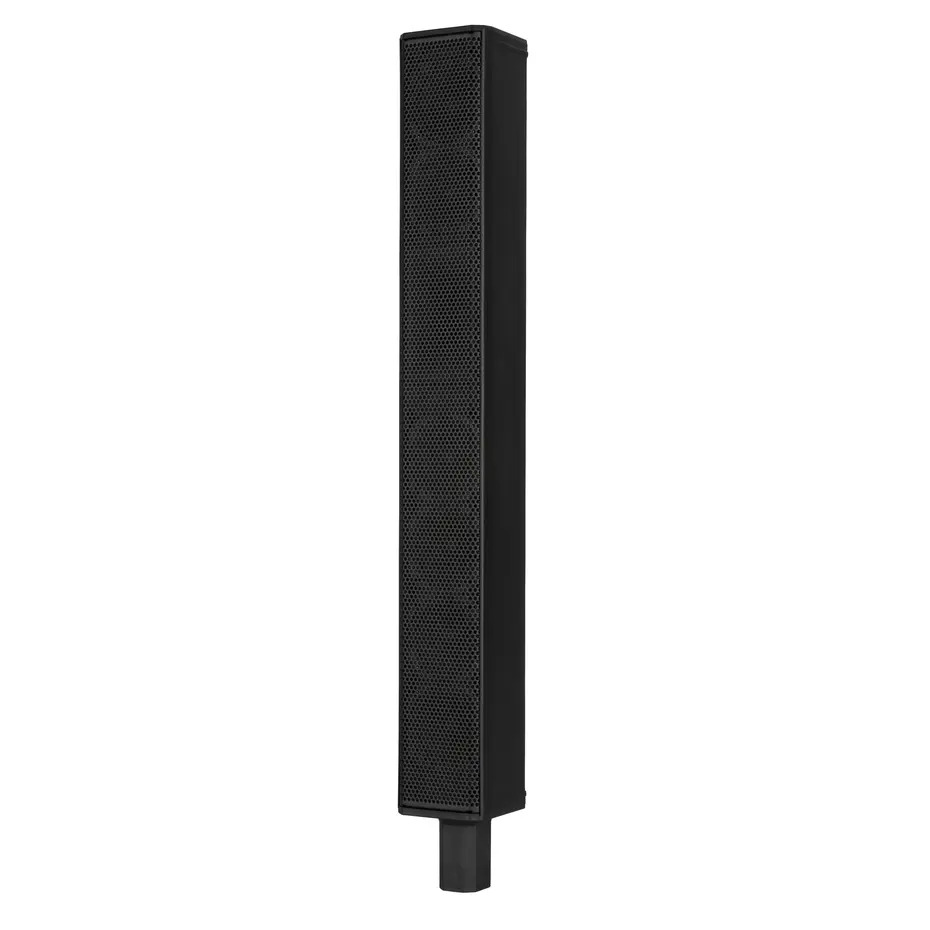

Full-Range: 6 × 3.0" neo, 1.0" v.c

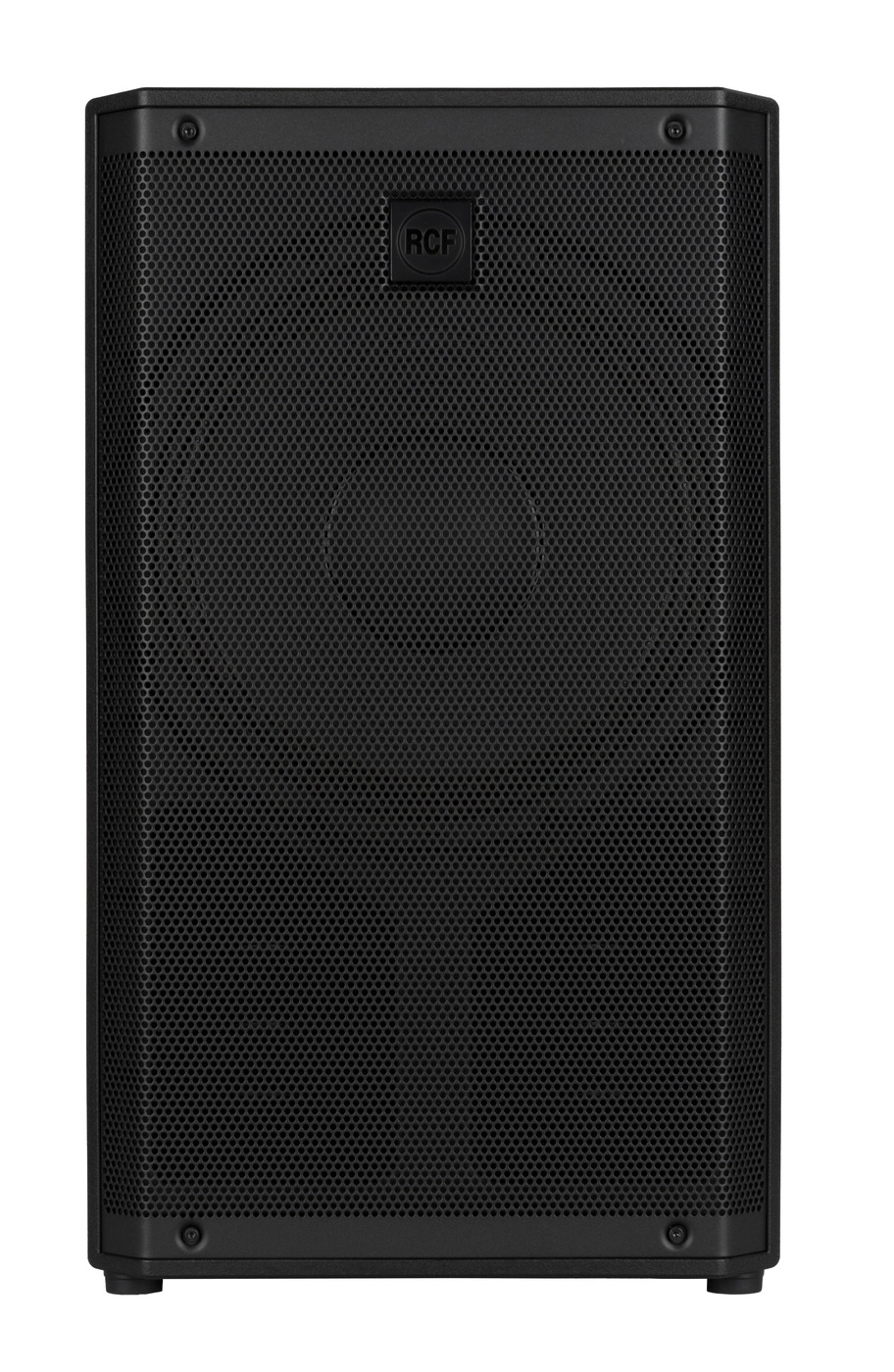

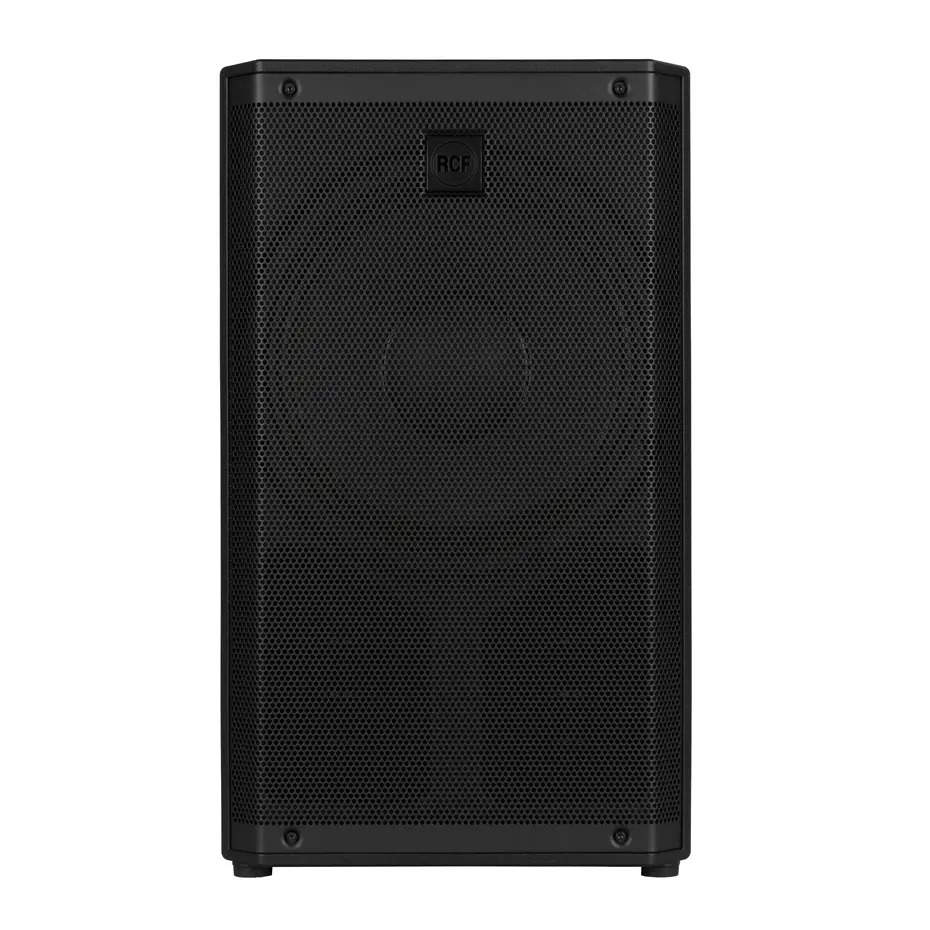

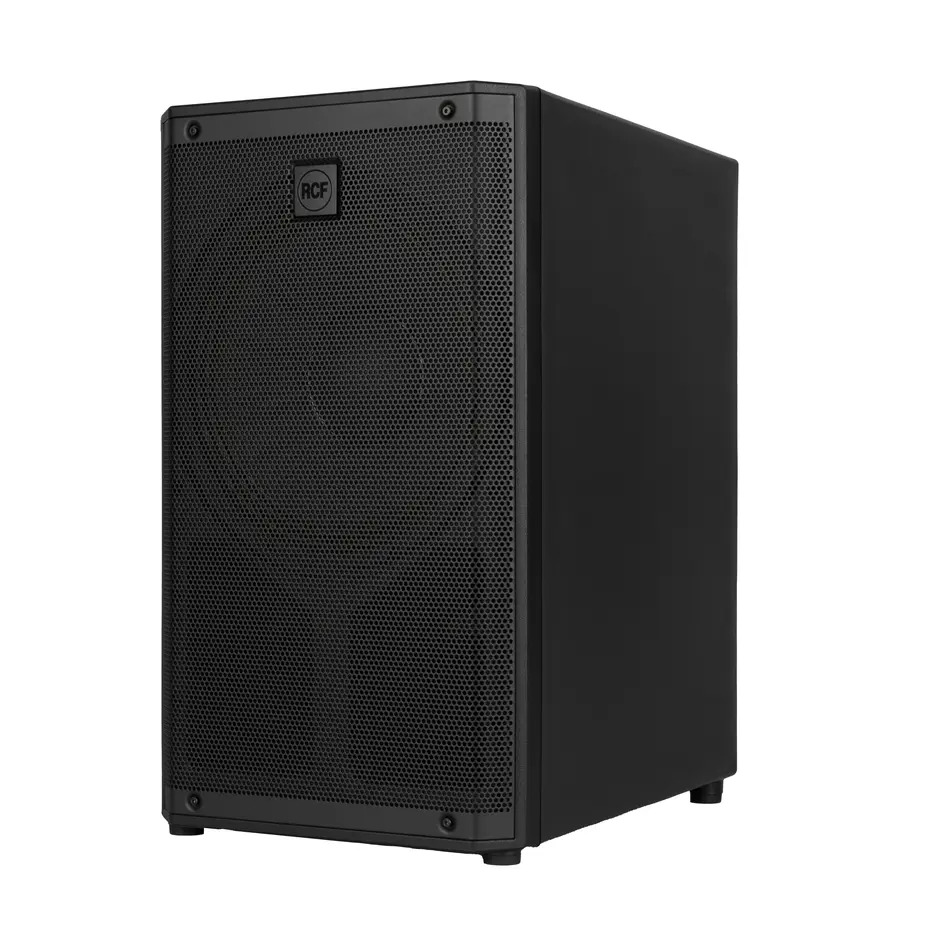

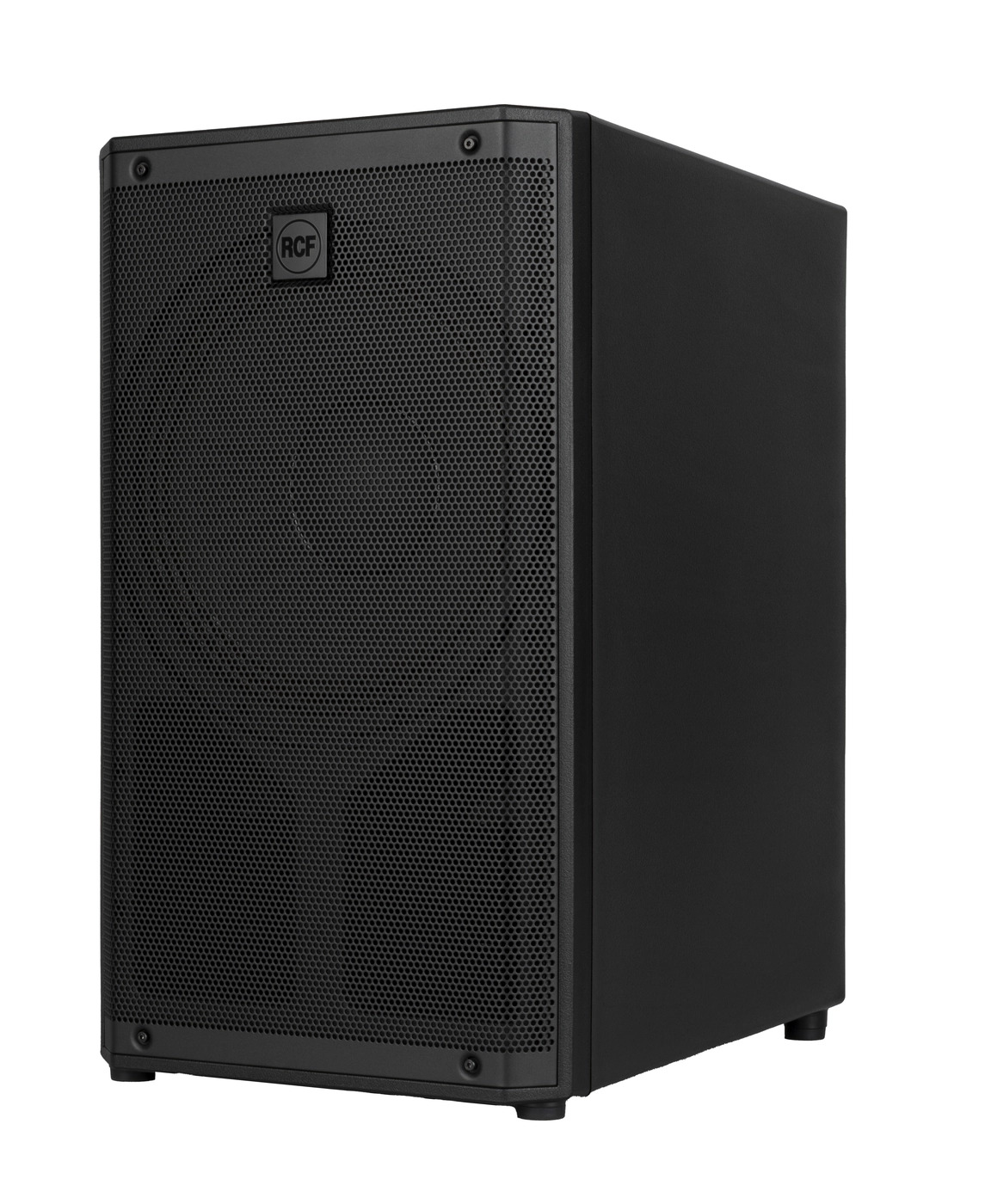

Woofer: 1 × 12", 2.5" v.c

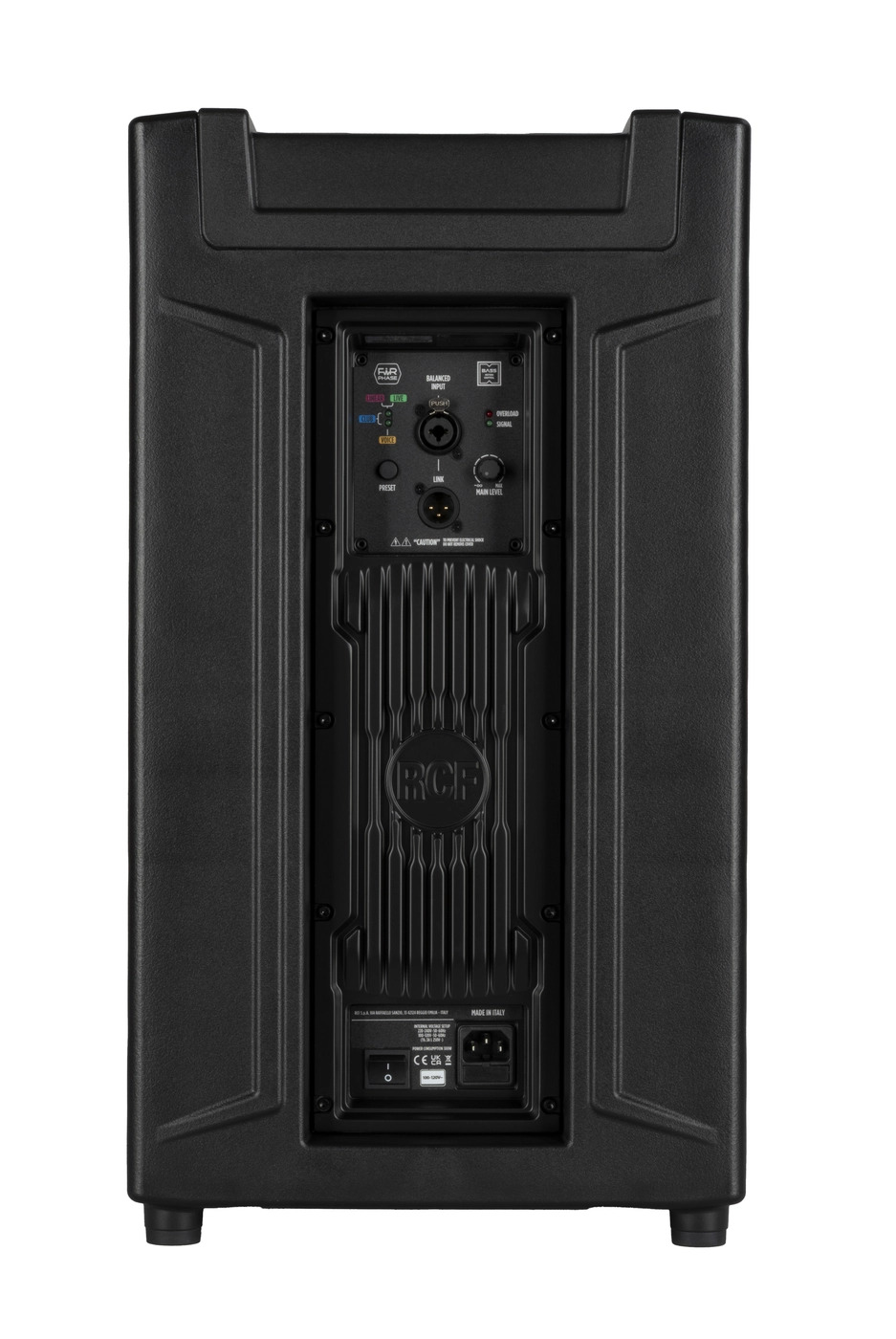

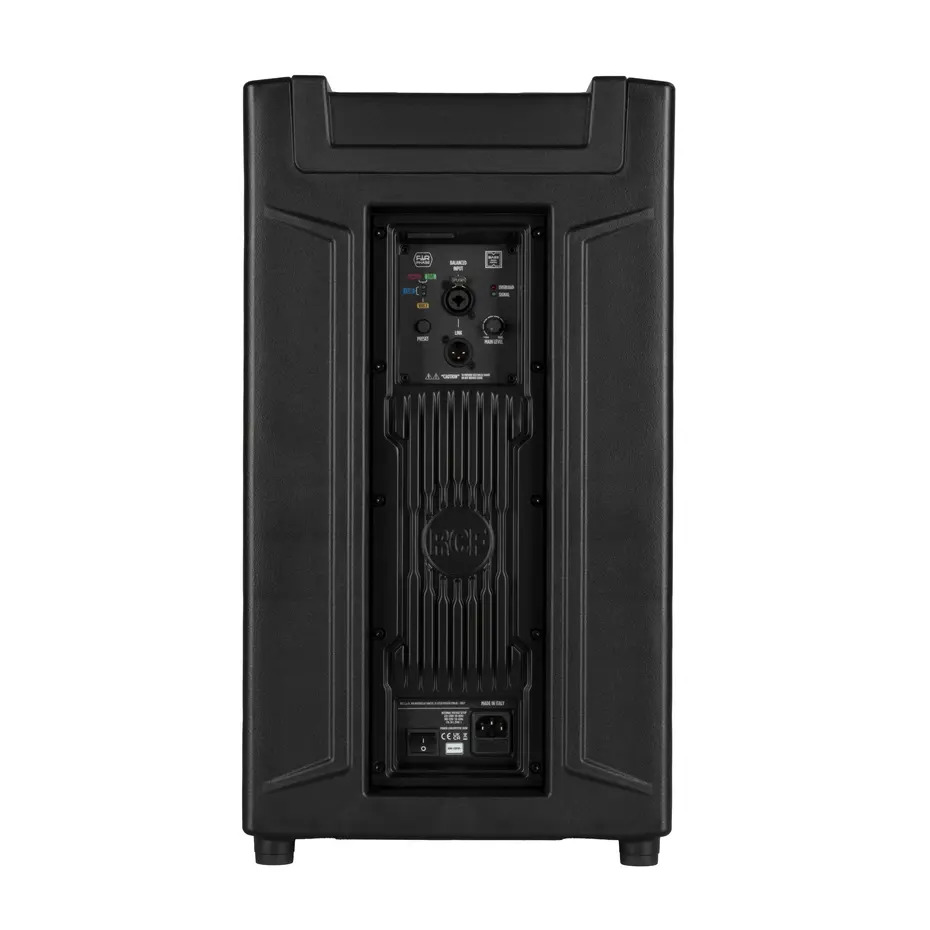

Input / Output Section
Input Signal: Balanced / Unbalanced
Input Connectors: Combo XLR / Jack
Output Connectors: XLR
Input Sensitivity: –2 dBu / +4 dBu

Processor Section
Crossover Frequency: 160 Hz
Protections: Thermal, RMS
Limiter: Soft Limiter
Controls: Volume, Presets (LINEAR / LIVE, CLUB, VOICE)
RDNet: Ready

Power Section
Total Power: 2100 W Peak
High Frequencies: 700 W Peak
Low Frequencies: 1400 W Peak
Cooling: Convection
Connections: VDE
Standard Compliance: CE compliant

Physical Specifications
Cabinet / Case Material: PP Composite
Handles: 1 × Top
Pole Mount / Cap: Quick-fit socket
Grille: Steel
Color: Black

Size / Weight
Height: 2080.1 mm / 81.89 in
Width: 350 mm / 13.78 in
Depth: 462.6 mm / 18.21 in
Weight: 28.3 kg / 62.39 lbs
