Citronic TU4-N Quad PLL Mic Set 4 Bodypack
Tuneable UHF Wireless Microphone System
- Independent 7-band EQ for each channel
- True diversity antennas with internal distro
- Auto frequency sweep function

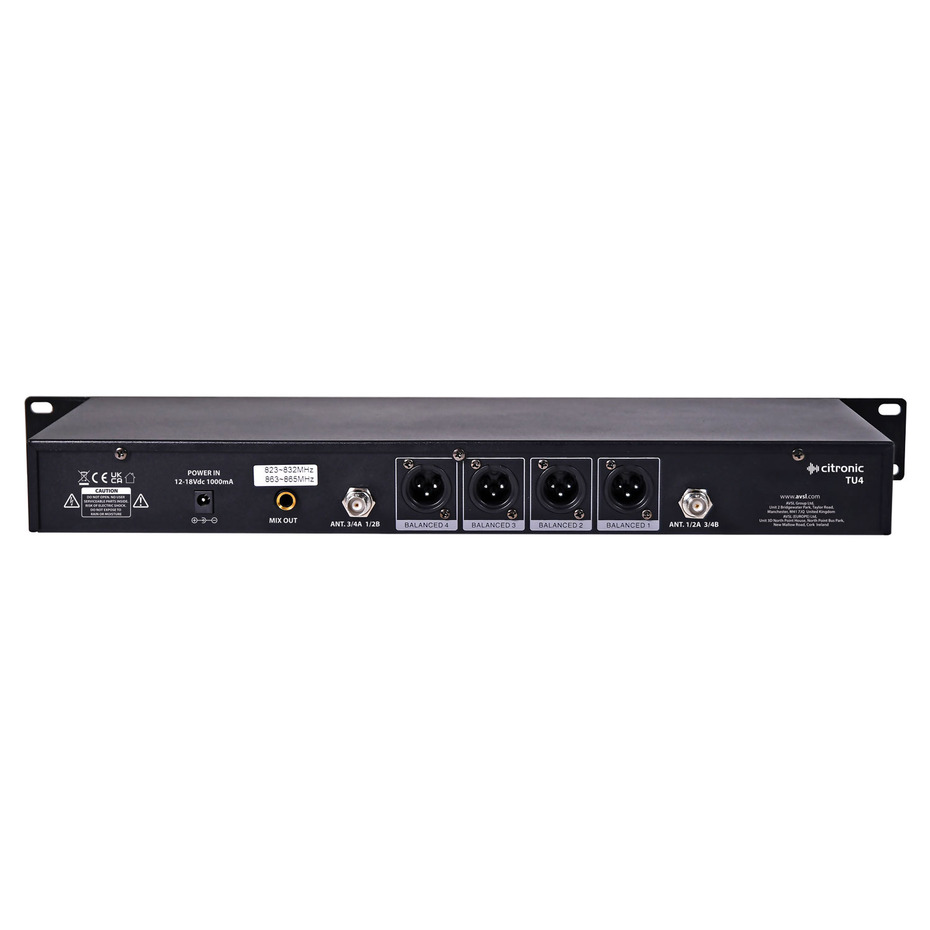

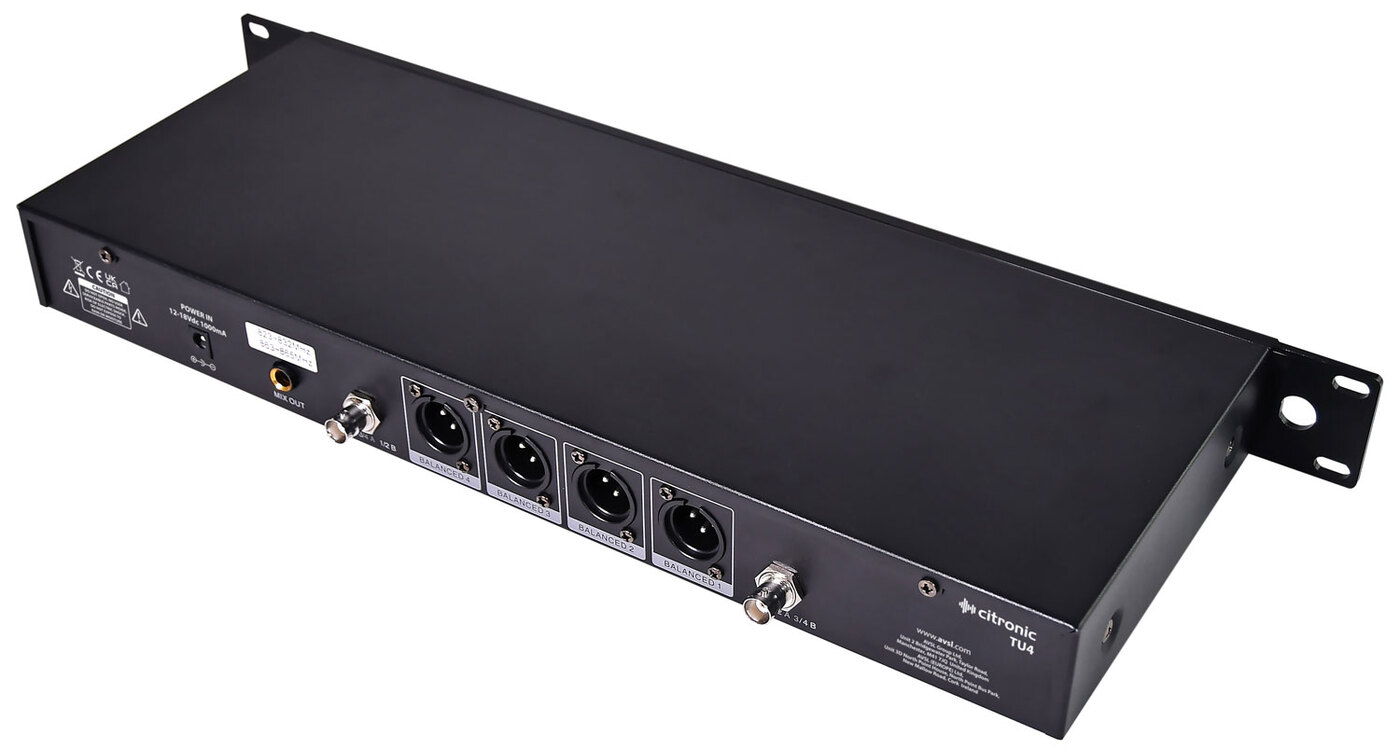

- Individual XLR outputs or single mix jack output
- License-free operation (863-865MHz) in UK and EU regions

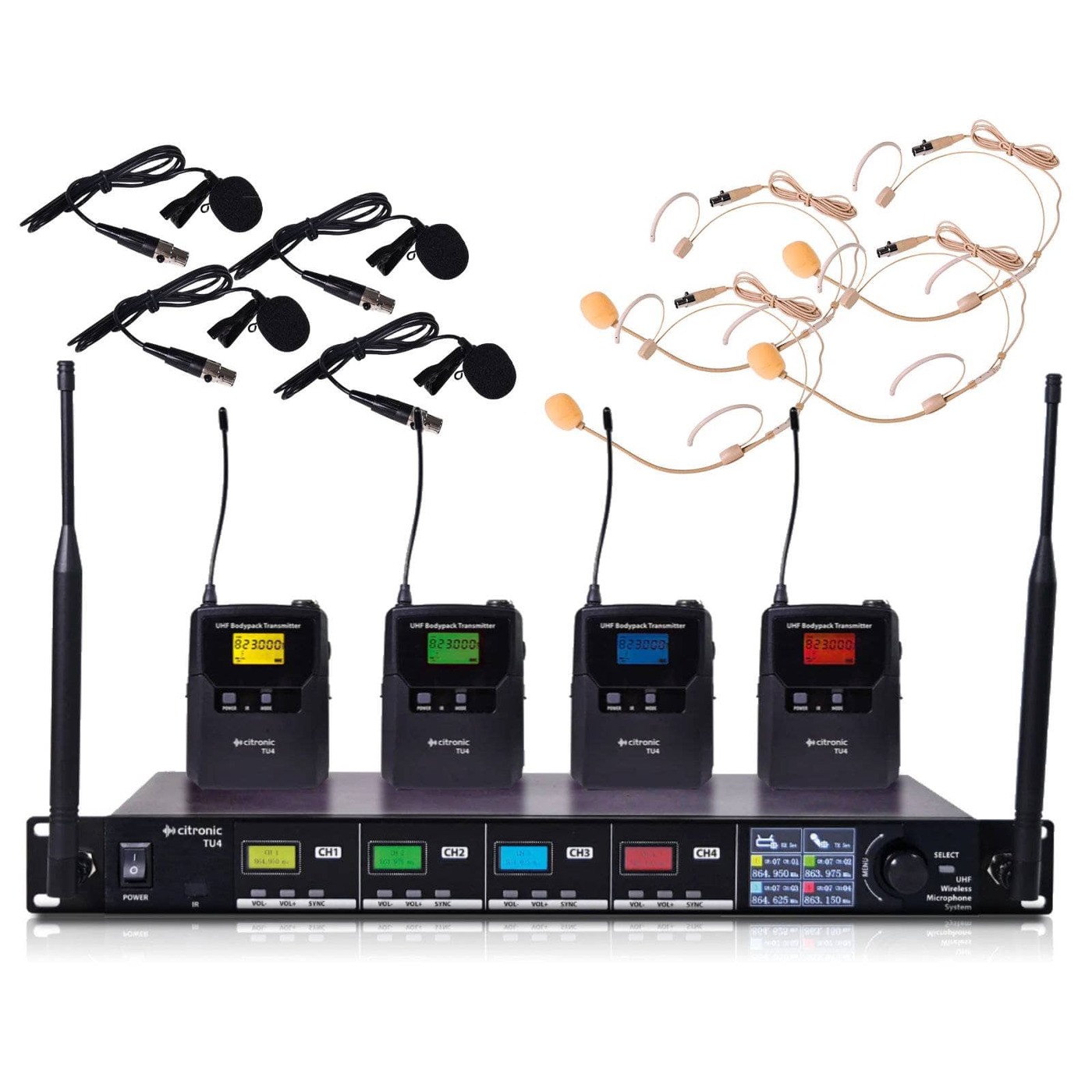

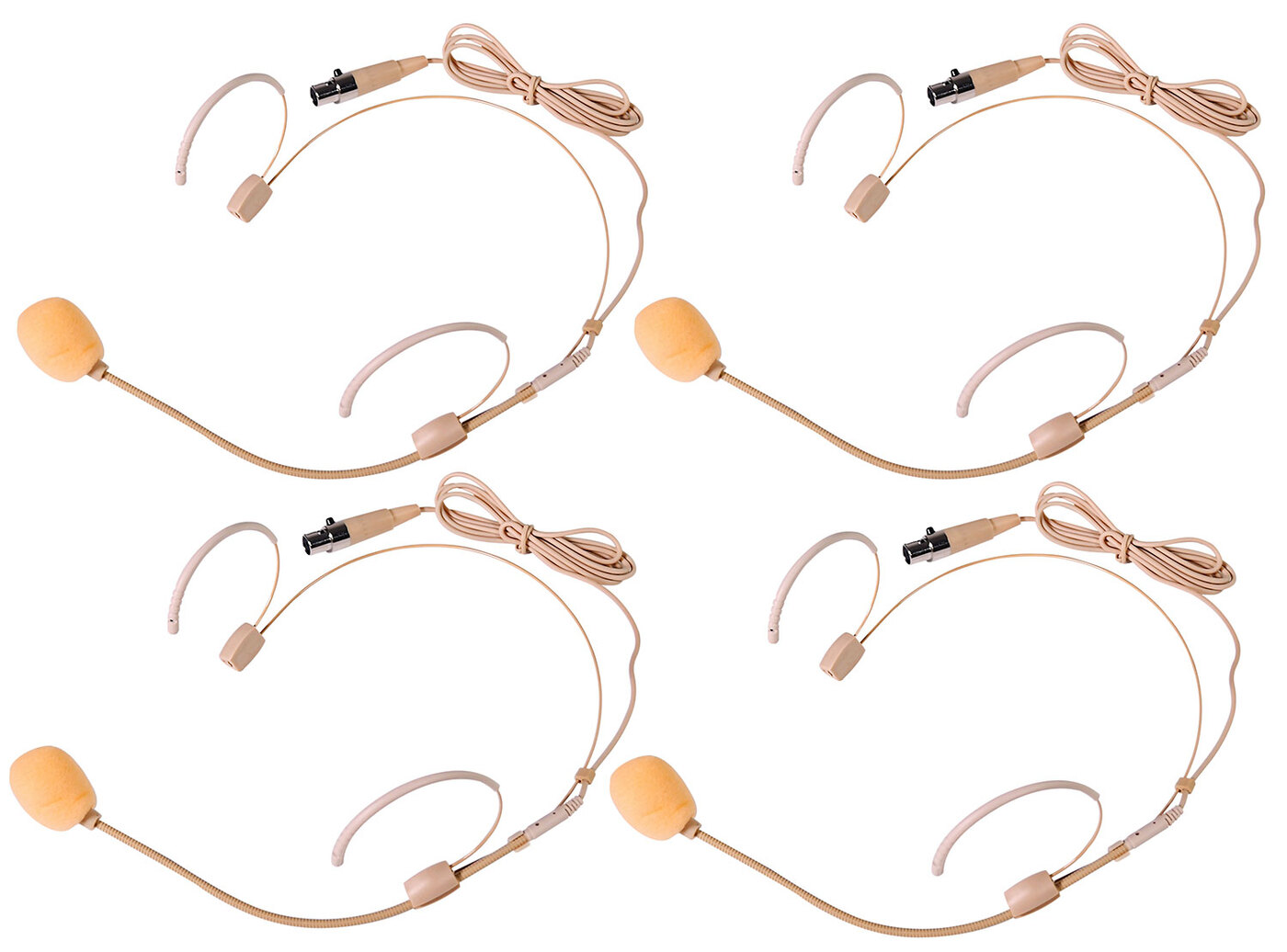

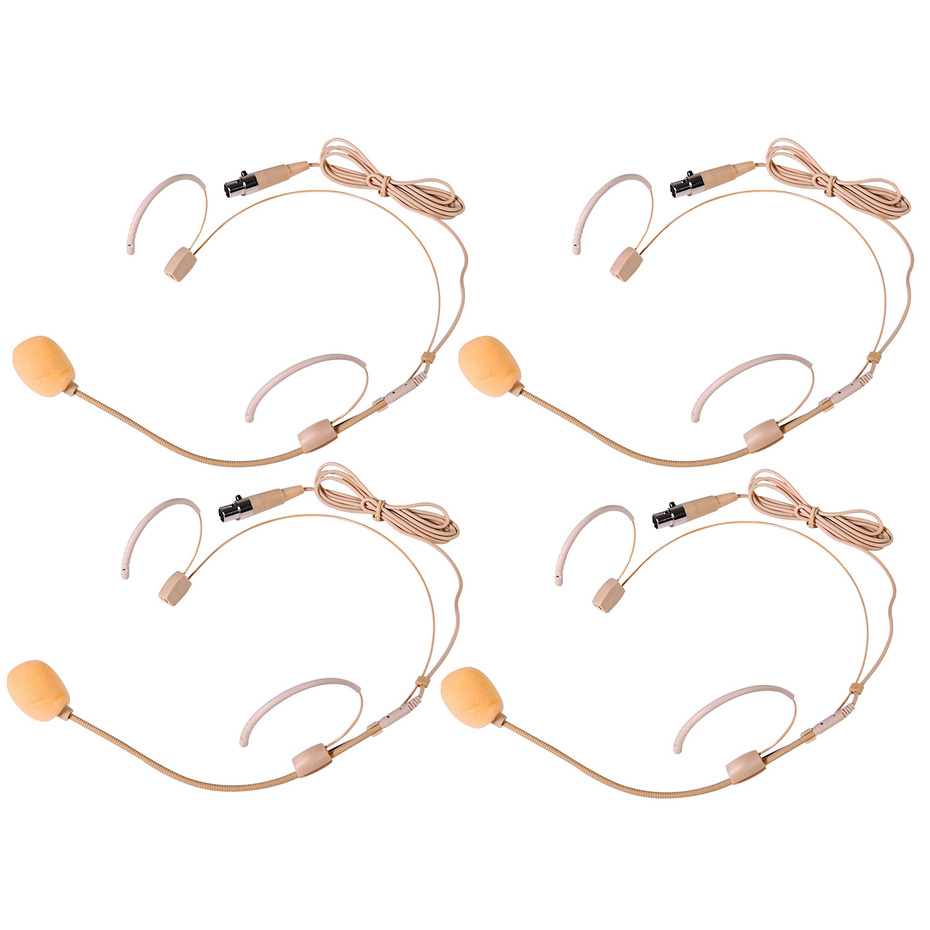

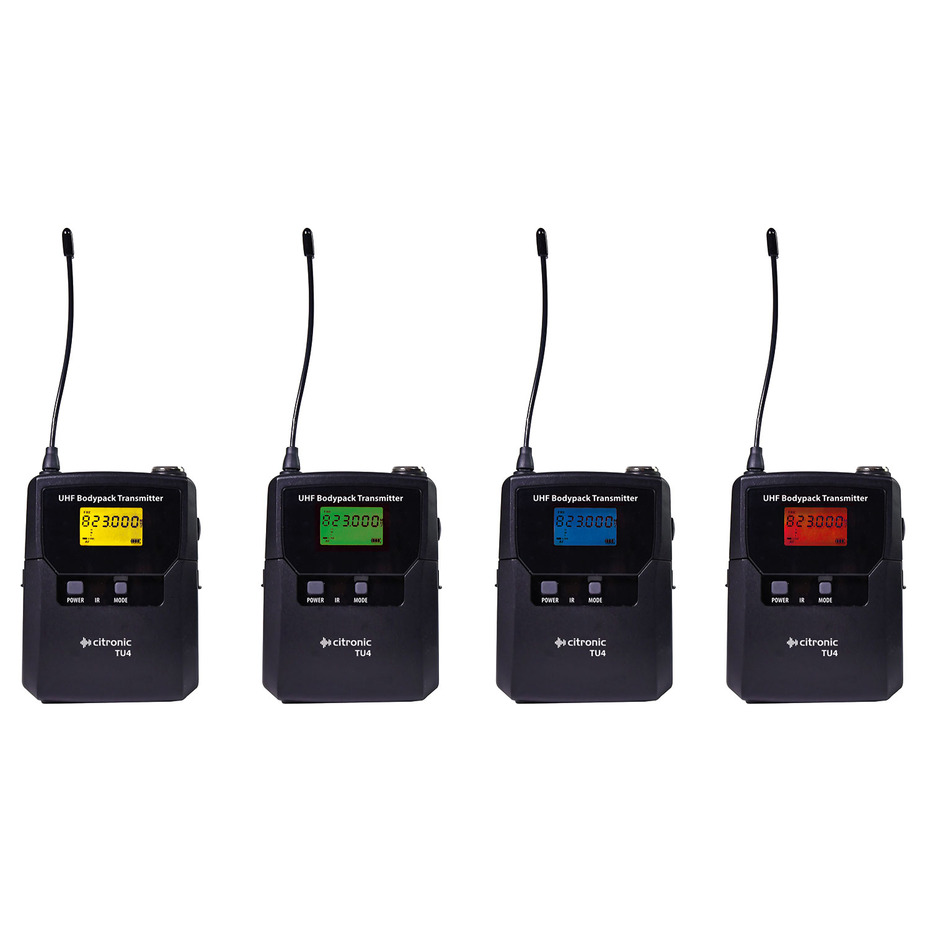

- Bodypack version supplied with both neckband and lavalier microphones

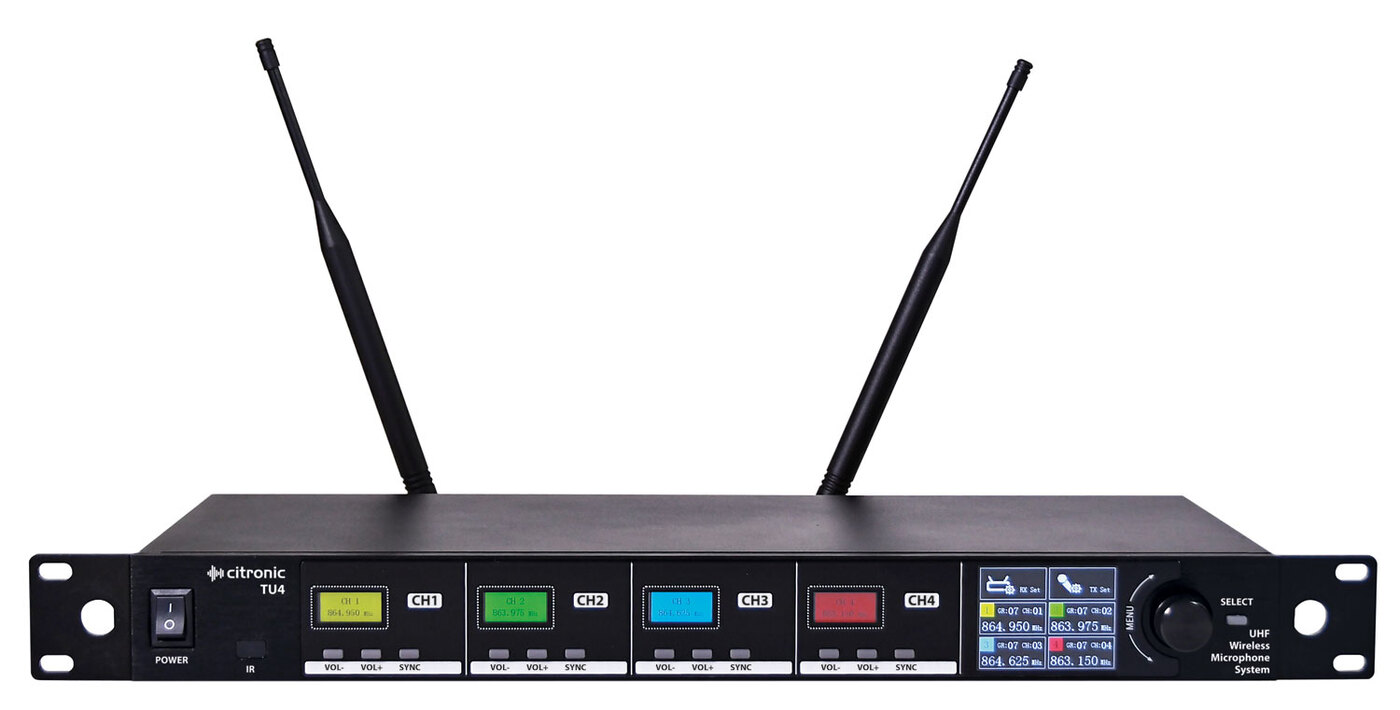

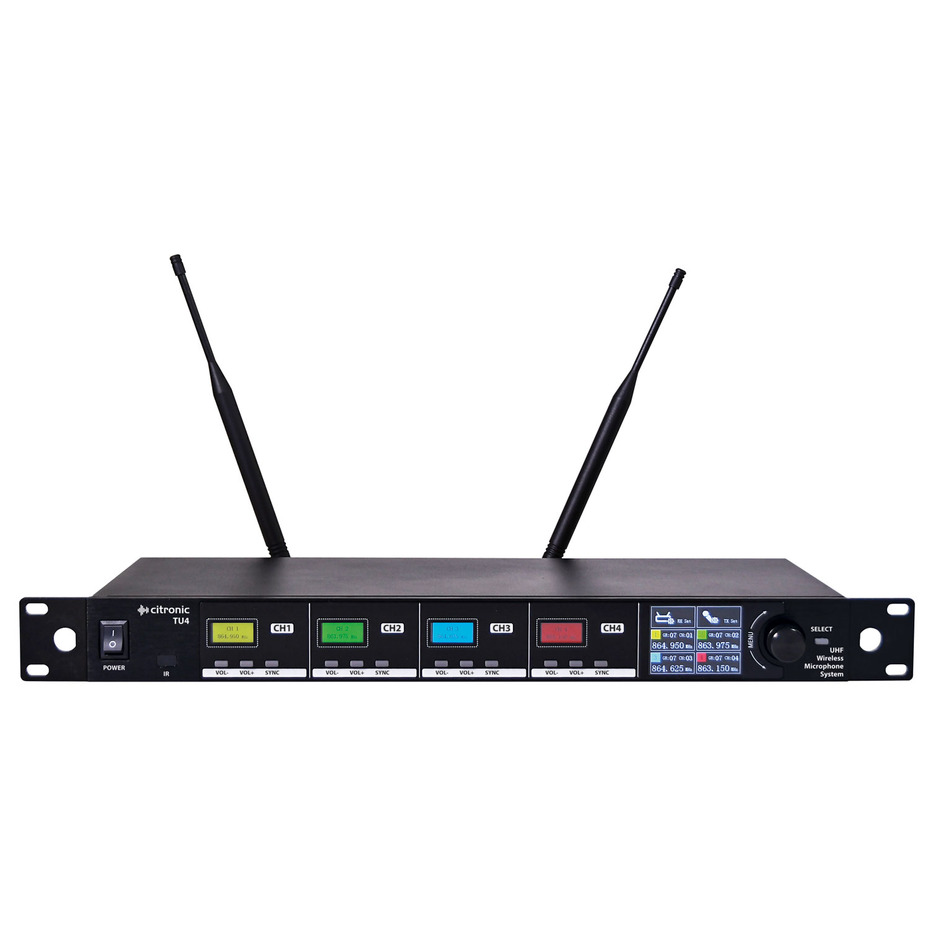

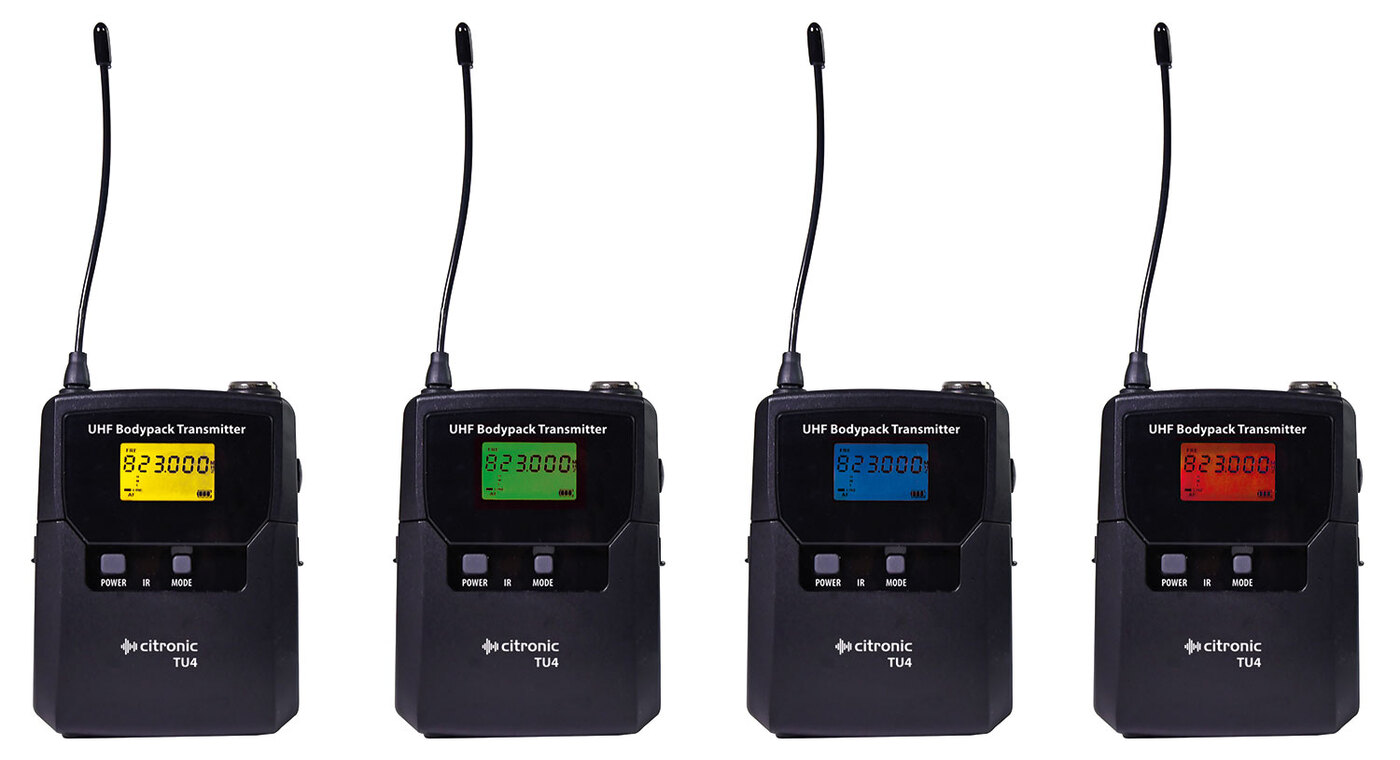

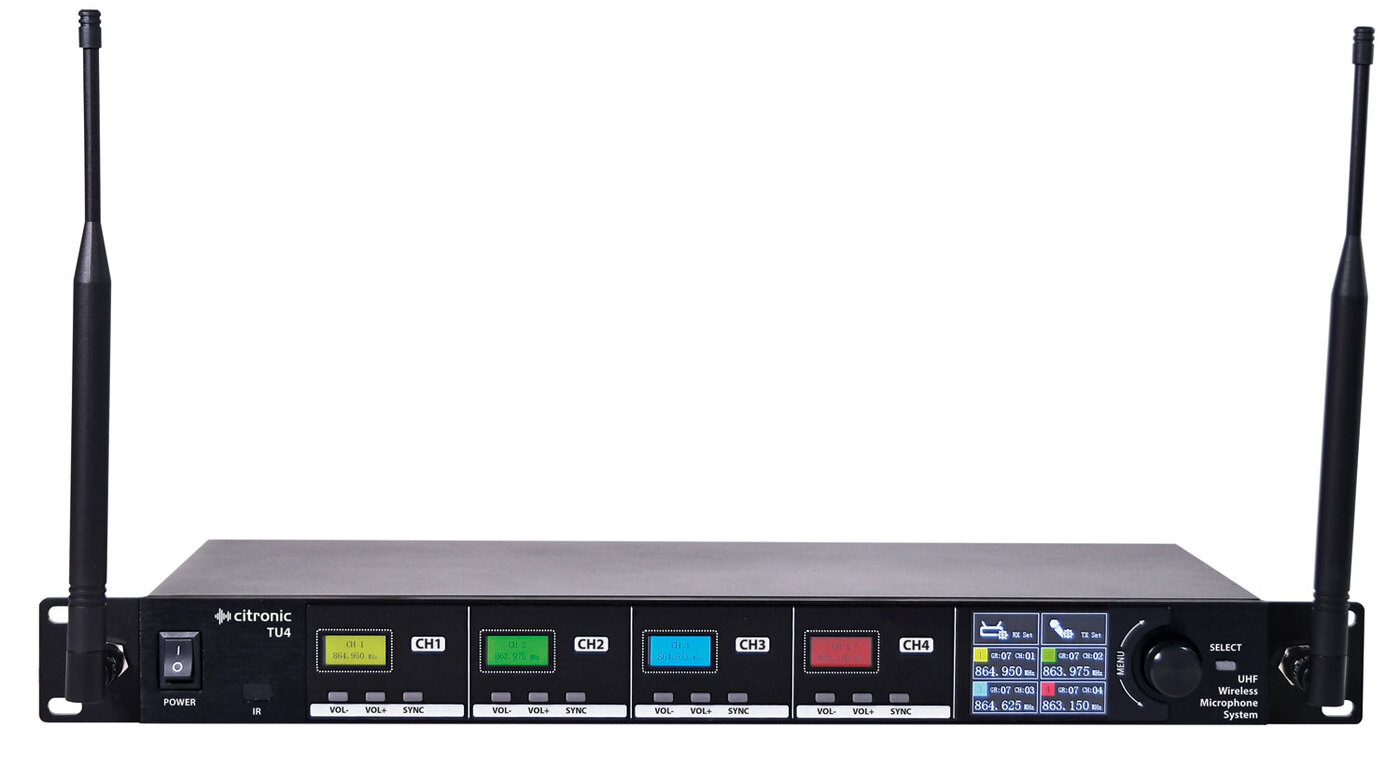

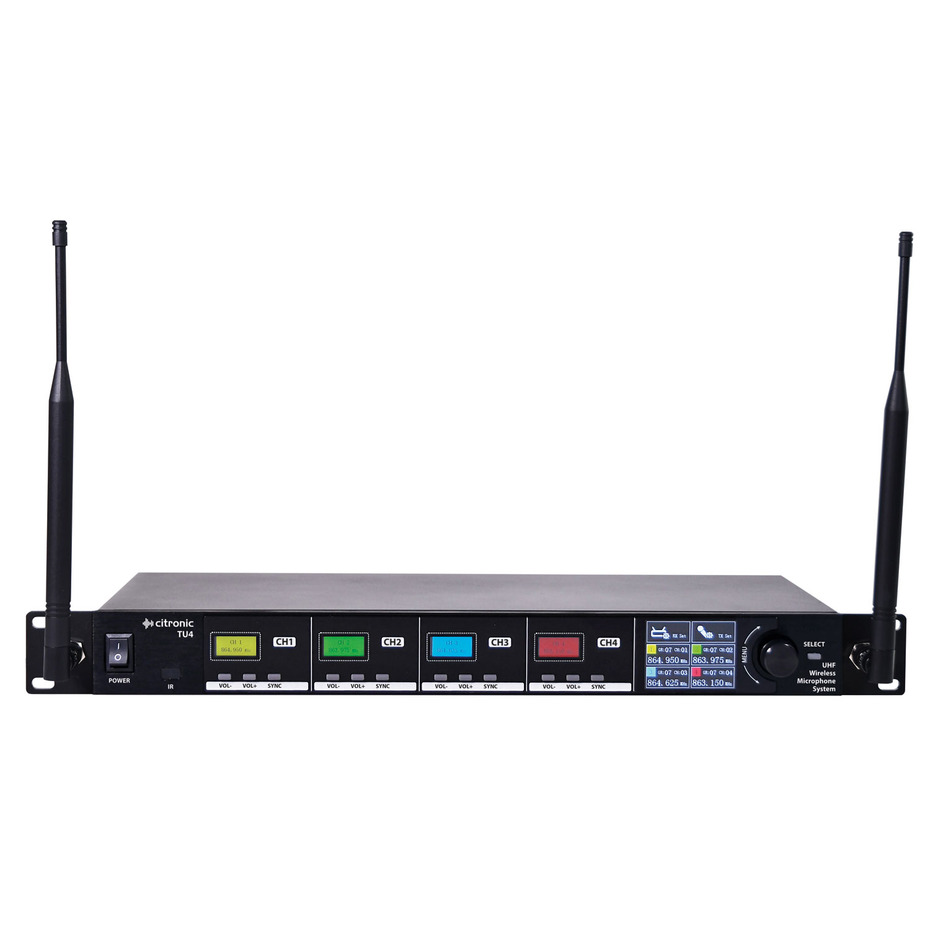

The TU4 is a true diversity UHF wireless system featuring four fully programmable channels, each capable of syncing with transmitters to set frequency, EQ, transmission power, and even backlight colour for easy identification. Transmitter options include durable handheld mics with high-grade dynamic capsules or compact bodypacks paired with neckband or lavalier mics each with balanced output. The receiver features twin BNC antenna connections (rear or front via supplied rack-mount extension cables) and operates across license-free and duplex gap UHF bands, offering 8 groups with 8–16 frequencies each. A full-color TFT display and rotary encoder make setup intuitive, with IR sync ensuring seamless transmitter configuration. Built for demanding environments like live stages, conferences, and theatrical use, the TU4 delivers professional-grade, flexible wireless performance.
- Dimensions : handheld transmitterN/A
- Weight : handheld transmitterN/A
- Dimensions : bodypack90 x 60 x 25mm
- Weight : bodypack74g (no battery)
- Dimensions : neckband microphone180 x 140 x 60mm
- Weight : neckband microphone28g
- Dimensions : lavalier microphone27 x 12mmØ
- Weight : lavalier microphone23g
- Power supply12-18Vdc, 1000mA (mains adaptor supplied)
- Batteries8 x AA
- Carrier frequencies823-832 / 863-865MHz
- Wireless rangeUp to 60m
- Antenna connectionBNC
- Dimensions : receiver482 x 185 x 44mm (1U)
- Weight : receiver1.513kg
