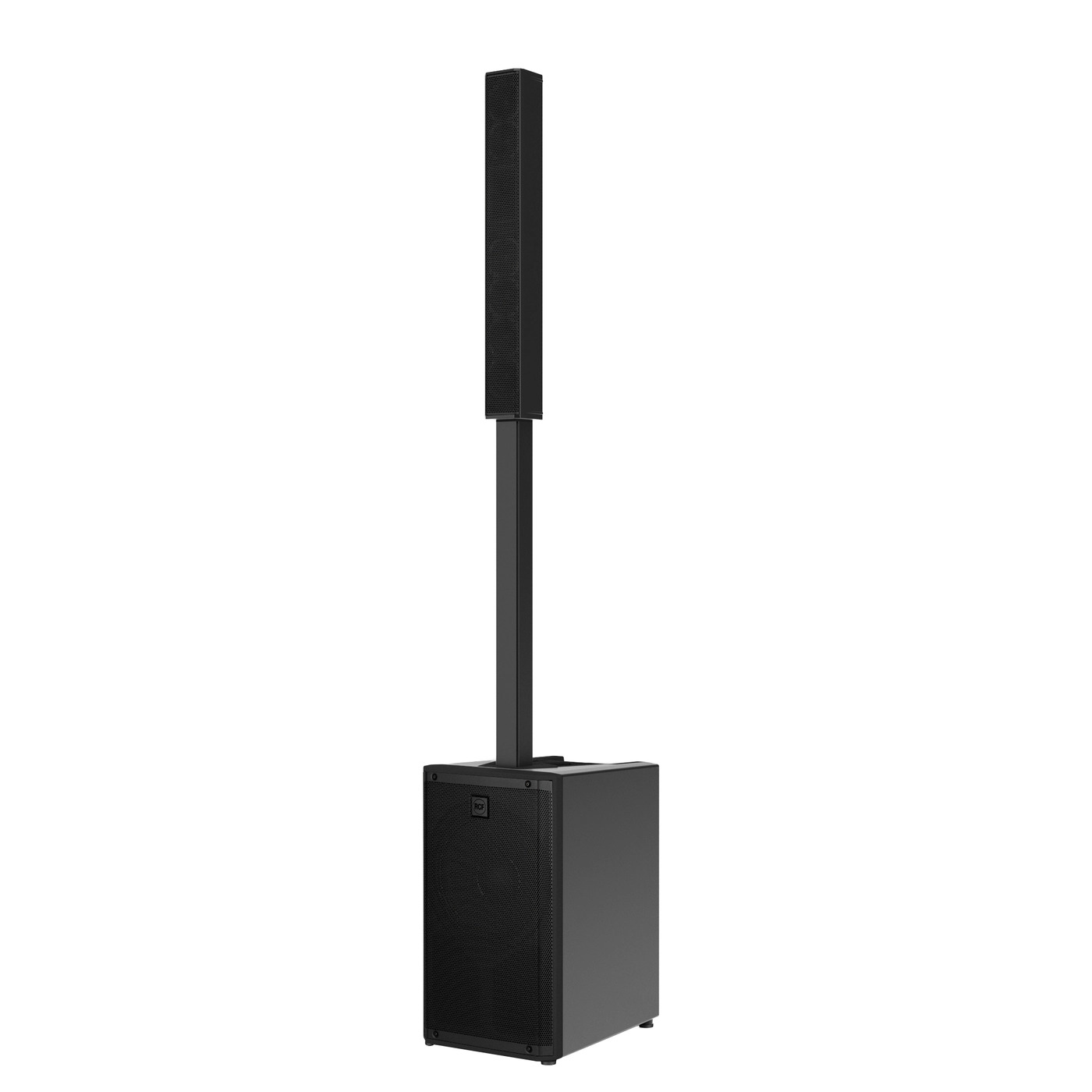

RCF EVOX JMIX9
Active Three-Way Portable Column Speaker with Mixer
- 8-Ch True-Stereo Digital Mixer w/ Bluetooth®
- 130 dB Max SPL
- 2100 W Class-D Amplifier - Built-In DSP
- 1.75” Neo Compression Driver - 120° X 40° True Resistive Waveguide
- 6 × 3” Full-Range Neo Transducers
- 12” High-Power Woofer
- Enhanced Coverage And Clarity
- Sleek Composite Cabinet With Aluminum Stand Mount
- Top Speaker Padded Carrying Bag Included

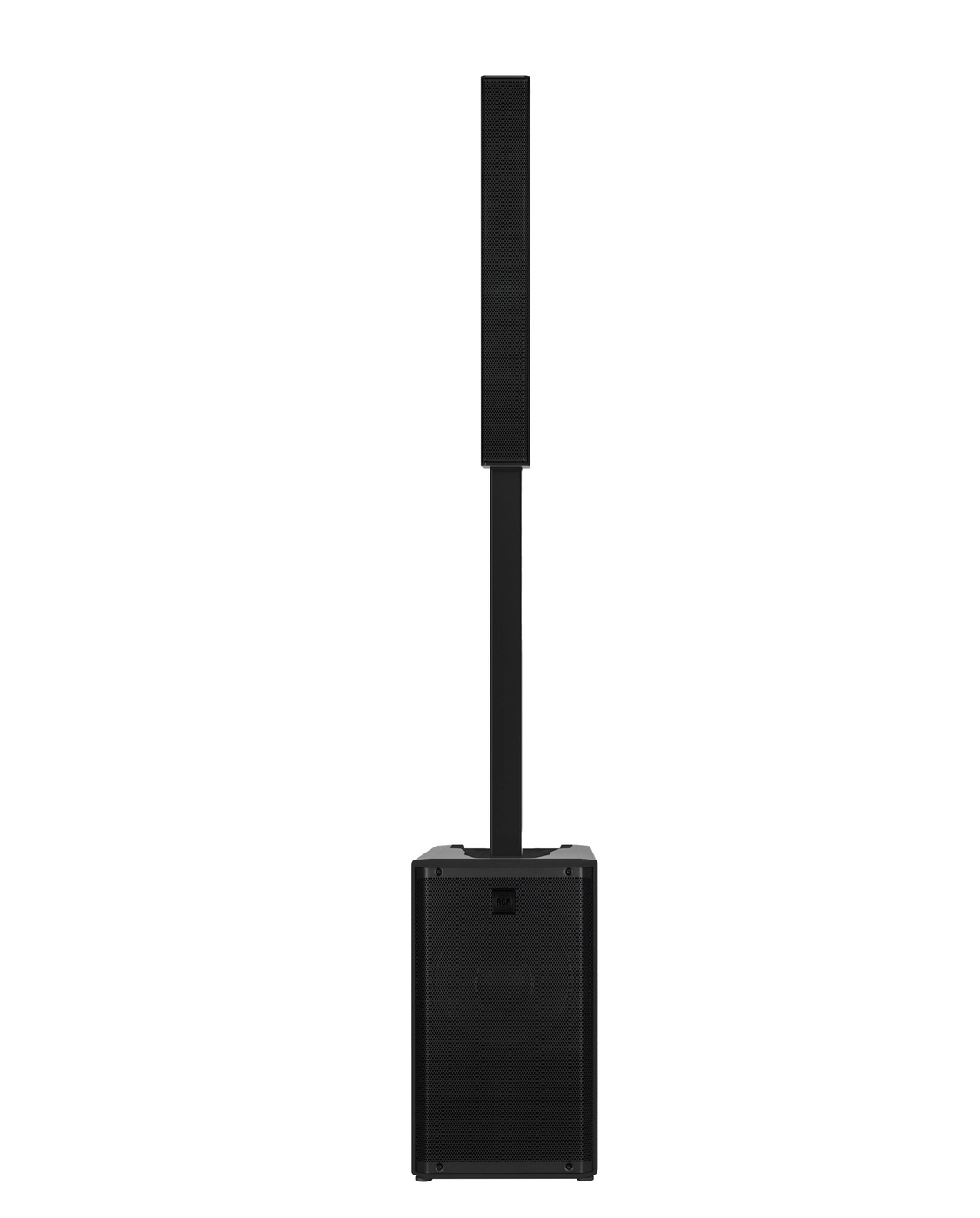

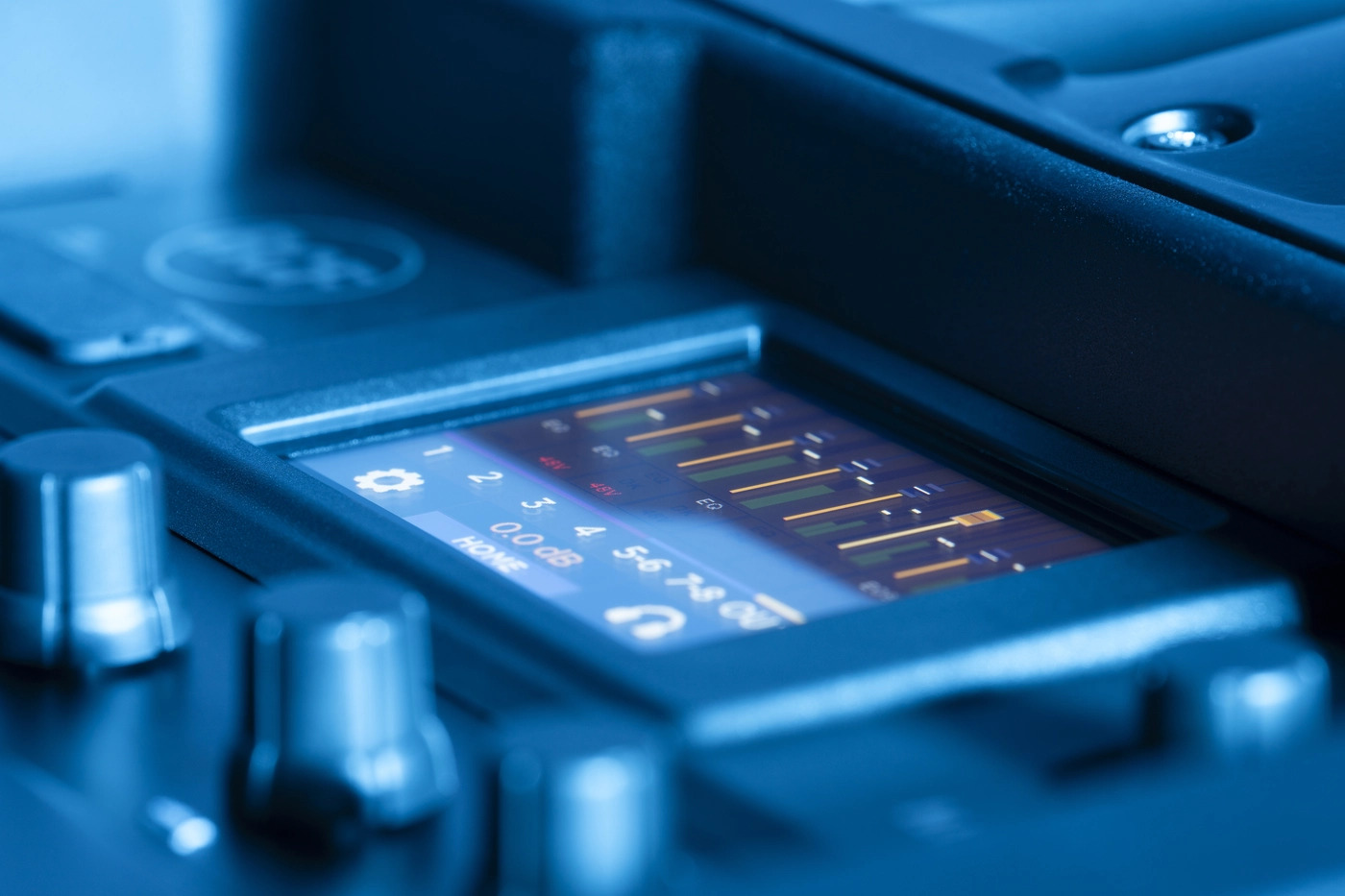

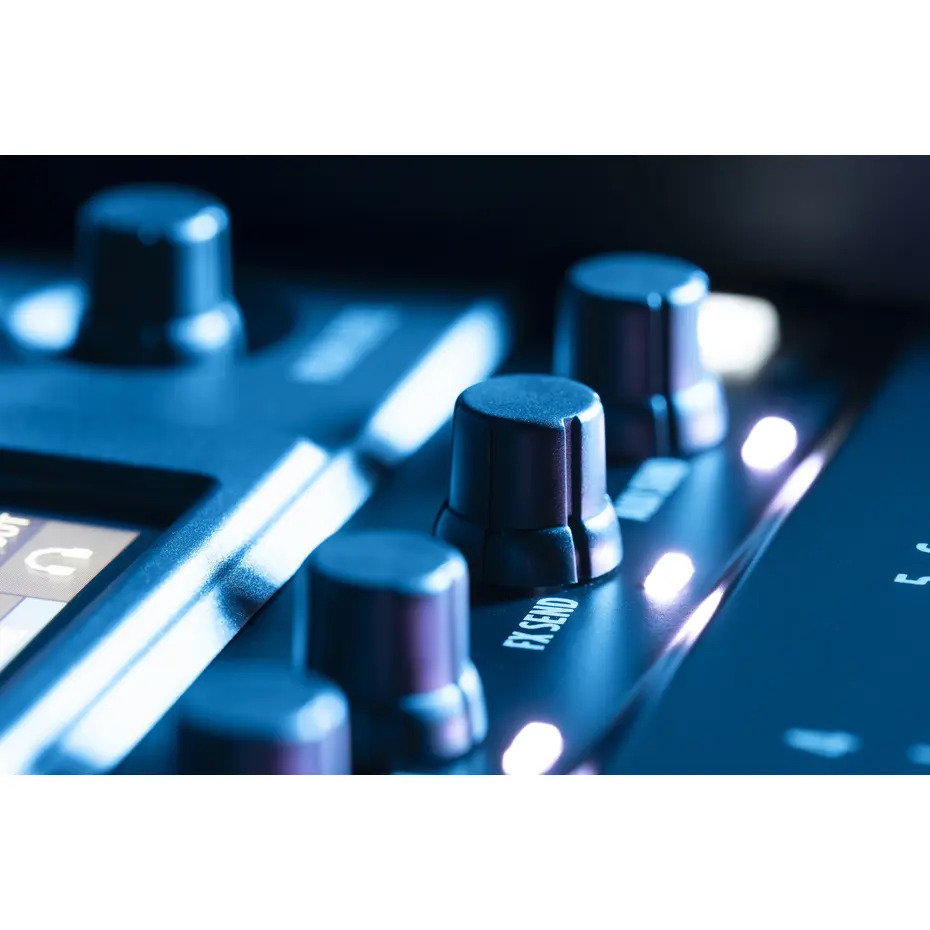

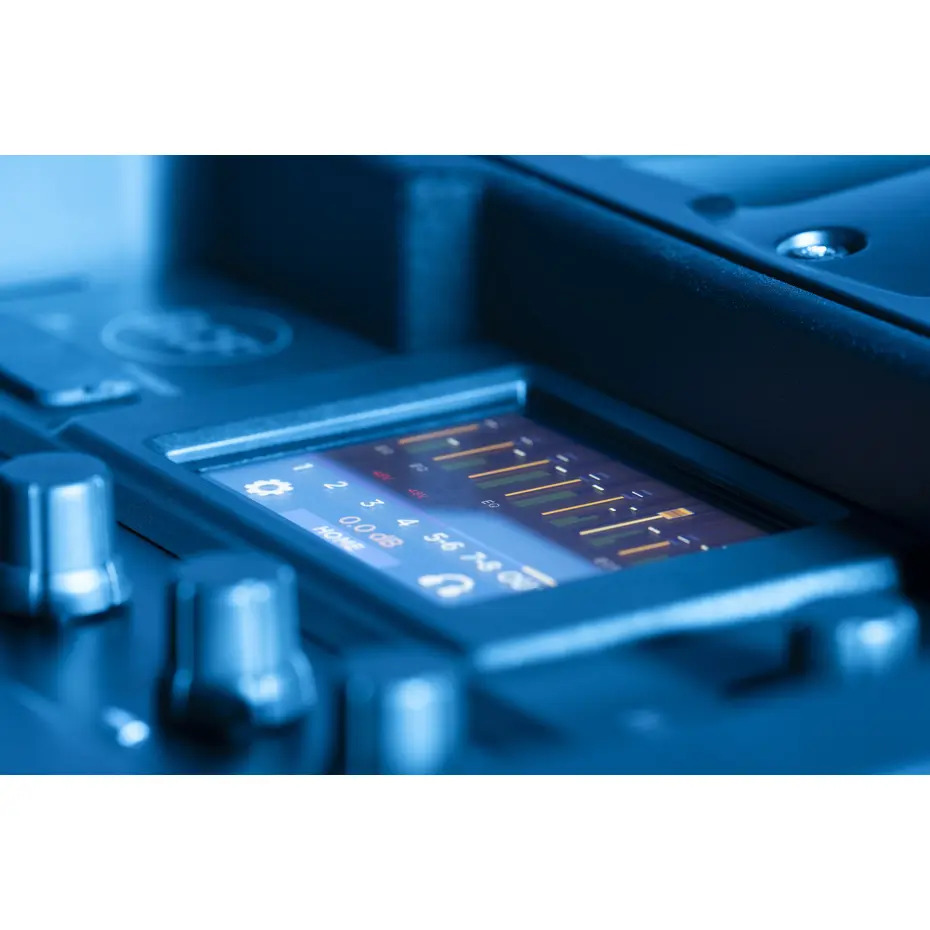

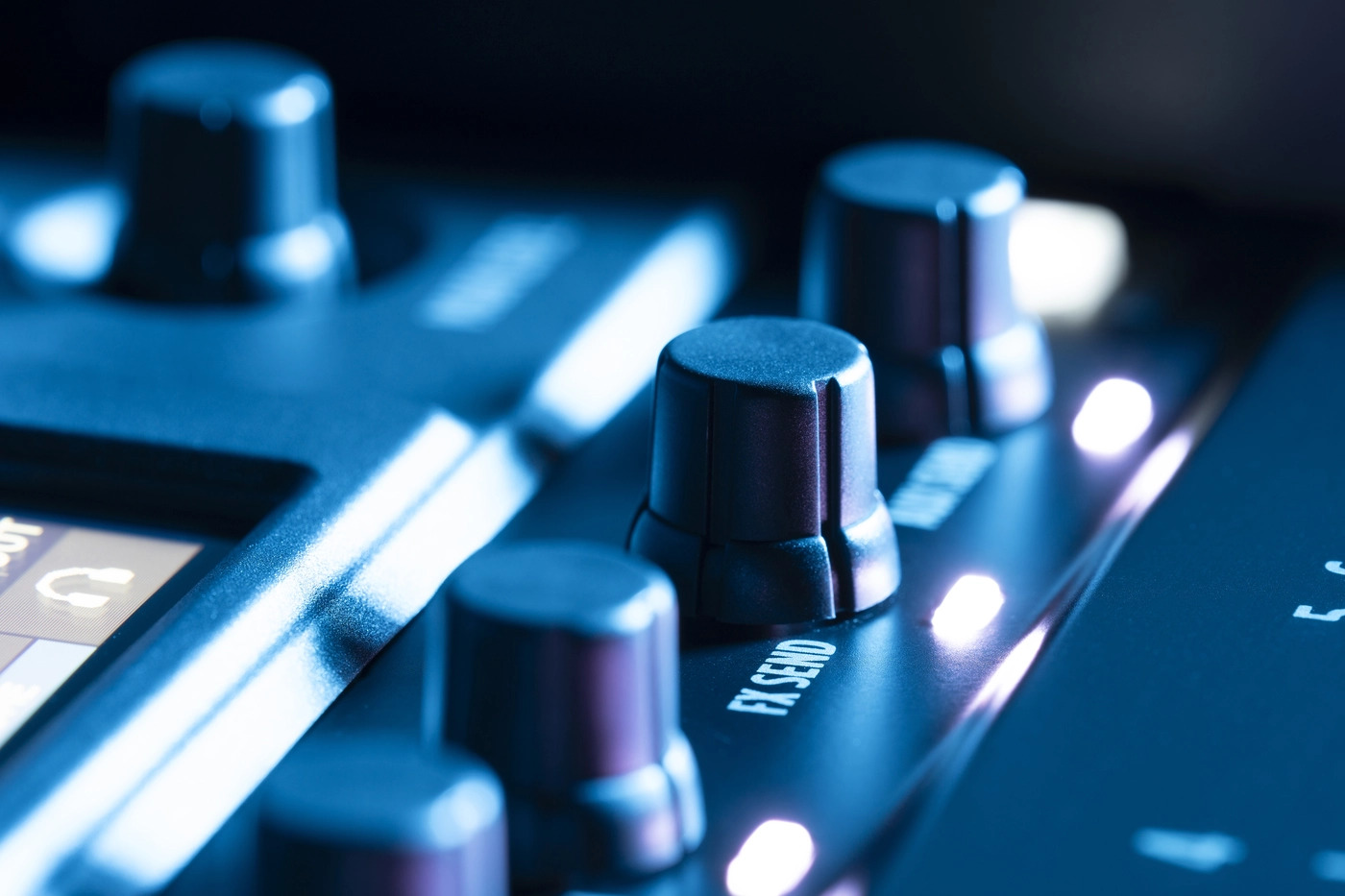

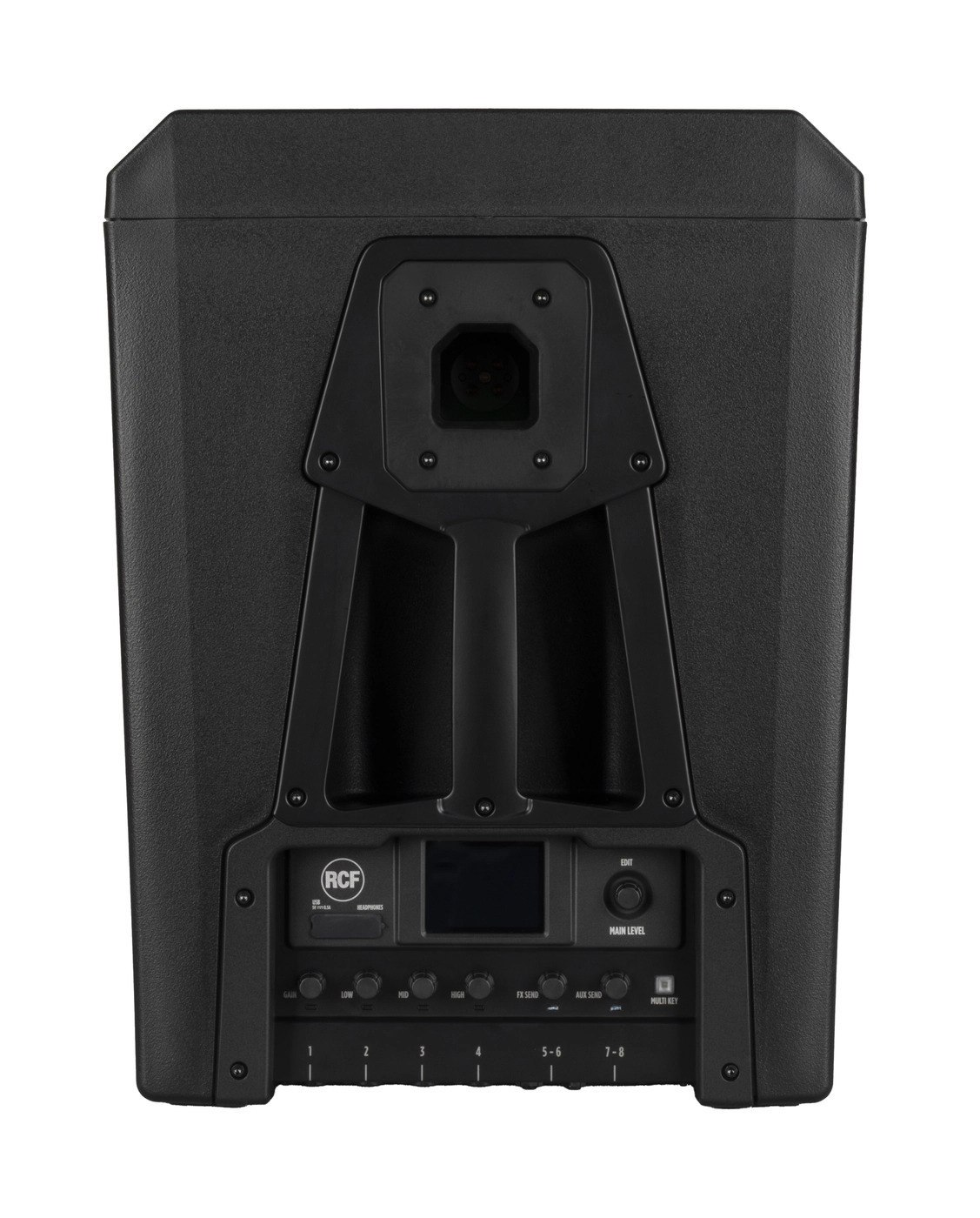

The EVOX JMIX9 is a three-way active portable sound system featuring an integrated 8-channel stereo digital mixer with a full-color touchscreen, rotary encoders, Bluetooth® streaming, and complete remote control. It combines the acoustic performance of the EVOX J9 with advanced digital mixing, flexible routing, and wireless operation to deliver professional-grade audio from input to output.

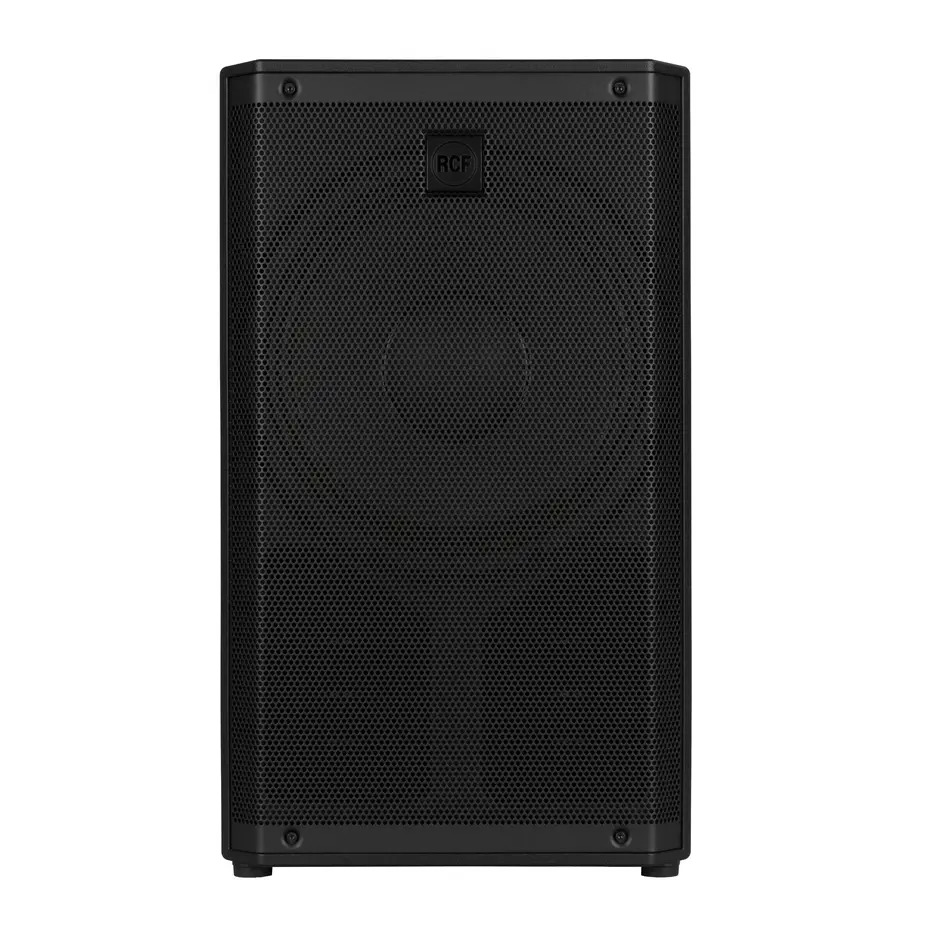

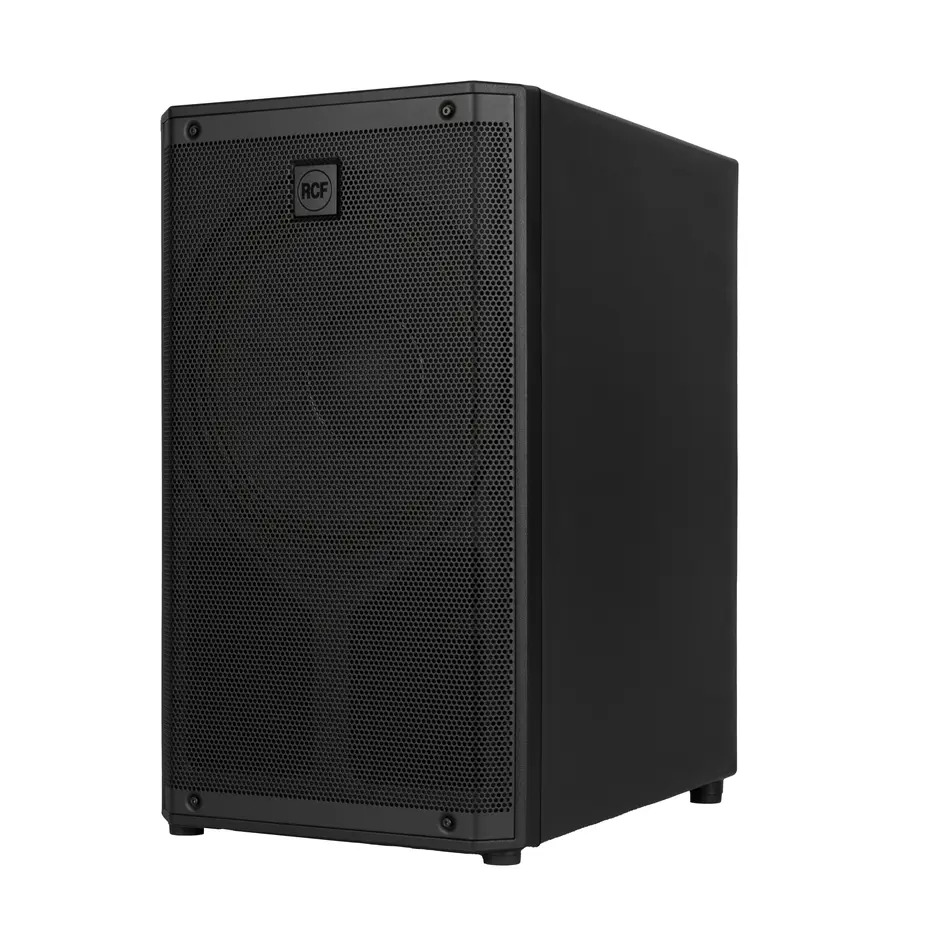

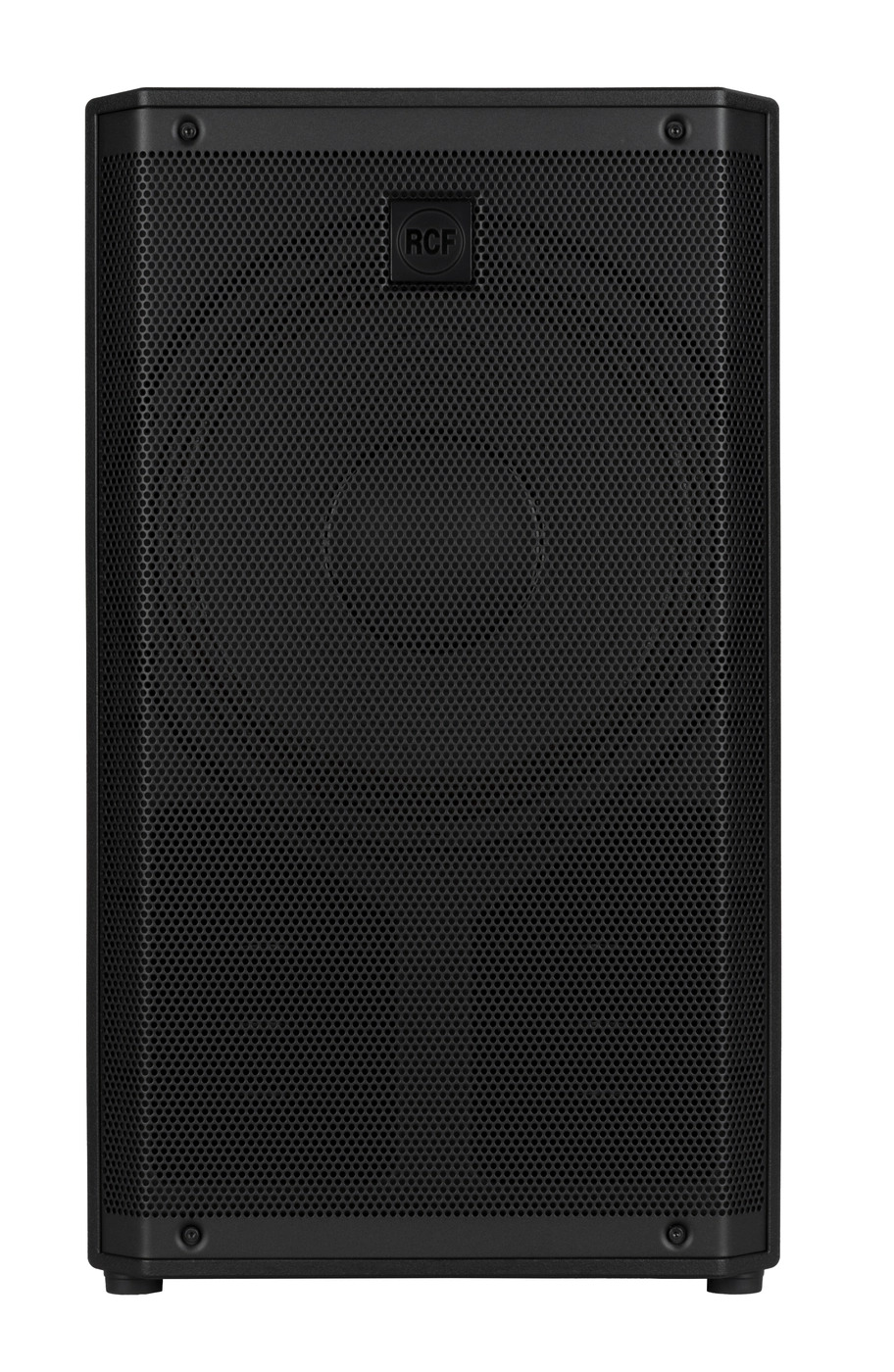

A 1.75” compression driver with a 120° × 40° True Resistive Waveguide ensures consistent, wide sound dispersion, while six 3” full-range drivers and a high-power 12” bass-reflex woofer provide detailed midrange and powerful, controlled low frequencies. Driven by a 2100 W Class-D amplifier and capable of up to 130 dB Max SPL, the EVOX JMIX9 offers combo inputs, stereo and auxiliary outputs, onboard EQ and reverb, phantom power, and Bluetooth audio streaming. All system functions can be managed directly from the touchscreen or via the JMixRemote app.
Frequency Response
40 Hz – 20,000 Hz
Max SPL @ 1m
130 dB
Coverage Angle
Horizontal: 120°
Vertical: 40°
Transducers
Compression Driver: 1 x 0.75" neo, 1.75" voice coil
Fullrange: 6 x 3.0" neo, 1.0" voice coil
Woofer: 1 x 12", 2.5" voice coil

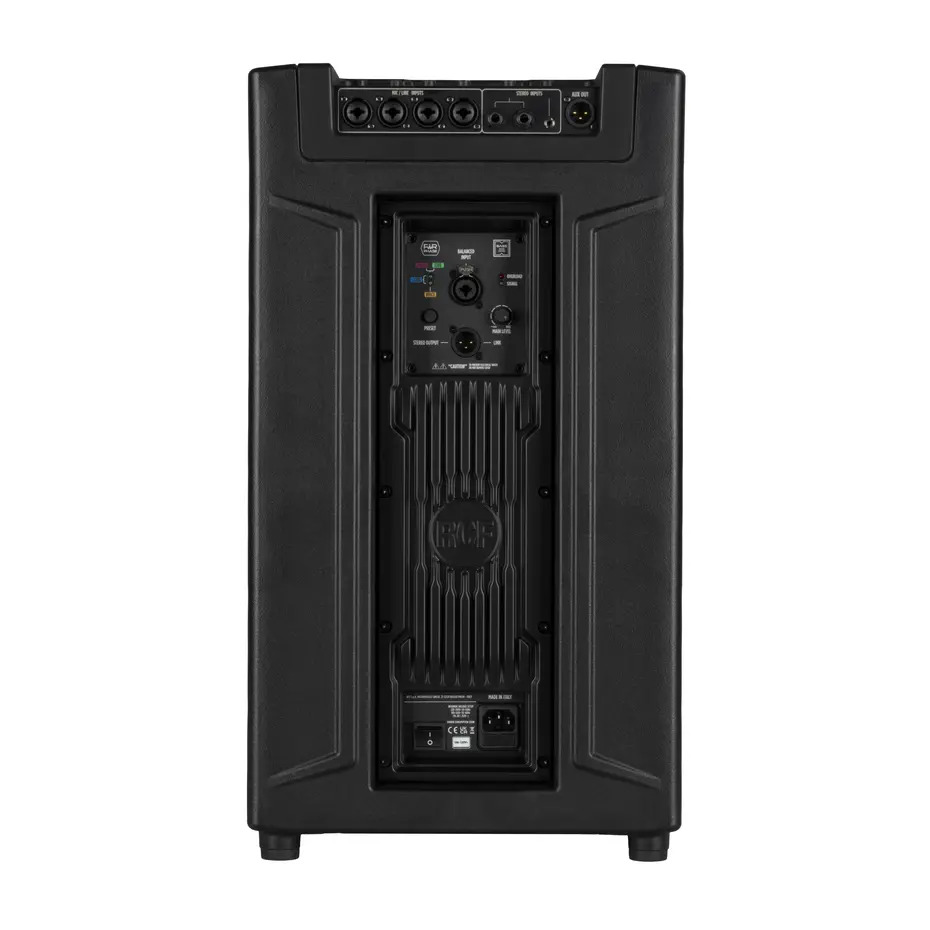

Input/Output Section
Input Signal
Balanced / Unbalanced
Input Connectors
Combo XLR / Jack
Output Connectors
XLR
Input Sensitivity
-2 dBu / +4 dBu
Processor Section
Crossover Frequencies
200 Hz / 1800 Hz
Protections
Thermal, RMS
Limiter
Soft Limiter
Controls
Digital mixer controlled by touch screen and encoders
Power Section
Total Power
2100 W Peak
High Frequencies
700 W Peak
Low Frequencies
1400 W Peak
Cooling
Convection
Connections
VDE
Electronic Specifications
Frequency Response
20 Hz – 20 kHz
THD+N (20 dB gain, 0 dBu out)
0.003% A-Weighted
Processing
Processing Channels
8
Signal Processing
32 Bit
A/D-D/A Conversion
24 Bit @ 48.0 kHz
Dynamic Range
114 dB

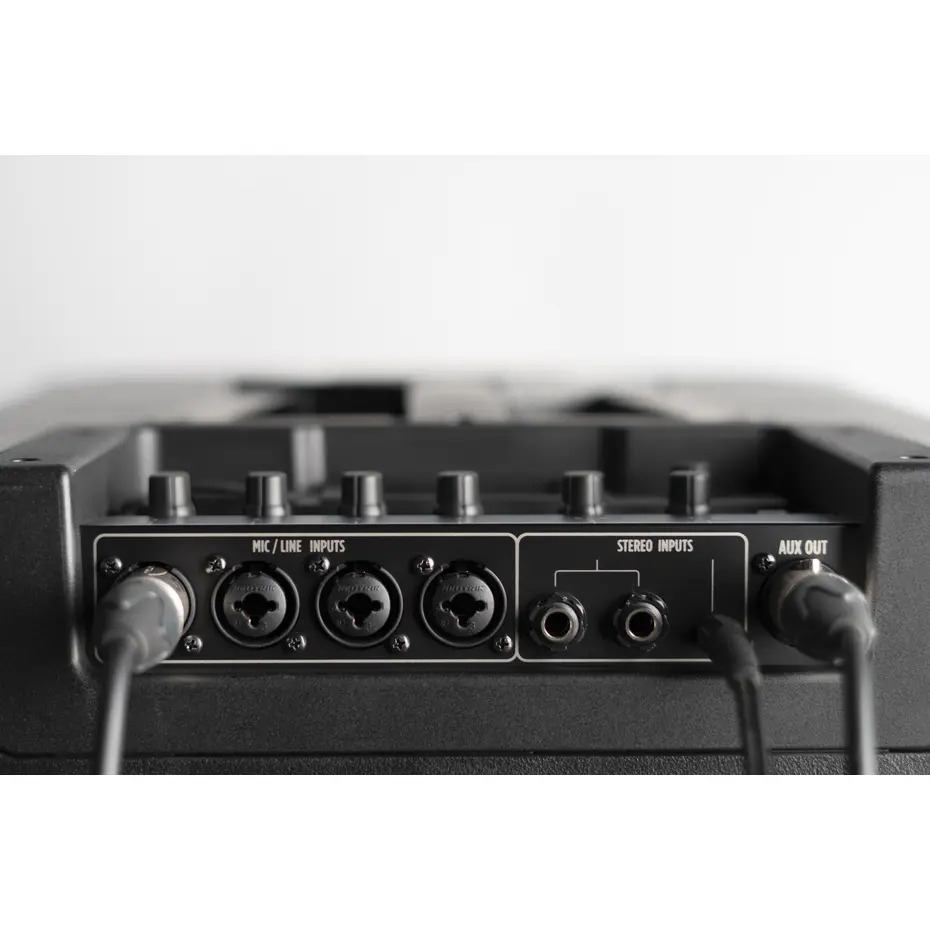

Inputs
| Input Type | Quantity | Gain Range | Impedance | Other Features |
|---|---|---|---|---|
| Mic | 4 | 0 dB – 36 dB | 3 k | Remote controlled storable gain, Phantom Power +48V, Low Cut 20 Hz – 400 Hz |
| Mono Line | 4 | 0 dB – 36 dB | 10 k | |
| Stereo Line | 2 | 0 dB – 0 dB | 24 k |
Outputs
| Output Type | Quantity | Impedance | Level |
|---|---|---|---|
| Main MIX | 1 | 150 | 20 dBu |
| FX Send | 1 | — | — |
| AUX Send | 1 | 150 | 20 dBu |
| AUX Output | 1 | 150 | 20 dBu |
| Phones | 1 | 100 | 20 dBm |
Additional Specifications
D/A Dynamic Range
118 dB
Input Noise Level
-114 dBu A-Weighted
Compressors
RCF Compressors on MIC/LINE CH1 to CH4 Inputs
EQ
Input Channels: 1 Semi Parametric / 2 Shelving
3 Band EQ: High and Low band shelving, MID band peak on INPUT
8 Band EQ: 6 Full Parametric, 1 High Shelving, and HPF 12dB/Oct on amplifier and MAIN output
Auxiliary Sends
1 PRE/POST AUX
1 FX POST
Internal Effects
Send Effects: 1
Mastering Processors: 1
Main Output Types
MIX OUT, STEREO/MONO OUTPUT, AUX OUT, HEADPHONES OUTPUT
Electrical Specifications
Power Supply
Internal
Standard Compliance
CE compliant
Physical Specifications
| Feature | Specification |
|---|---|
| Cabinet/Case Material | PP Composite |
| Handles | 1 Top |
| Pole Mount/Cap | Quick-fit socket |
| Grille | Steel |
| Color | Black, White (RAL 9003) |
Dimensions
Height: 2080 mm / 81.89 inches
Width: 350 mm / 13.78 inches
Depth: 460 mm / 18.11 inches
Weight
28.8 kg / 63.49 lbs
Shipping Information
| Package Dimension | Size (mm/inches) |
|---|---|
| Height | 676 mm / 26.61 inches |
| Width | 451 mm / 17.76 inches |
| Depth | 581 mm / 22.87 inches |
Package Weight
32.5 kg / 71.65 lbs
