QTX Pixelator
144pcs Pixel LED Effects Bar

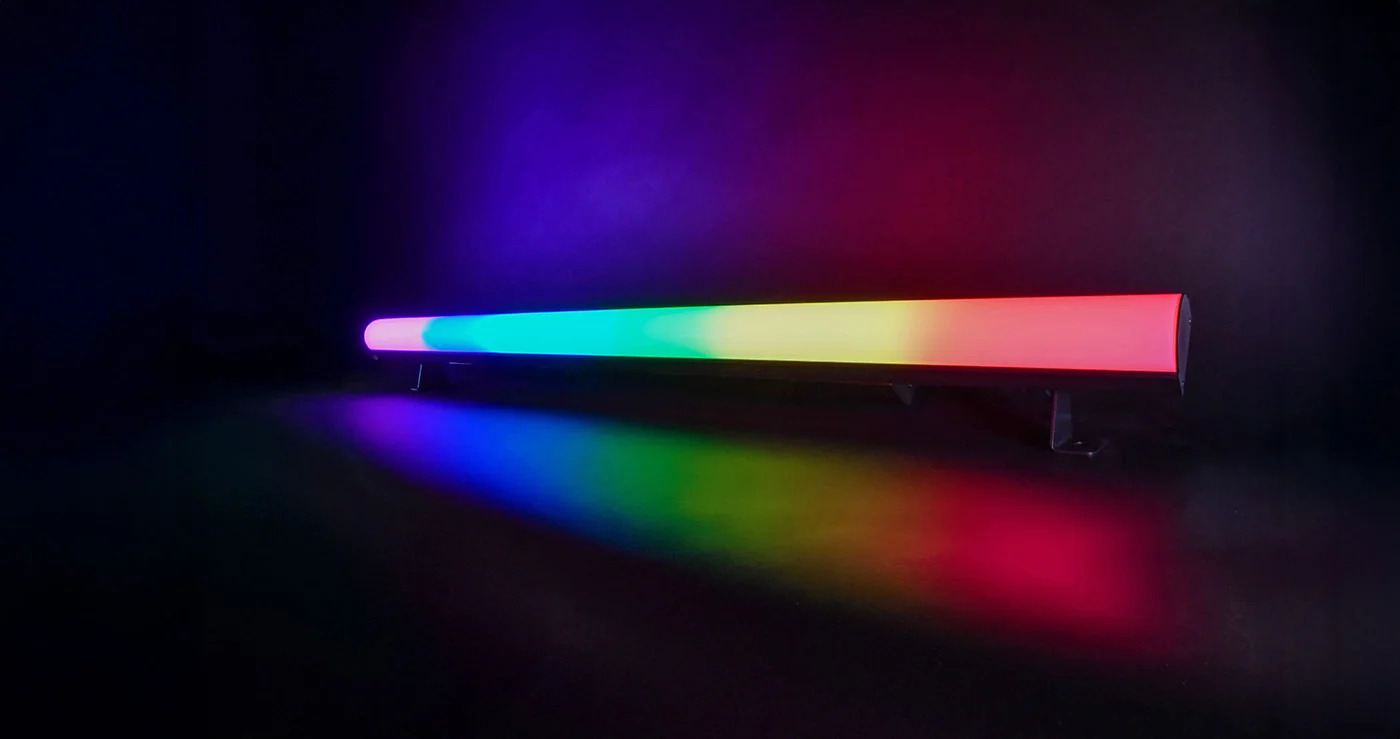

- 144pcs of high output SMD5050 RGB LEDs produce a vast array of colourful moving effects and washes
- Automatic, show and sound modes that can be tailored to your requirements using additional speed, sensitivity and strobe settings
- Connect to multiple units and control using DMX for a wider effect
- 3, 5, 8, 36 or 40 channel DMX modes
- Twist and lock power connections for a more professional feel

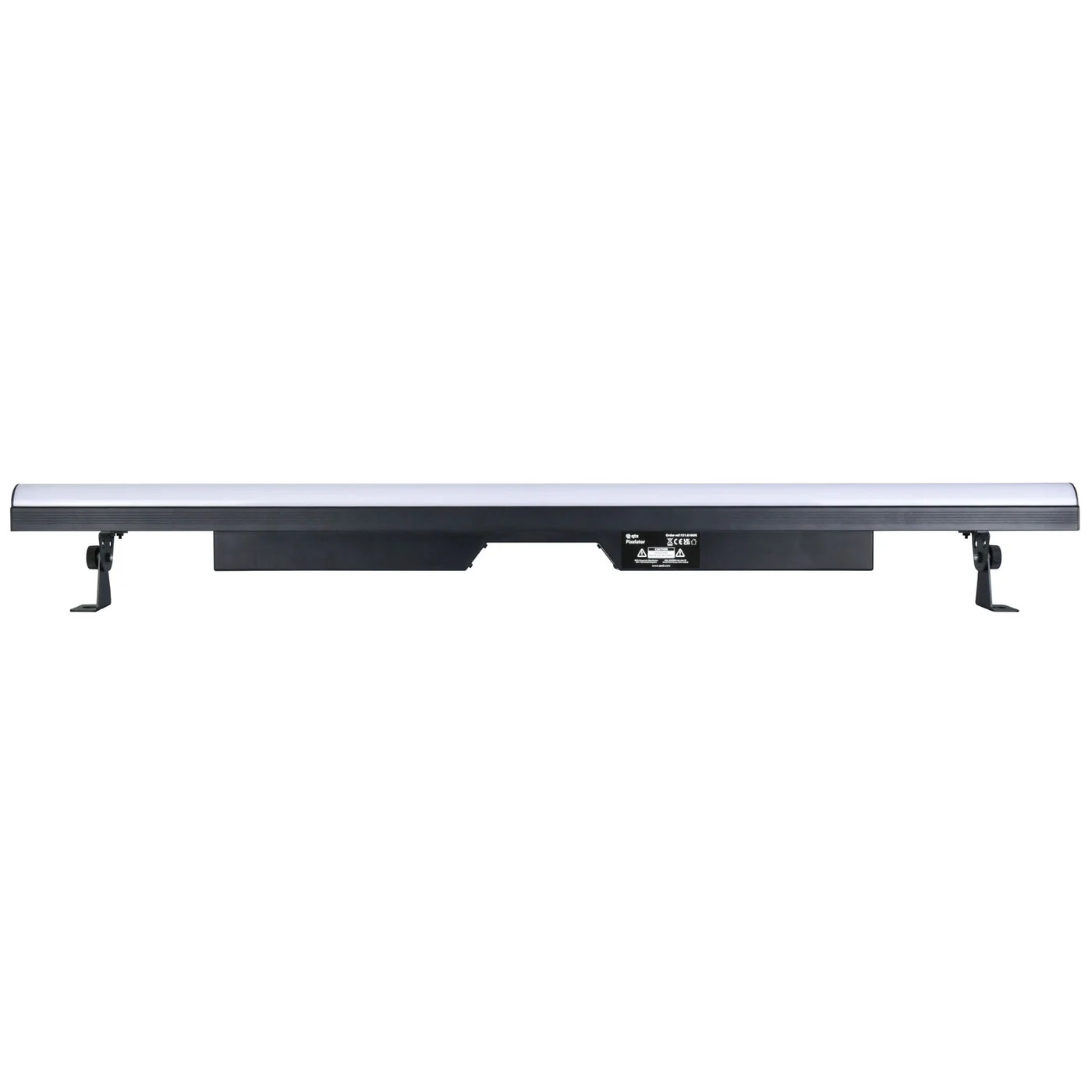

- Supplied with dual mounting brackets for hanging, truss mounting or free-standing
Pixelator: 144-LED Pixel Effects Bar
This LED effects bar features 144 vibrant RGB SMD LEDs, delivering a wide variety of bright, colorful patterns and dynamic effects. It offers multiple automatic show modes and sound-activated functions that can be controlled directly from the unit. For more advanced setups, the Pixelator can be operated via DMX in different channel modes and linked with multiple bars to create larger, synchronized displays. Included are twist-and-lock power cables and adjustable tilt brackets, allowing for easy hanging, truss mounting, or free-standing use.
Power Supply: 110–240 Vac, 50/60 Hz
Power Consumption: 60 W
LED Type: 144 pcs SMD 5050 3-in-1 RGB LEDs
Beam Angle: 90°
Modes: Auto, Show, Sound, Master/Slave, DMX
DMX Channels: 3, 5, 8, 36, or 40 CH

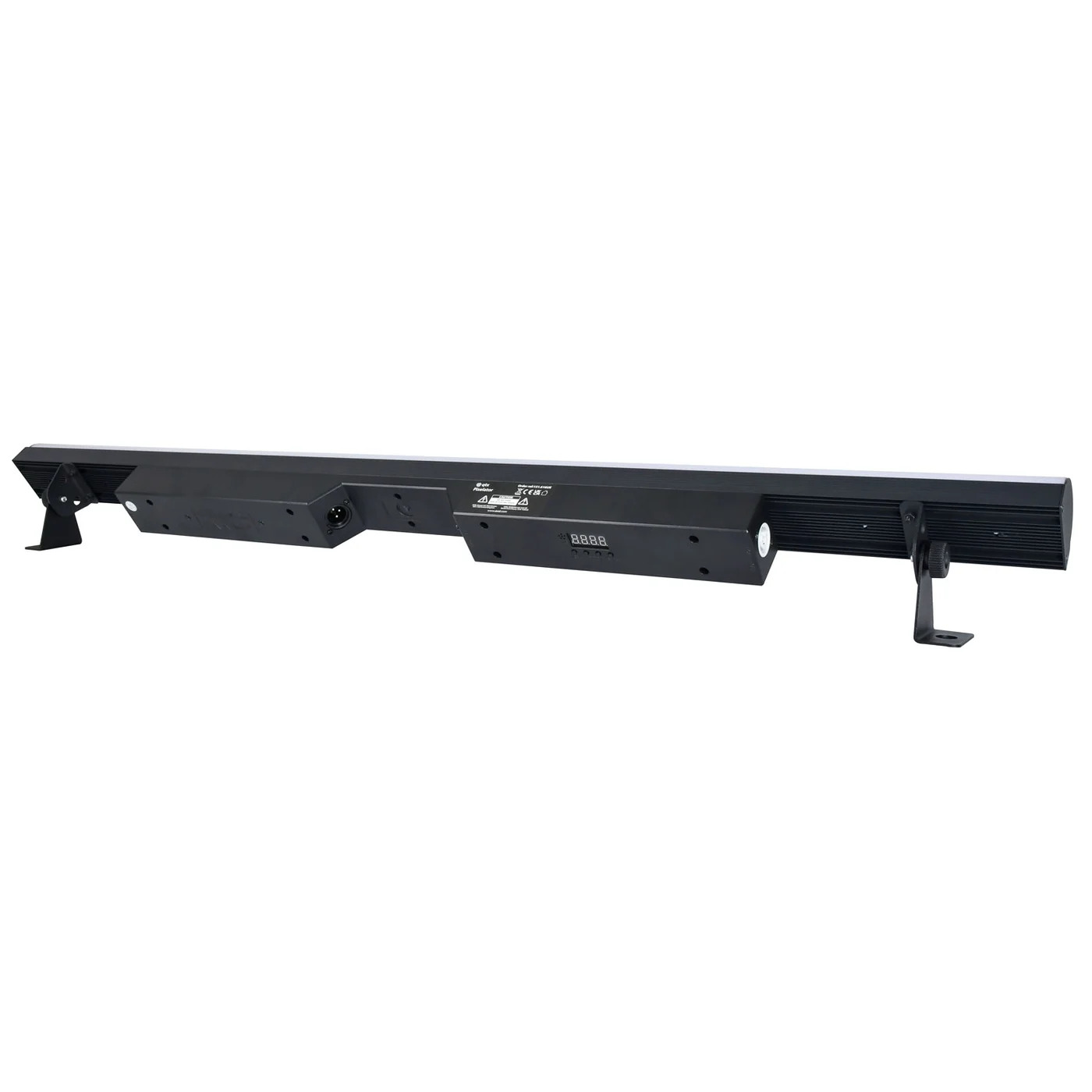

Connections: Power in/out (twist and lock), DMX in/out (3-pin XLR)
Dimensions: 60 x 80 x 1010 mm
Weight: 1.54 kg
