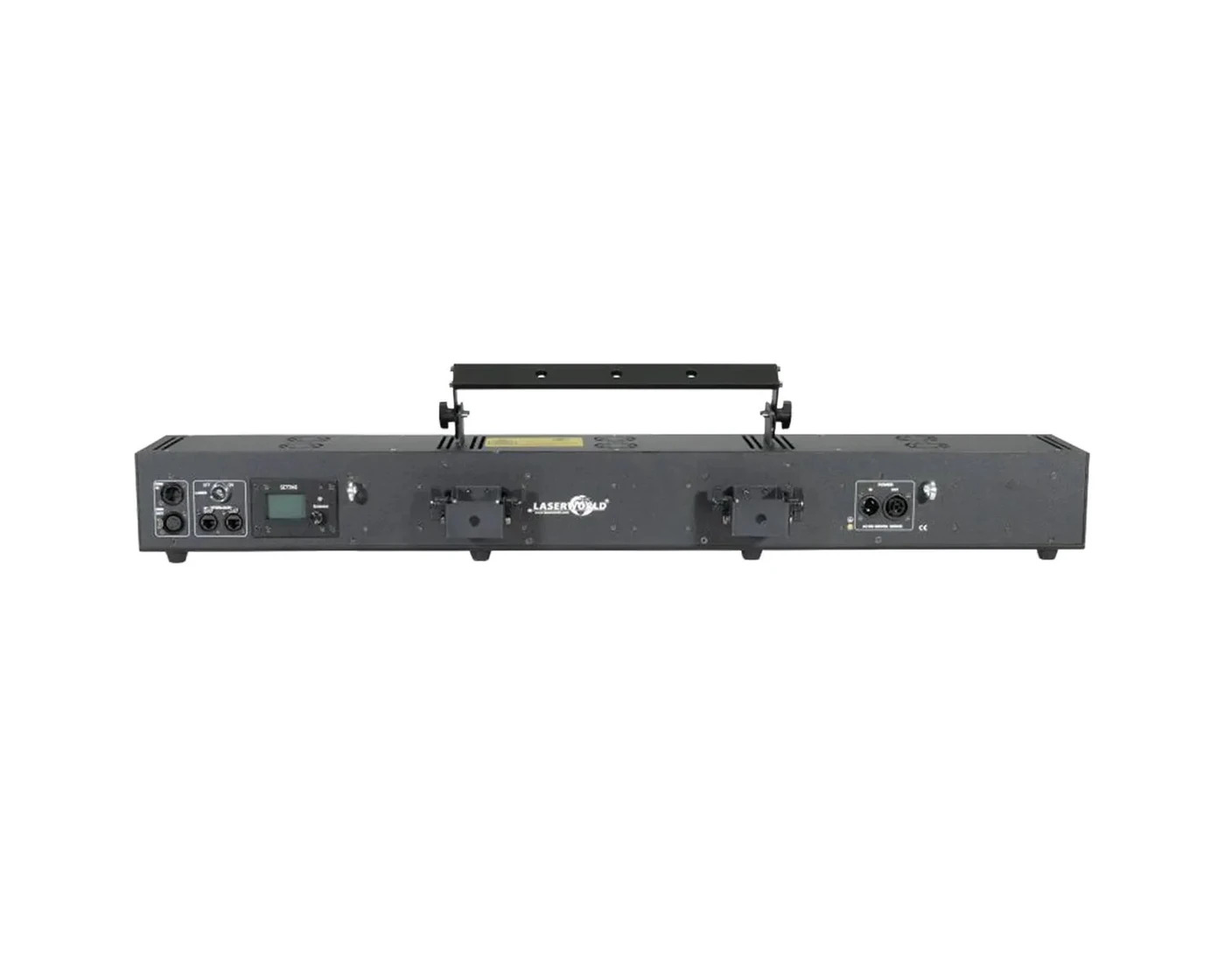

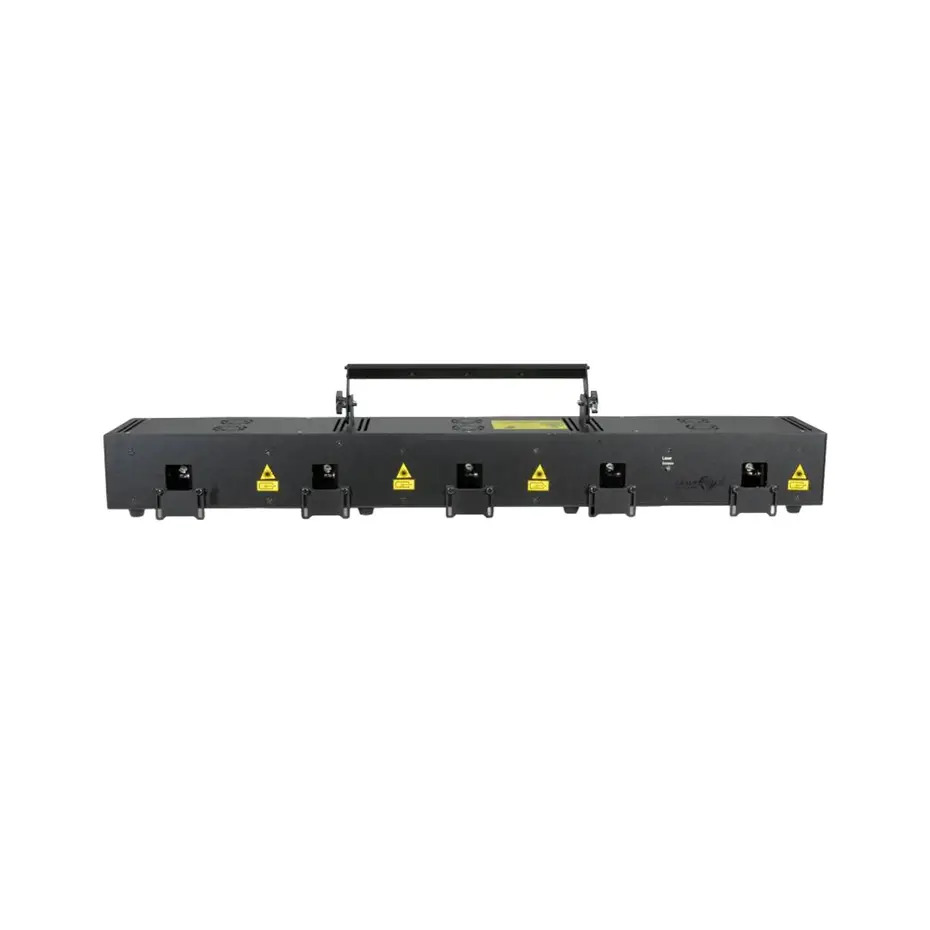

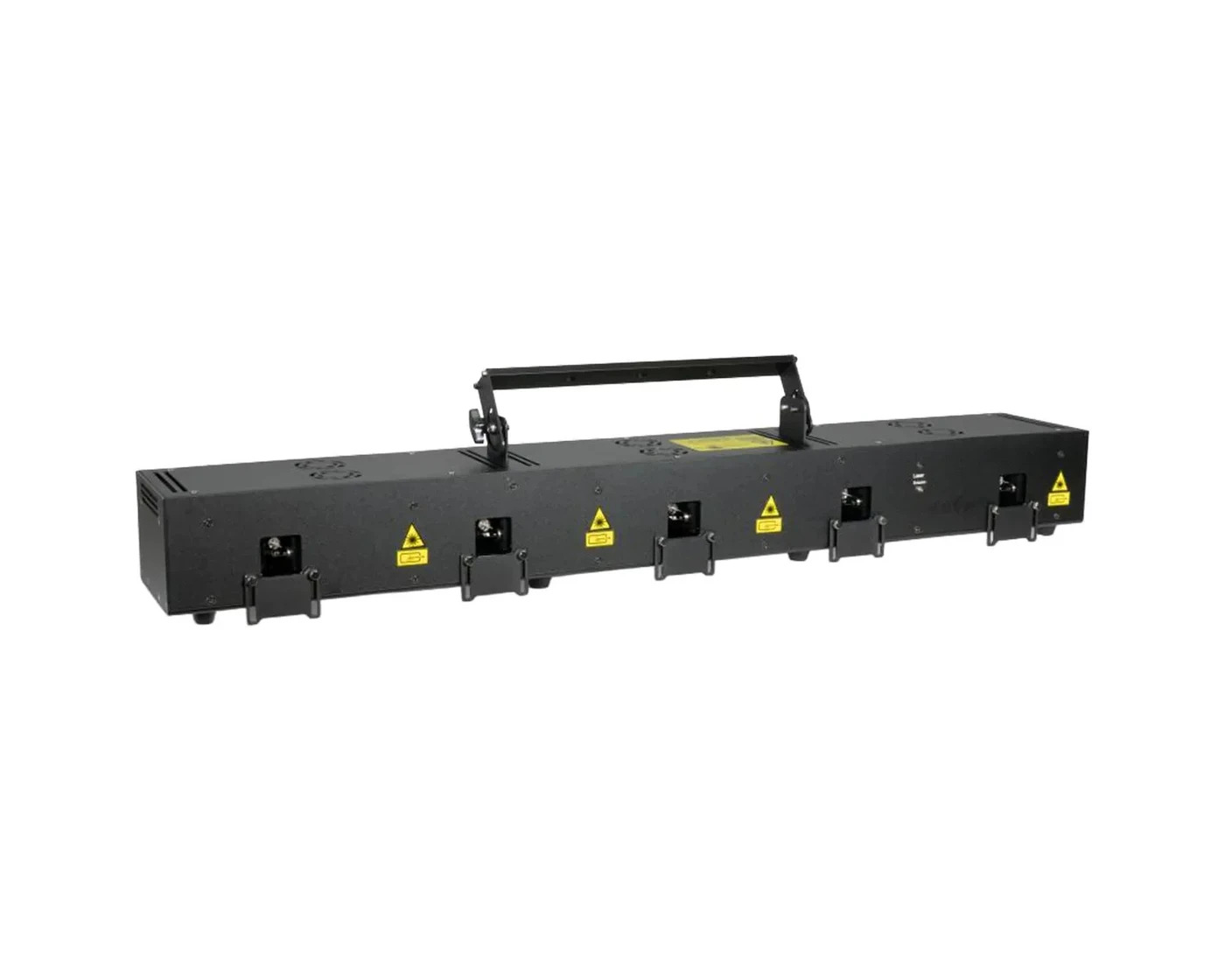

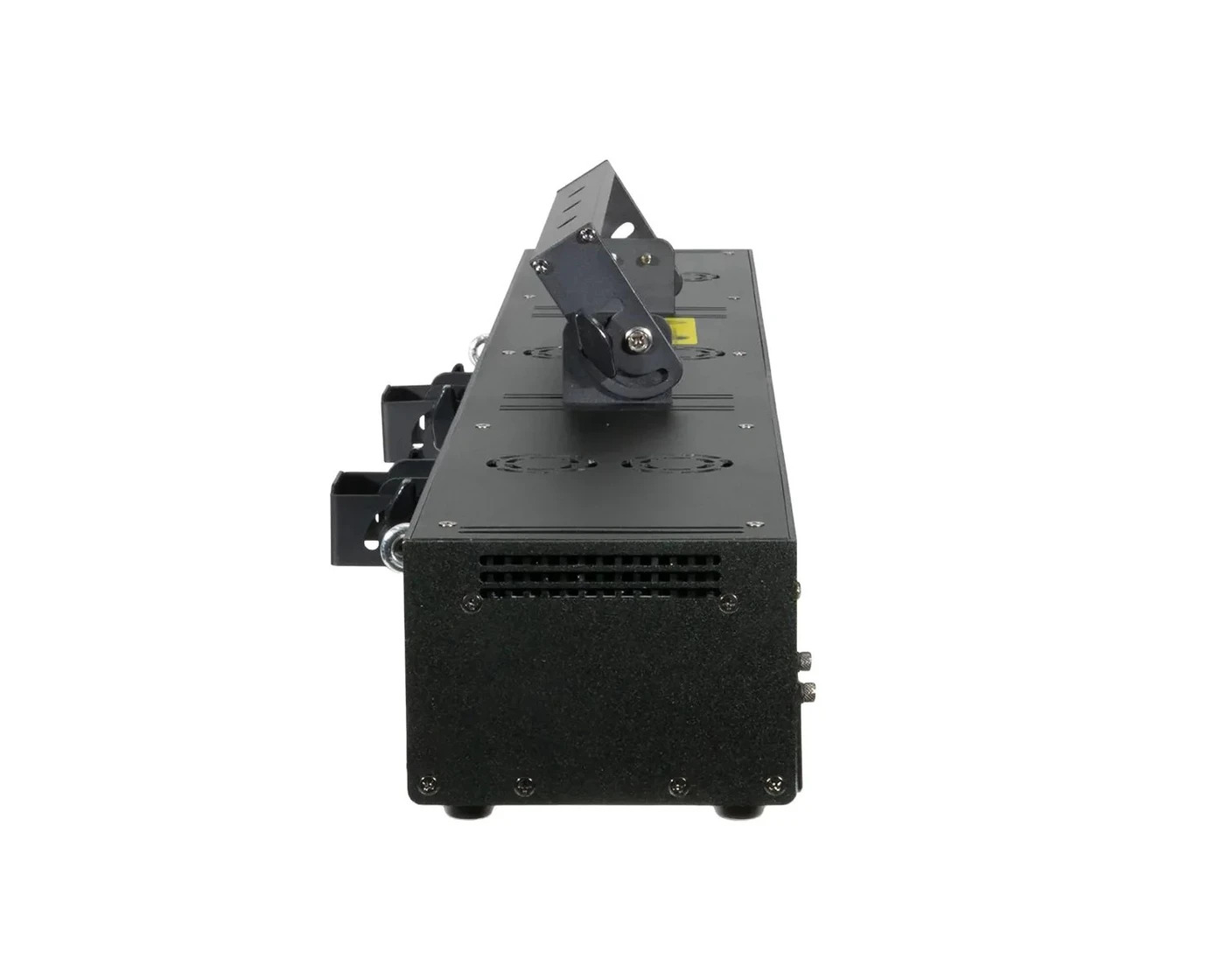

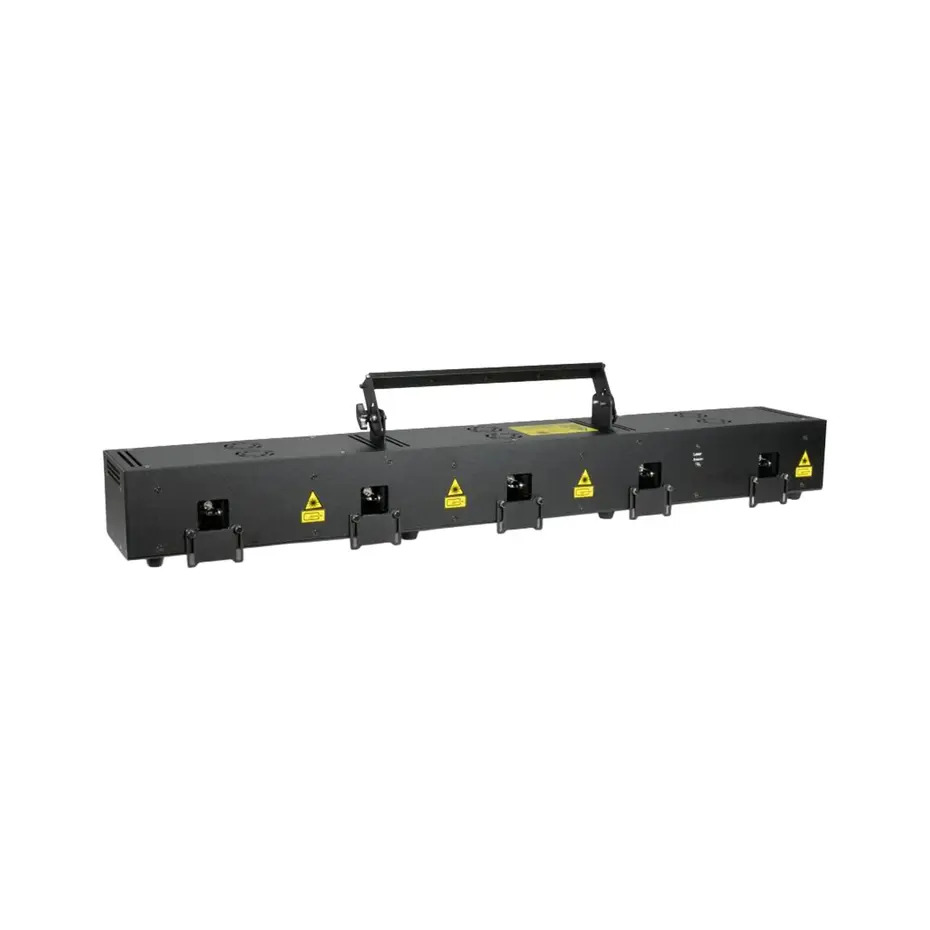

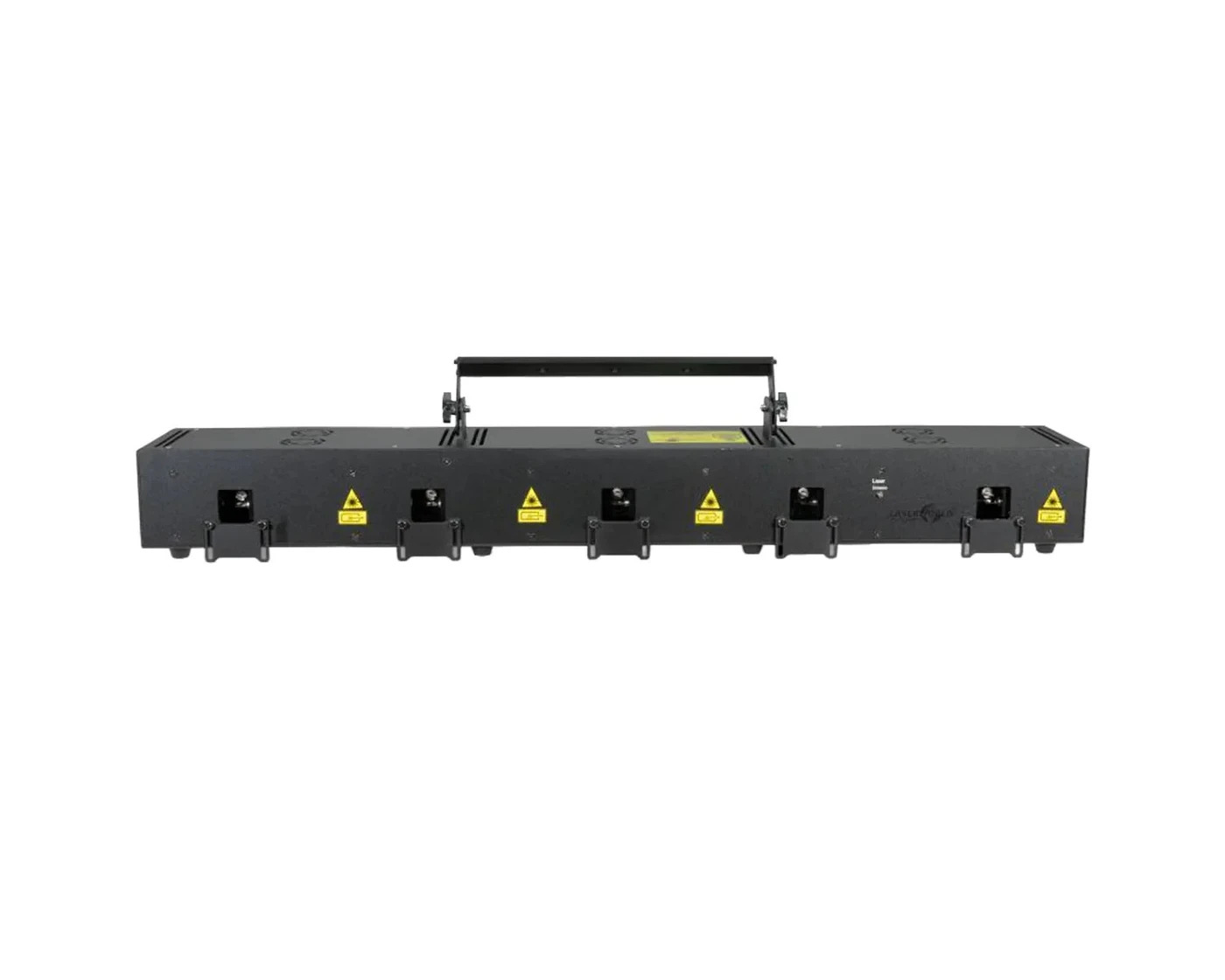

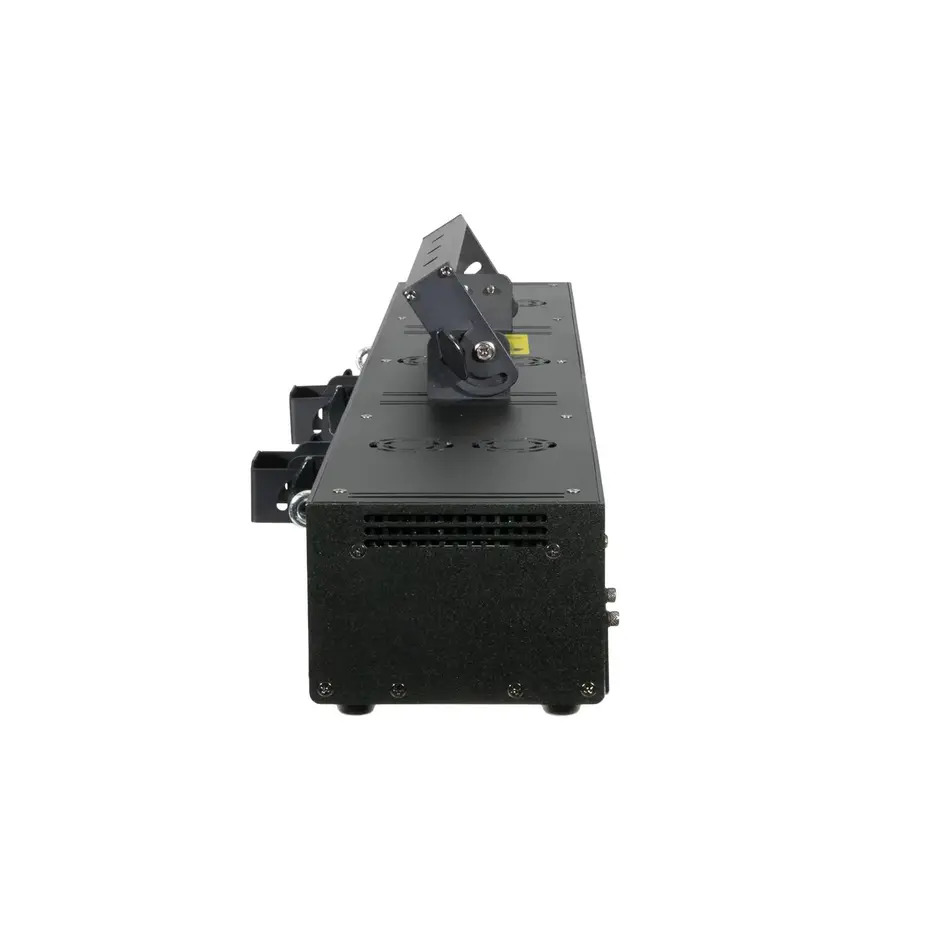

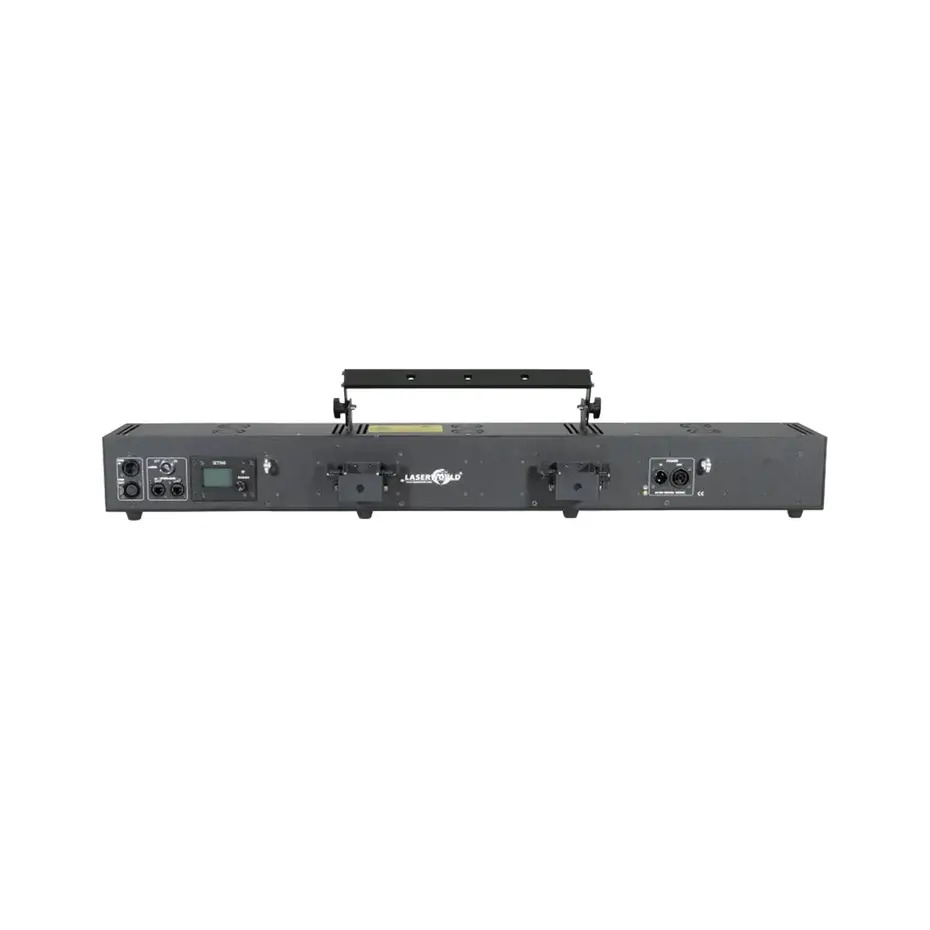

Laserworld ScanBar
10000mW Diode Beam with 5 Beam Outputs and Scanning
- 10 W guaranteed power
- 5 x RGB Diode Modules
- 5 x X/Y Scanners - 25kpps at 8°
- Full colour mixing - analogue modulation
- Extremely sharp beams - low divergence
- Professional DMX with four different profiles
The Laserworld ScanBar 10RGB is a white-light RGB laser system with analogue modulation, designed for seamless integration into professional lighting setups. It offers four DMX control profiles, ensuring compatibility with all standard DMX controllers.
Each of the ten beam outputs features an independent X/Y scanner set, operating at 25 kpps @ 8°, allowing for precise and dynamic effects. In addition to single-beam projections, the unit includes over 100 pre-set patterns for versatile visual displays.
The ScanBar 10RGB is powered by high-quality RGB laser diode modules, each delivering:
5 × 450 mW / 638 nm red
5 × 600 mW / 525 nm green
5 × 950 mW / 450 nm blue
All power ratings are measured after the apertures. With its powerful output and straightforward DMX control, the Laserworld ScanBar 10RGB is an outstanding choice for creating striking visual effects at large-scale events.
- Guaranteed Power at aperture: 10'000 mW
- Power Red: 5 x 450 mW / 638 nm
- Power Green: 5 x 600 mW / 525 nm
- Power Blue: 5 x 950 mW / 450 nm
- Beam Specifications: 4 mm / 1.1 mrad
- Scanner: 25kpps at 8°
- Laser Source: Diode
- Laser Class: 4
- Operation Modes: DMX, stand-alone, master-slave
- Basic Patterns: > 100
- Power Supply: 85 V - 250 V AC, 50/60 Hz
- Power Consumption: 150 W
- Dimensions: 1000 x 152 x 105 mm (L x W x H)
- Weight: 12 kg
In The Box
- Power cable
- Manual
- Interlock
- Key
