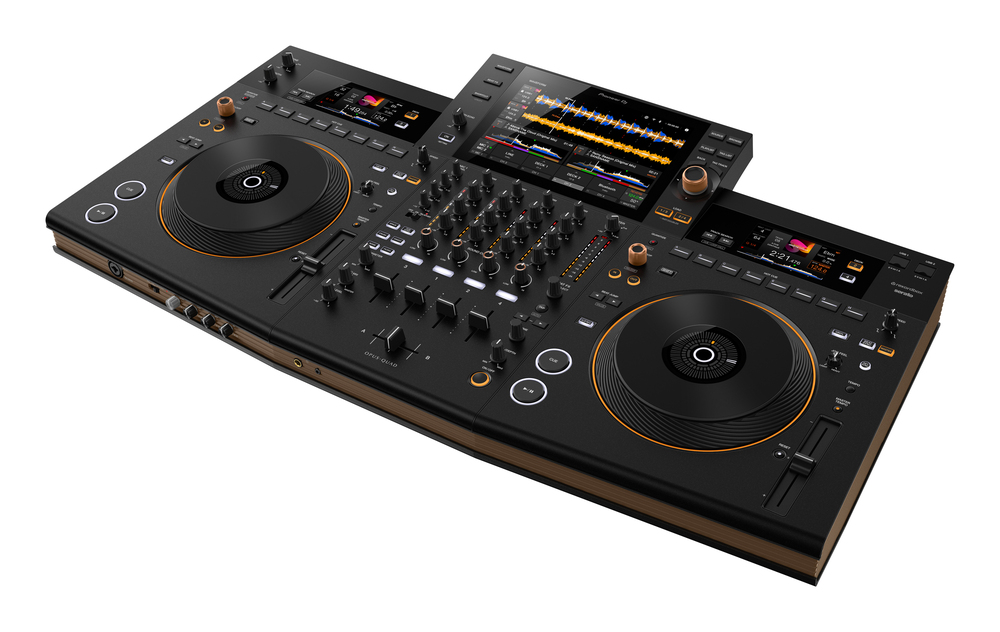

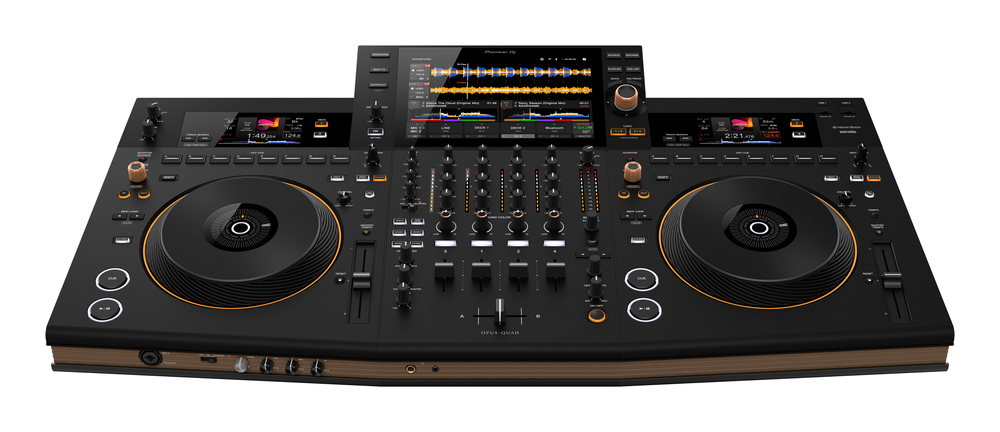

Pioneer DJ Opus-Quad
All-in-one DJ system
The OPUS-QUAD from Pioneer DJ is a professional all-in-one DJ system that boasts unique design and evolved features. Its radiating shape, matte black finish, and earth-colored slits make it sophisticated and visually appealing, while the sloping top plate and curved edge at the front ensure comfortable and intuitive operation. The OPUS-QUAD also offers standalone 4-deck playback, which is a first for a Pioneer DJ all-in-one system, giving you the versatility to adapt to any scenario and play the way you like.
Finding tracks in even the largest music libraries is a breeze with the OPUS-QUAD's large touch display and new rotary selector, which allow you to quickly select songs that fit the occasion. Each deck section has a display, so you can keep track of the track information for each deck without having to switch your gaze. The unit also has zone output, giving you the option to output sound that's separate from the master audio, making it possible to play different music genres in different rooms of a venue from just one unit.
Overall, the OPUS-QUAD is a powerful and flexible DJ system that can inspire your audience in any space or location. Whether you're a professional DJ or just starting out, the OPUS-QUAD offers a spectacular DJ experience that you can harness to take your performances to the next level.
Harmony of design and playability
With a radiating shape that features a sloping top plate and curved edge at the front, the OPUSQUAD is designed to not only look sophisticated, but also to enable comfortable and intuitive
operation. And, with a matte black finish and earth-colored slits on the front and sides, it can
enhance the aesthetic of any environment.
Standalone 4-deck playback
DJs can play 4 tracks on 4 different decks simultaneously, cue up tracks in advance, or leave
a deck free for dropping requests into their set at a moment’s notice – all with just one unit.
It’s even possible to assign a different color to each deck, which is matched by the jog ring
Easy-to-use pro effects
The XY-Pad makes it easy to control features such as FX Bank and channel select, as Beat FX
parameters and the cut-off frequency of the fi lter are controlled by movement on the X and
Y-axis respectively so the DJ can blend both effects with a single fi nger. There are also the
popular Smooth Echo and Sound Color FX features to get creative with.
Support for multiple media sources
DJs can connect all kinds of devices to the OPUS-QUAD, including USB thumb drives, a huge
SSD drive, PC/Macs running DJ software, rekordbox for iOS/Android on a smartphone via
Wi-Fi, or even a Bluetooth device. The unit offers so much connectivity, it’s possible to draw
from various music libraries.
Rapid and accurate track search
Finding tracks to play is faster and more accurate than ever with the freshly designed user
interface, which features a 10.1-inch touch screen with access to Playlist Bank, a keyboard,
and Touch Preview. There’s also a new Smart Rotary Selector to get hands-on with.
Thanks to the zone output – which can output sound that’s separate from the master – DJs
can play different music in different rooms from a single OPUS-QUAD.
LINE / PHONO x 2 (RCA)
MIC x 2 (XLR & 1/4" TRS jack)
MASTER x 2 (XLR x 1, RCA x 1)
ZONE x 1 (XLR x 1)
BOOTH x 1 (1/4" TRS jack)
PHONES x 2 (1/4" stereo jack x 1, 3.5 mm stereo mini jack x 1)
USB Type-A x 3
USB Type-C x 1
LAN terminal (1000BASE-T) x 1
IEEE 802.11 a / b / g / n / ac
Frequency band used
2.4 GHz / 5 GHz
Bluetooth ver. 4.2
rekordbox for Mac/Windows
rekordbox for iOS/Android (Coming April 2023)
Serato DJ Pro (Coming summer 2023)
20 Hz – 20 kHz
114 dB (USB-MASTER1)
Total Harmonic Distortion
AC 100 V, 50 Hz / 60 Hz
Maximum dimensions (W ? D ? H)
925.7 × 499.7 × 142 mm / 36.44" x 19.67" x 5.59"
13.2 kg / 29.1 lb
