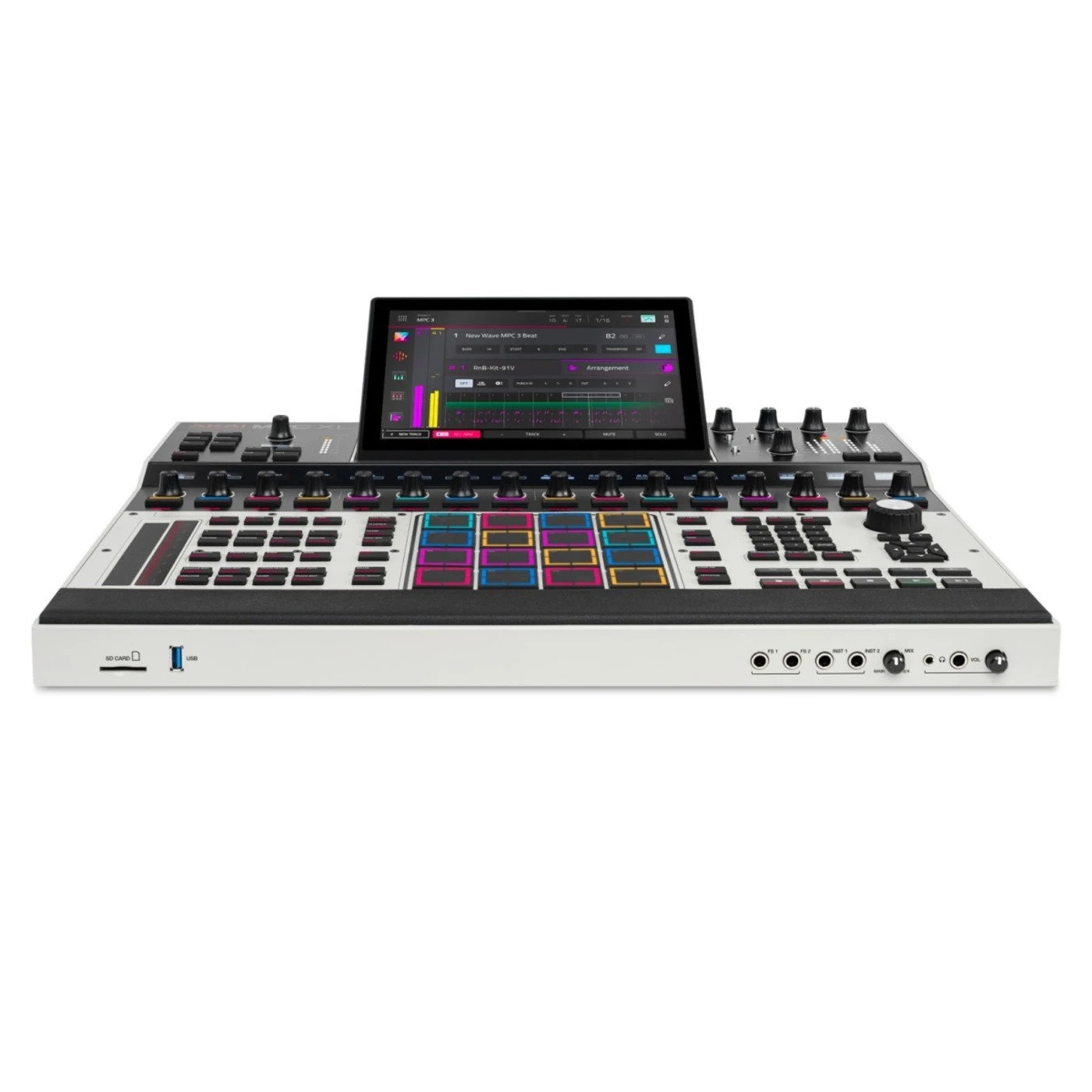

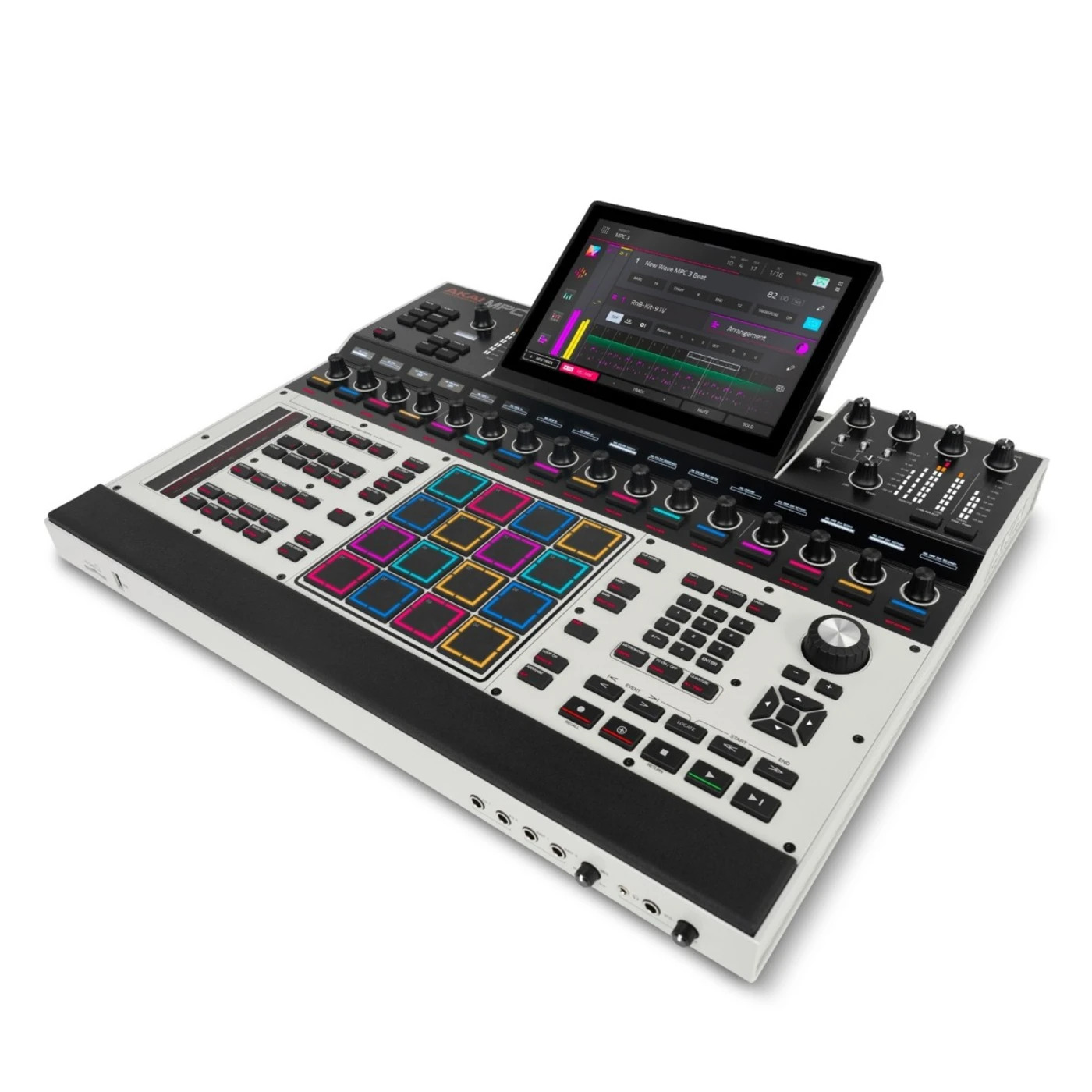

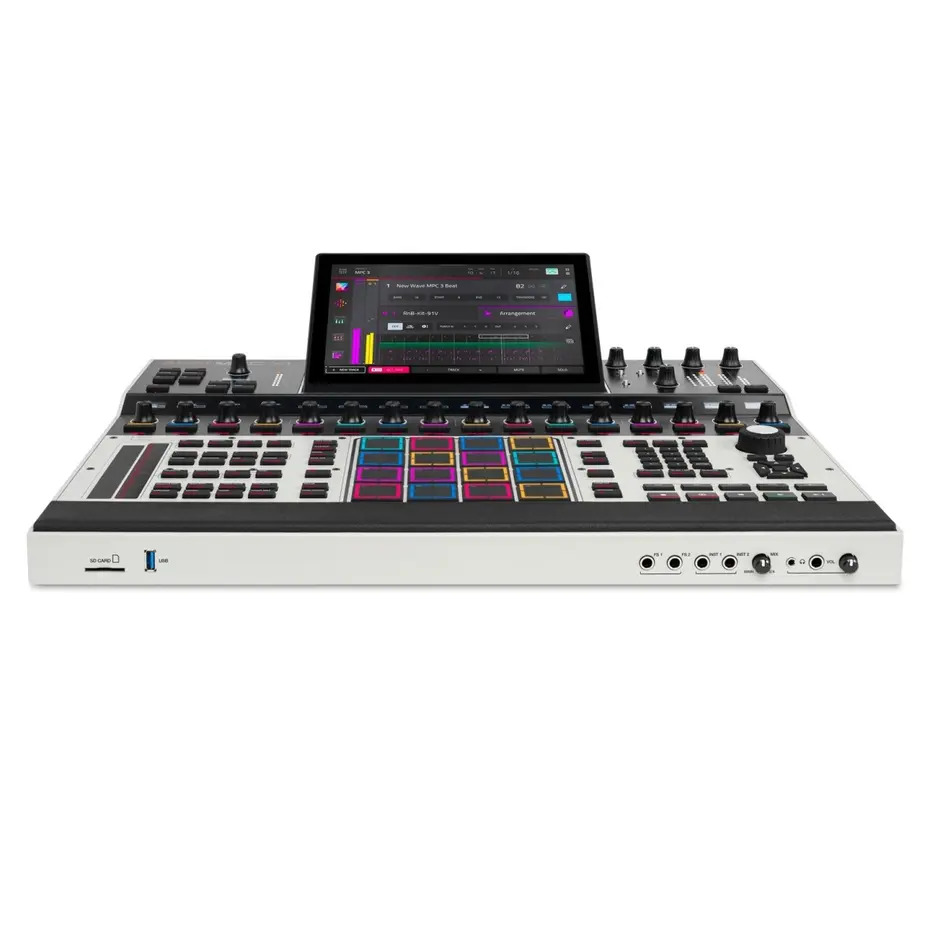

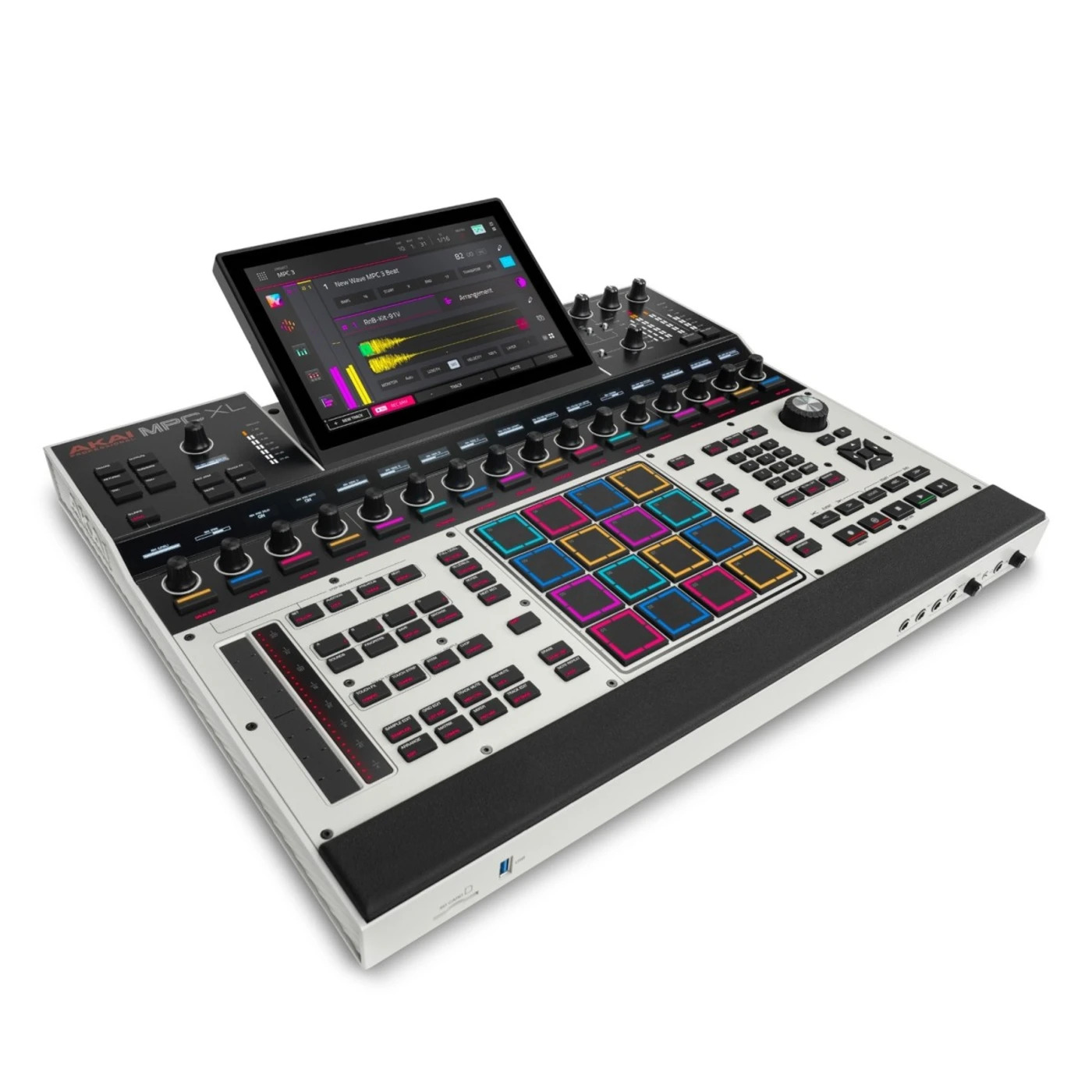

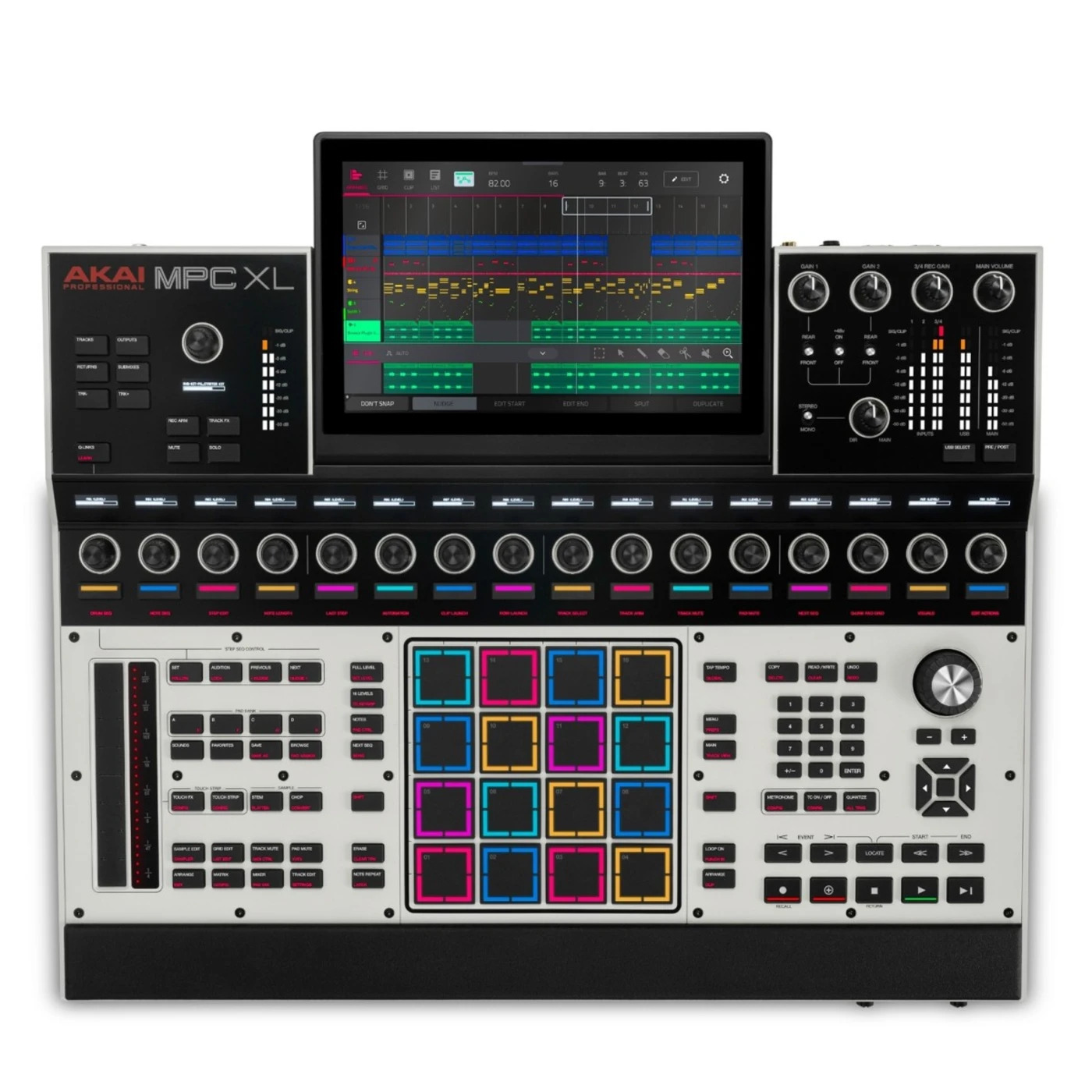

Akai Professional MPC XL

The Akai Professional MPC XL is designed for producers, beatmakers, and performers who prioritise fast, computer-free music creation. Building on the acclaimed MPC Live III, the MPC XL is a fully standalone production powerhouse running MPC3 OS on a robust Gen 2 8-core processor, backed by 16 GB of RAM and a 256 GB SSD.

This powerful combination lets you run multiple plugin instruments, audio tracks, and effects simultaneously without sacrificing responsiveness. Projects load quickly, edits happen instantly, and your creative flow remains uninterrupted. The 10.1-inch HD multi-gesture touchscreen pairs with dedicated buttons and encoders for an intuitive, hands-on experience when sequencing, sampling, and arranging. MPC3 OS integrates advanced features like sequencing, clip launching, time-stretching, and stem separation into one seamless system built to perform under pressure.

Performance is at the heart of the MPC XL. Its expressive MPCe pads utilize advanced 3D-sensing technology, detecting subtle playing nuances, while the assignable touch-strip offers tactile control over effects and parameters. With 256 GB of internal SSD storage and extensive audio, USB-C, and CV connectivity, the MPC XL serves as the central hub for both modern studios and live performance setups.

A Complete Standalone Production Hub

MPC XL is engineered to replace the computer in your setup, running MPC3 OS to handle sampling, sequencing, arranging, sound design, and mixing—all from a single unit. Build full tracks, control external gear, and perform live sets directly on the device. Supporting up to 32 plugin instruments, 16 audio tracks, and 256 voices simultaneously, the MPC XL delivers uncompromised production power, making it ideal for DAWless workflows.

Power That Keeps Ideas Moving

At its core is a Gen 2 8-core processor paired with 16 GB of RAM, delivering up to four times the processing power of previous MPC models. This enables large, complex projects to run smoothly and reliably. Layered instruments, intricate arrangements, and detailed automation stay responsive, so you can swiftly switch between ideas. Fast loading and navigation minimise downtime, keeping your focus on music creation.

Expressive Pads and Performance Controls

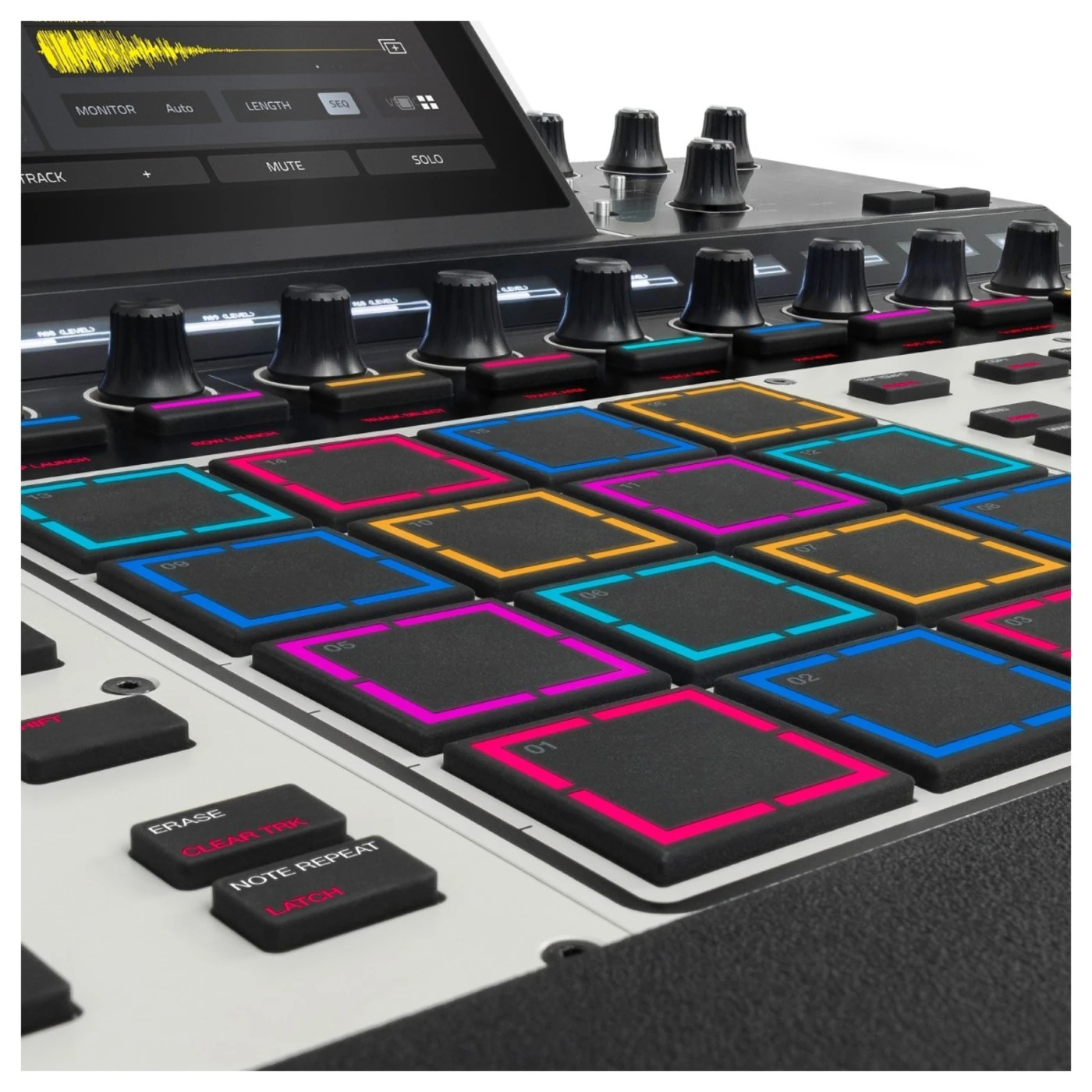

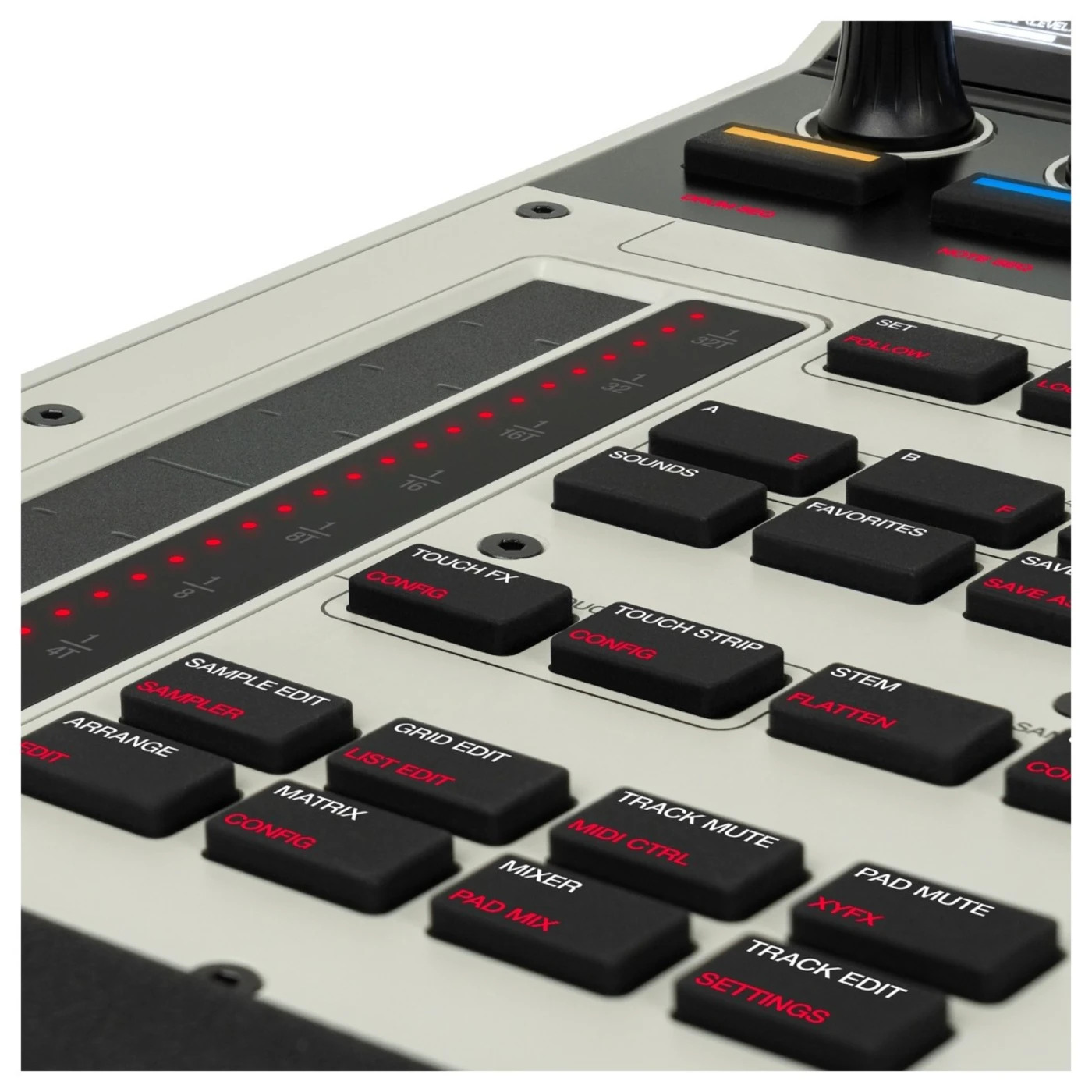

MPCe pads bring new depth to beatmaking and live performance with 3D-sensing technology featuring four playable quadrants per pad. This allows advanced X and Y modulation, layering, looping, and sound morphing, making finger drumming and melodic playing more dynamic and expressive. The assignable performance touch-strip adds hands-on control for shaping effects, note repeats, pitch bends, and mixer parameters in real time.

Intuitive Workflow with Visual Feedback

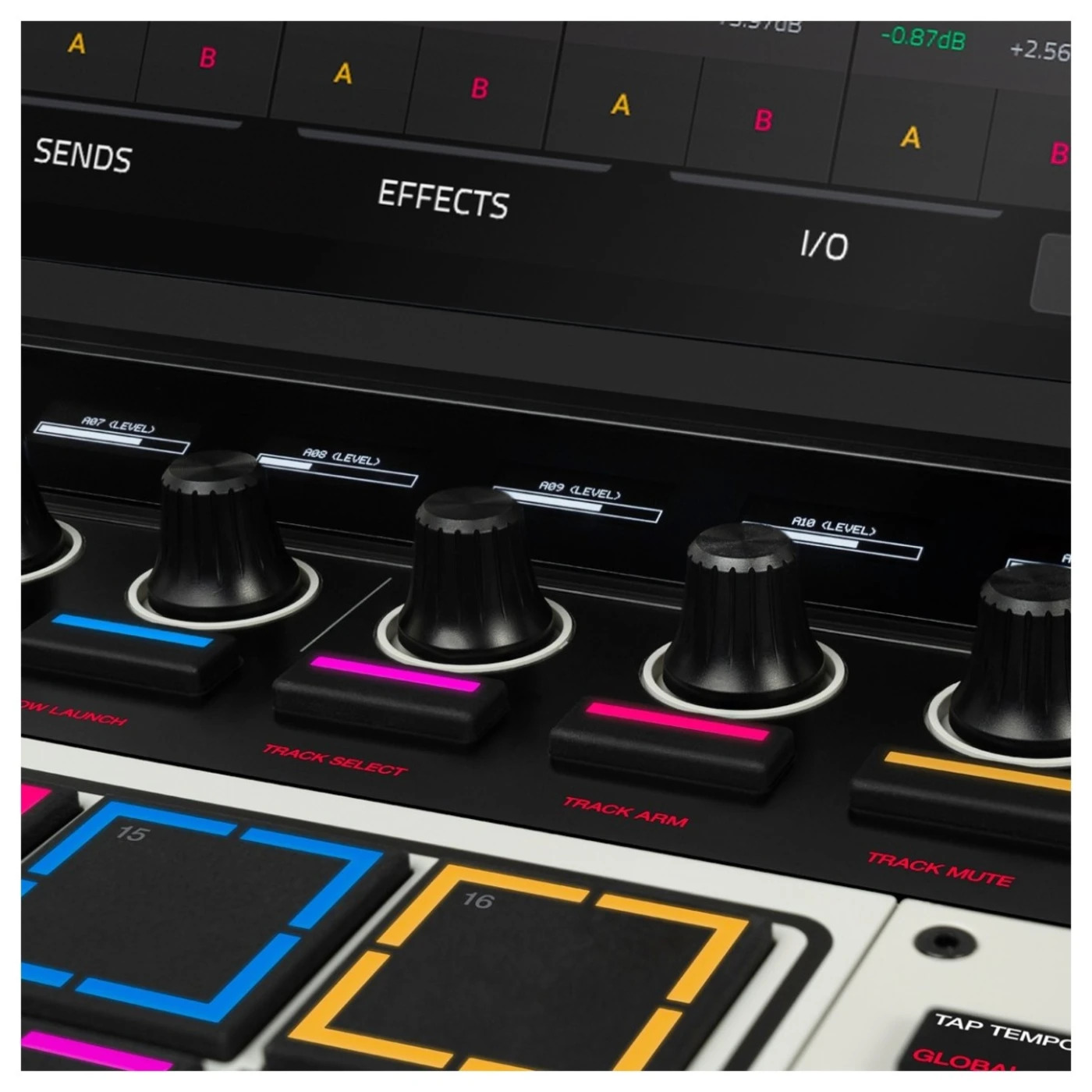

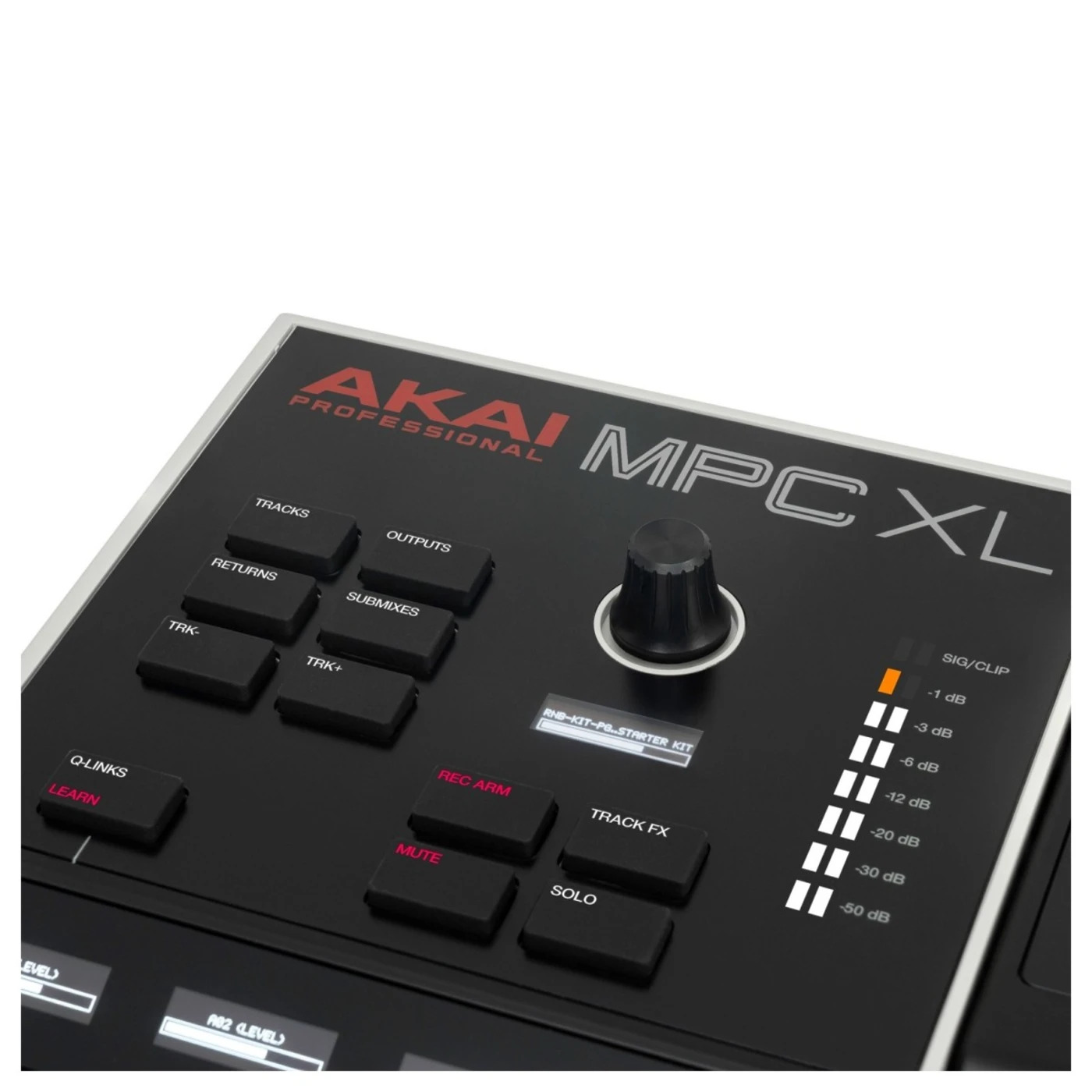

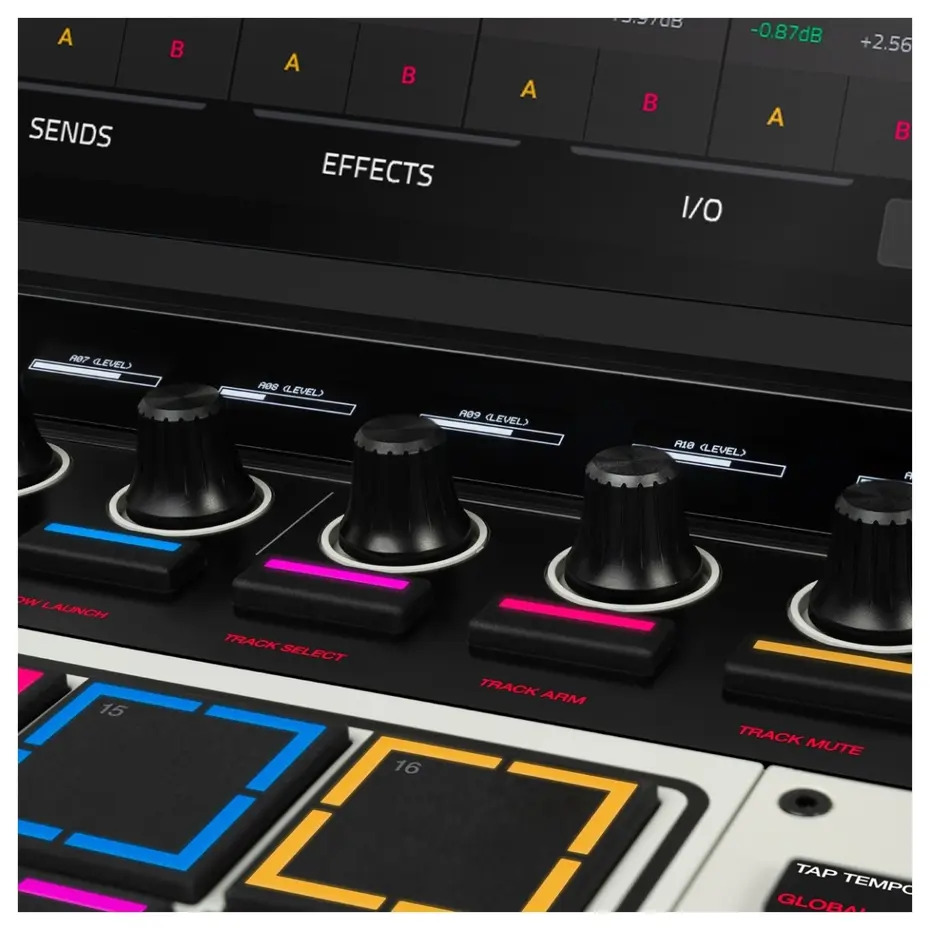

Designed for speed and clarity, the MPC XL’s control surface includes a 10.1-inch HD multi-gesture touchscreen with tilt for effortless editing and arranging. Sixteen touch-responsive Q-Link knobs each have individual OLED displays, providing immediate visual feedback when adjusting levels, filters, envelopes, or effects. The XL Channel Command adds a dedicated encoder and OLED screen for quick access to channel levels, sends, outputs, and recording settings—reducing menu diving.

Connectivity That Grows with Your Setup

MPC XL offers comprehensive connectivity for demanding studios. Dual XLR/TRS combo inputs with mic preamps and phantom power support vocals and instruments, while dedicated instrument inputs cater to guitars and keyboards. Eight individual line outputs provide flexible routing and mixing options. Eight stereo CV/Gate outputs deliver 16 CV channels for modular and analog gear. USB-C provides 24 channels of audio I/O, 32 channels of MIDI, and simple sampling from smart devices.

Storage and Inspiration Built In

With a spacious 256 GB internal SSD, MPC XL stores your projects, samples, presets, and plugin instruments, keeping large libraries accessible and organized. It also includes a rich collection of premium plugins, effects, and sounds, so you can start creating immediately. Featuring one-to-one function buttons for essential features and requiring no computer, the MPC XL is built to keep your creative momentum front and center.

Digital Audio System Specifications

ADCs

• 24-bit @ 44.1, 48, or 96 kHz

DACs

• 24-bit @ 44.1, 48, 88.2, or 96 kHz

Digital Signal Processing

• 32-bit floating point

Mic Inputs 1–2

• (2) balanced XLR + 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.19 / -0.16 dB)
• Dynamic Range: 109.8 dB (A-weighted)
• SNR: 109.3 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Preamp EIN: -134 dBu (max gain, 40 source, A-weighted) / -129 dBu (max gain, 150 source, unweighted)
• Maximum Input Level: +12.7 dBu
• Sensitivity: -45.5 dBu
• Gain Range: 58.2 dB

Line Inputs 1–2

• (2) balanced XLR + 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
• Dynamic Range: 109.8 dB (A-weighted)
• SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Maximum Input Level: +20.1 dBu
• Sensitivity: -9.6 dBu
• Gain Range: 29.7 dB

Line Inputs 3–4

• (2) balanced XLR + 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.09 / -0.05 dB)
• Dynamic Range: 110.8 dB (A-weighted)
• SNR: 109.4 dB (1 kHz, +4 dBu, A-weighted)
• THD+N: 0.001% (1 kHz, +4 dBu, -1 dBFS)
• Maximum Input Level: +20.3 dBu
• Sensitivity: -10.3 dBu
• Gain Range: 30.6 dB

Instrument Inputs 1–2

• (2) balanced XLR + 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.15 / -0.05 dB)
• Dynamic Range: 111.0 dB (A-weighted)
• SNR: 109.6 dB (1 kHz, +0 dBu, A-weighted)
• THD+N: 0.0013% (1 kHz, +0 dBu, -1 dBFS)
• Maximum Input Level: +10.1 dBu
• Sensitivity: -19.6 dBu
• Gain Range: 29.7 dB

Phono Inputs

• (2) unbalanced RCA
• Dynamic Range: 103.3 dB (A-weighted, 65 mVrms @ 1 kHz, -1 dBFS, 20 source)
• SNR: 97 dB (A-weighted, 4 mVrms @ 1 kHz, 20 source)
• THD+N: 0.036% (1 kHz, -46 dBu, -1 dBFS)
• Maximum Input Level: 65 mVrms (1 kHz)
• Sensitivity: 2 mVrms (1 kHz)

Main Outputs 1–2

• (2) impedance-balanced 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
• Dynamic Range: 115.6 dB (A-weighted)
• THD+N: 0.003% (1 kHz, -1 dBFS)
• Maximum Output Level: +20.3 dBu
• Output Impedance: 100

Line Outputs 3–8

• (6) impedance-balanced 1/4” (6.35 mm) TRS
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.24 dB)
• Dynamic Range: 116.3 dB (A-weighted)
• THD+N: 0.005% (1 kHz, -1 dBFS)
• Maximum Output Level: +20.4 dBu
• Output Impedance: 100

Headphone Output

• (1) 1/4” (6.35 mm) stereo headphone
• (1) 1/8” (3.5 mm) stereo headphone
• Dynamic Range: 100.6 dB (A-weighted)
• THD+N: 0.025% (1 kHz, -1 dBFS, 10 mW/channel into 32 headphones)
• Frequency Response: 20 Hz – 20 kHz (+0.06 / -0.31 dB)
• Maximum Power Delivered: 260 mW (<1% THD, 32 headphones)
• Maximum Output Level: +20.4 dBu
• Output Impedance: 32

Pads

• (16) velocity- and pressure-sensitive pads with 3D-sensing technology
• (8) banks (selectable via Pad Bank buttons)

Knobs

• (17) 360° touch-sensitive Q-Link knobs
• (1) 360° encoder with push
• (7) 270° knobs (gain, mix, level)

Buttons

• (105) dedicated buttons
• (36) single-color LED
• (43) dual-color LED
• (1) dual color + red
• (17) RGB LED
• (8) unlit

Display

• (1) 1280×800 full-color, optically bonded, multi-touch display (10.1” / 256.5 mm)
• (17) monochrome 128×32 OLED displays

CPU

• Processor: 8-core processor
• RAM: 16 GB
• Storage: 256 GB internal NVMe SSD + SATA expansion bay

Connections

• (2) 1/4” (6.35 mm) combo XLR/TRS inputs (stereo pair)
• (2) 1/4” (6.35 mm) TRS line inputs (stereo pair)
• (2) RCA phono inputs (stereo pair)
• (2) 1/4” (6.35 mm) instrument inputs
• (2) 1/4” (6.35 mm) TS footswitch inputs
• (8) 1/4” (6.35 mm) TRS outputs (4 stereo pairs)
• (1) 1/4” (6.35 mm) stereo headphone output
• (1) 1/8” (3.5 mm) stereo headphone output
• (4) 5-pin MIDI outputs
• (2) 5-pin MIDI inputs
• (8) stereo 1/8” (3.5 mm) CV/Gate outputs
• (1) USB Type-C port
• (3) USB Type-A ports
• (1) SD card slot
• (1) power adaptor input
• (1) drive bay for 2.5” SATA drive

Wireless

• Wi-Fi
• Bluetooth

Power

• via power adaptor: 19 V, 3.42 A, center-positive (adapter included

Dimensions

• 21.4” × 19.2” × 3.7” (543 × 488 × 94 mm)

Weight

• 15.87 lbs (7.2 kg)
