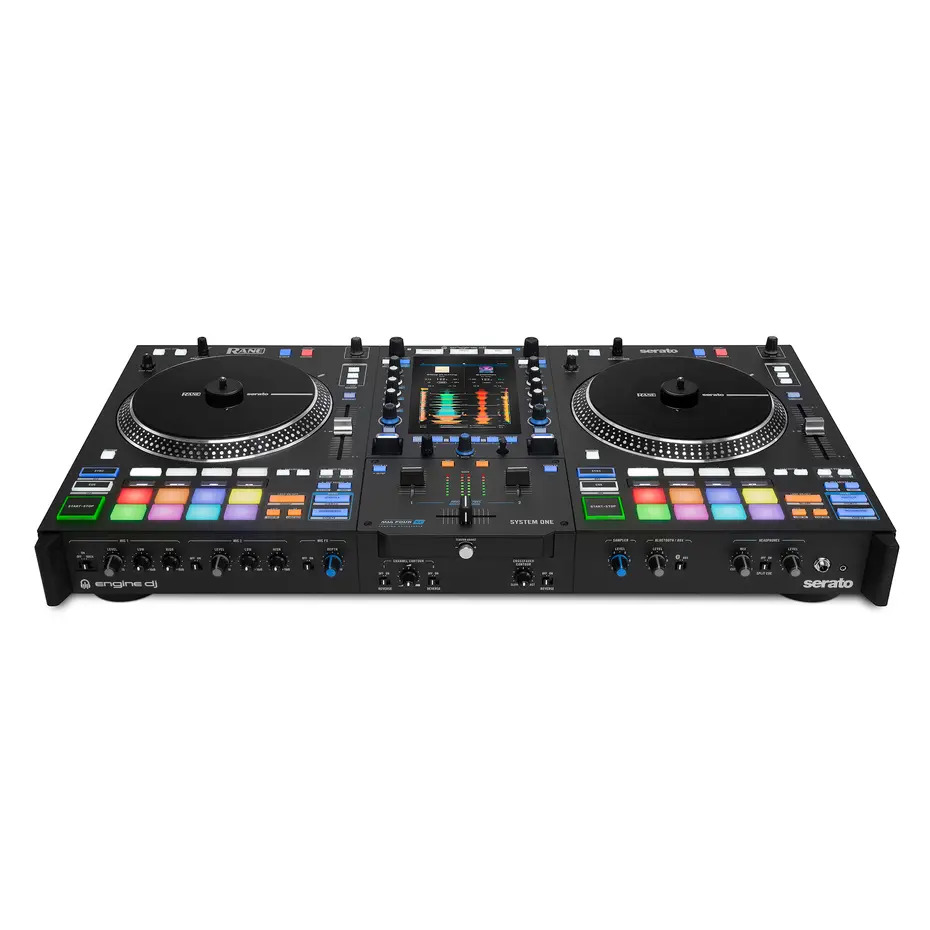

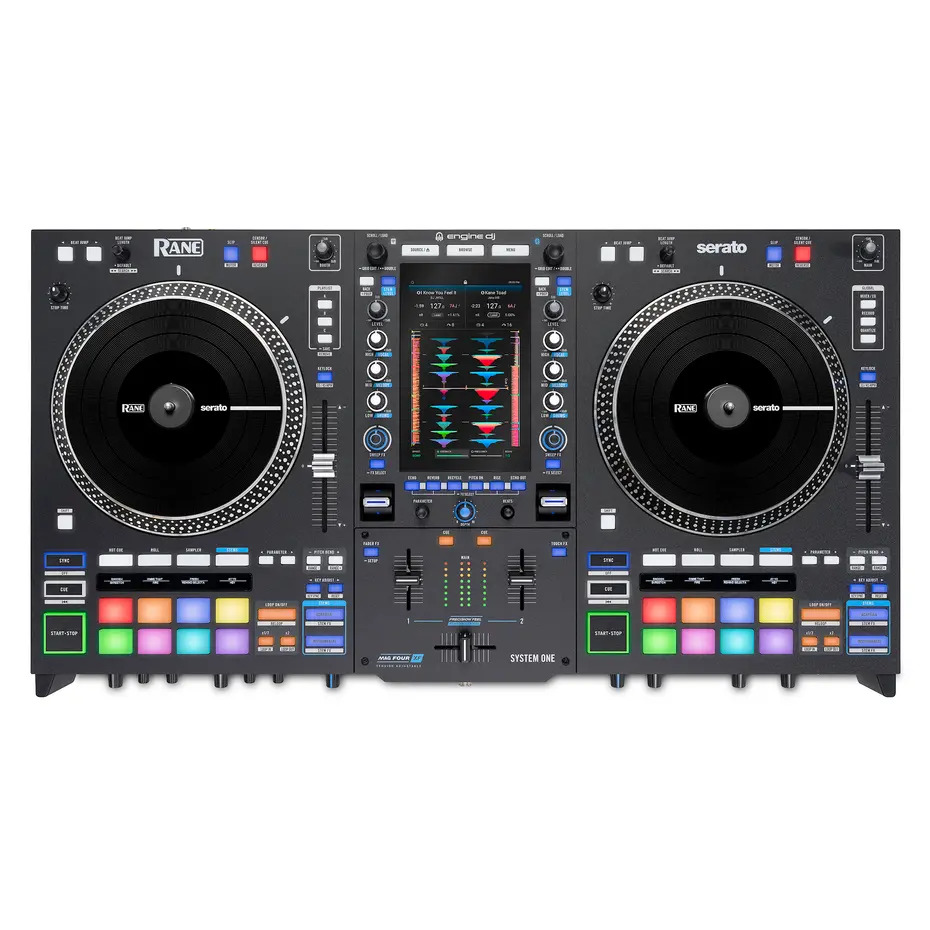

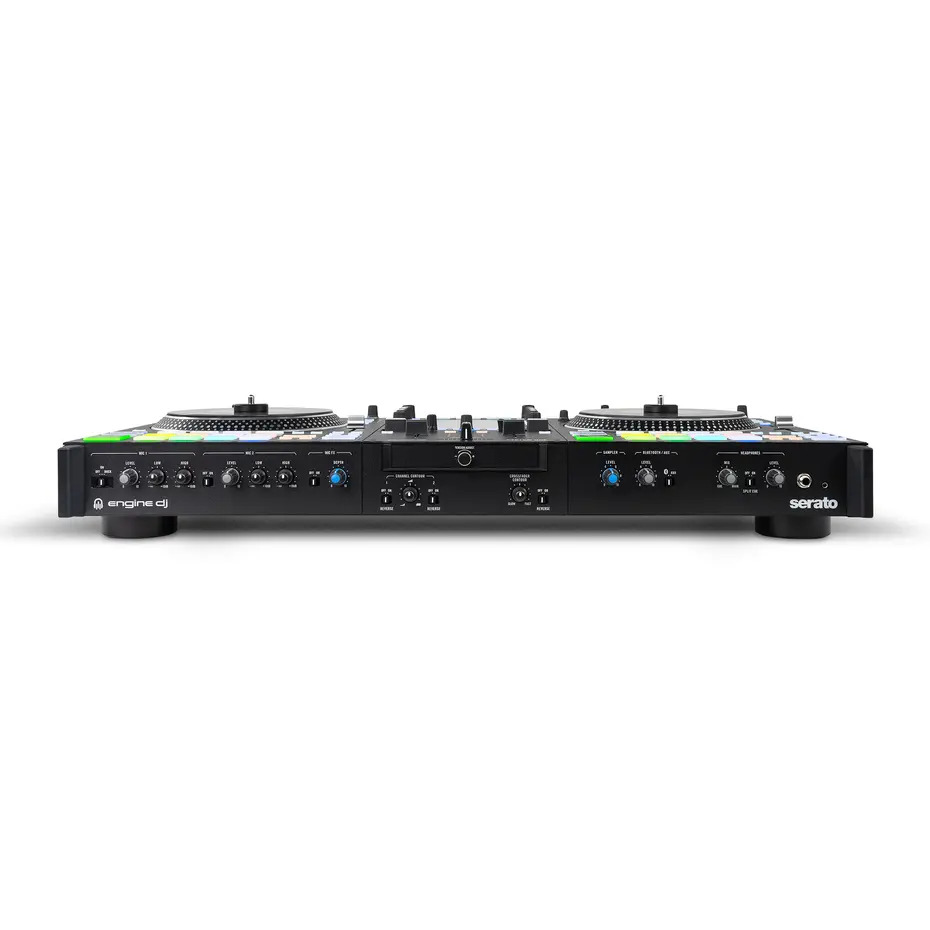

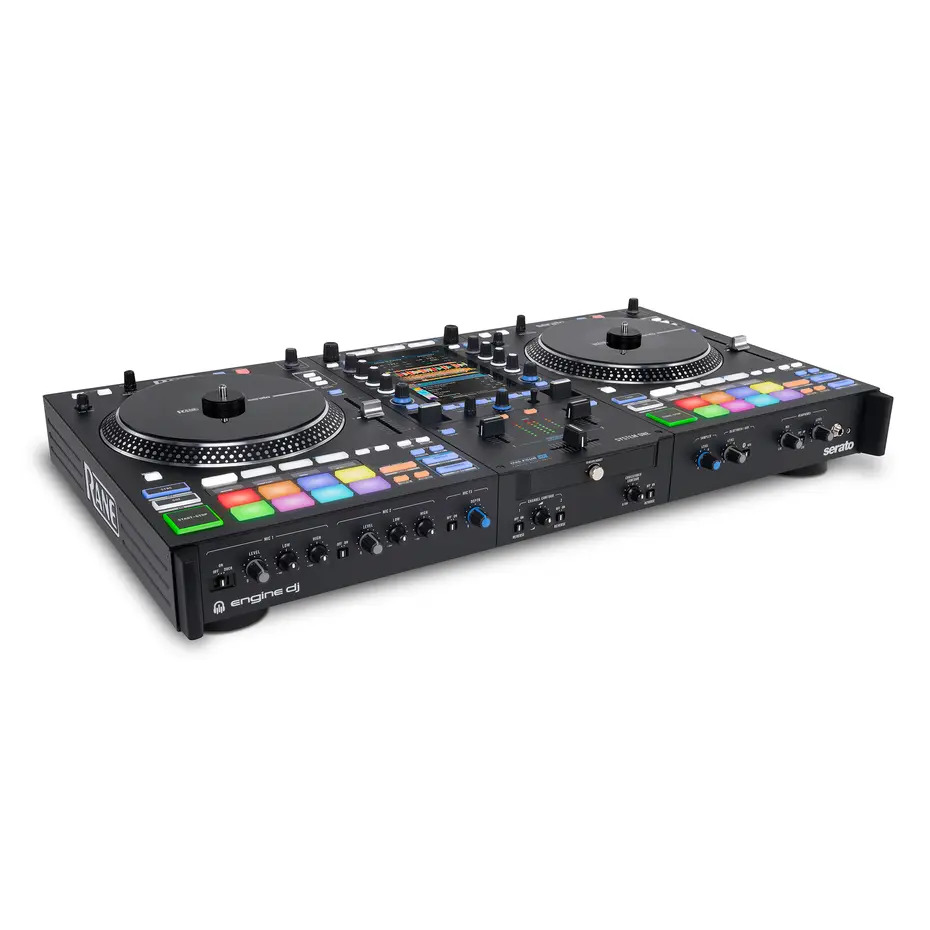

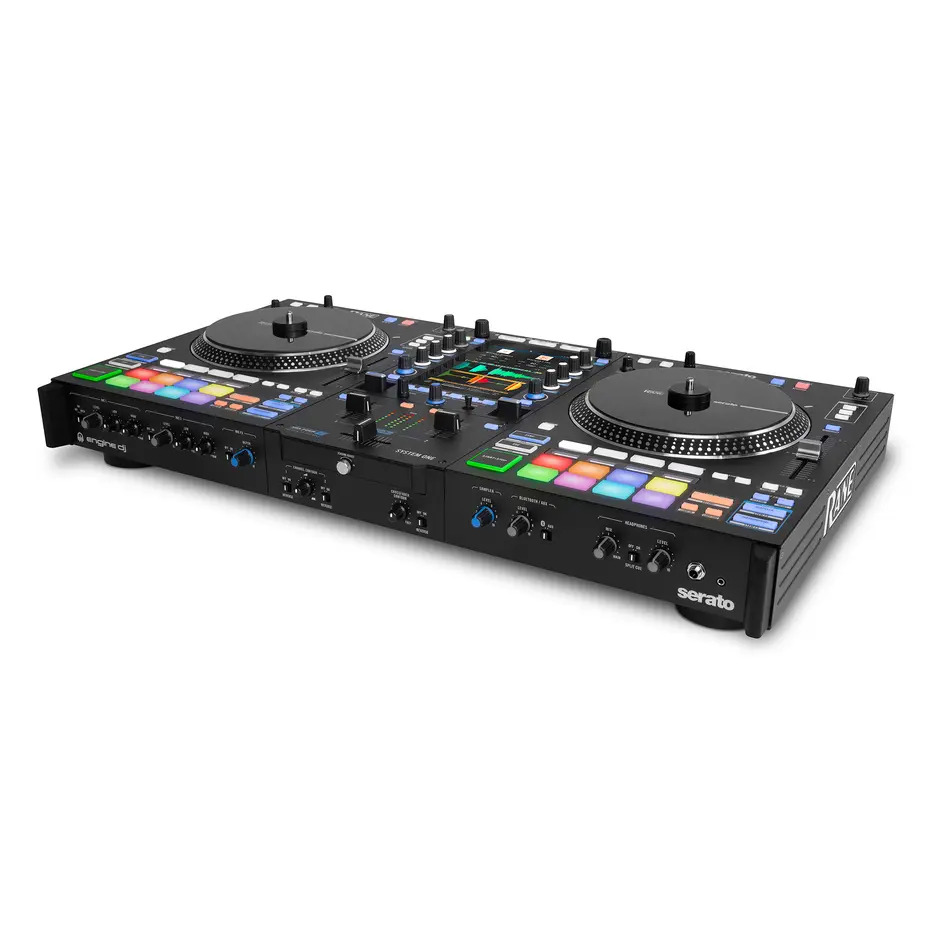

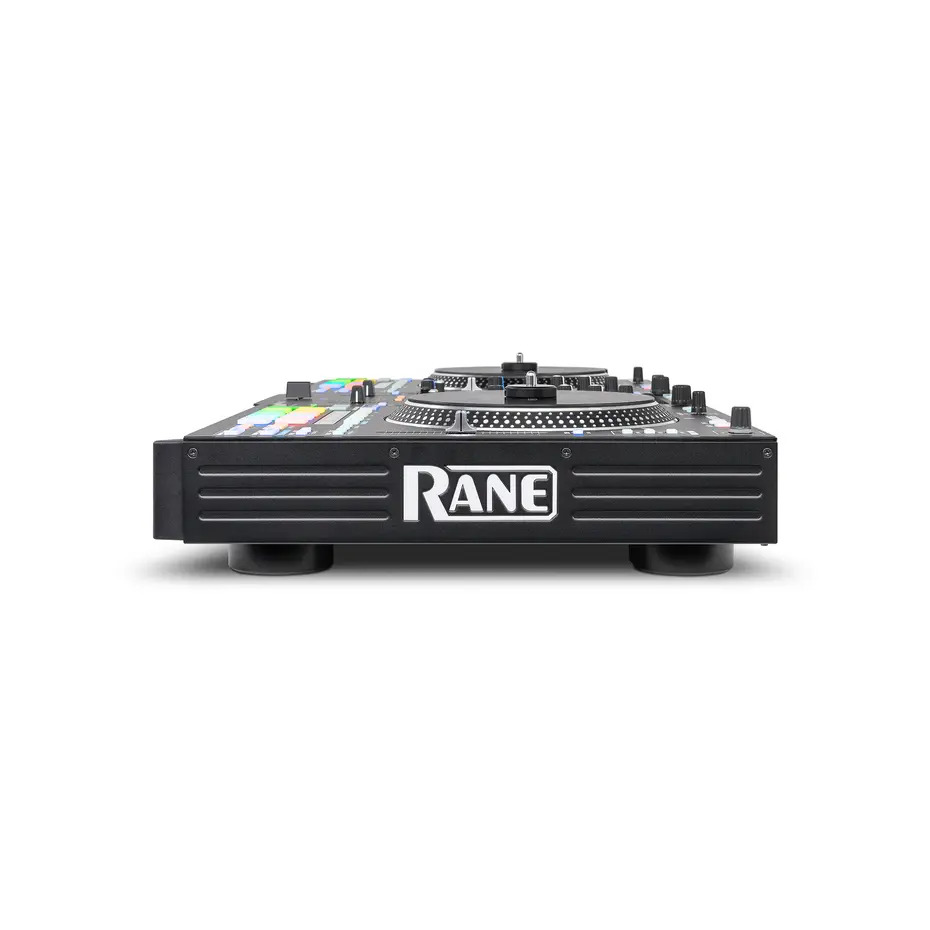

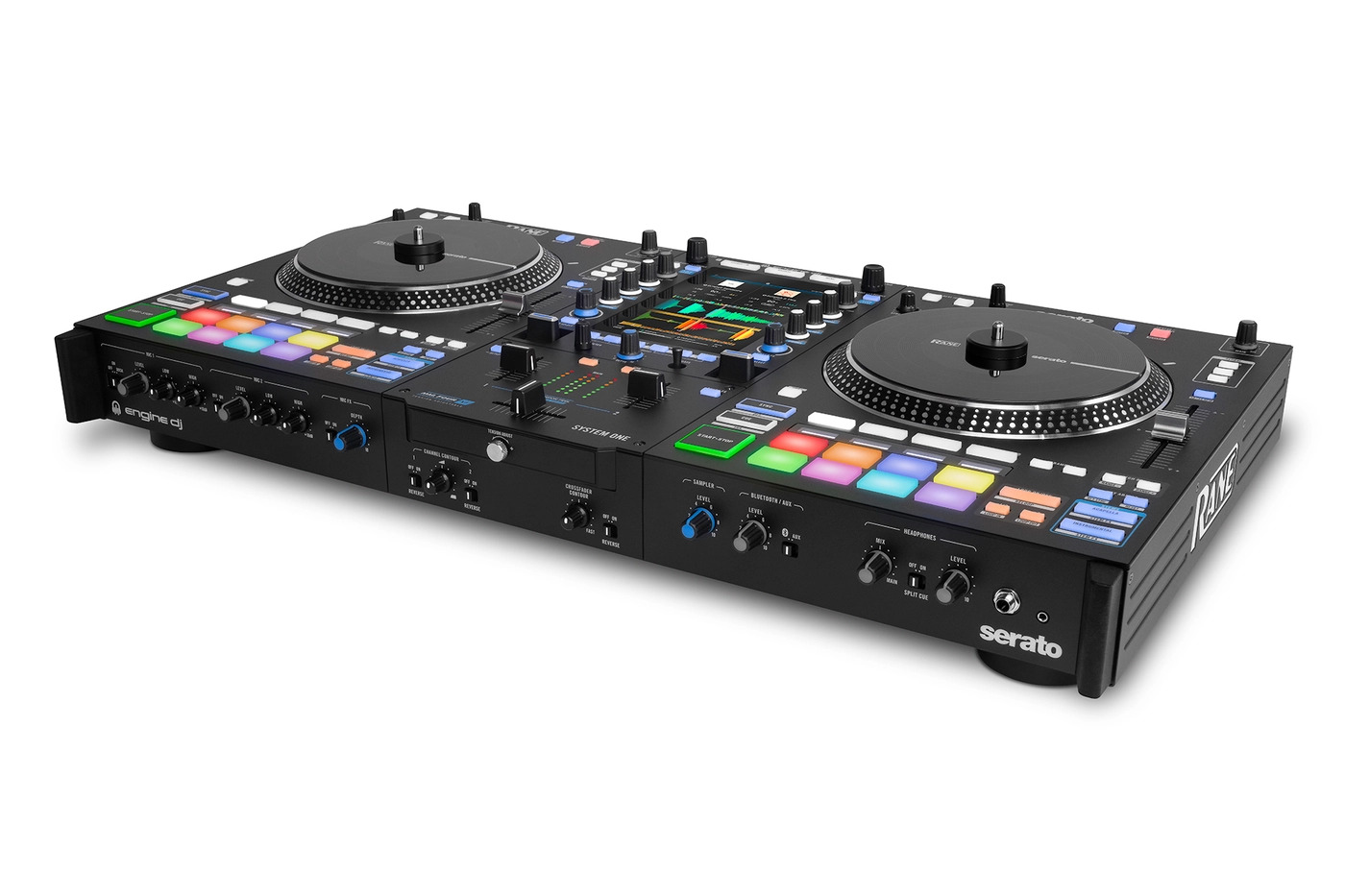

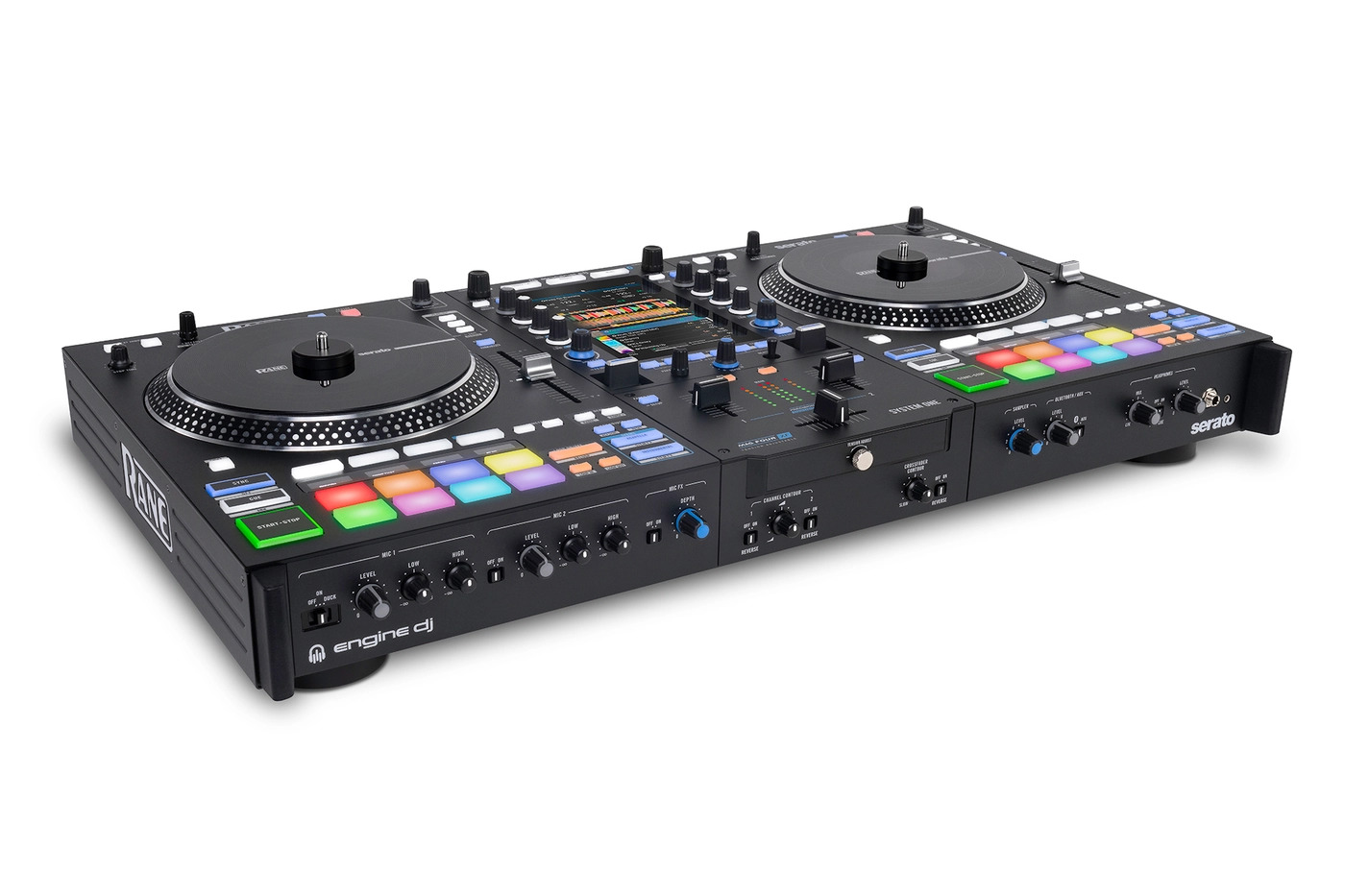

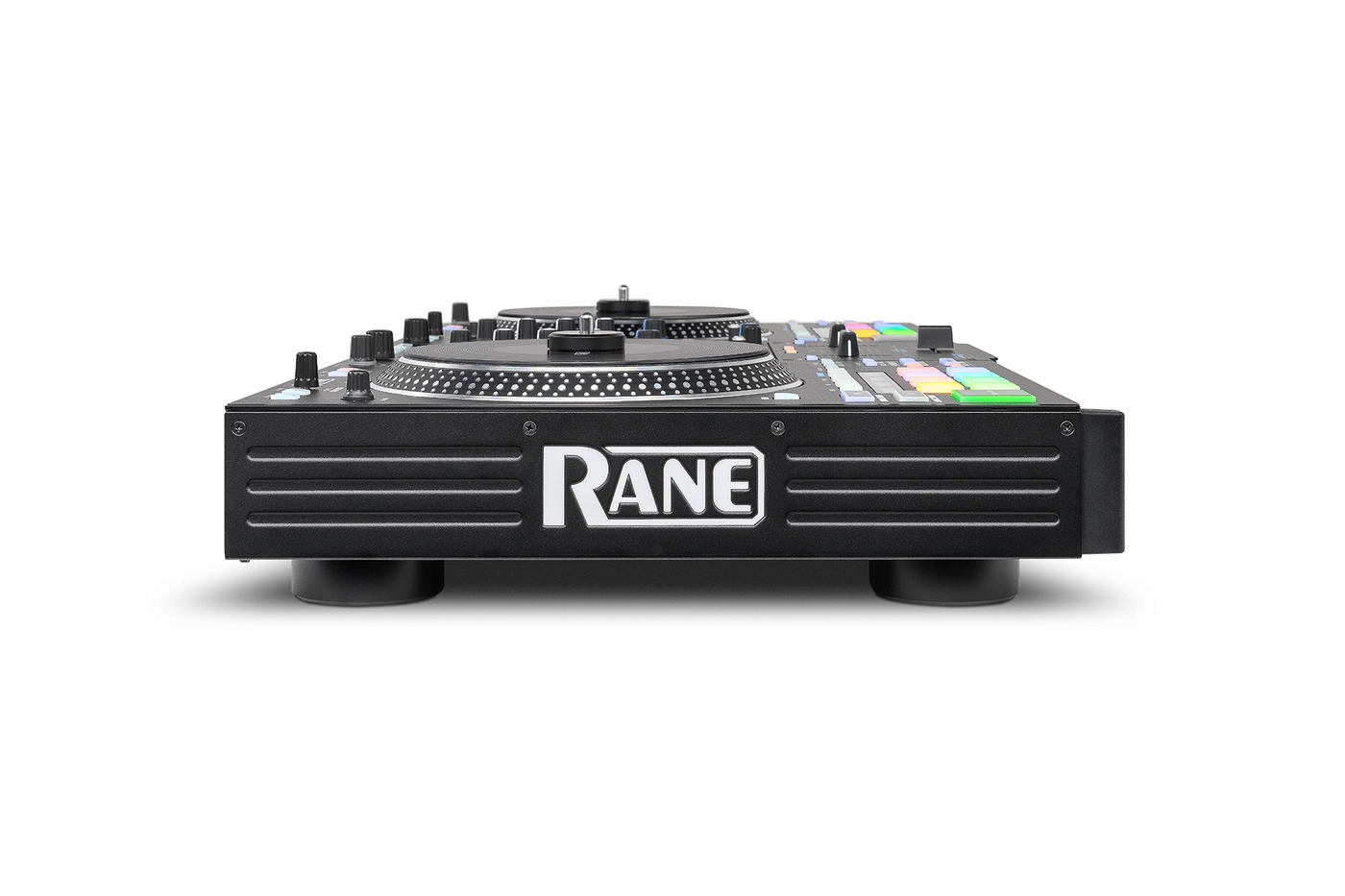

Rane System One

RANE SYSTEM ONE is the worlds first all-in-one standalone DJ system with motorised platters, blending the timeless feel of traditional turntables with the freedom of modern, laptop-free DJ technology.

As RANEs first product powered by Engine DJ, this system lets open format DJs enjoy RANEs legendary hardware performance while effortlessly mixing across standalone media, streaming platforms, and Serato DJ software. Loaded with creative FX options like Fader FX, Sweep FX, Touch FX, and Main FX, plus versatile Stem capabilities, SYSTEM ONE is engineered to unlock new creative heights and fuel DJs passion for their craft.

Key Features

Freedom Fused with Feel
The embedded Engine DJ OS empowers you to perform without a laptop, combining advanced standalone tech with high-torque 7.2 aluminium motorised platters for the authentic tactile experience DJs love.

Performance Flexibility
Thanks to OmniSource architecture, seamlessly mix from USB drives, SD cards, internal hard drive (sold separately), streaming services including Apple Music, Amazon Music Unlimited, Beatsource, Beatport, TIDAL, SoundCloud Go+, Dropboxand software sources like Serato DJ and Algoriddim djay (Spotify support arriving early 2026).

Stand Out with Standalone Stems
Create live blends and remixes using standalone Stems, Stem FX, Instant Acapella and Instrumental buttons, Stem pad mode, and Stem Level EQ control. Render Stems ahead on Engine DJ desktop or directly on SYSTEM ONE (on-board Stem rendering coming early 2026).

Seamless FX Integration
With over 25 Main FX assignable to six aluminium toggle-activated slots, plus 5 Sweep FX, 10 on-screen Touch FX, and 4 fader-activated Fader FX, SYSTEM ONE offers a powerful suite of creative tools. Additionally, tap into Seratos extensive FX library for even greater versatility.

Engine DJ Meets RANE
Designed for RANE loyalists transitioning to standalone, Engine DJ desktop software imports your entire Serato DJ libraryincluding crates, hot cues, loops, BPM, key, and metadataallowing you to transfer your collection to USB, SD, or internal HDD (sold separately) and perform without a laptop.

High-Definition Vertical Touchscreen with RGB Waveforms
Browse tracks, monitor decks, cue visually with RGB waveforms, and control FX and lighting via a sleek 7 vertical touchscreen. Customise waveform orientation, toggle track lists, and enable Day Mode to tailor the interface to your workflow.

Quick Track Access
Three Playlist Banks let you save and recall your favourite Engine DJ, streaming playlists, or Serato DJ crates instantly with dedicated buttonskeeping essential tracks just a tap away.

Performance Pads with OLED Displays
Each deck features 8 RGB performance pads with dynamic lighting reflecting the active mode. OLED screens above provide clear feedback, showing Hot Cue/sample names, Stem elements, and Roll beat divisions for precise control.

On-Board SoundSwitch Lighting Control
Wirelessly integrate Philips Hue and Nanoleaf smart lighting for automated, beat-synced light showsideal for livestreaming and content creation. Add a SoundSwitch Micro DMX or Control One interface to control DMX fixtures with Auto Loops and on-screen overrides.

Signature RANE Sound and Pro Connections
SYSTEM ONE delivers RANEs renowned high-fidelity sound with comprehensive I/O options: XLR and RCA Main outputs, ¼ Booth outputs with 8-band software EQ, Bluetooth output, selectable Bluetooth/RCA AUX input with dedicated volume control, and dual XLR combo mic inputs featuring EQ, Echo, Reverb, Talkover, and Anti-Feedback. Customise your sound further with on-screen 10-band EQ controls for Main and Booth outputs.

Digital Audio

• Converters: Cirrus Logic, 24-bit PCM, 44.1 kHz
• Digital Signal Processing: 32-bit, Floating Point, Double Precision

Audio Outputs

Main Output (XLR, RCA stereo pair)

• DAC: 24-bit
• Dynamic Range: 117 dB
• Output Type: Balanced XLR
• Max Output Level (XLR): 8 Vrms
• Max Output Level (RCA): 4 Vrms
• Frequency Response: 20 Hz–20 kHz: +0, -1 dB
• THD+N: 0.002% @ 1 kHz, 4 Vrms
• Channel Separation: > 80 dB
• Input Gain Trim Range: Off to +12 dB
• Output Level Range: Off to 0 dB

Booth Output (1/4” [6.35 mm] TRS)

• DAC: 24-bit
• Dynamic Range: 117 dB
• Output Type: Balanced TRS
• Max Output Level: 8 Vrms
• Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
• THD+N: 0.002% @ 1 kHz, 4 Vrms
• Channel Separation: > 80 dB
• Input Gain Trim Range: Off to +12 dB
• Output Level Range: Off to 0 dB

Headphone Output (1/4” [6.35 mm] and 1/8” [3.5 mm] TRS)

• DAC: 24-bit
• Dynamic Range: 117 dB
• Output Type: Stereo TRS (1/8” and 1/4” jacks)
• Cue Features: Cue / Split Cue
• Max Output Level (No Load): 4 Vrms
• Max Power Output @ 50 : 150 mW
• Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
• THD+N @ 1 kHz, 4 Vrms (No Load): 0.002%
• THD+N @ 1 kHz, Full Power @ 50 : 0.08%
• Channel Separation: > 80 dB
• Level Control Range: Off to 0 dB

Inputs (Combo XLR/1/4” [6.35 mm] TRS)

• ADC: 24-bit, 115 dB DR
• Input Type: Balanced XLR/TRS combo
• Max Input Level: 110 mV
• Analog Gain: 25 dB
• Max System Gain: 60 dB
• Frequency Response @ 20 Hz: -2.5 dB
• Frequency Response @ 20 kHz: -5 dB
• THD+N @ 0.1 Vin, Gain = 25 dB: 0.015% (100 Hz–20 kHz)
• DR (A-weighted), Gain = 25 dB: 102 dB
• DR (A-weighted), Gain = 60 dB: 72 dB
• IRN (A-weighted), Gain = 60 dB: -132 dB
• IRN (20 Hz–20 kHz), Gain = 60 dB: -130 dB

Auxiliary Input (RCA stereo pair)

• ADC: 24-bit, 115 dB DR (A-weighted)
• Input Type: Unbalanced RCA
• Max Input Level: 4 Vrms
• Frequency Response: 20 Hz – 20 kHz: +0, -1 dB
• THD+N @ 3 Vrms, Unity Gain: 0.005% (20 Hz–20 kHz)
• Gain Range: Off to +12 dB
• DR (A-weighted), Unity Gain: 108 dB
• Crosstalk: -90 dB

Performance Pads

• Pads: 16 total, on/off multi-color back-lit (8 per deck)

Faders

• Channel Faders: 2 PRECISION FEEL tension-adjustable with contour and reverse
• Crossfader: 1 MAG FOUR tension-adjustable with contour and reverse

Displays

• Main Display: 7" / 178 mm (diagonal) full-color LED-backlit display with touch interface
• Pad Displays: (8) 128 x 32 monochrome OLEDs

CPU

• Processor: Quad-core ARM®
• RAM: 4 GB

Wi-Fi & Bluetooth

• Wi-Fi:
  • 2.4 GHz / 5 GHz
  • 802.11a/b/g/n/ac
  • Wi-Fi 5
• Bluetooth: v5.4

Supported Media

File Systems

• exFAT (recommended)
• FAT32

Playable Formats

• AAC / M4A
• AIF / AIFF (44.1–192 kHz, 16–32-bit)
• ALAC
• FLAC
• MP3 (32–320 kbps)
• MP4
• Ogg Vorbis
• WAV (44.1–192 kHz, 16–32-bit)

Streaming Services (subscription required)

• Amazon Music Unlimited
• Apple Music
• Beatport
• Beatsource
• SoundCloud Go+
• TIDAL

Lighting

• Onboard Smart Lighting:
  • Philips Hue
  • Nanoleaf
• Supported DMX:
  • SoundSwitch DMX Micro
  • SoundSwitch Control One

Power (Internal with locking IEC)

• Input Type: Locking IEC
• Input Voltage: 100–240 VAC
• Frequency: 50/60 Hz
• Power Consumption: 150 W

General

• Dimensions (W x D x H):
  • Inches: 29.00 x 15.87 x 5.70
  • Centimeters: 73.66 x 40.30 x 14.47
• Weight: 29.4 lbs (13.33 kg)

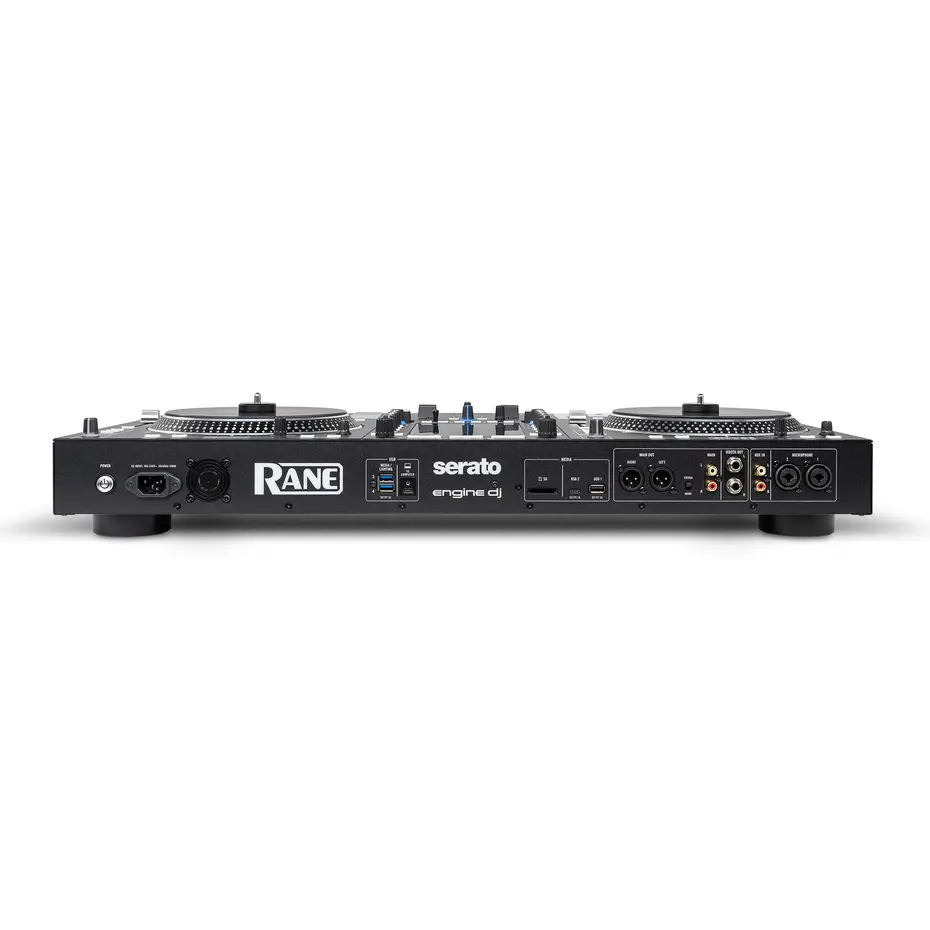

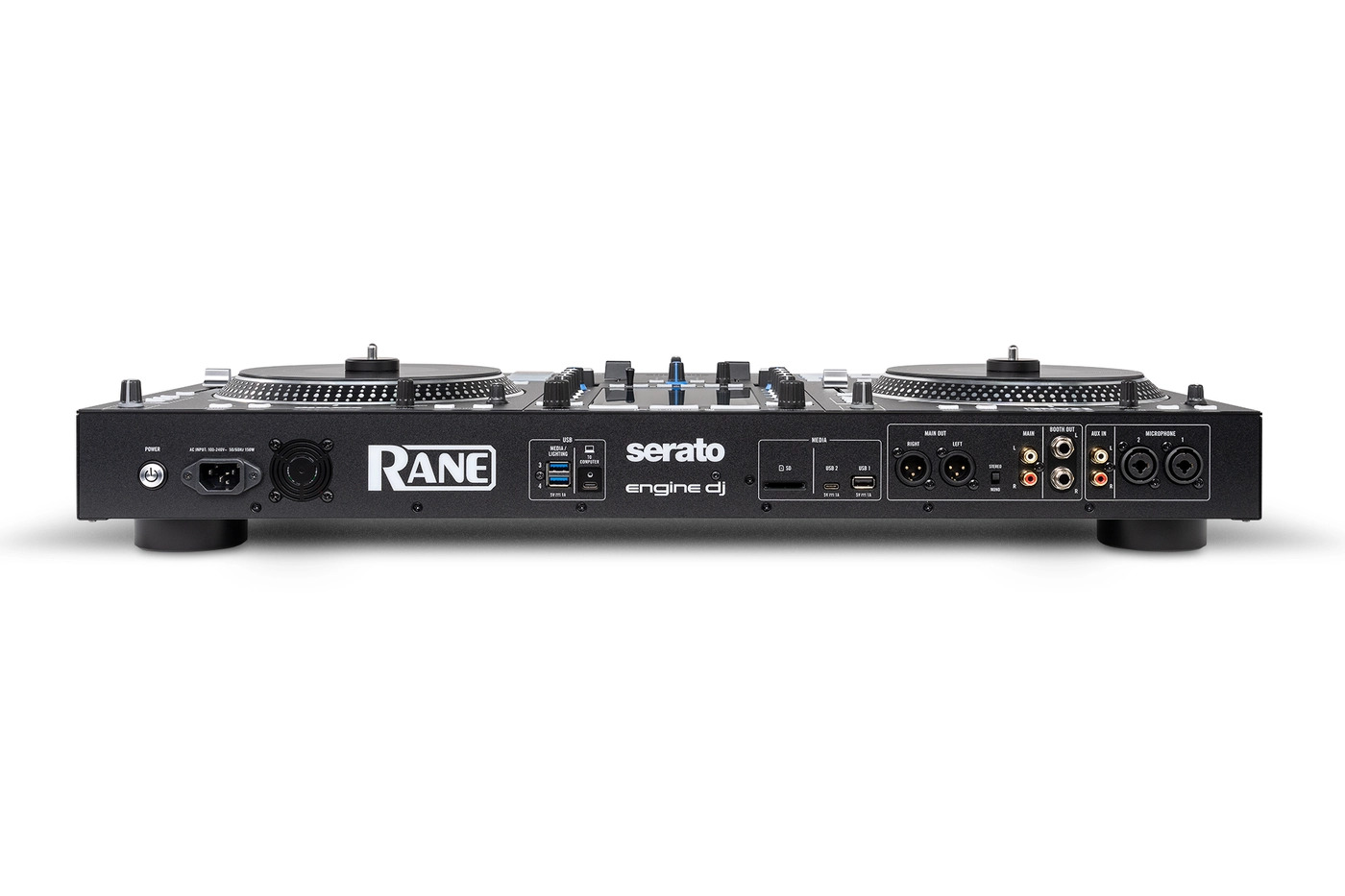

Connections

Inputs

• Microphones:
  • Mic 1: XLR + 1/4” Combo Jack
  • Mic 2: XLR + 1/4” Combo Jack
• Aux: Stereo Pair (RCA)

Outputs

• Main: (2) XLR, Stereo Pair (RCA)
• Booth: (2) 1/4” TRS Jacks
• Headphones:
  • 1/4” Stereo Jack
  • 3.5-mm Stereo Mini-Jack

Media Inputs

• USB:
  • USB 1: Type-A, USB 2.0 High Speed
  • USB 2: Type-C, USB 3.0 SuperSpeed
  • USB 3: Type-A, USB 3.0 SuperSpeed
  • USB 4: Type-A, USB 3.0 SuperSpeed
  • USB to Computer: Type-C, USB 3.0 SuperSpeed
• SD Media: SD, SDHC, SDXC
• Internal HD: SATA 3.0

Power

• Input: Locking IEC
