Rane One MKII
Motorised DJ Controller
Dynamic Internal FX Suite
29 meticulously crafted internal effects, offering DJs an extensive palette of sonic possibilities. From subtle enhancements to transformative soundscapes and even fader-controlled transition FX, this suite elevates the creative potential of every performance.
Stems Controls for Creative Flexibility

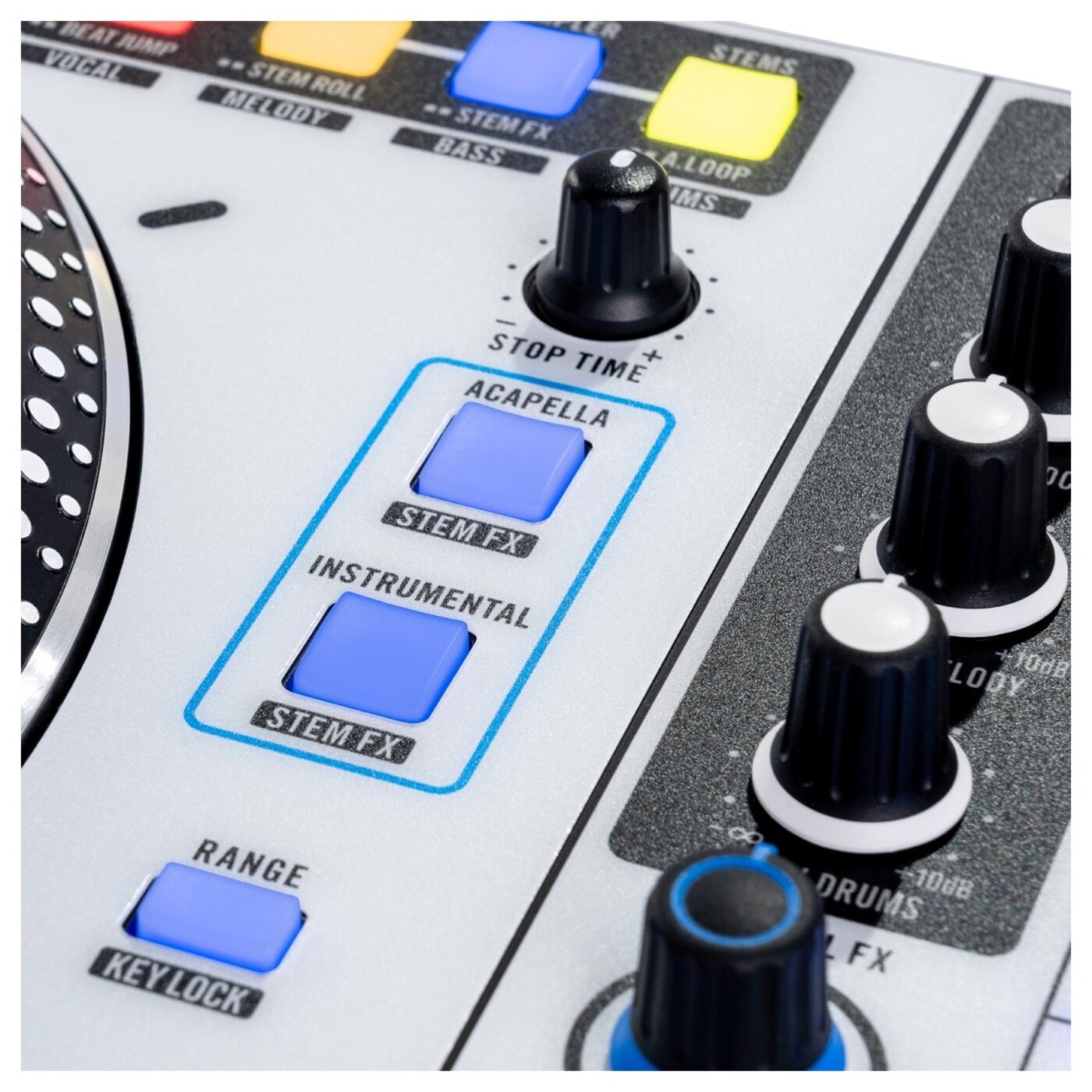

- Acapella and Instrumental Buttons: Effortlessly isolate vocals or instrumentals for unique transitions and real-time remixes.
- Stems Level Control: Seamlessly adjust the balance of individual audio elements with EQ knobs.
- Stems Pad Mode: Quickly mute and apply FX to individual stem parts.
- Stems Roll Pad Mode: Apply loop rolls to individual or multiple stem parts.
- Stems FX Pad Mode: Apply Echo Out, Roll Out, Brake, or Delay FX to individual or multiple stem parts.
Secondary Pad Buttons
Access multiple pad modes simultaneously with dedicated secondary buttons above the platter. Streamline performance workflows and unlock greater creative freedom without sacrificing simplicity.
Channel FX
The Filter knob on each deck can access four different Channel FX, providing hands-on control of:
- Filter
- Filter Roll
- Flanger
- Noise
PRECISION FEEL Channel Faders
Experience ultra-smooth, accurate, and tension-adjustable control with PRECISION FEEL faders, empowering intricate and dynamic mixing.
Stunning White Colourway
The MKII introduces a stylish white finish, combining aesthetics with function. This not only makes it an eye-catching centerpiece of any DJ setup but also improves control surface visibility.

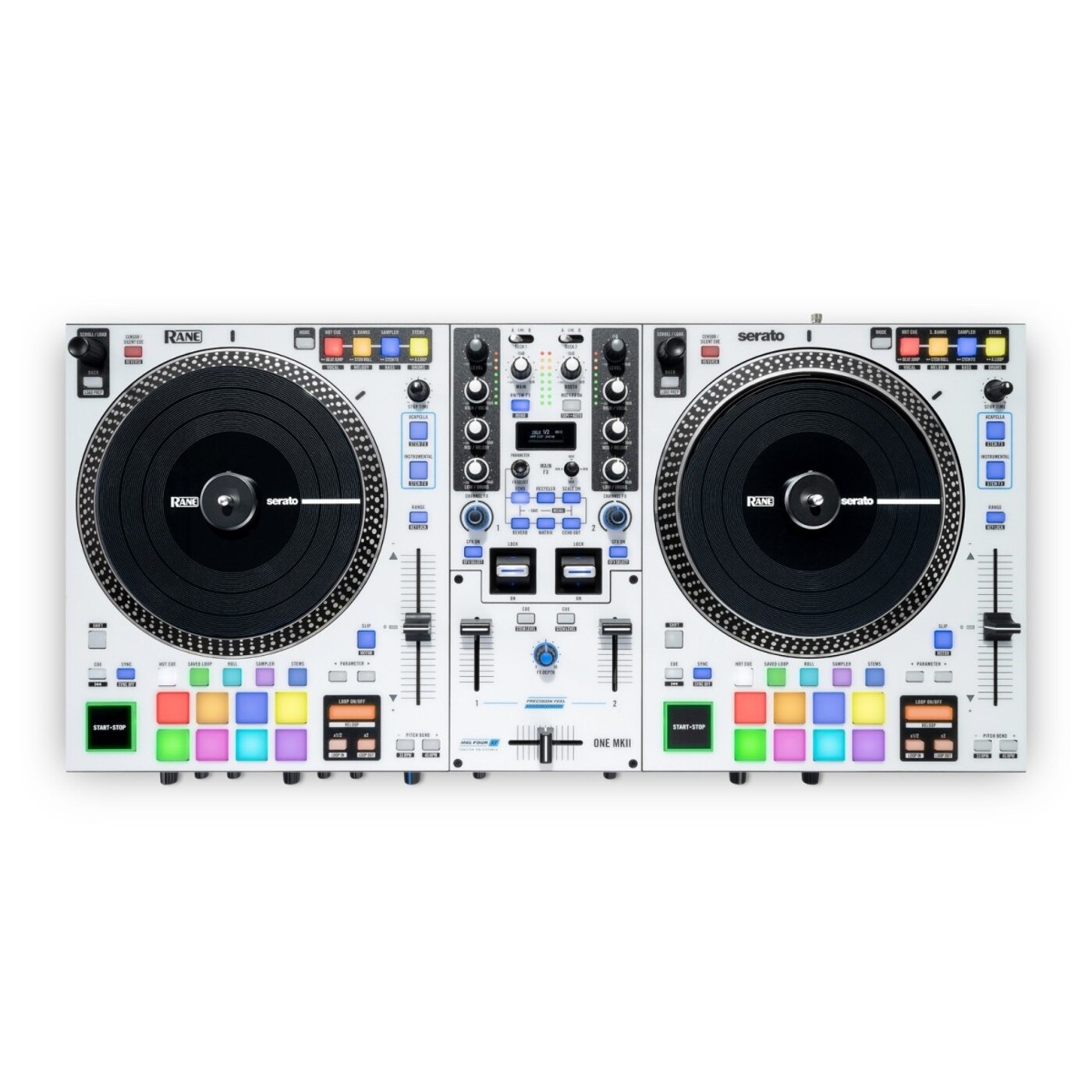

The RANE ONE MKII is a performance-ready motorised DJ controller built to give professional DJs unmatched creative freedom in any live setting.

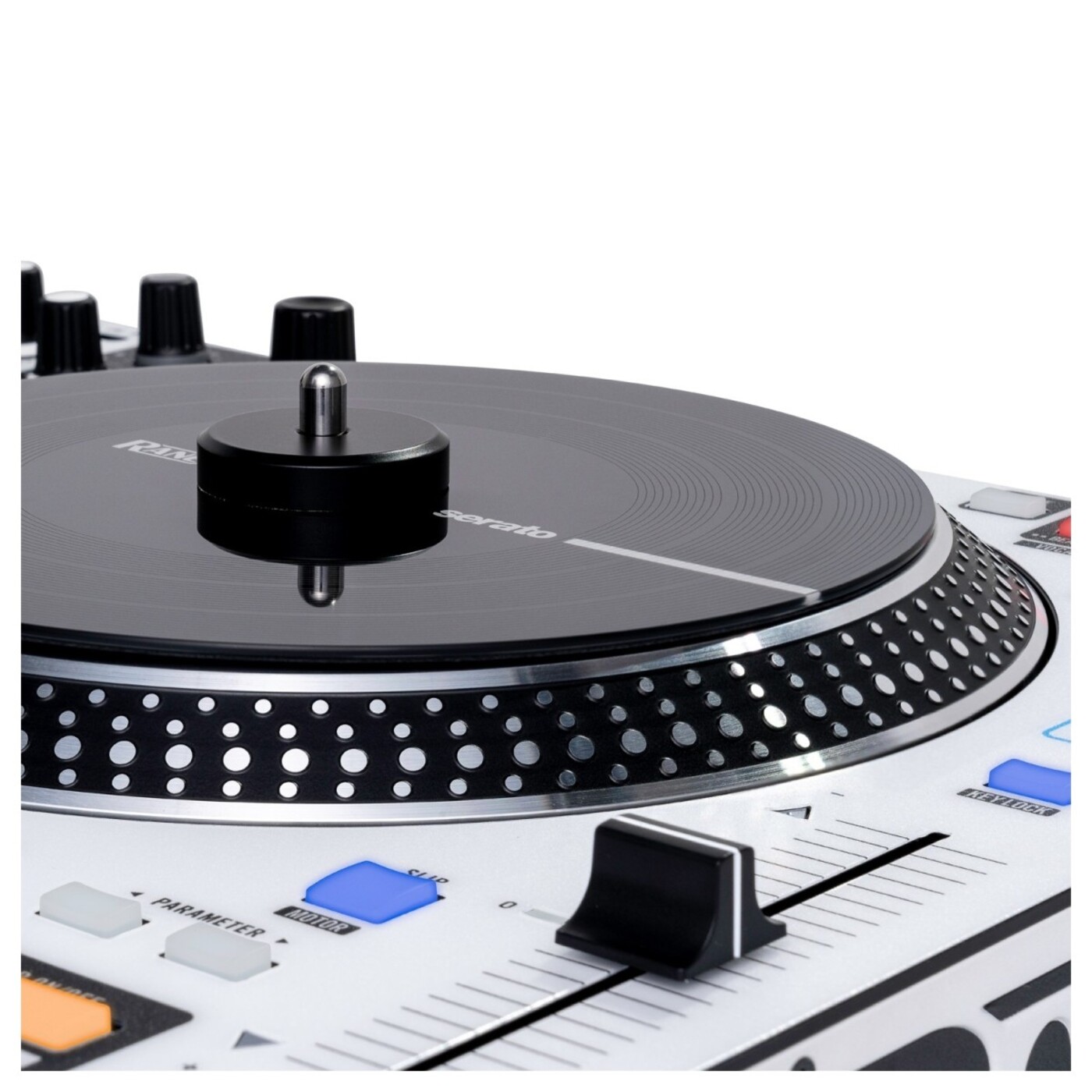

Designed for open-format flexibility, it features high-torque motorised platters that deliver the authentic tactile feel of vinyl while maintaining digital precision. With Fader FX, DJs can transform volume faders into expressive controls for Pitch, Filter, Roll, and Ring Modulator FX, alongside four integrated tone generators.
Equipped with 29 onboard hardware effects and a dedicated display, the MKII provides limitless creative options for smooth transitions and dynamic mixes ideal for clubs, bars, and high-energy events. Its pro-grade sound quality and comprehensive connectivity ensure seamless integration into any setup, letting DJs focus entirely on performance.
Building on the original RANE ONEs popularity, the MKII introduces advanced Stems controls for unprecedented live remixing flexibility. With Serato DJ Pro, DJs can isolate vocals, instrumentals, or drums, apply FX or loop rolls, and reshape tracks in real time with ease.
Customisable pad modes, a dedicated sampler knob, tension-adjustable PRECISION FEEL faders, and the MAG FOUR crossfader provide the precision and adaptability needed for expressive, personal performance styles. A sleek white finish enhances both aesthetics and visibility, making the controller a modern centrepiece for any setup.
Durable, portable, and versatile, the RANE ONE MKII is engineered to inspire and empower DJs at every level of professional performance.
Digital Audio
- Converters: Cirrus Logic, 24-bit PCM, 48 kHz
- Digital Signal Processing: 32-bit, floating point, double precision
- Dynamic Range (A-weighted, unity gain):
- ADC: 113 dB
- DAC: 113 dB
- CD Input Analog Output: 110 dB
- CD Input USB Output: 113 dB
- USB Input Analog Output: 113 dB
Inputs
Microphone 1/2 (Combo XLR / 1/4" TRS, Mic/Line switchable)
- Analog Gain: 25 dB
- Maximum Input: 110 mV
- Gain Trim: Off to +26 dB (unity at center)
- Tone Control: 2-band
Aux Input (RCA stereo pair)
- Maximum Input: 4 Vrms
- Dynamic Range (A-weighted): 114 dB
- Gain Trim: Off to +12 dB
- Tone Control: 2-band
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)
CD Mode:
- Maximum Input: 4 Vrms
- Gain Trim: Off to +12 dB
- Tone Control: 3-band, full-cut to +10 dB
- THD+N (20 kHz BW @ 1 kHz): 0.004%
Phono Mode:
- RIAA Curve: ±0.25 dB
- Gain (@ 1 kHz): 31.5 dB
- Maximum Input (@ 1 kHz): 106 mV
- Dynamic Range (A-weighted): 102 dB
Outputs
Main Outputs (XLR)
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat
Booth Outputs (XLR)
- Gain Trim: Off to 0 dB
- Maximum Output: 8 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat
Master Outputs (RCA stereo pair)
- Maximum Output: 4 Vrms
- THD+N (20 kHz BW @ 1 kHz): 0.004%
- Frequency Response: Flat
Headphone Outputs (1/4" & 1/8" TRS)
- Maximum Output Voltage: 4 Vrms (no load)
- Output Power: 50 mW (50 ohms)
- Dynamic Range (A-weighted): 108 dB
Pads
- 16x multi-color back-lit pads (8 per deck, 10 modes each)
- Secondary performance pad buttons with 8 pad modes
Faders
- (1) MAG FOUR tension-adjustable crossfader with independent Contour & Reverse controls
- (2) PRECISION FEEL tension-adjustable faders with Contour knob & Reversal switches

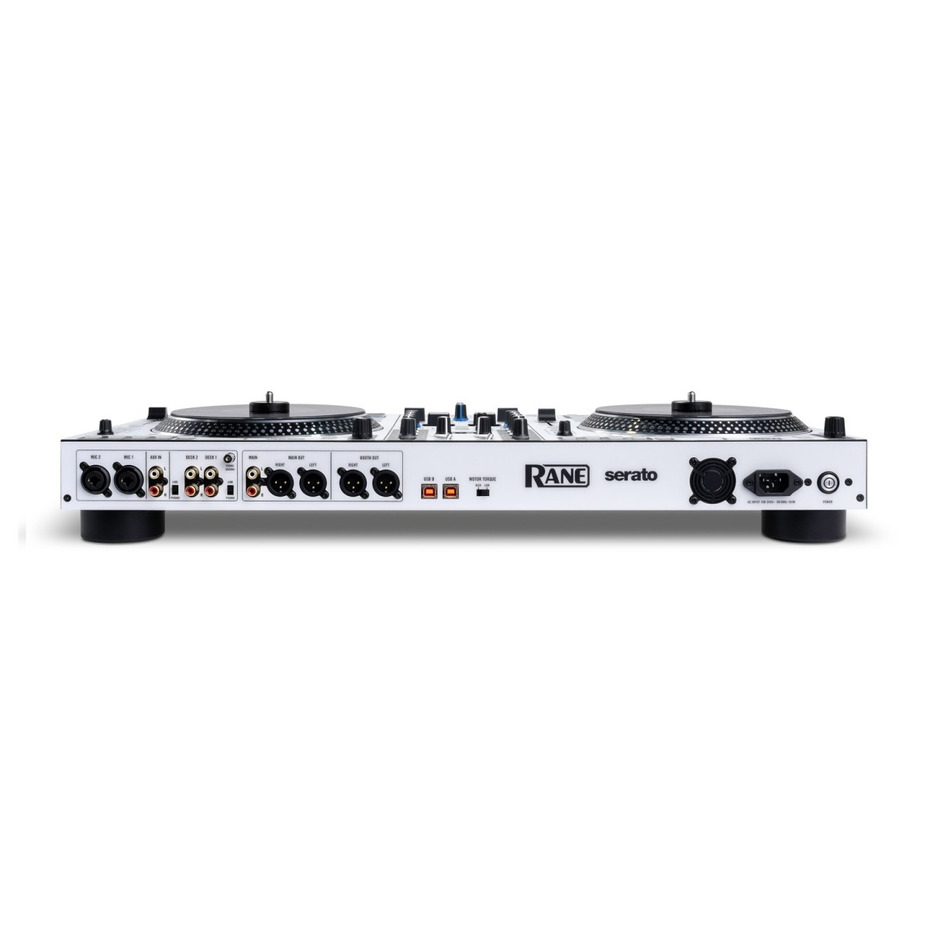

Connectors
- (2) XLR outputs (Main)
- (2) XLR outputs (Booth)
- (1) RCA stereo output pair (Master)
- (2) XLR / 1/4” TRS inputs (Mic 1–2)
- (2) RCA stereo input pairs (Deck 1–2)
- (1) RCA stereo input pair (Aux)
- (1) 1/4” TRS output (Headphones)
- (1) 1/8” TRS output (Headphones)
- (2) USB Type-B ports
- (1) IEC power cable input
Power
- Connection: IEC
- Voltage: 100–240 V, 50/60 Hz
- Consumption: 50 W
Dimensions
- W x D x H: 26.5” x 13.6” x 4.9” (674 x 345 x 124.3 mm)
Weight
- 24.56 lbs (11.14 kg)
