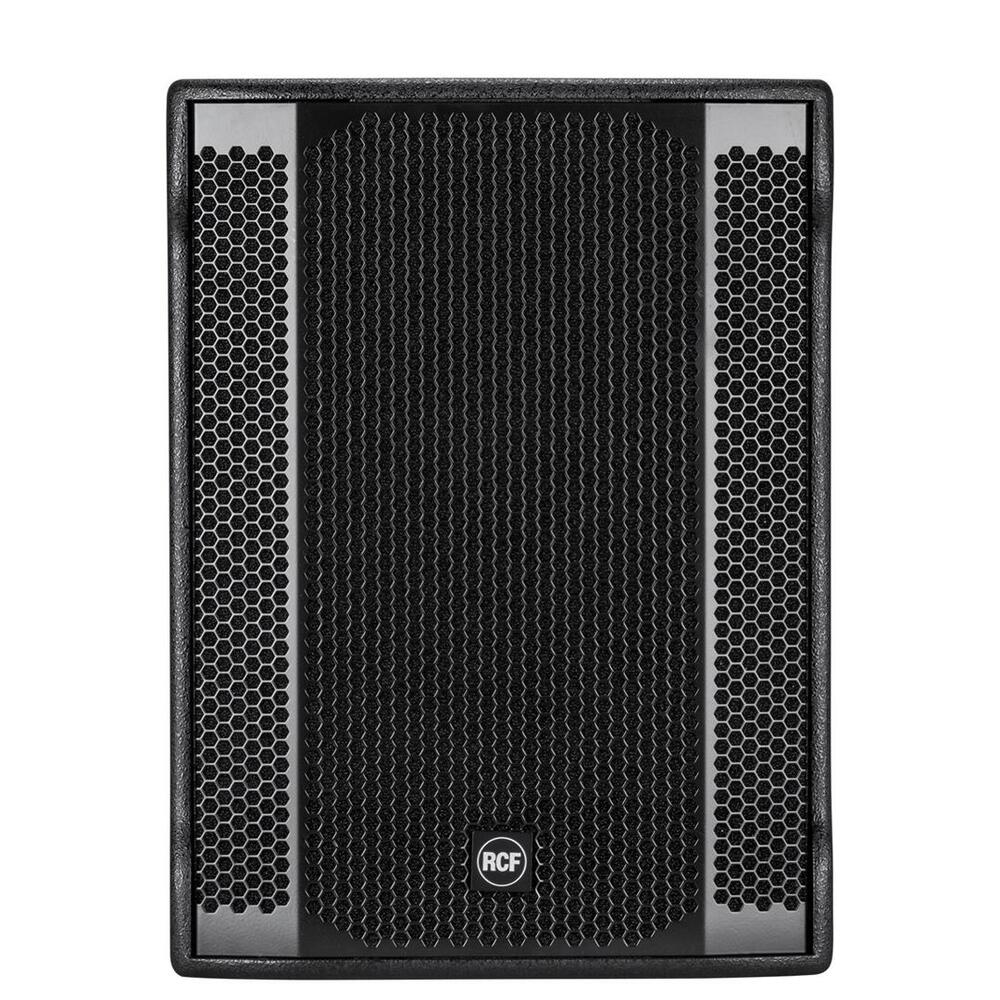

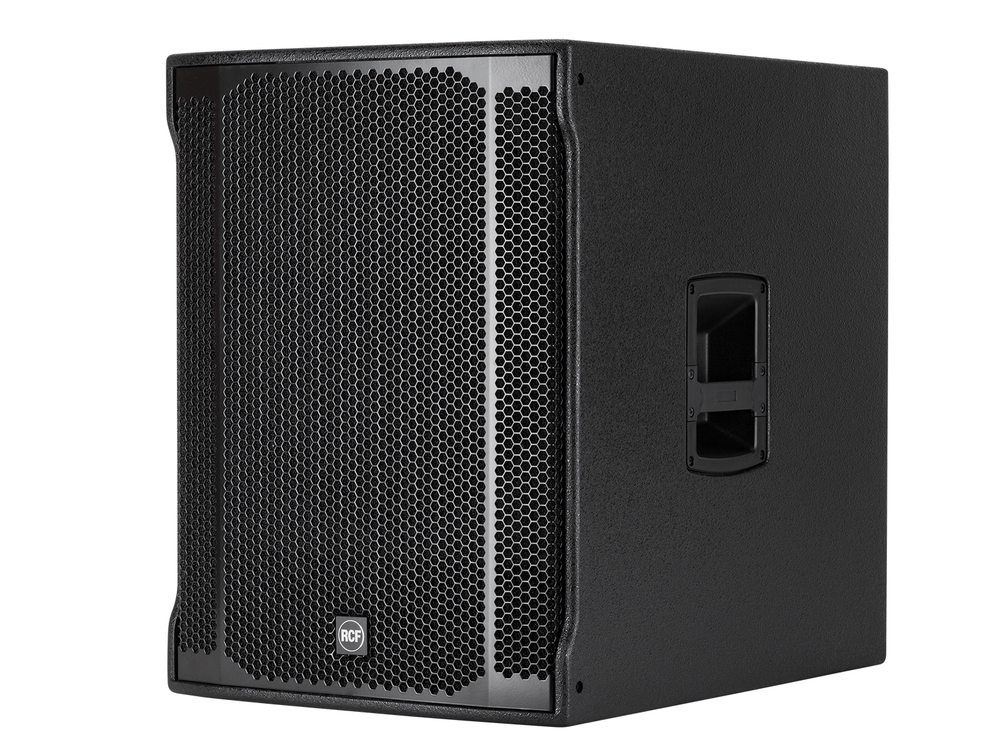

RCF Sub 8003-AS II Subwoofer
3 Year Warranty
Features
- 2200 W Digital Amplifier
- 135 dB max SPL
- 35 Hz - 120 Hz frequency response
- 18" Woofer, 4.0" v.c.
- Selectable gain, X-over and delay
- Birch tour grade cabinet
- Stereo XLR input, Stereo XLR signal output
Specifications
Acoustical Specifications
- Frequency Response -3 dB: 35 Hz ÷ 120 Hz
- Max SPL: 135 dB
- Woofer: 18", 4.0" voice coil
Input/Output Section
- Input connectors: Stereo XLR
- Output connectors: Stereo XLR
- Input sensitivity: -2 dBu / + 4 dBu
Processor Section
- Crossover frequencies: Selectable Hz
- Protections: thermal, rms
- Limiter: dynamic limiter
- Controls: Gain,EQ, phase, xover, delay, cardioid
Amplifier Specifications
- Total power: 2200 W PEAK
Low frequencies: 2000 W PEAK - Total power: 1100 W RMS
Low frequencies: 1100 W RMS - Cooling: Convection
- Connections: Powercon in-out
Cabinet
- Cabinet Material: Baltic birch plywood
- Handles: 2 side
- Pole Mount/Cap: Yes
- Grille: Steel
- Colour: Black
Dimensions
- Height: 694/27.32 mm/inch
- Width: 523/20.59 mm/inch
- Depth: 700/27.56 mm/inch
- Net Weight: 43.5/95.90 kg/lbs
The RCF SUB 8003-AS II is a high output 18" subwoofer with a peak power of 2200W and an RMS power of 1100W. This professional subwoofer is the ideal complement to 12" and 15" speakers, especially the RCF ART 7 Series. Thanks to the built-in digital stereo crossover (DSP) with adjustable crossover frequency it can be easily and quickly set up as a satellite speaker system.
The SUB 8003-AS II active subwoofer features the latest generation of RCF woofer technology, digital amplifiers and DSP processing with higher power and enhanced performance. It offers the perfect blend of bass reproduction, high SPL and compact dimensions for mobile use by bands and DJs.
Powerful Amplifier
The SUB 8003-AS II is equipped with a new generation of 2200 Watt Digital Amplifier offering very high output, extremely low distortion and incredibly natural sound. The amplifier features a solid mechanical aluminum structure that not only stabilizes the amplifier during transportation, but also assists in heat dissipation.

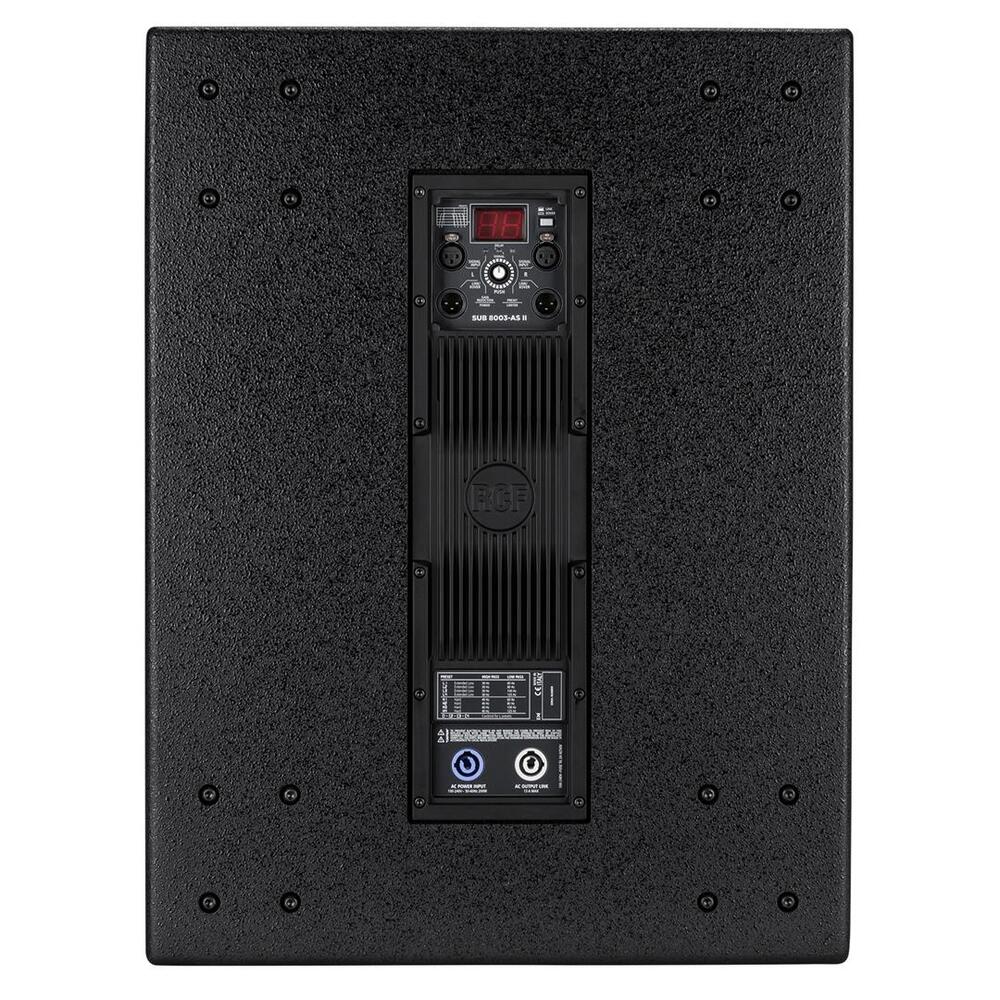

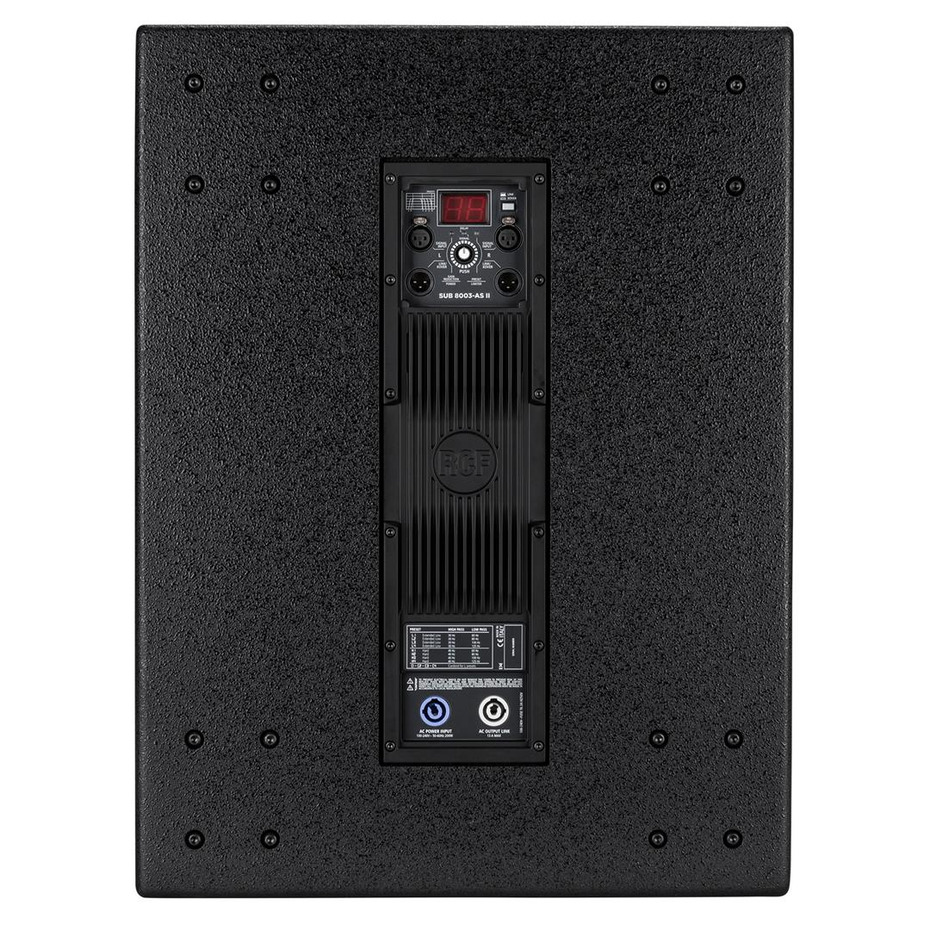

Innovative Input Board
The input board offers stereo XLR inputs and stereo XLR link-crossover outputs with switchable crossover frequencies for satellite systems. The system has a built-in DSP with selectable presets for perfect and easy adaptation to RCF’s active 2-way speakers. It is ideal for 12” or 15” active speakers in the Live Sound Series such as ART 7, 4PRO and D-Line Series.
Stereo Signal XLR Input (Bal/Unbal).
The system accepts female XLR input connectors and line-level signals from a mixing console or other signal source.
Encoder
INPUT SENSITIVITY. Controls the overall signal level at the input to the power amplifier. The control ranges from + 99 Db gain reduction (maximum attenuation) to the 0 dB gain reduction (maximum input gain).
XOVER PRESETS. Provides 24 dB/octave low-pass and high pass filters. There are two possible high pass choices (30 Hz or 40 Hz) and four low pass choices (60 Hz, 80 Hz, 100 Hz, 125 Hz) for eight preset combinations. Cardioid presets are available for all 30 Hz high pass presets.
TIME DELAY. The encoder provides a time delay setting expressed in meters.
LINK/XOVER BUTTON
Pressing this button, the two XLR out become XOVER out.
Multiple X-OVER Presets
Using the rear encoder it is possible to select two groups of low pass filter presets, one with 30 Hz high pass and one with 40 Hz high pass, selecting the cutoff frequency best suited to the speaker satellite specific model (60 Hz – 80 Hz – 100 Hz – 125 Hz).
Cardioid Set-up
It is possible to create subwoofer cardioid systems using groups of two or three modules.
High Power Woofers
Both SUB 8003-AS II and SUB 905-AS II are equipped with high power RCF woofers. Our inside/outside voice coils represent unmatchable reference in power handling. Their “triple thickness” former transfers the sound to the cone with extreme accuracy and reliability.
Bass Reflex Enclosure
The SUB Series features a bass-reflex design that produces extremely high SPL by drastically reducing the distortion.
