Features:
- 129 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1" Compression Driver, 1.75" v.c.
- 12" Woofer
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
Suitable for:
- Compact live sound reinforcement
- Portable PA
- Frontfill and sidefill
- Auditorium, Clubs, Ballroom, Corporate AV, Theatre
Specifications:
Acoustical Specifications
- Frequency Response -3 dB:50 Hz ÷ 20000 Hz
- Max SPL:129 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1", 1.75" v.c.
- Woofer:12", 2.5" v.c.
Input/Output Section
- Input signal:bal / unbal
- Input connectors:XLR, Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
Processor Section
- Crossover frequencies:1600 Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, Boost, Mic/Line
Amplifier Specifications
- Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK - Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS - Cooling:Convection / forced
- Connections:VDE connector in
Cabinet
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p .
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
Dimensions
- Height:637 / 25.0 mm/inch
- Width:387 / 15.2 mm/inch
- Depth:363 / 14.2 mm/inch
- Net Weight:18 / 39.6 kg/lbs

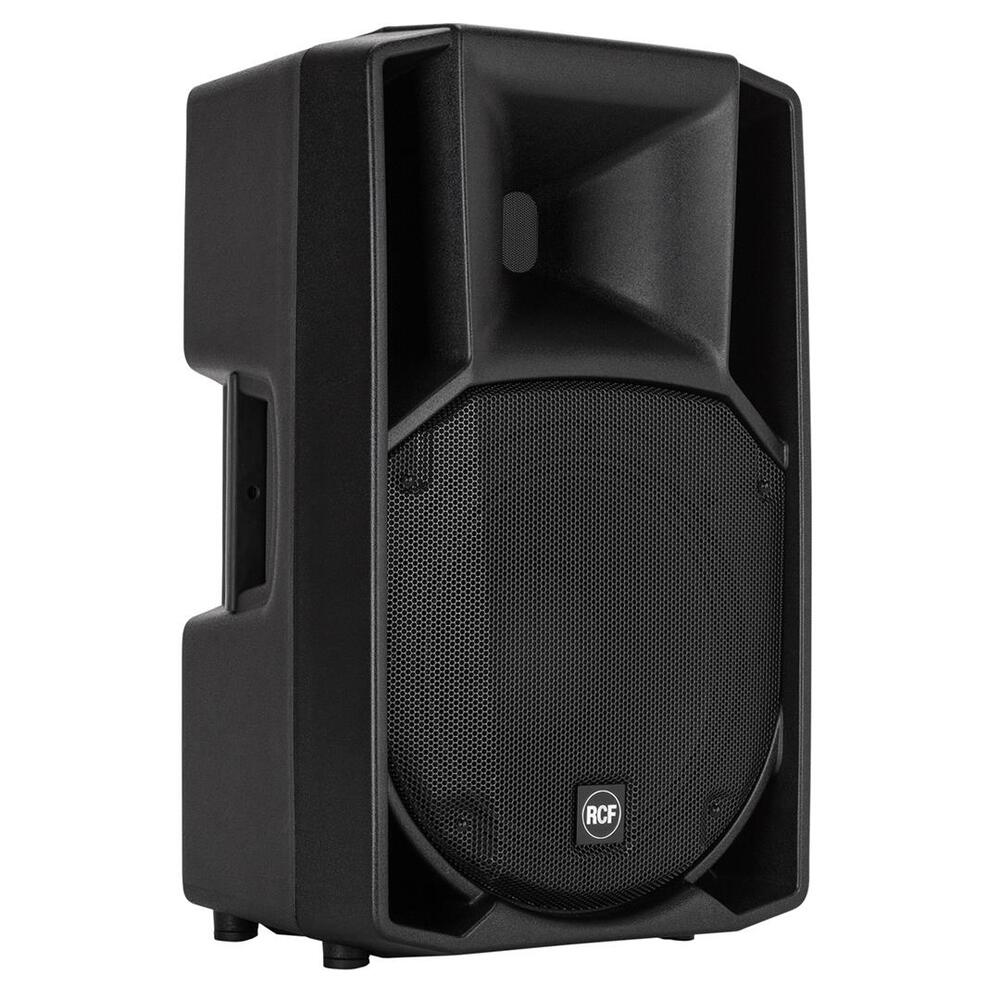

The RCF ART 712-A MK4 is a 12-inch 2-way active powered PA speaker suitable for a wide range of live music applications, including: DJs, solo musicians, bands, pubs and bars. This fantastic quality PA speaker features an ergonomic design and carefully designed proportions to make it easy to carry and take with you anywhere. Its multipurpose design allows for the speaker to be placed on top of a stand, subwoofer and even used as a stage monitor. The ART 712-A MK4 is equipped with a new generation 2-way Class-D fan-less amplifier, high-powered 12" woofer and the latest compression driver technology, plus a redesigned front grille.
The ART concept offers the best audio choice for a multitude of live sound applications in a plug'n'go device. Just connect your microphone, your mixer or your audio device to the speaker and turn up the volume: there are no complex menus, no knobs to understand.
ART 712-A MK4 is a unique product in its category. The professional compression driver with custom designed dome and high power voice coil offers unique vocal clarity and sound projection. The 12" woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. Class-D amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the Art 7 series amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
