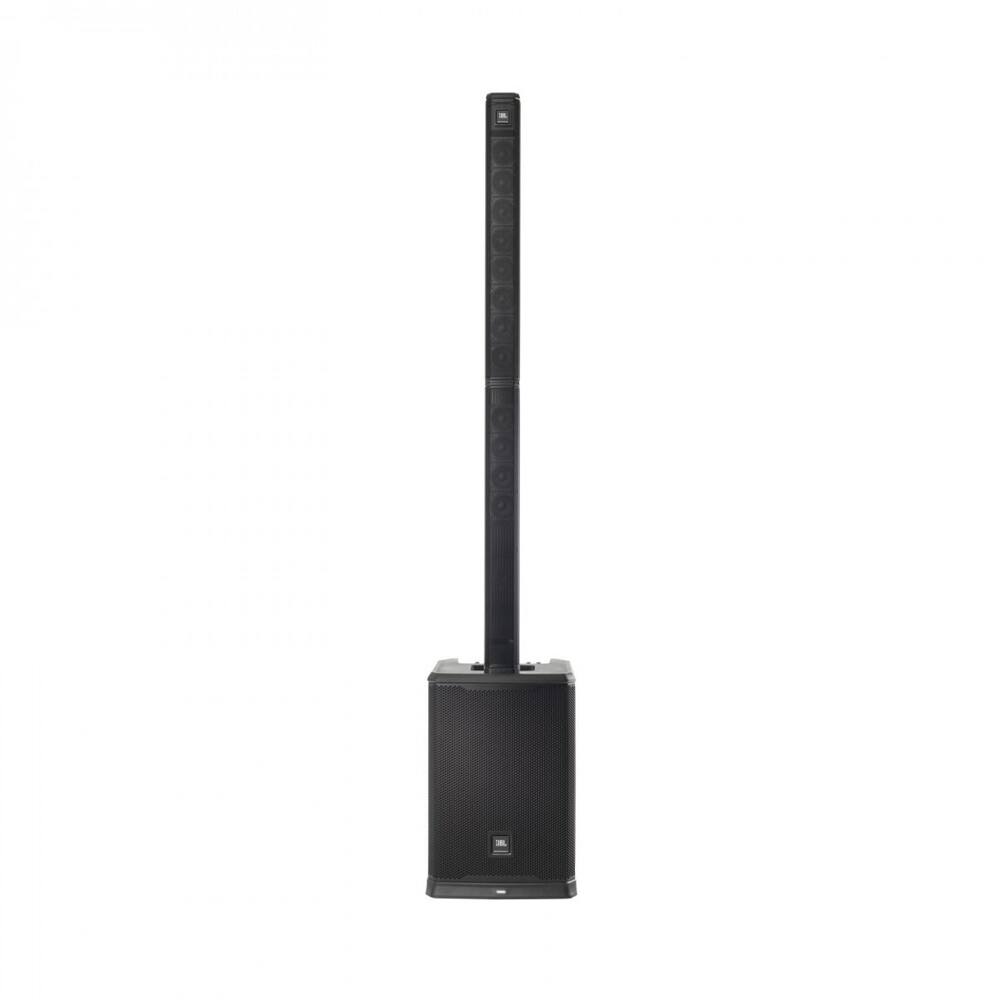

JBL PRX ONE Column PA System
7-Year Warranty!
- 12 custom-designed 2.5 inch array tweeters delivers consistent and even frequency response that fills the room
- Tweeters are constructed from copper-capped pole pieces that minimises distortion to provide a smooth and balanced sound
- Geomettrically optimised array design through JBL A.I.M (array inumbration mechanics) technology allows for front to back coverage!
- Large stereo spread covering 130 degrees horizontal and 30 degrees vertical
- Expertly designed crossover management and HF/LF coupling allows for a natural and smooth low end for a balanced response across the entire frequency spectrum
- Custom-designed 12 inch bass woofer produces extended low-end response down 35Hz
- Meticulously designed Class-D amplifier delivers clean and effective amplification up to 2,000 watt peak and 1,000 RMS.
- Extremely high headroom and near-zero THD
- Four low-noise microphone preamps deliver accurate and transparent sound fidelity
- Extremely high SPL tolerance of 130dB maximum
- Integrated seven channel digital mixer with full DSP control
- Dual-operating mixer mode to give you full control over faders and individual channels
- Studio-quality Lexicon effects engine with delay, reverb, chorus, echo and sub synth
- Triple tier DSP control offers intuitive control depending on user experience and knowledge
- dbx DriveRack technology features automatic feedback suppression, eight-band master EQ, limiter plus dynamics control over gates, compressors per channel
- Easy to use one-touch ducking ensures your voice is always heard above any playback tracks
- High-resolution LCD colour display gives you easy access to all PRX ONE functions
- Eight user presets for quick recall of settings
- Host of connectivity options
- Two USB 2.0 ports to charge devices and power AKG wireless systems (Additional JBL adapter needed)
- +48V Phantom power on two microphone inputs
- Control up to 10 units using JBL Pro Connect App with Bluetooth 5.0 connectivity
- Rugged and durable construction, perfect for the rigours of the road
- Comfortable grip for easy transport
- Includes nylon carry bag for the array speakers
The JBL PRX One Column PA System redefines portable audio excellence, catering to musicians and performers seeking professional studio-grade sound wherever they go. Crafted with meticulous attention to detail, the JBL PRX One Column PA boasts an acoustically refined assembly of 12 custom-crafted 2.5-inch tweeters. These tweeters are strategically positioned using the innovative JBL A.I.M (Array Inumbration Mechanics) technology, ensuring optimal sound dispersion throughout your performance space. This guarantees that every intricate detail reaches each listener with pristine clarity, regardless of their location.
Collaborating seamlessly with a bespoke 12-inch bass woofer, the PRX One delivers a seamless, balanced full-range frequency response spanning from 35Hz to 20kHz. Its exceptional power and performance set it apart, presenting a remarkable 130dB of maximum SPL, all made possible by the custom-engineered 2,000-watt peak Class-D amplifier. This makes the PRX One Column PA the ultimate choice for live bands and class instructors alike. With abundant headroom and distortion-free projection at any volume level, you can effortlessly convey your voice or instruments to your audience and venue with precision.
Simplify your setup while enhancing your sound. Leveraging the built-in high-quality DSP effects from Lexicon and dbx, you can finesse and refine your audio to perfection. Save up to eight personalized user presets to effortlessly reproduce your sound for consistent excellence across diverse audiences.
For DJs, musicians, entertainers, presenters, and beyond, the PRX One is the epitome of pristine audio quality, offering unparalleled acoustic prowess, comprehensive control, and seamless connectivity—all encased in a sleek and portable solution built to withstand the demands of the road.
- Woofer Size: 12"
- Tweeter Size: 2.5"
- Tweeter Count: 12
- Max SPL: 130dB
- Freq Range: -10dB 35-20kHz / -3dB 40-20kHz
- Horizontal Dispersion: 130 degrees
- Vertical Dispersion: 30 degrees
- Power Rating: 2000W Peak / 1000W RMS
- AC Power Input: 300W 100-230V AC 50-60Hz
- Input Impedence:
- 4Kohm balanced Combo
- 2Mohm balanced Hi-Z Jack
- 10Kohm 3.5mm single ended 2 channel
- Crossover Frequency: 260Hz
- Inputs and outputs:
- Four x XLR/1/4” Combo Jacks
- Two x 1/4"" Hi-Z
- One x 1/8""/BT Summed"
- One x XLR Pass Through
- Weight: 25.7kg
- Dimensions (H x W x D): 2042mm x 375mm x 446mm
