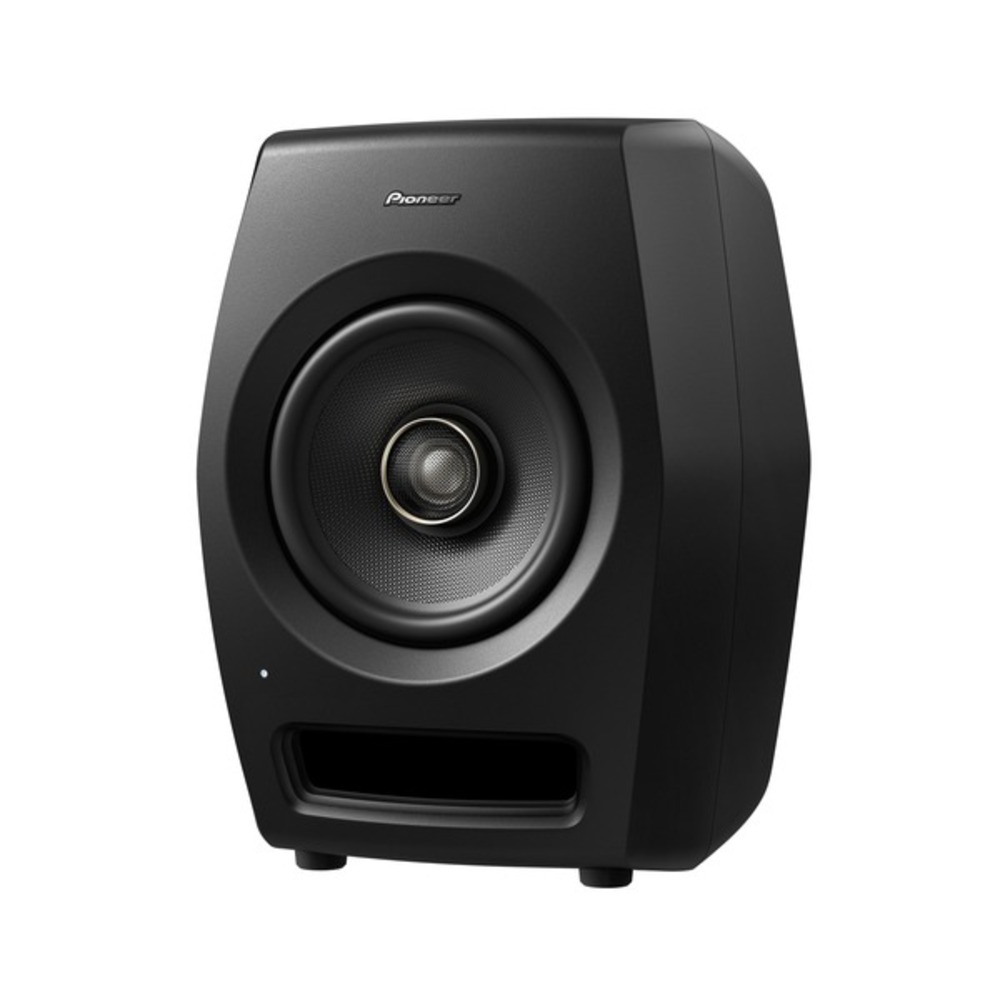

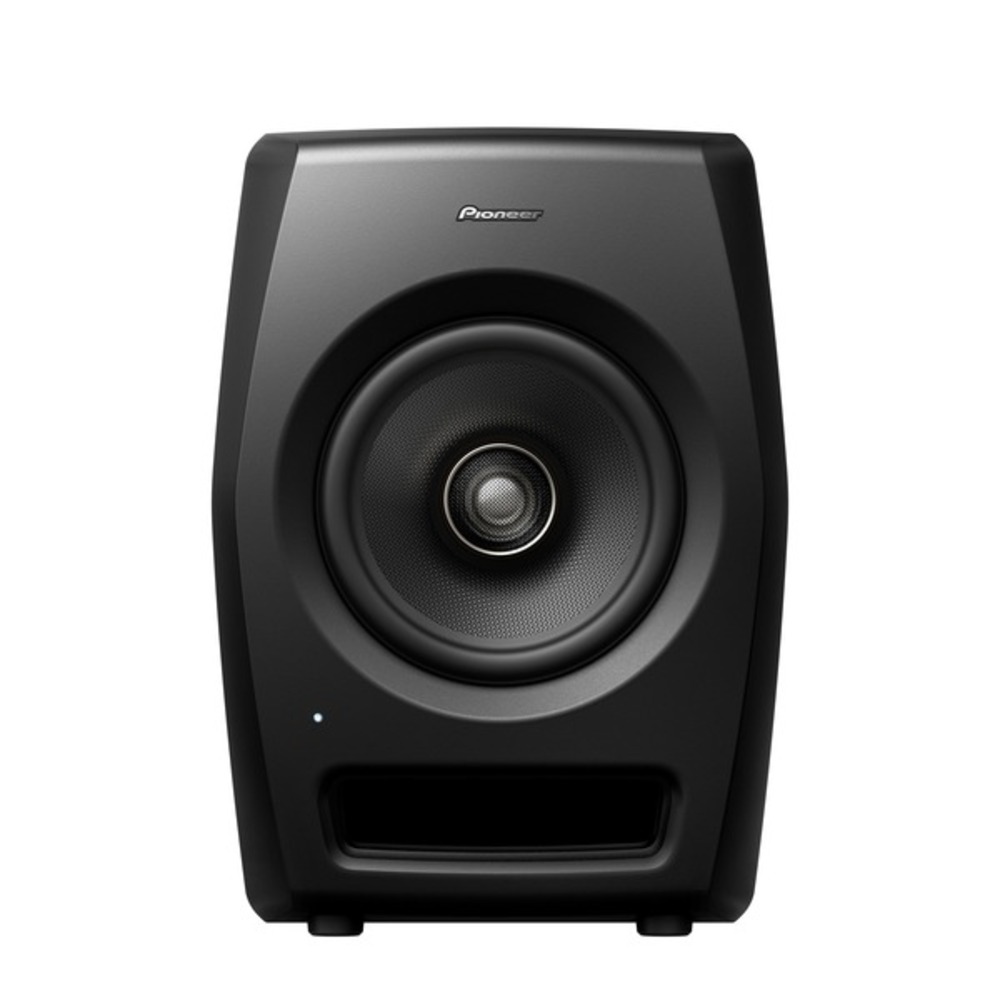

Pioneer RM-07 Studio Monitors
RM-07 Features:
- HD-Coaxial driver unit for accurate point source monitoring
The RM series adopts its HD-coaxial driver unit from Pioneer sub-brand TAD, placing the woofer and the tweeter on the same axis to ensure a truer response across the frequencies. A newly developed waveguide minimises interference between the drivers, to produce a true, neutral sound with excellent isolation, perfect for near-field monitoring in a professional studio. - 50 kHz tweeter for precise, electrifying high frequencies
The 1.5-inch hard dome aluminium tweeters were designed using unique Pioneer technology[ii]for added frequency response. The diaphragm's shape and materials are optimised to deliver precise, rousing high frequency sounds. - Rigid die-cast aluminium cabinet with curved contours for superb sound clarity
The RM Series housings are made from die-cast aluminium for maximum rigidity and reduced resonance at all volumes. The cabinet's curved surfaces optimise the rigidity and reduce external diffraction - while giving the speakers a sleek design that will look good in the studio. - AFAST[iii]acoustic tube reduces standing waves for a clear low-mid frequencies
Pioneer's patented AFAST technology drastically reduces standing waves that can produce a muffled response in the low to mid ranges. An acoustic tube in the cabinet absorbs just the standing waves, ensuring true reproduction of low to mid frequencies. - Front-loaded bass reflex system with grooves for a smooth, clear bass
The RM-05 and RM-07 feature aramid fibre woofers for a robust bass response. Plus the front-loaded bass reflex design and innovative grooves on the bass ducts reduce air friction, even when the speakers are positioned right against the wall. - Low/Mid/High EQ settings for added flexibility and control
A three-band EQ (Low/Mid/High) gives producers the option to tailor the monitor speakers' sound or audition tracks for certain scenarios, and has four pre-sets for each band. - Other features:
- o Custom-designed Class AB bi-amps ensure balance across the frequencies
- o Exclusive toroidal transformer power source for excellent S/N ratio and no distortion
- o Clip indicator to protect the unit from excessive input

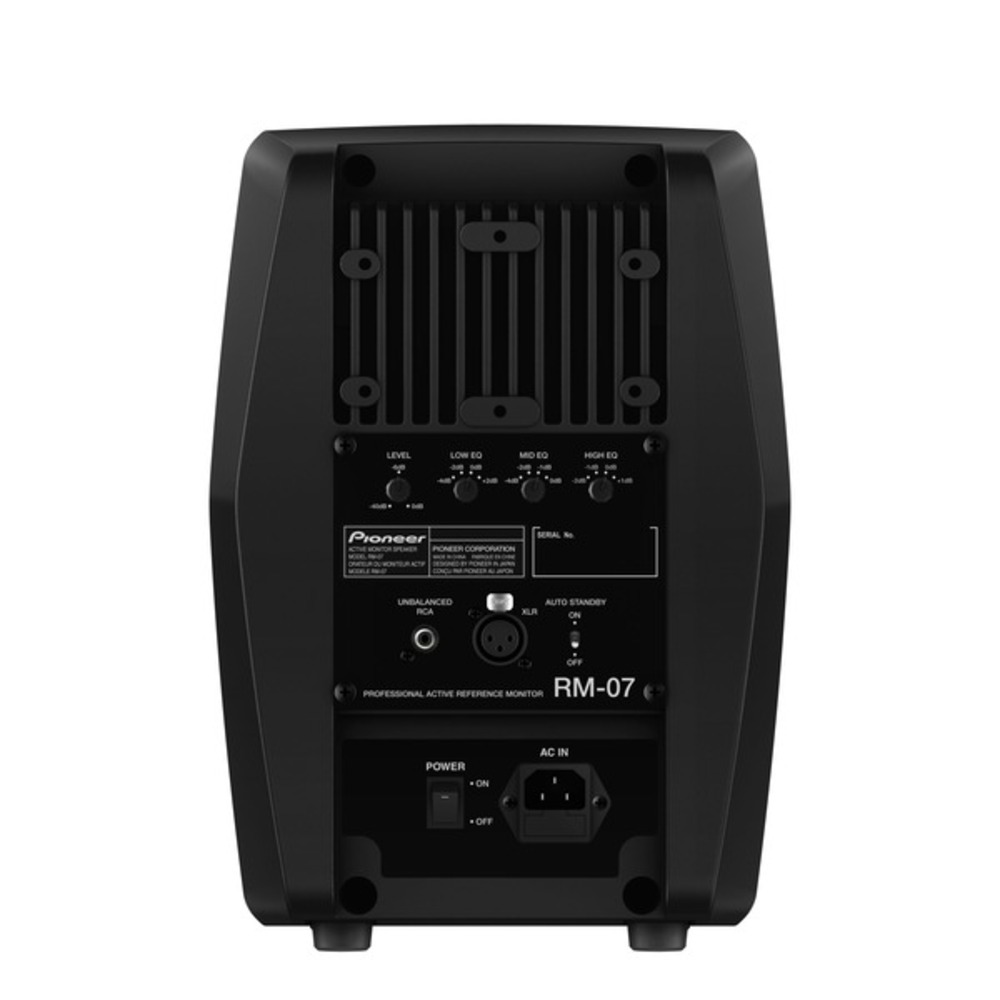

- o Wide range of inputs (XLR and RCA)
- o Auto standby On/Off function
RM-07 Specifications:
Type | Bi-amp 2-way active speaker |
Enclosure | Bass reflex/Aluminium die-cast |
Tweeter | 1.5-inch hard dome aluminium HSDOM Tweeter |
Woofer | 6.5-inch aramid fibre woofer |
Frequency Response (-10dB) | 40 Hz - 50 kHz |
Max. Sound Pressure Level | 109 dB SPL (peak @ 1 m) |
Cross Over Frequency | 1.6 kHz |
Amplifier output (rated output) | Class A/B bi-amp 150 W |
Balanced Input | XLR x 1 |
Unbalanced Input | RCA x 1 |
Input Impedance | 10 k |
Input Sensitivity | -40 dB / +6 dB |
High EQ | -2 / -1 / 0 / +1 dB ( 10 kHz ) |
Mid EQ | -4 / -2 / -1 / 0 dB ( 140 Hz ) |
Low EQ | -4 / -2 / 0 / +2 dB ( 50 Hz ) |
Power Consumption | 195 W |
Power consumption during standby mode | 0.3 W or less |
External Dimensions WxHxD | 244 x 337 x 260 mm |
Weight | 12.3 kg |
Accessories included | Power cord |
Here we have the Pioneer RM-07 Studio Monitor in B-Stock. The B-Stock versions are manufacturer refurbished and come direct from Pioneer DJ. They will come boxed 'as new' with all accessories and a 1-year warranty.
The Pioneer DJ RM-07 studio monitors from the RM Series; a brand new range of professional grade studio reference speakers with HD coaxial driver units. These fantastic monitors make use of pro-audio technology to deliver a high sound pressure level and a crisp neutral sound that produces accurate sound reproduction across all frequencies and makes them the perfect companion for studio monitoring of high-resolution sounds. The RM-07 has a 6.5" aramid fibre woofer and a rated output of 150W!
The RM Series' use a coaxial driver unit from Pioneer pro-audio brand TAD[i] to ensure audio from the tweeter and woofer emanates from the same point for a more accurate sound. The aramid fibre woofers and front-loaded bass reflex system with grooved ducts ensure a clean bass, while the aluminium hard domed tweeter has been optimised to deliver rousing high frequencies of up to 50 kHz.
The rigid die-cast aluminium cabinets are designed to look and sound superb - featuring curved contours to eliminate resonance, and a proprietary acoustic tube to reduce standing waves and ensure the quality of the low to mid ranges. The speakers also boast a three-band EQ and multiple inputs, giving producers the ultimate flexibility and simplicity in any environment.
