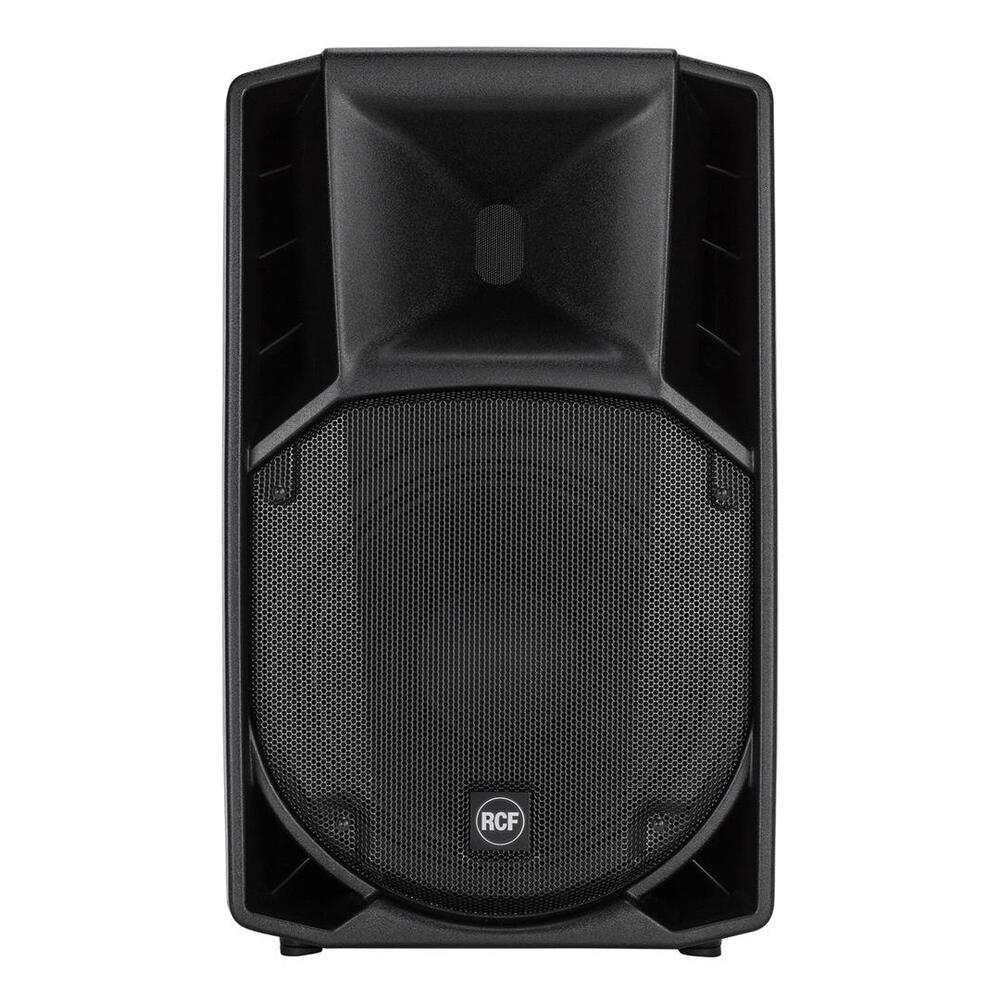

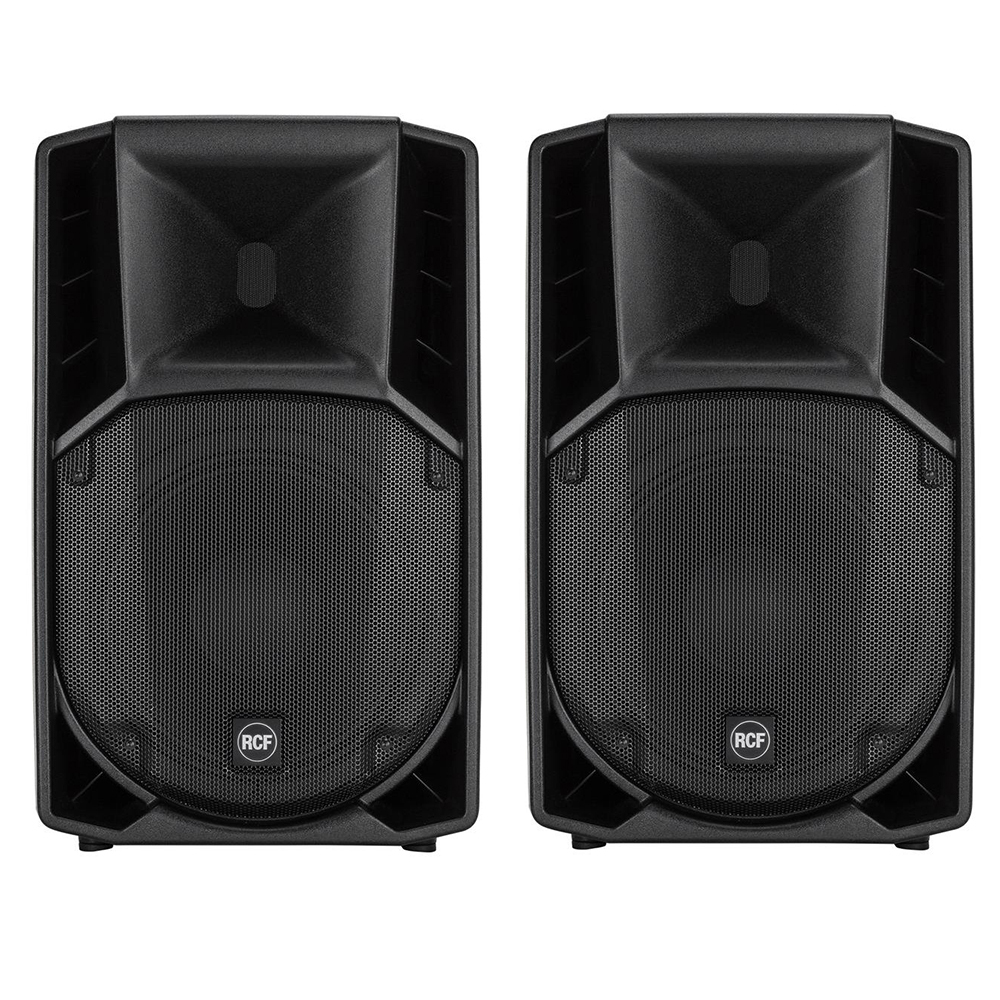

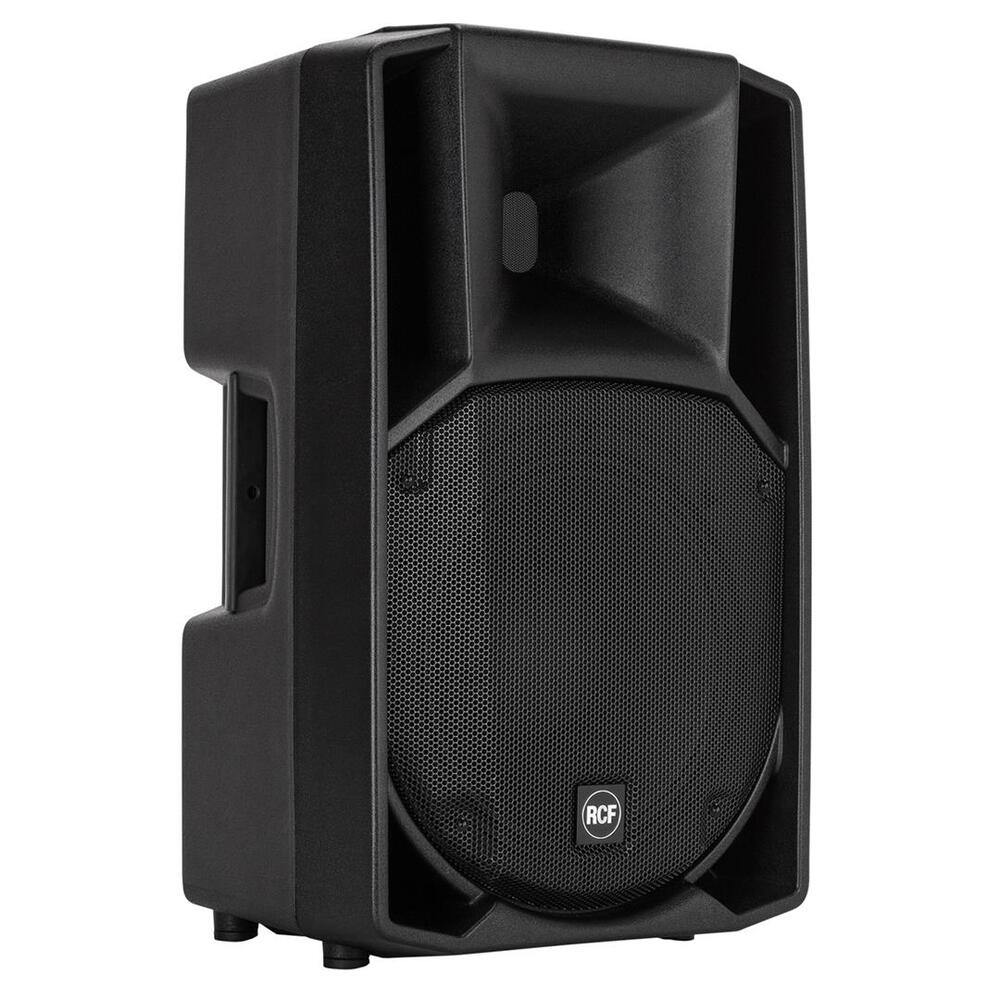

RCF ART 732-A MK4 PA Speaker
3 Year Warranty
Features
- 131 dB Max SPL
- 1400 WATT 2-way peak power
- Innovative DSP Processing
- 1.4" Titanium Compression Driver, 3.0" v.c. Neodimium
- 12" Woofer
- 700 Hz crossover point for perfect vocal reproduction
- 90°x60°, wide dispersion constant directivity horn
- FiRPHASE Technology
Applications
- Live sound reinforcement
- Portable PA
- Frontfill and sidefill
- Auditorium, Clubs, Ballroom, Corporate AV, Theatre
Specifications:
Acoustical Specifications
- Frequency Response -3 dB:50 Hz ÷ 20000 Hz
- Max SPL:131 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:60°
- Compression Driver:1.4", 3.0" v.c.
- Woofer:12", 2.5" v.c.
Input/Output Section
- Input signal:Bal/unbal
- Input connectors:XLR, Jack
- Output connectors:XLR
- Input sensitivity:-2 dBu / +4 dBu
Processor Session
- Crossover frequencies:700 Hz
- Protections:Thermal, rms
- Limiter:Soft limiter
- Controls:Volume, EQ shape
Amplifier Specifications
- Total power:1400 W PEAK
High frequencies:400 W PEAK
Low frequencies:1000 W PEAK - Total power:700 W RMS
High frequencies:200 W RMS
Low frequencies:500 W RMS - Cooling:Convection / forced
- Connections:VDE connector in
Cabinet
- Cabinet Material:Composite PP
- Hardware:2xM10 flying p.
- Handles:2 side, 1 top
- Pole Mount/Cap:Yes
- Colour:Black
Dimensions
- Height:637 / 25.07 mm/inch
- Width:384 / 15.11 mm/inch
- Depth:363 / 14.29 mm/inch
- Net Weight:17.8 / 39.24 kg/lbs
The RCF ART 732-A MK4 is a 12-inch 2-way active powered PA speaker, suitable for a wide range of live music applications, including DJs, solo musicians, bands pubs and bars. This superb quality PA speaker features an ergonomic design with rubber-coated plastic handles that make it easy to carry. It fantastic multipurpose design allows for the speaker to be mounted on top of a stand, subwoofer or even used as a stage monitor. The ART 732-A is equipped with a new generation 2-way Class-D fan-less amplifier, high-powered 12" woofer and the latest compression driver technology, plus a redesigned front grille.
The ART concept offers the best audio choice for a multitude of live sound applications in a plug'n'go device. Just connect your microphone, your mixer or your audio device to the speaker and turn up the volume: there are no complex menus, no knobs to understand.
The ART 732-A is a unique speaker in its category. The titanium dome, 3.0" voice coil neodymium compression driver offers a unique vocal clarity and sound projection. The 12" neodymium woofer offers an extremely linear response and a precise, deep low frequency control. The transducers are produced using the most advanced assembly technologies. The amplifier delivers 1400 watts and is controlled by a DSP that takes care of crossover, equalisation, phase control, soft limiting and speaker protections.
RCF's Class-D power amplifier technology packs huge performance operating with high efficiency into a lightweight solution. Class-D amplifiers deliver ultra-fast attack, realistic transient response and impressive audio performance. The amplifier features a solid mechanical aluminium structure which not only stabilises the amplifier during transportation but also helps the fan-less heat dissipation. All the Art 7 series amplifiers present SMPS power supply section in order to produce maximum output and minimum transportation weight.
