Equinox Graphix
Equinox Graphix Features
- 1 x 100W warm white LED (3200K)
- Beam angle: 75°
- Manual focus
- Rotating graphics wheel

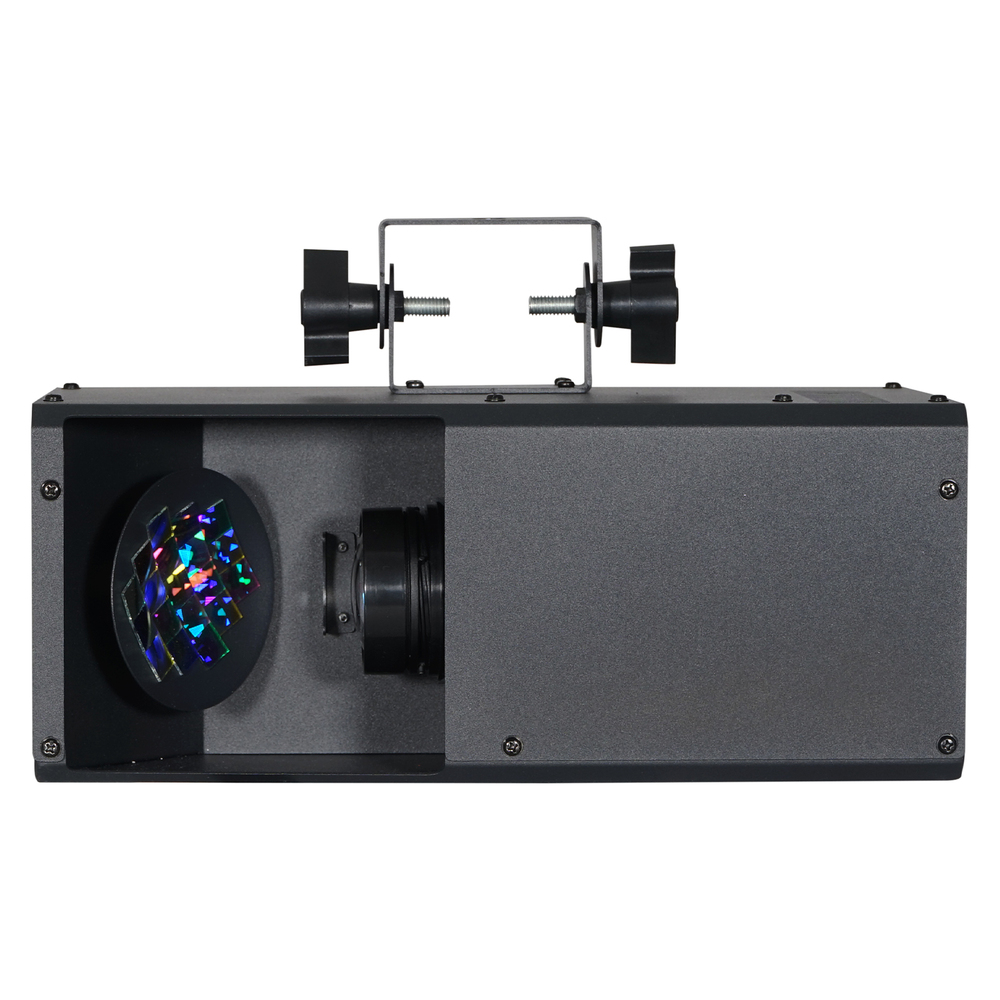

- Multi-coloured mirror dish
- DMX channels: 2/4 or 6 selectable
- Auto, sound active and master/slave modes plus built-in programmes
- 0-100% dimming and variable strobe
- Optional CA 8 controller
- Supplied with hanging bracket
- 4 push button menu with LED display

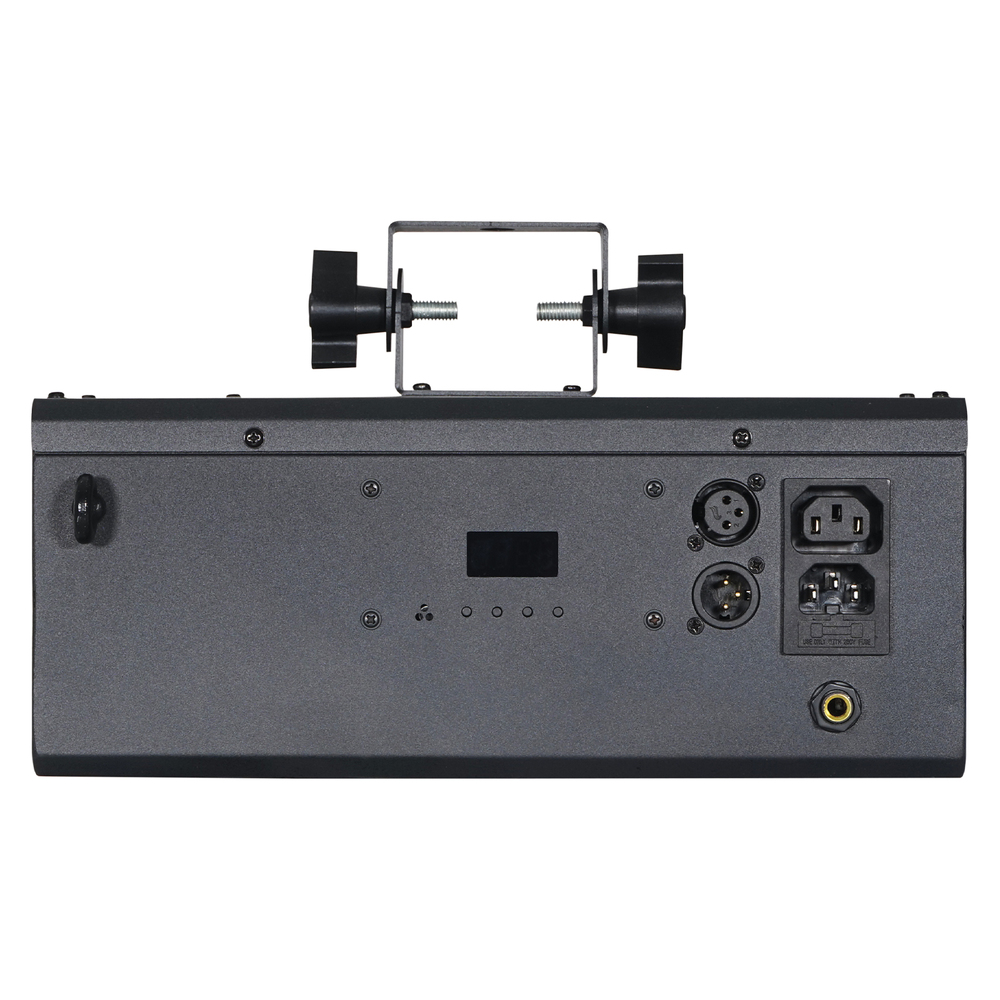

- IEC power input/output
- 3-Pin XLR input/output

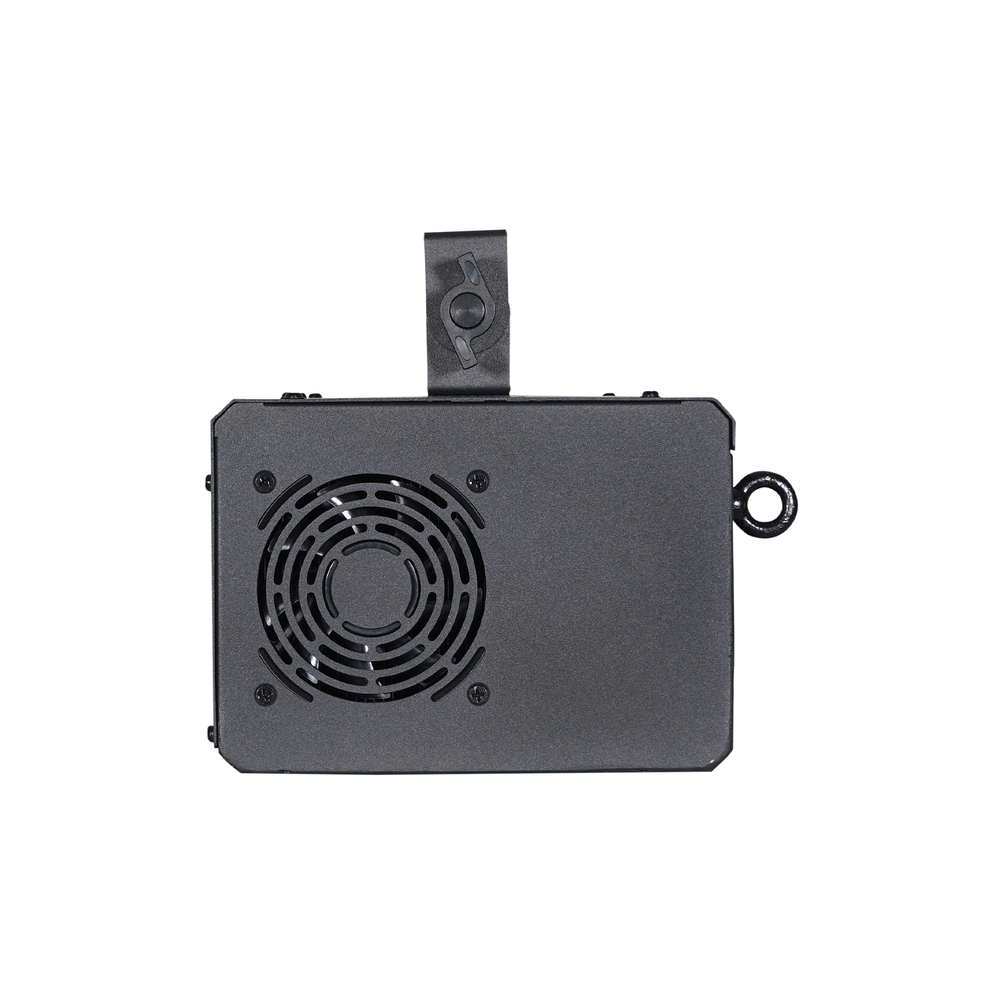

- Fan cooled
Equinox Graphix Specifications
- Power consumption: 121W
- Power supply: 100~240V, 50/60Hz
- Fuse: T2A 250V
- Dimensions (H x W x D): 186 x 308 x 199mm
- Weight: 3.8kg
Standard 1-year warranty included
Here we have the Equinox Graphix, project a multitude of multicoloured patterns for your venue! Featuring a rotating graphics wheel and multicoloured mirror dish, offering a super wide 75° beam angle and covering over 11m span. Suitable for a variety of evens and functions to brighten up, and fill the room with colour.
Powered by a mega bright 100W LED, the Graphix is a unique projection effect; perfect for a variety of functions, events or venues. Fitted with a rotating graphics wheel it outputs exciting patterns, whilst its multi-coloured mirror dish features a pastel palette of colours adding a retro feel to this effect. The unit has a range of modes including auto and sound active along with each attribute being controllable via DMX. The unit, although compact in size, has a wide beam angle but still packs a punch over a long distance thanks to its superior optics and high output LED.
