Allen & Heath XONE:23
2+2 Channel Mixer
Features
- 2+2 channels with dual phono/line inputs
- VCF Filter system - low-pass + high-pass filters plus frequency and resonance controls
- 3-band true total kill EQ
- External FX loop
- Mic input on balanced XLR, with 2-band EQ
- Balanced main mix out on XLR
- Independent booth out
- Record out

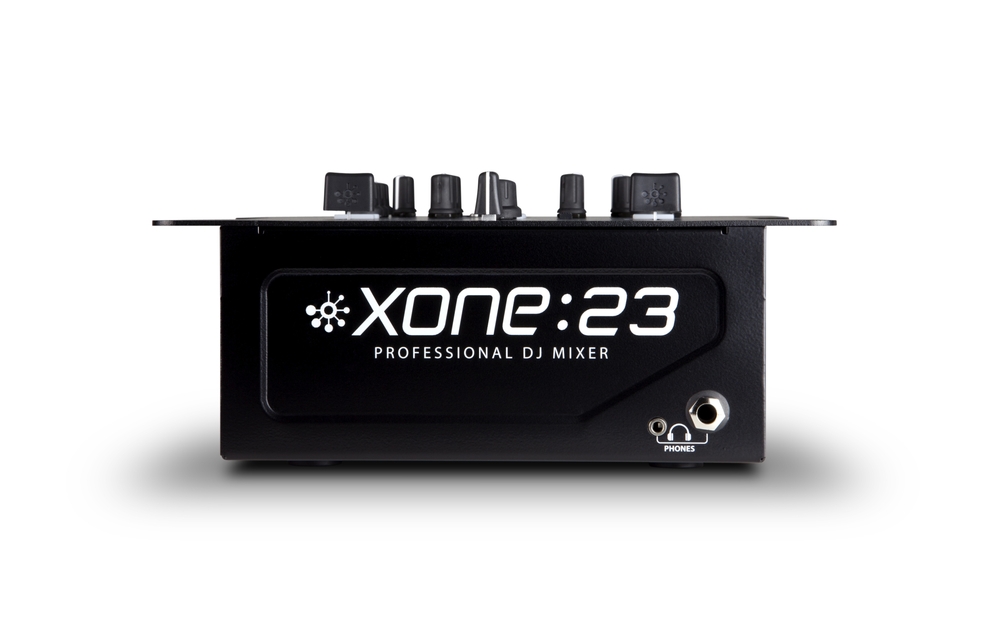

- 3.5mm and 1/4 headphone outputs
- Touring grade build quality
- Super smooth VCA channel faders
- User changeable crossfader
- Innofader compatible
- Crossfader curve switch
- 20dB pro standard headroom
- Ultra low distortion
- 2mm Steel face plate
- 9-segment signal level monitoring

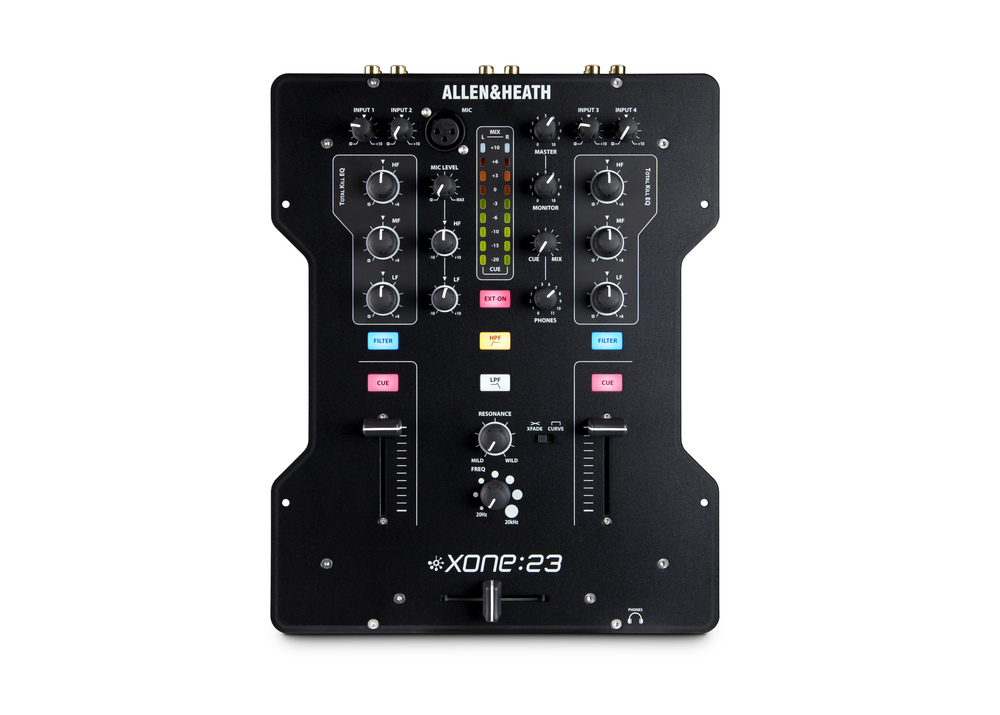

Xone:23 is a 2+2 channel DJ mixer packed with pro features that would not be out of place in a top-of-the-range nightclub, including an enhanced version of the legendary Xone filter with resonance control, VCA faders, 3-band total kill EQ, illuminated switches, x-fader curve selector and styling inspired by the flagship Xone:DB4.

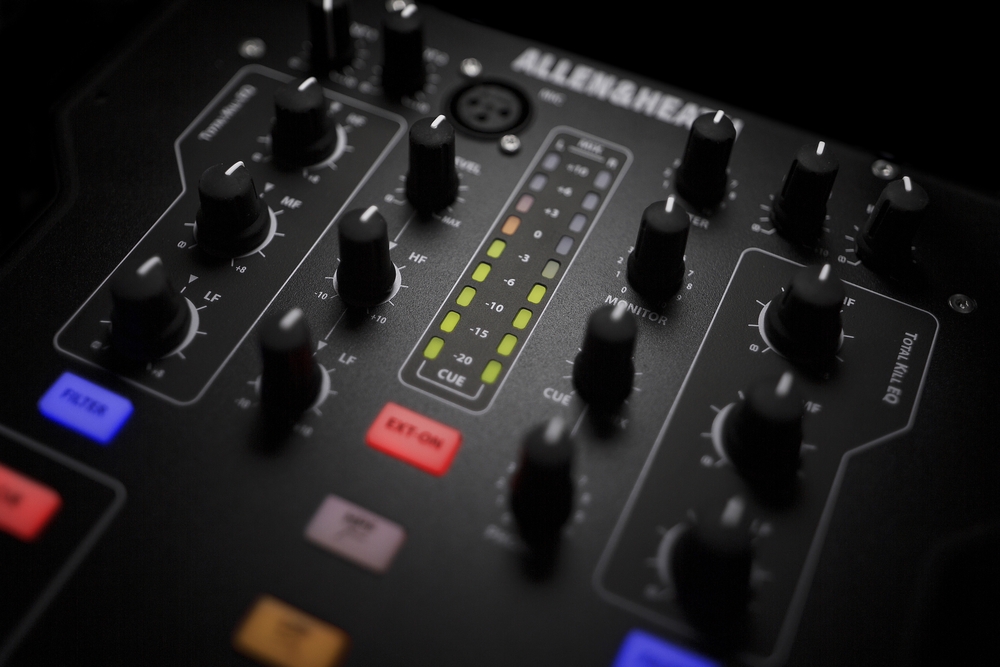

At the heart of the mixer is the renowned analogue Voltage Control Filter (VCF) system which offers Low-Pass and High-Pass filters, frequency sweep and 'mild to wild' resonance control. There is also an FX loop to connect to third party FX units, which route back in through the filter system.
There are independent level controls for each input on each of the 2 stereo channels, enabling up to four stereo sources to be simultaneously routed to the mix, as well as the dedicated send and return system for external FX.
The main mix output and mic input are on professional standard balanced XLRs, and there is a dedicated record output. The Xone:23 is equipped with comprehensive monitoring facilities, including a booth output with its own volume control, a cue mix control, and signal levels clearly displayed on the 9 segment peak hold meters.

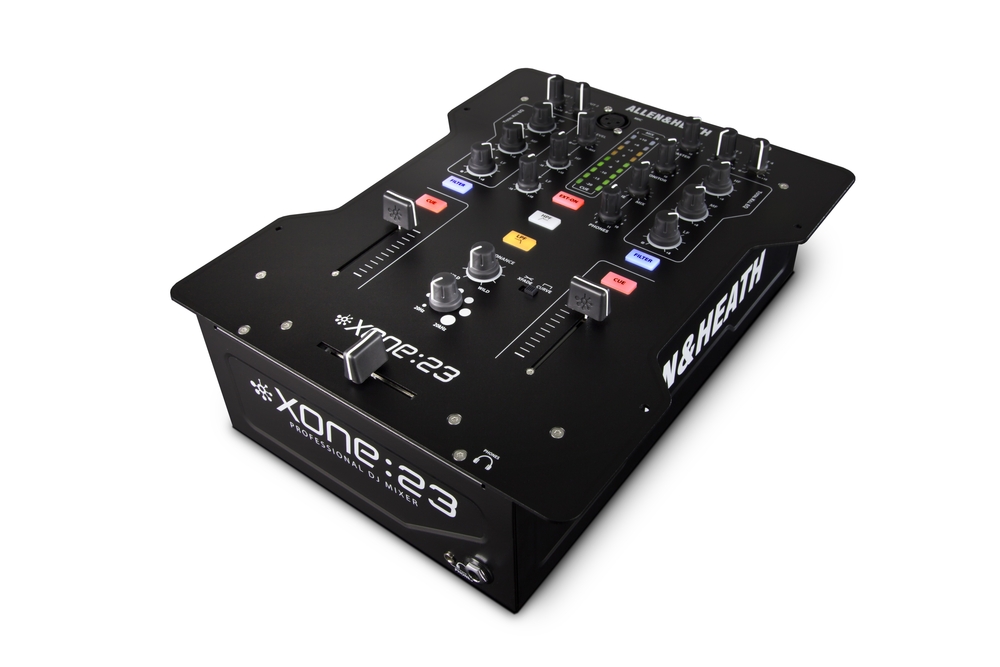

Styled on the Xone:DB4, the Xone:23 includes soft touch, backlit controls, light-piped meters and a distinctive new shaped steel faceplate. The mixer can also be upgraded with the latest Innofader for enhanced scratch performance, available as an accessory.
| Number of Channels | 2 x Stereo |
| Fader Shutoff | Channel: >-80 dB Crossfader: >-80 dB |
| EQ | Channel EQ: Hi Mid Low |
| Built-In Effects | None |
Physical
- Dimensions: 9.4 x 12.4 x 4.2" / 240.0 x 315.0 x 106.0 mm
- Weight: 6 lb / 2.7 kg
Connectivity

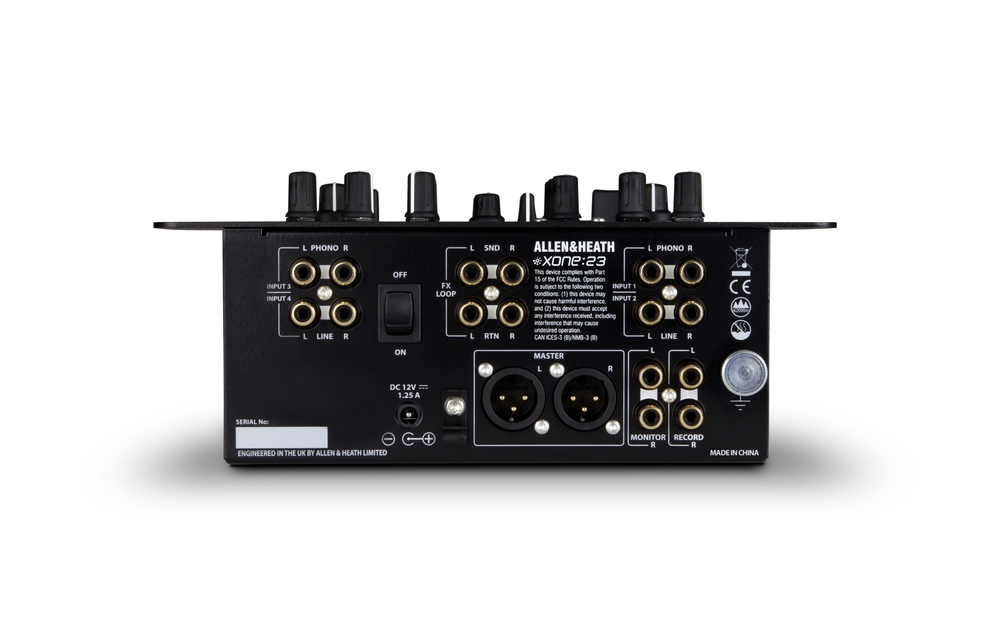

| Audio Inputs | 2 x Stereo RCA Phono Input 2 x Stereo RCA Line Input 1 x Stereo RCA Return Input 1 x XLR 3-Pin Mic Input |
| Audio Outputs | 2 x XLR 3-Pin Balanced Master Output 1 x Stereo RCA Booth Output 1 x Stereo RCA Record Output 1 x Stereo RCA Send Output 1 x 1/4" TRS Headphone Output 1 x 1/8" / 3.5 mm TRS Headphone Output |
| USB | None |
Performance
| Frequency Response | 10 Hz to 50 kHz |
| Input Level | Phono: 7 (Min) 100 mV (Max) Line: -10 dBu (Min) +20 dBu (Max) Return: 0 dBu (Min) +20 dBu (Max) Mic: -42 dBu (Min) -12 dBu (Max) |
| Output Level | Master: +4 dBu (Nominal) +28 dBu (Max) Booth: -2 dBu (Nominal) +22 dBu (Max) Record: -2 dBu (Nominal) +19 dBu (Max) Send: -2 dBu (Nominal) +19 dBu (Max) |
| Headphone Output Power | 200 mW into 30 Ohms (Max) |
| I/O Impedance | Phono Input: 47 Ohms Line Input: 20 Kilohms Return Input: 10 Kilohms Mic Input: <2 Kilohms Master Output: 100 Ohms Booth Output: 100 Ohms Record Output: 100 Ohms Send Output: 100 Ohms Headphone Output: 1 Ohms |
| SNR | Master: -85 dBu |
| THD+N | 0.01% |
