- Coaxial true point source (6.5" mid + 1" tweeter)
- Impulse compensated dual 8" woofers for tight, resonance-free bass
- True 3-way design for full-range accuracy and clarity
- 1000 W (2 × 250 W, 1 × 500 W) Class-D amplifier delivers high dynamic range
- Cardioid design for controlled directivity and reduced room interaction
- 120° ×120° constant directivity provides uniform coverage
- FIR filters for linear phase with minimal latency
- Ultra Wide frequency range (28 Hz28 kHz @ -3 dB)
- Advanced low-end design improves wall coupling and reduces cancellations
- Clean control panel with desk & wall presets for efficient setup
- High-resolution 96 kHz / 24-bit DAC and DSP
- Analog and AES3 inputs for seamless integration
- Die-cast aluminium housing for ultra-low resonance
- Black or white finish for your individual style

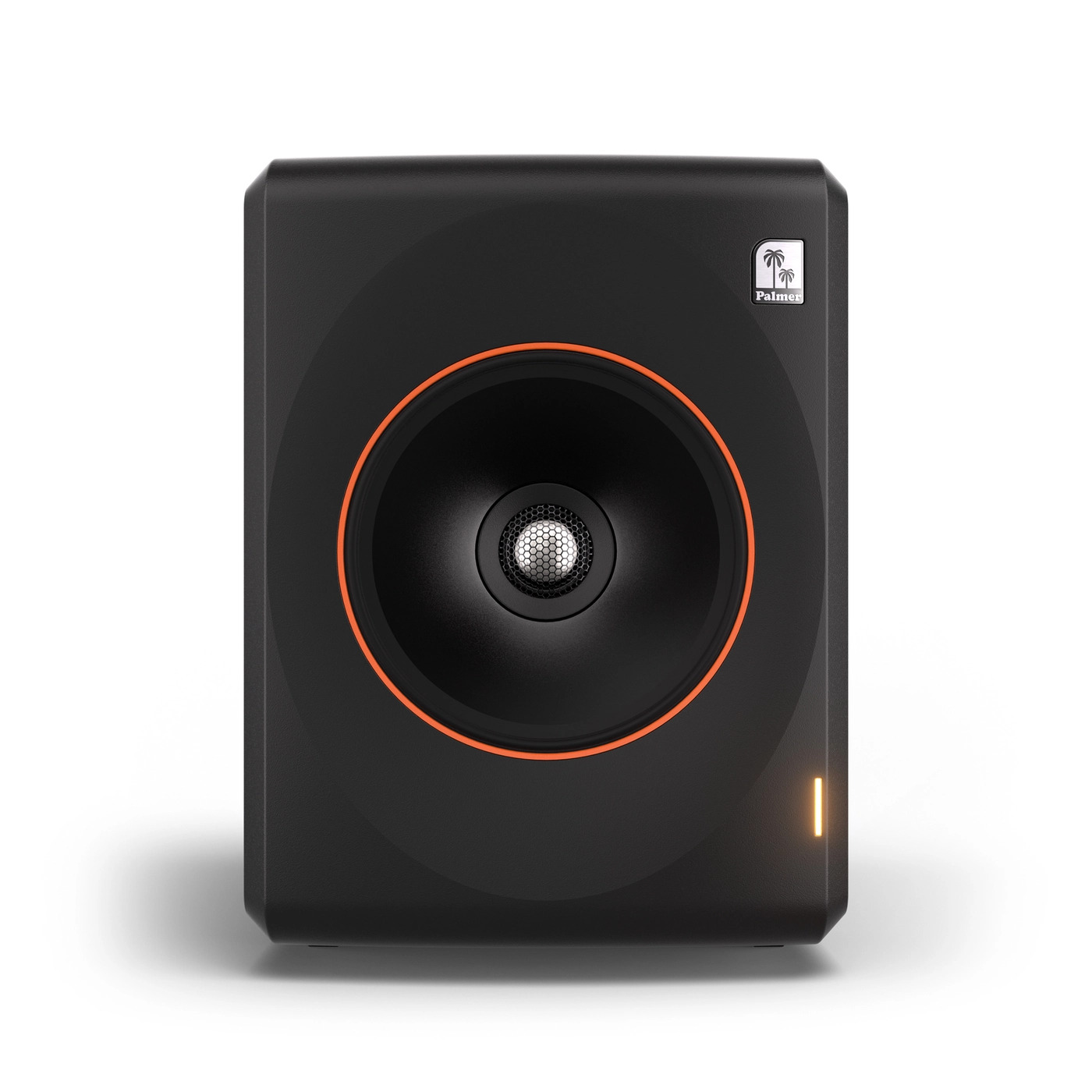

The Palmer ORBIT 11 is a professional active coaxial 3-way studio monitor built for precision listening in mixing, mastering, post-production, broadcasting, sound design, and content creation. Its True Point Source coaxial architecture aligns a 6.5 midrange driver and a 1 tweeter on a single acoustic axis, delivering a uniform 120° × 120° dispersion field for stable stereo imaging and tonal balance throughout the listening zone.

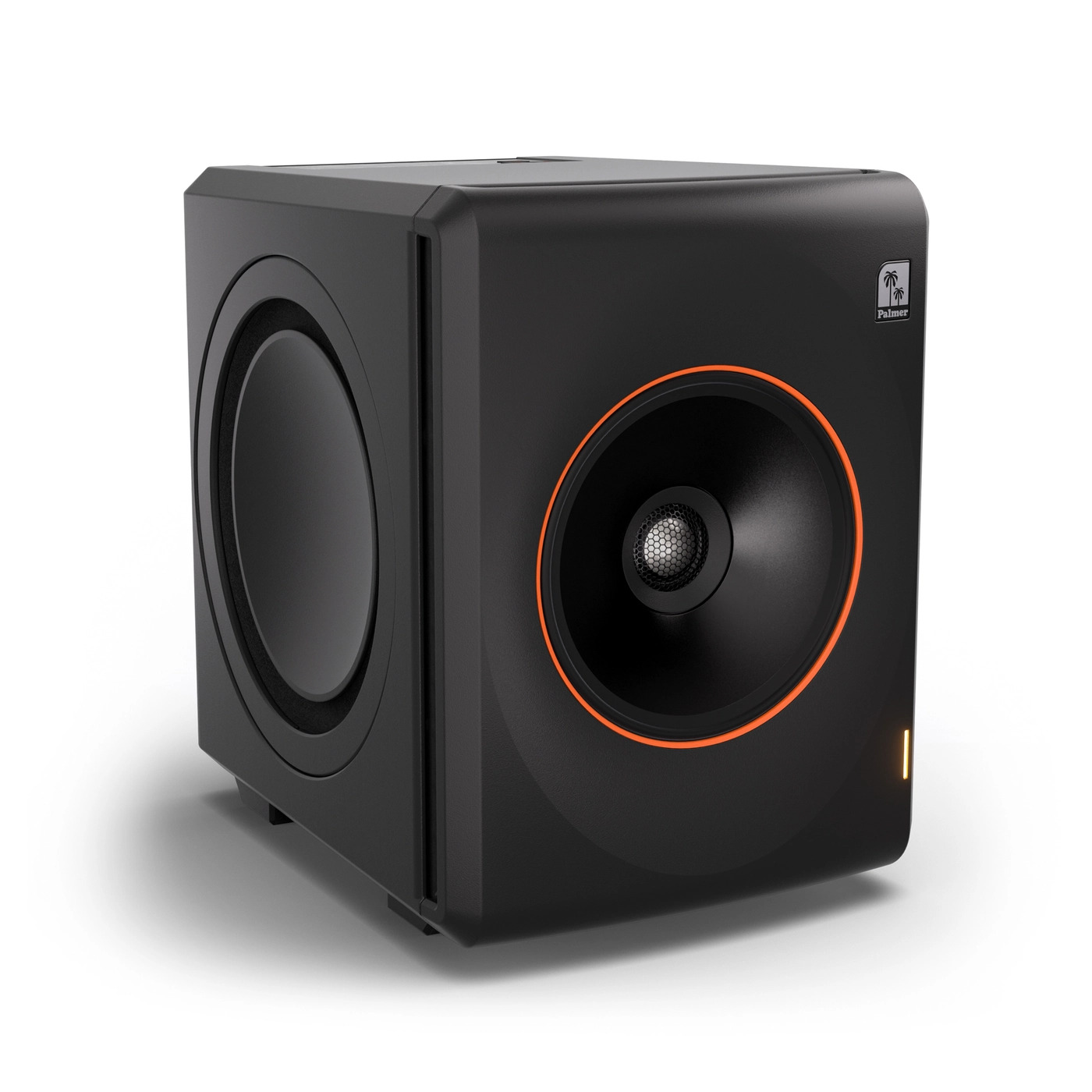

The monitors tightly controlled dispersion pattern supports accurate sound translation while the cardioid-shaped front baffle suppresses rear radiation to reduce unwanted room reflections. Low-frequency reproduction is handled by two impulse-compensated 8 woofers housed in a sealed die-cast aluminium chassis with 516 mm thick walls, helping to minimise cabinet vibration and extend bass response down to 28 Hz.

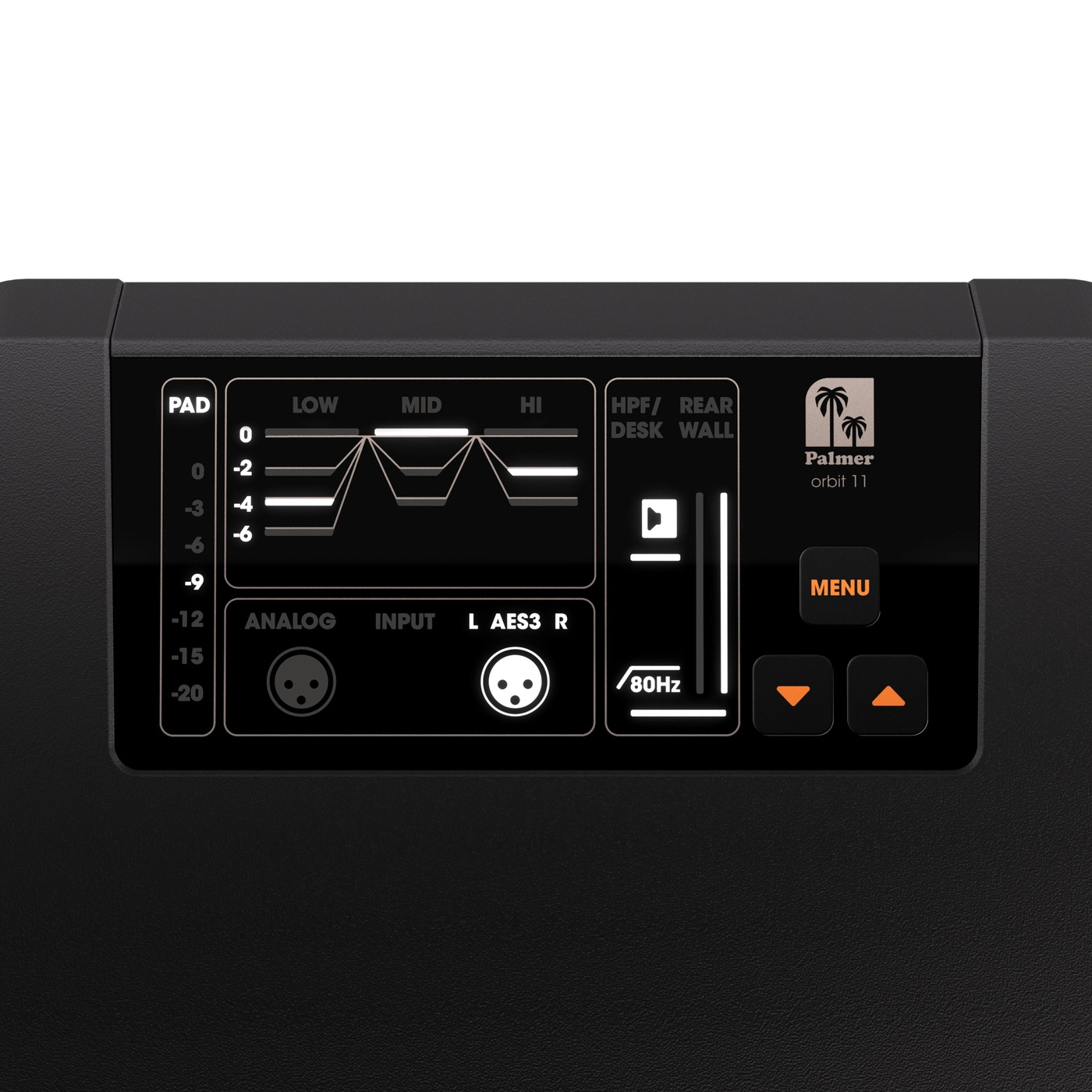

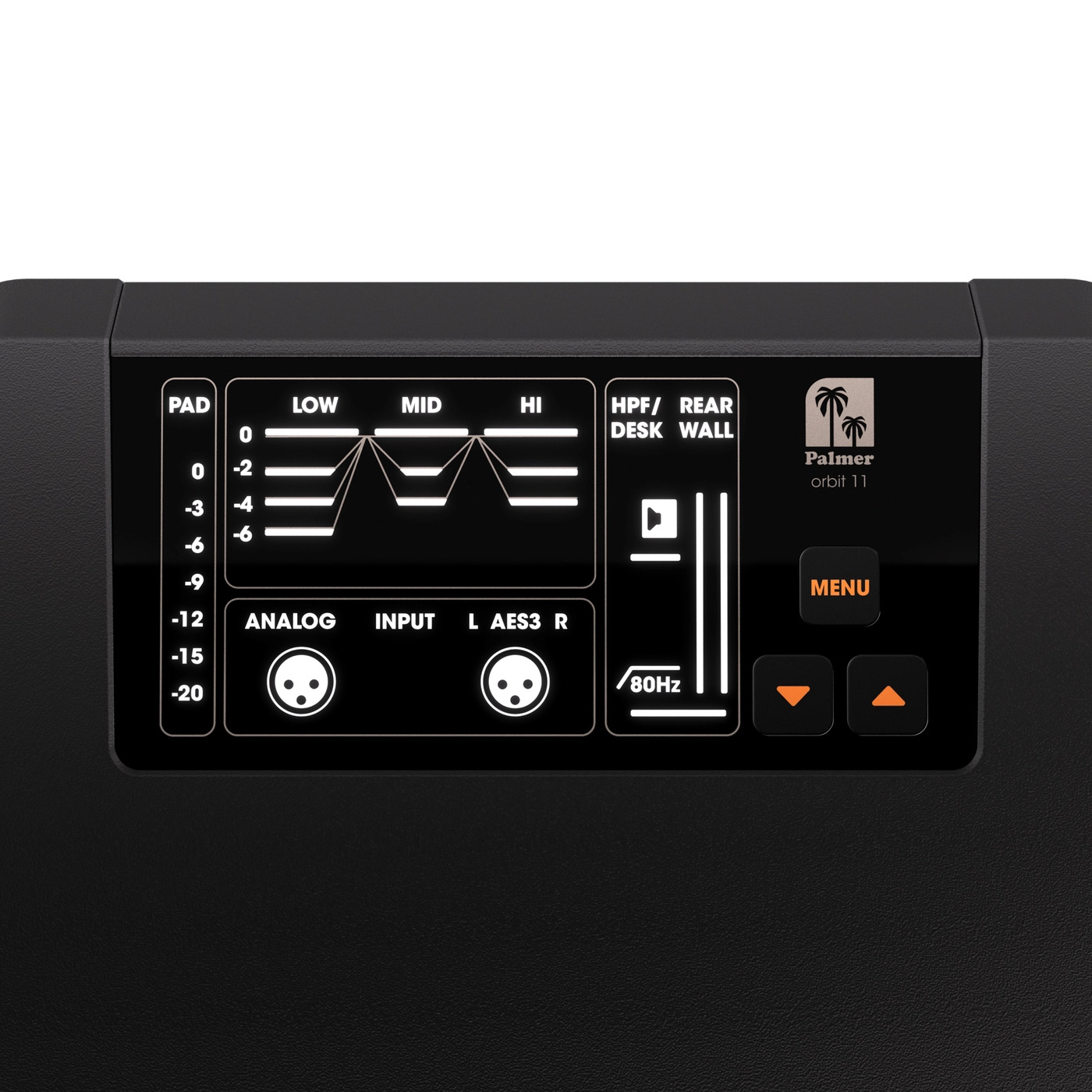

Internal signal processing runs at 96 kHz / 24-bit resolution and uses FIR filtering to achieve linear-phase behaviour and coherent timing across all drivers. Setup is simplified through a top-mounted control interface that provides quick access to input attenuation, a 3-band EQ, Desk and Rear Wall acoustic presets, and an 80 Hz high-pass filter.

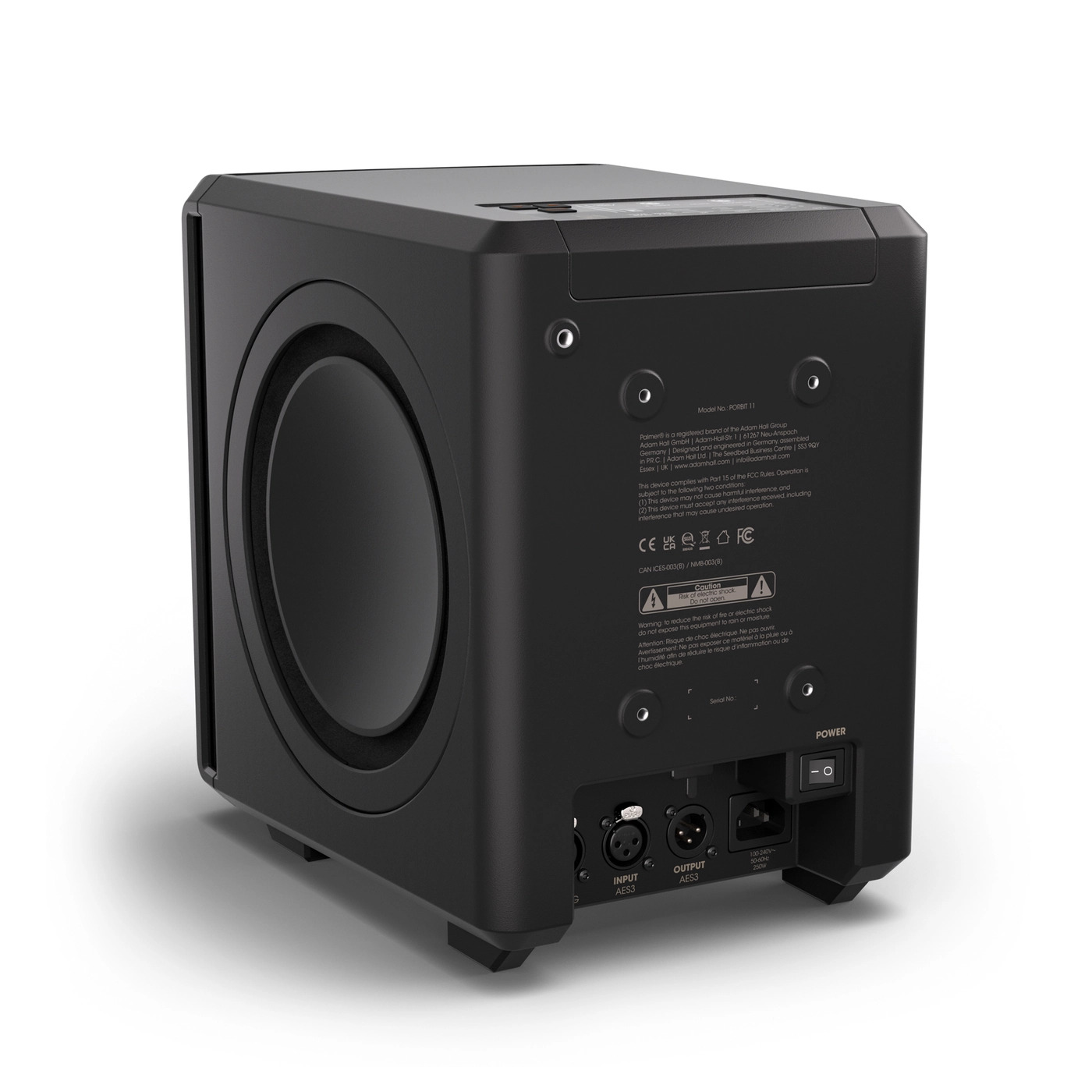

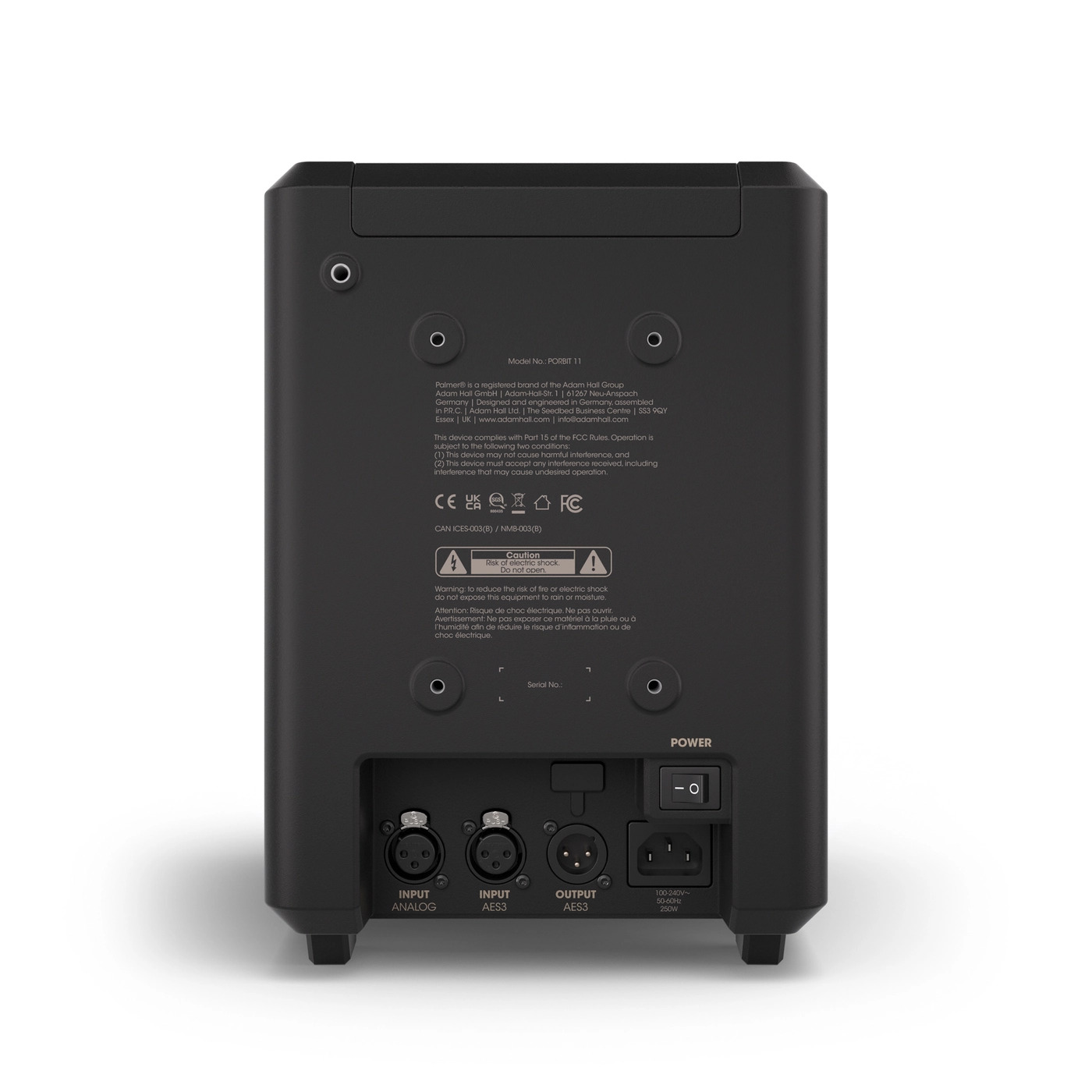

Connectivity includes balanced XLR analogue input and AES3 digital input via XLR, plus an AES3 Thru output for daisy-chained monitoring systems. Installation flexibility is supported by threaded mounting points and an M8 safety eye-bolt attachment, with compatibility for the Gravity Tilt-and-Swivel Mount GSPWMBS20B for wall or ceiling mounting.
Designed and engineered in Germany with an emphasis on musical accuracy and reliable long-term monitoring performance, the ORBIT 11 delivers time-coherent reproduction and extended low-frequency depth for critical listening environments.
Format Type | Active
Peak output power | 1000 W
RMS output power | 400 W
Amp class | Class D
Maximum SPL (peak) | 116 dB
Frequency response (-3 dB) | 28 28,000 Hz
Crossover frequency | 250 Hz / 1800 Hz
Beam angle | Horizontal: 120° / Vertical: 120°
Number of inputs | 2
Number of outputs | 1
Protection features | Limiter, Multiband Limiter, Overheating
Colour | Black
Inputs
AES3 inputs | 1
AES3 connector type | XLR 3-pole female
Line inputs | 1
Line-In connector type | XLR 3-pole female
Line Input Performance
Nominal sensitivity | 0 dBu (< 1% THD, 1 kHz, max gain)
Nominal clipping level | 22 dBu balanced (< 1% THD, 1 kHz, unity)
Input impedance | 10 k balanced
Outputs
Output signal type | AES/EBU
AES3 outputs | 1
AES3 output connector | XLR 3-pole female
Signal Processing
AD/DA converter bit depth | 24 Bit
Sampling rate | 96 kHz
Signal-to-noise ratio (min.) | 103 dB
THD+N max (1 kHz, +4 dBu) | 0.01 %
THD+N max (30 Hz, +4 dBu) | 0.02 %
Drivers
Bass Driver
Size | 8
Quantity | 2
Magnet | Ferrite
Voice coil | 1.5
Mid Range Driver
Size | 6.5
Voice coil | 2
Magnet | Ferrite
Tweeter
Driver size | 1
Magnet | Neodymium
Voice coil | 1
Power & Mains
Operating voltage | 100 240 V AC / 50 60 Hz
Power supply type | Switched-mode power supply (SMPS)
Mains connector | IEC C14 plug male
Housing
Design | Closed
Mounting type | M6
Mounting points | 4
Cabinet material | Die-cast aluminium
Material thickness | 5 mm
Front grille material | Aluminium
Cooling & Environment
Cooling system | Convection cooling
Protection class | IP20
Ambient temperature | 0 40 °C
Max. air humidity | 80% non-condensing
Dimensions & Weight
Width | 217 mm
Height | 293 mm
Depth | 292 mm
Weight | 13.9 kg
