QTX QR10PA
Portable PA-TWS 1x UHF Microphone
- UHF handheld microphone(s) included
- Echo effect for microphones
- Internal audio player with record feature and remote
- Mains/rechargeable operation
- Integral 35mm pole mount
- Built-in trolley facility
- Switchable VCV 'mic override' function
- TWS wireless pairing
- Optional UHF neckband microphones available (178.895UK & 178.896UK)

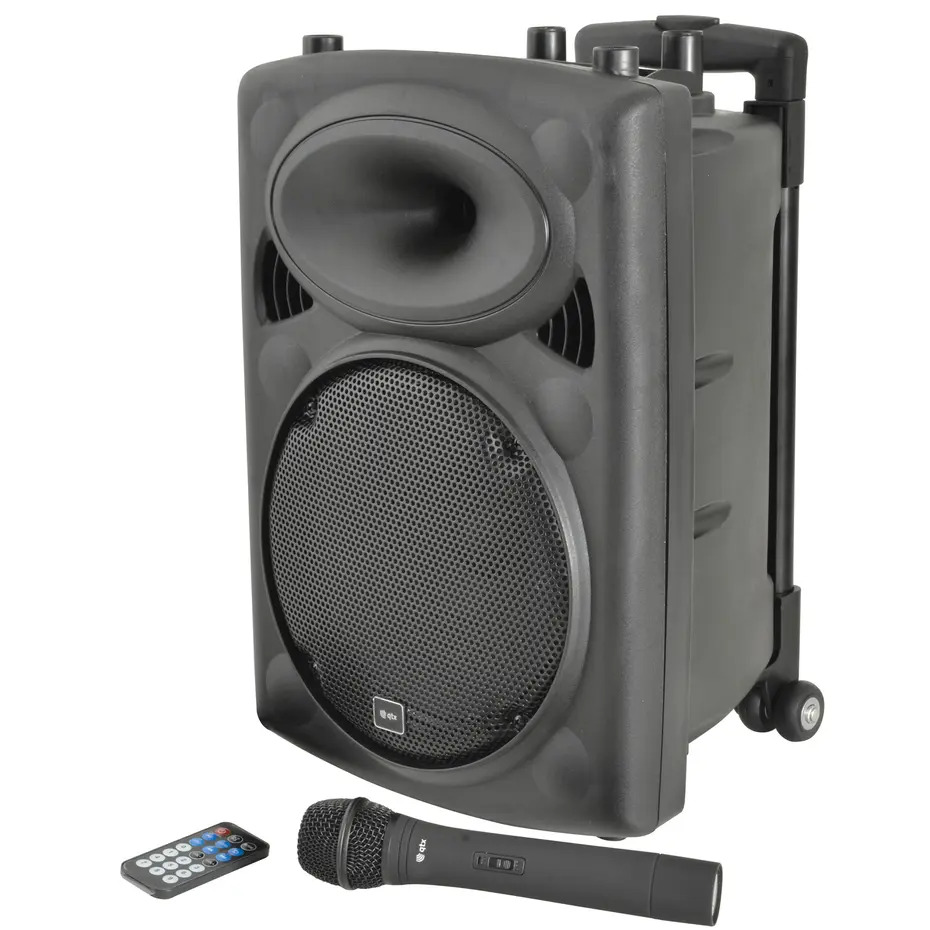

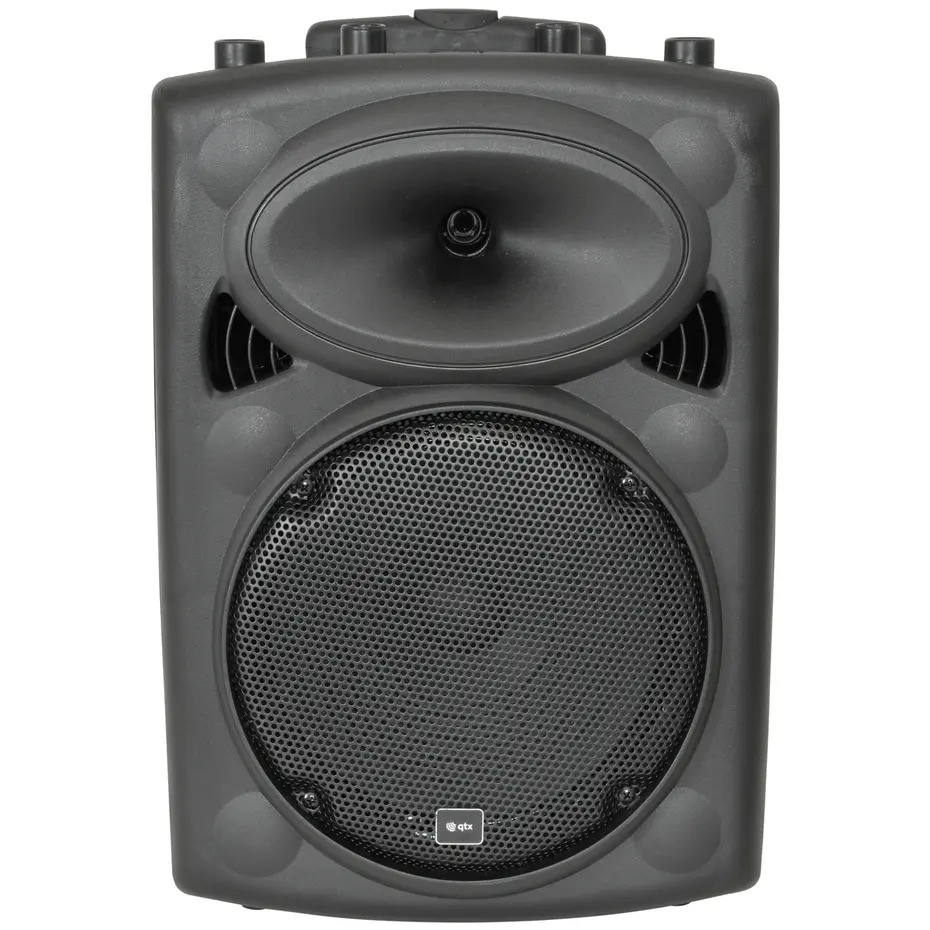

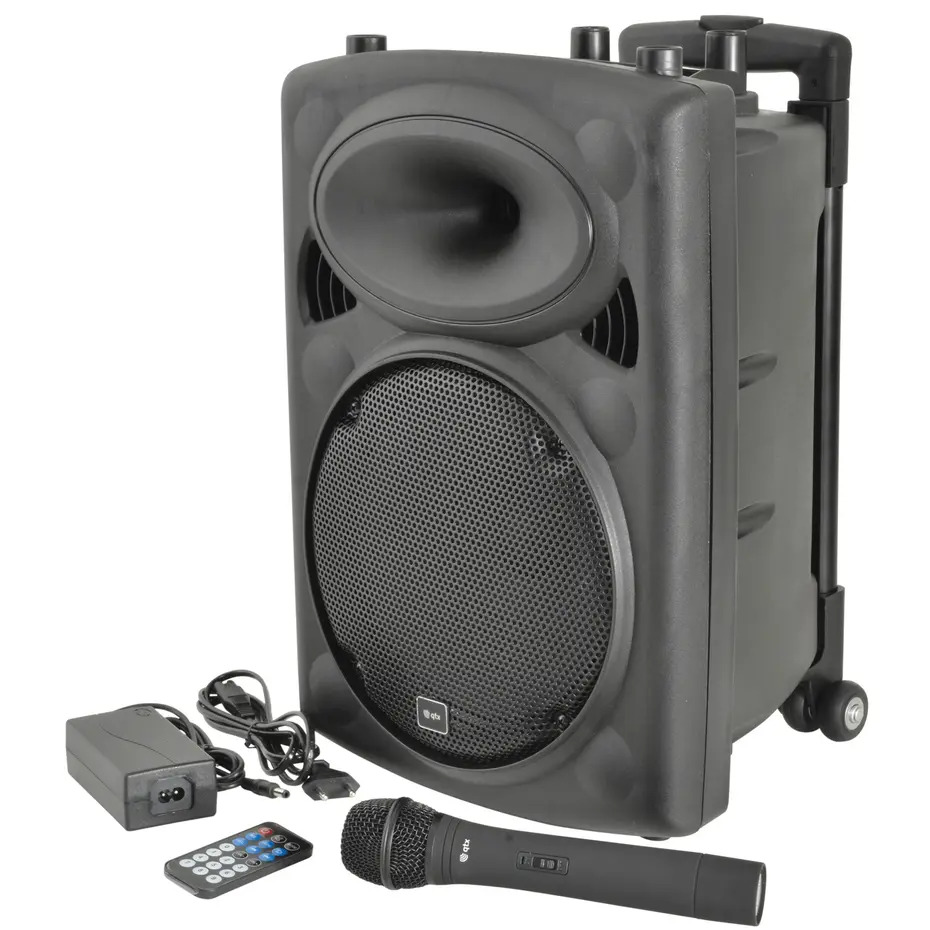

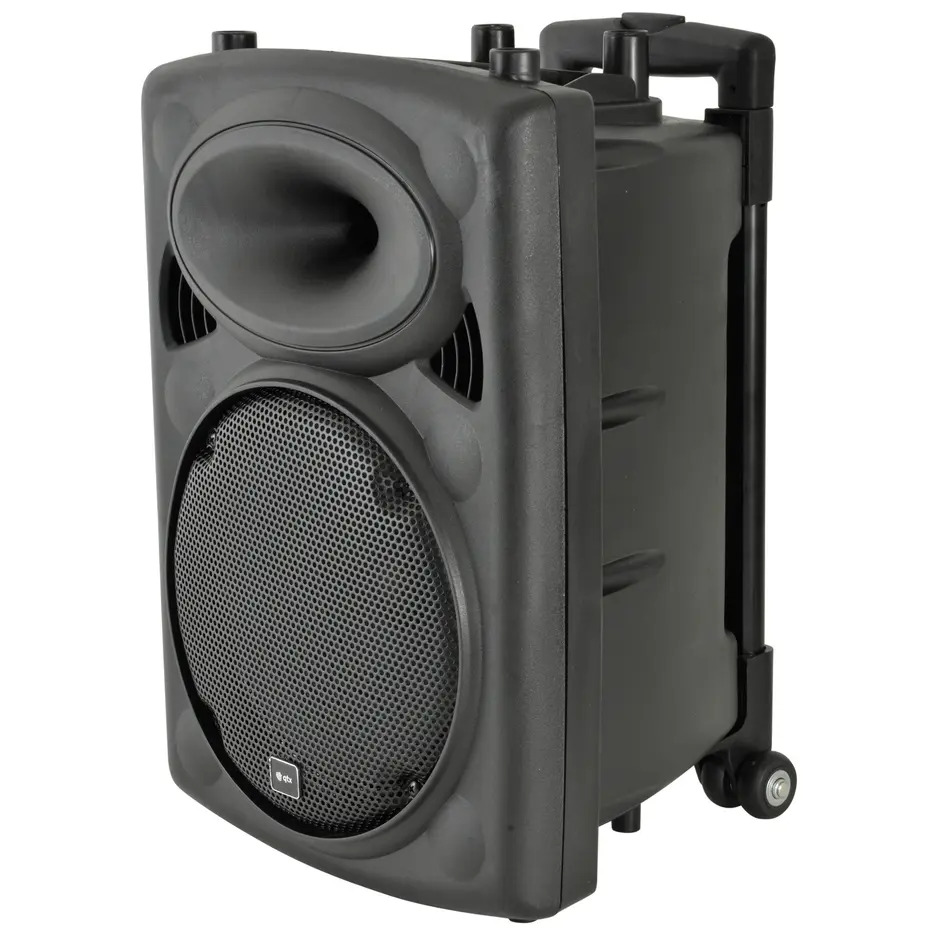

QTX QR10PA Portable PA-TWS – Portable PA Speaker with TWS & UHF
The QR10PA is a compact and versatile portable PA system built around the robust QR-series speaker cabinet. It features a built-in amplifier that can run from mains power or an internal rechargeable battery, driving both the main speaker and a compression horn for powerful, clear sound.

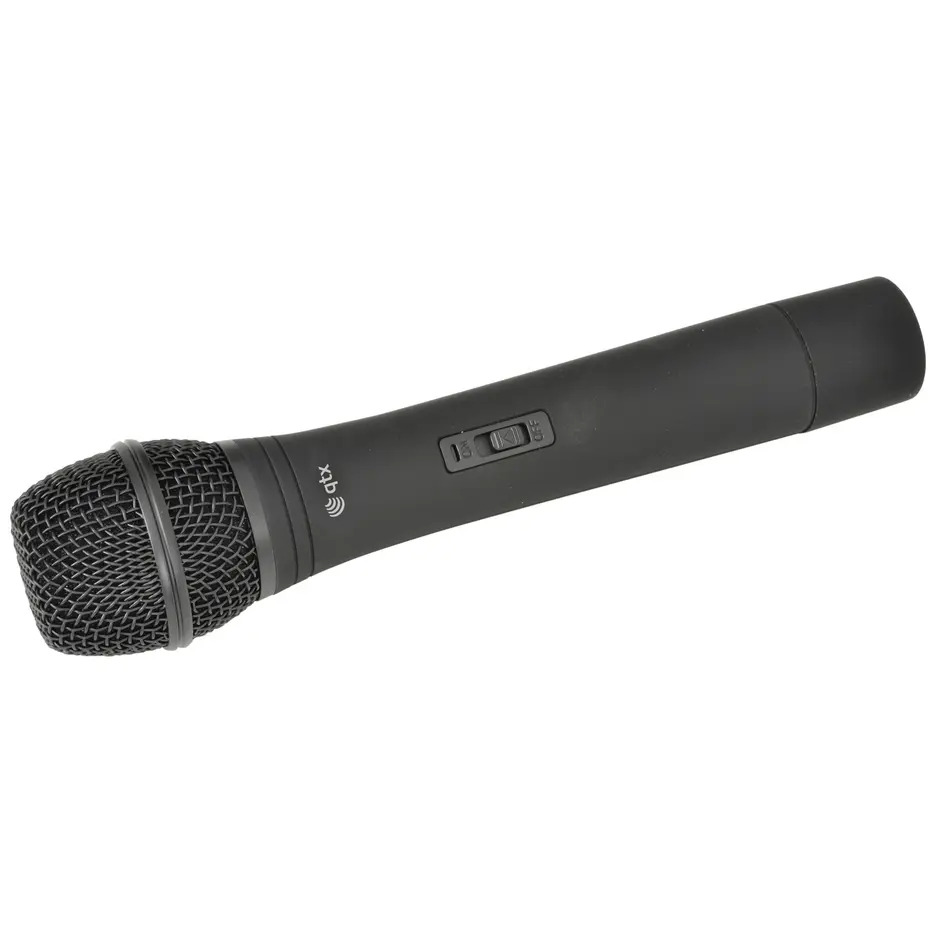

The system includes one or two handheld UHF wireless microphones, with the receiver integrated into the rear mixer/amplifier panel. Additional connectivity options include two wired microphone inputs, an auxiliary line input, and a built-in USB/SD/FM media player with a recording function. Bluetooth capability allows wireless streaming from a smartphone or tablet, while TWS (True Wireless Stereo) pairing lets you link two QRPA units for a full stereo setup.

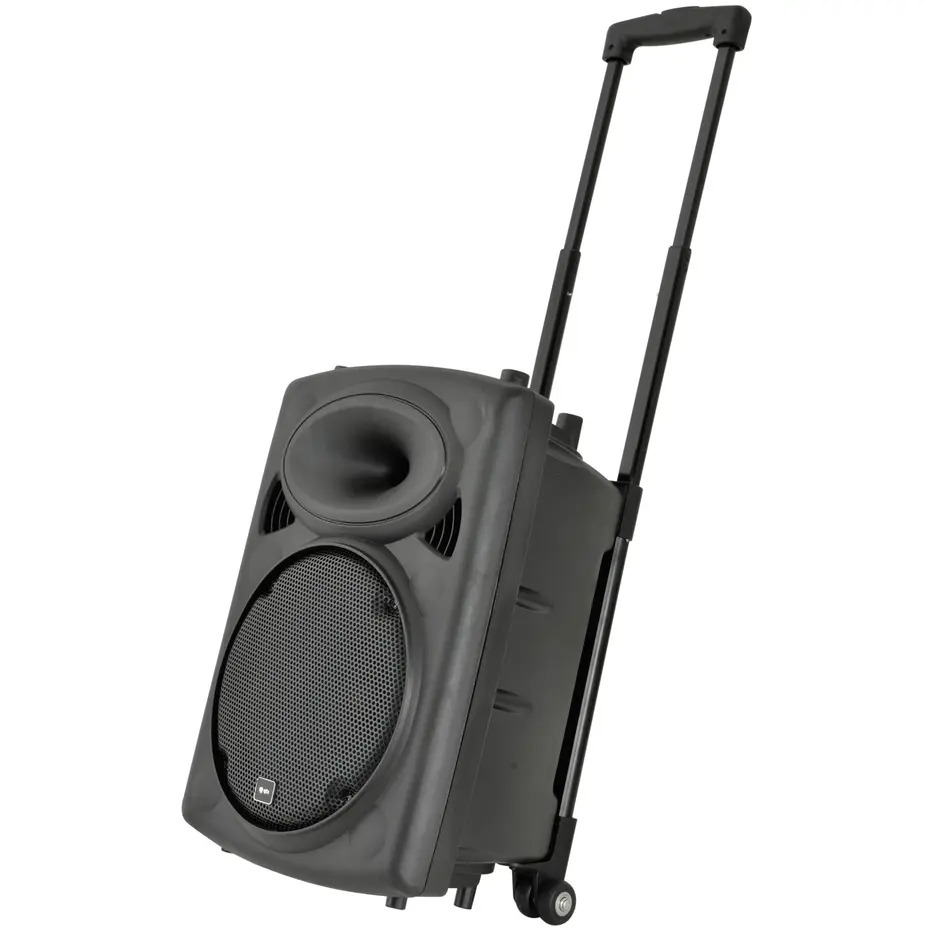

For effortless transport, the unit incorporates a retractable trolley handle and rear wheels, making it easy to move wherever it's needed.
Power Supply
Internal battery
12/15V DC @ 3A mains adaptor (supplied)
Carrier Frequency
863.8 MHz
Amplifier Output
80 W max.
Main Driver
250 mm Ø (10")
Dimensions
320 × 470 × 270 mm
Weight
10.1 kg
Battery Life
Up to 8 hours
Controls
- MIC.1/Guitar
- MIC.2
- Echo
- Bass
- Treble
- Master Volume
- UHF Mic Volume
- VCV
Inputs
- MIC.1/Guitar
- MIC.2 (6.3 mm jack)
- Line In (L+R RCA)
- AUX (3.5 mm stereo jack)
