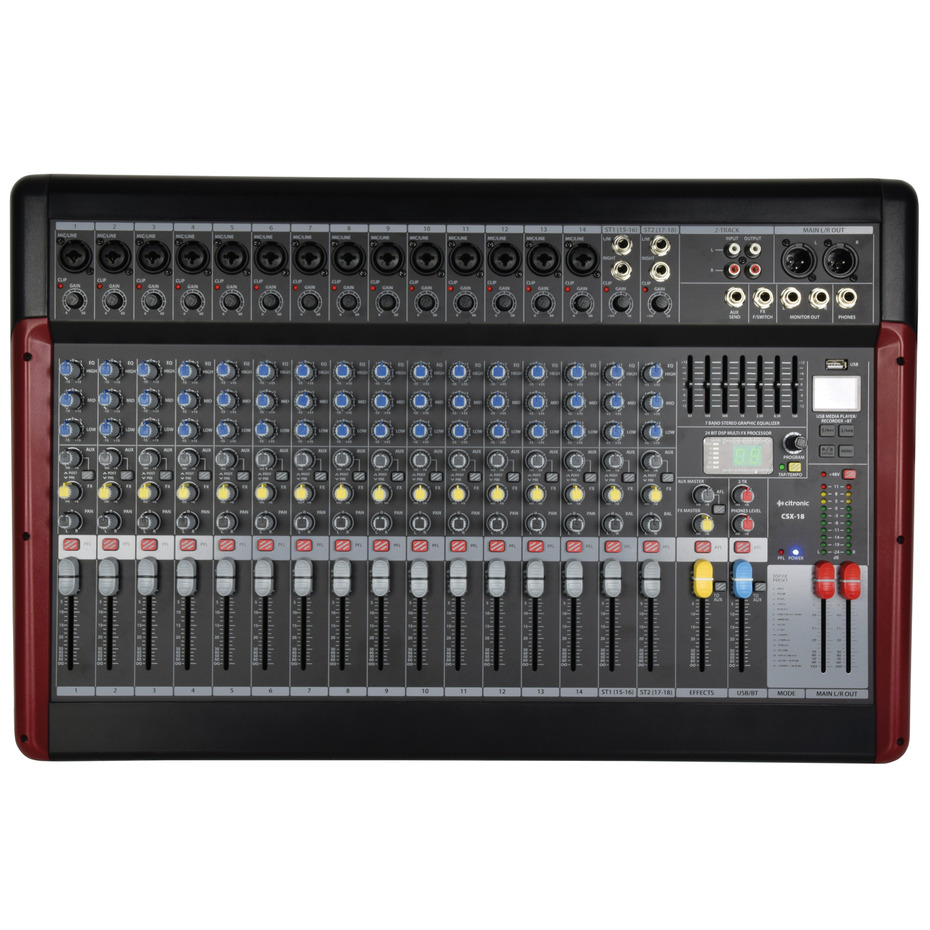

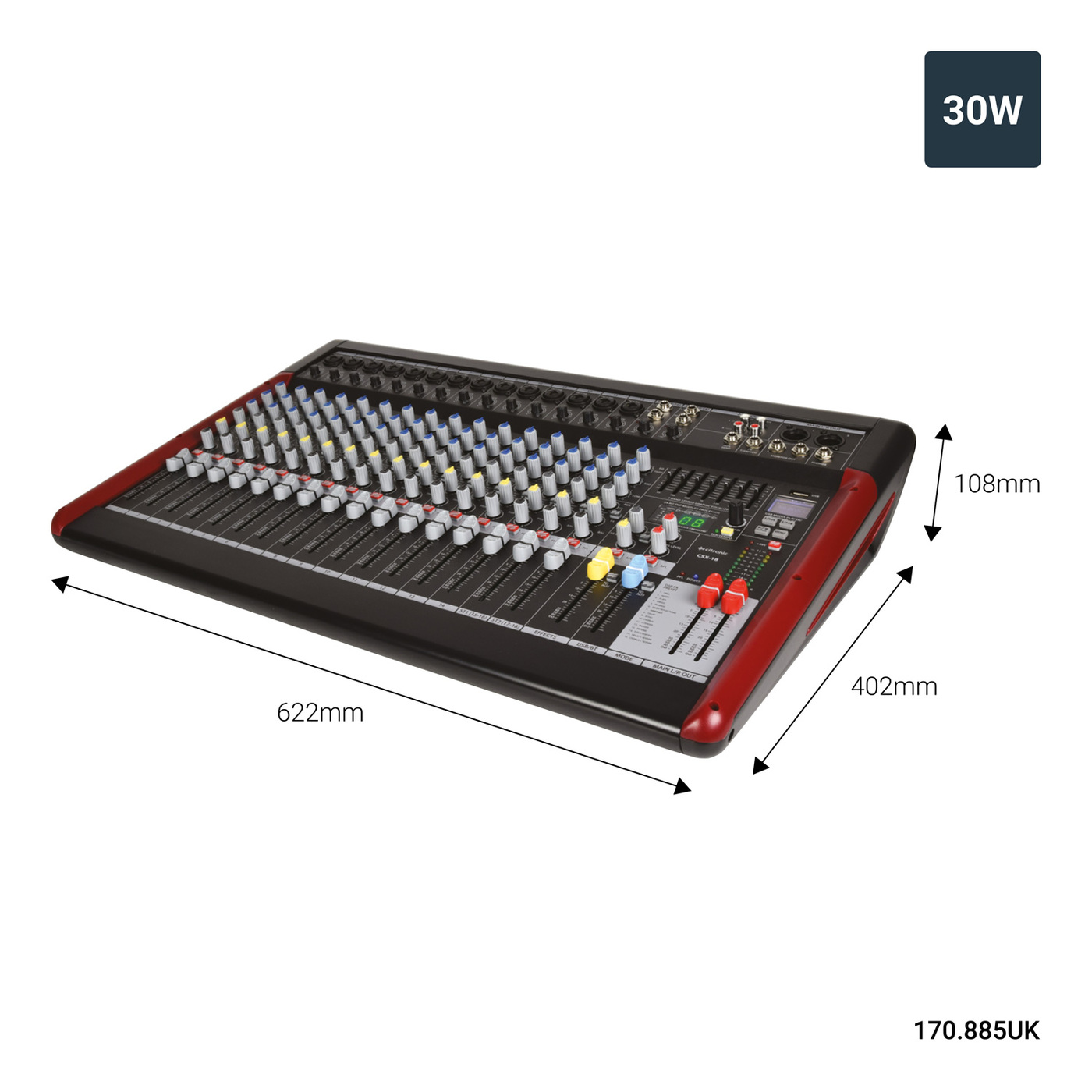

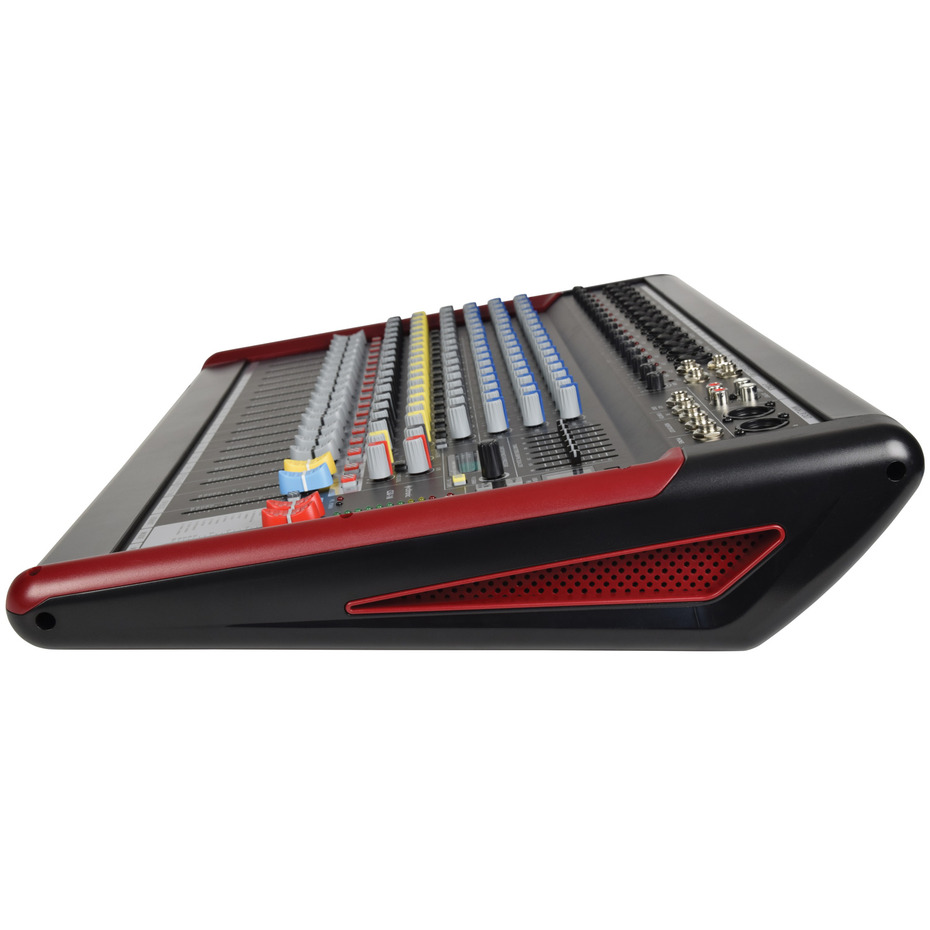

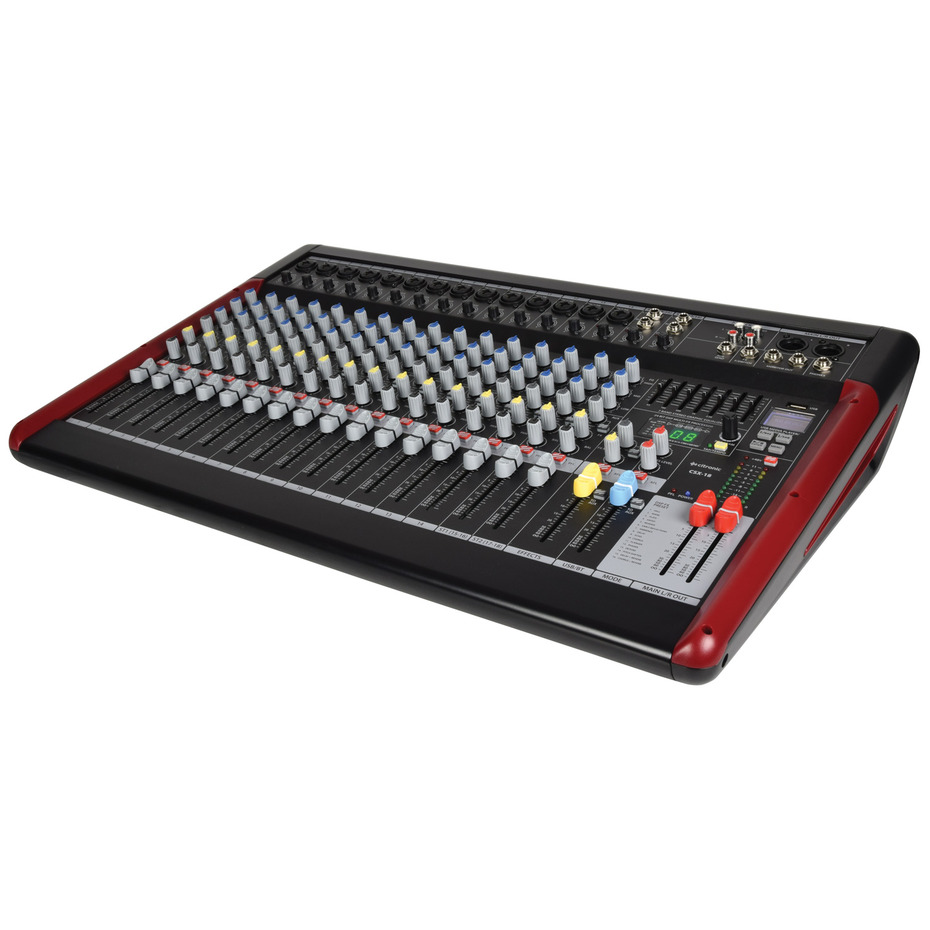

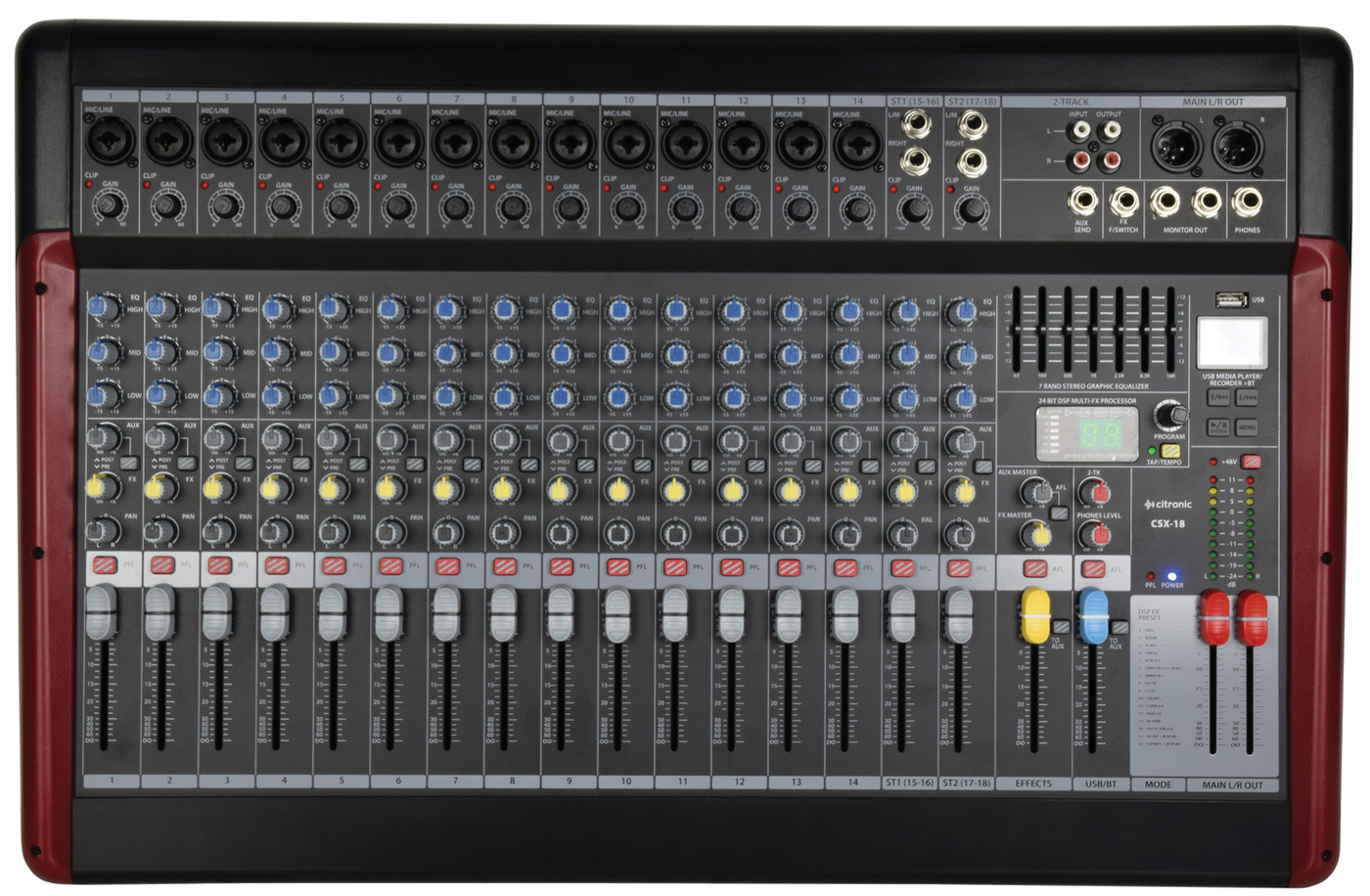

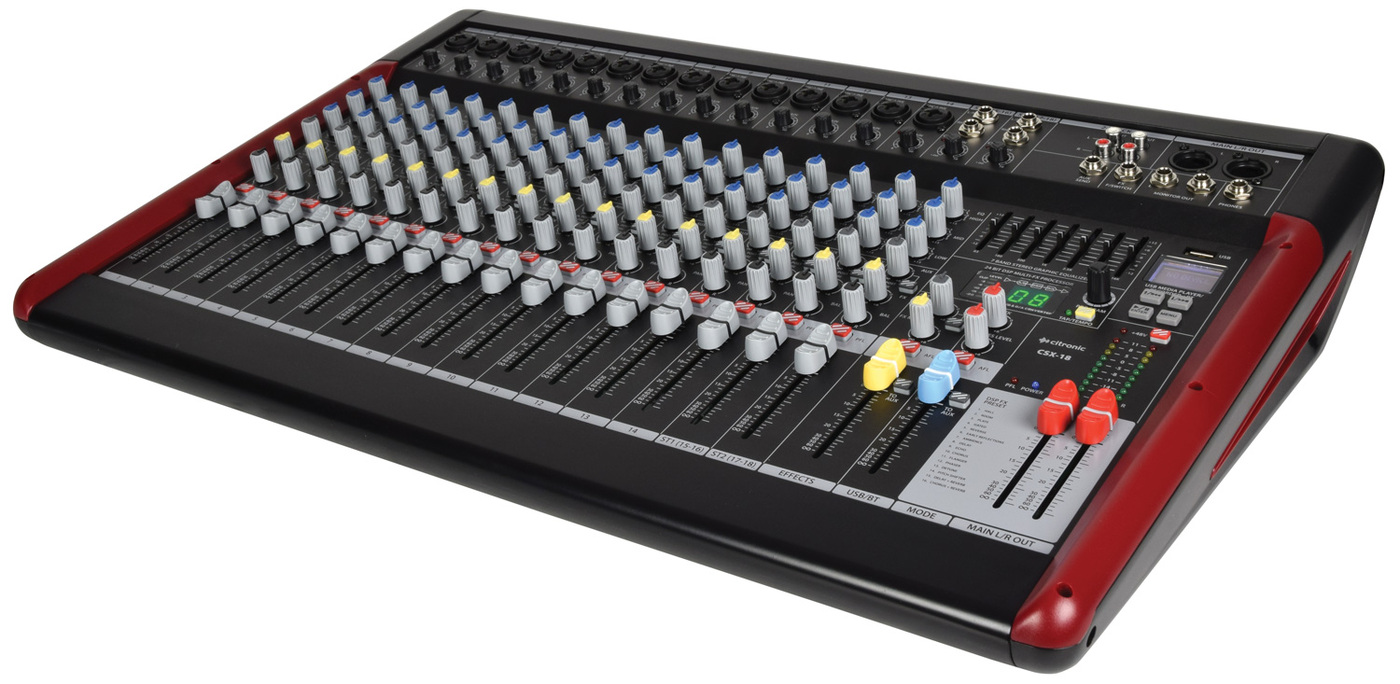

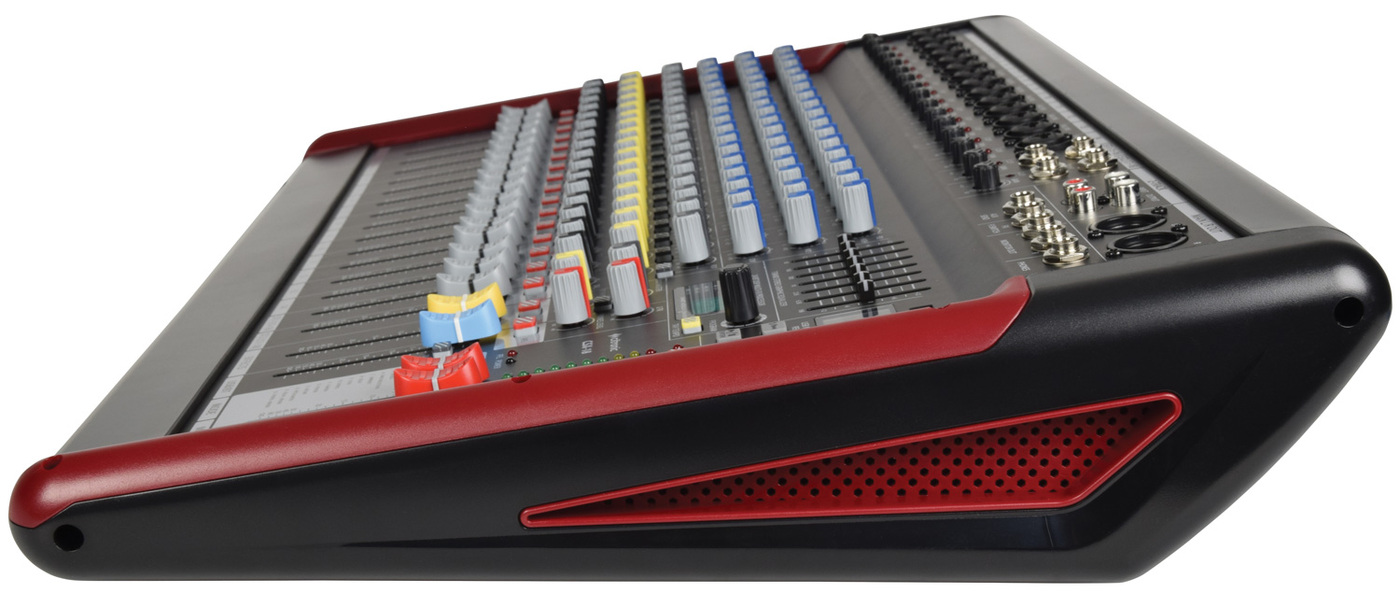

Citronic CSX-18 Live Mixer with USB/BT Player + DSP Effects

The CSX-18 is a fully featured live mixer with 14 mono mic/line channels (XLR/jack) and 2 stereo line inputs. Each channel includes gain control, 3-band EQ, pan, PFL, FX send, and a switchable pre/post aux send, all managed via smooth 60mm faders. Phantom power is available across all XLR inputs for use with condenser mics and active DI boxes. Onboard 24-bit DSP offers 16 digital effects with dedicated fader and AFL monitoring. A built-in media player supports USB playback and mix recording, with Bluetooth connectivity for wireless audio streaming. Master output is delivered via balanced XLR, with global tone shaping via a 7-band graphic EQ. Additional 2-track RCA input and output offer flexible integration with playback or recording devices. With low-noise circuitry and versatile routing, the CSX-18 is perfect for live sound, conferences, and theatre applications.

• Integral USB player/recorder with BT receiver
• 24-bit DSP effects with 16 programs
• 14 mono balanced XLR/jack inputs
• 2 stereo jack inputs
• 7-band graphic EQ
• Switchable +48V phantom power

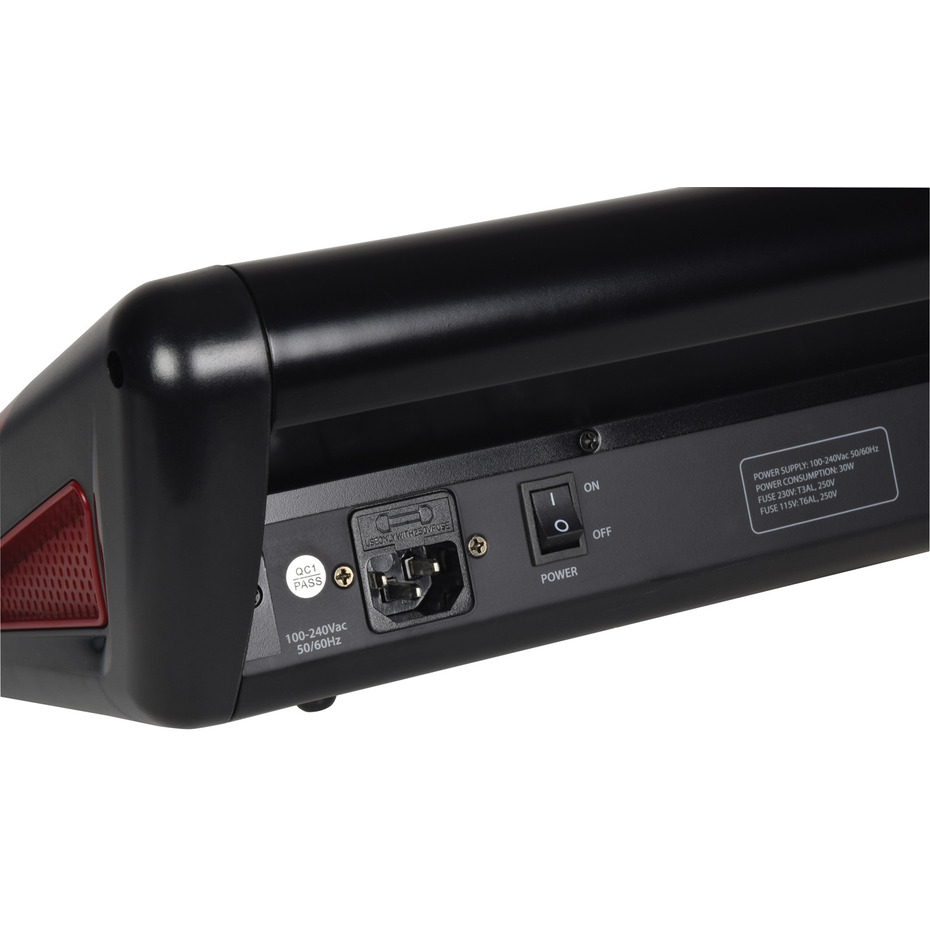

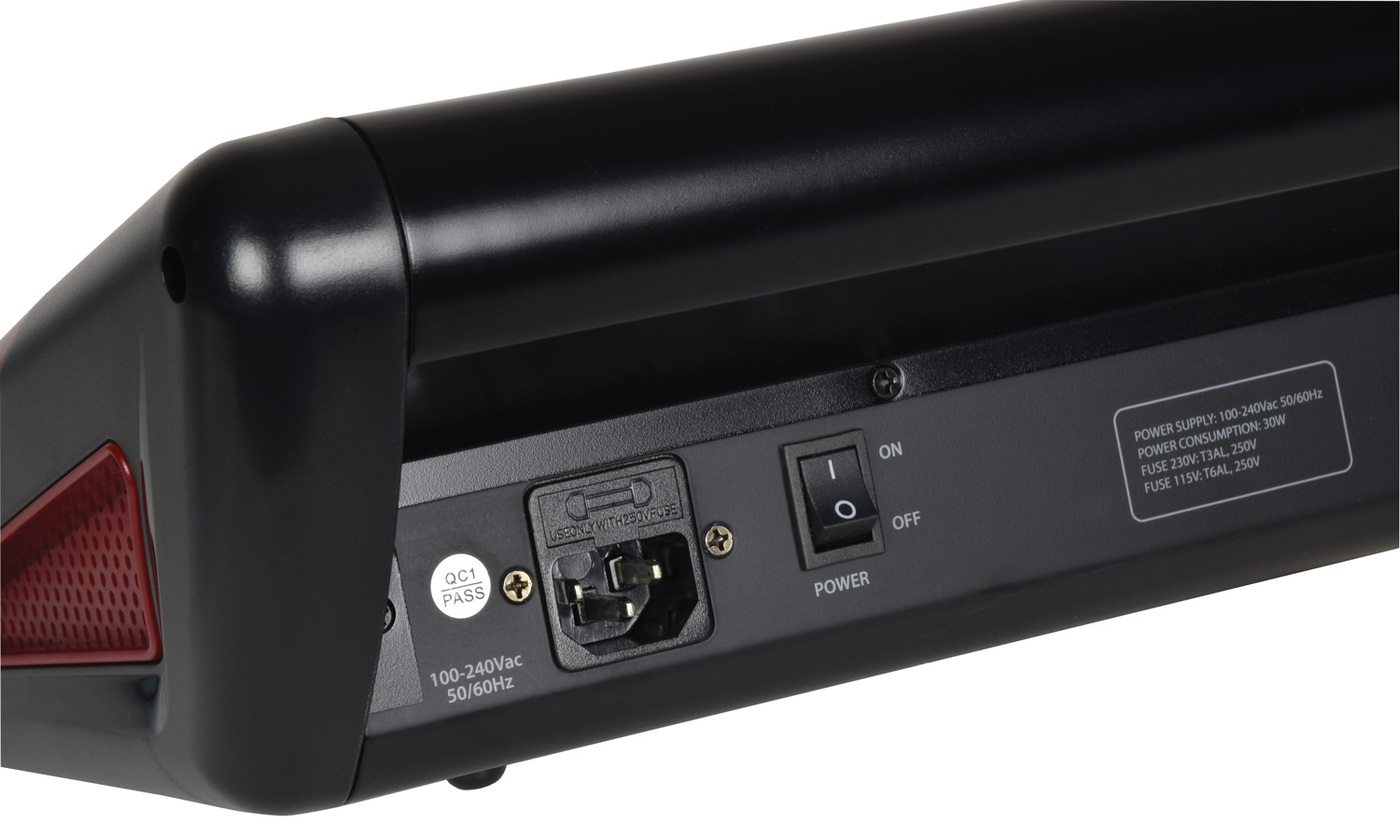

• Power supply100-240Vac, 50/60Hz (IEC)
• FuseT3AL @ 230V / T6AL @ 115V
• Power consumption max.30W
• Input level+24dBu (mic/line), +20dBu (stereo line) max.
• Phantom power+48V globally switched to XLR inputs
• EQ: high12kHz ±15dB (shelving)
• EQ: mid2.5kHz ±15dB (band pass)
• EQ: low80Hz ±15dB (shelving)
• 2-trackL+R RCA, 4k Ohm, -2dBu
• EQ master bands63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
• Output level+26dBu (XLR), +20dBu (TRS jack) max.
• Output : masterXLR balanced, ?75 Ohm, +4 dBu, Max.+22 dBu
• REC outputL+R RCA, <75 Ohm, -2dBu
• Headphone impedance30-600 Ohms
• DSP effects processor24-bit sigma-delta, 64/128 times over-sampling, 40kHz
• Frequency response20Hz - 30kHz (-0.5dB)
• Channel crosstalk>82dB
• CMRR>75dB (Mic @ 1kHz)
• THD +N<0.01% (Channel to mix out)
