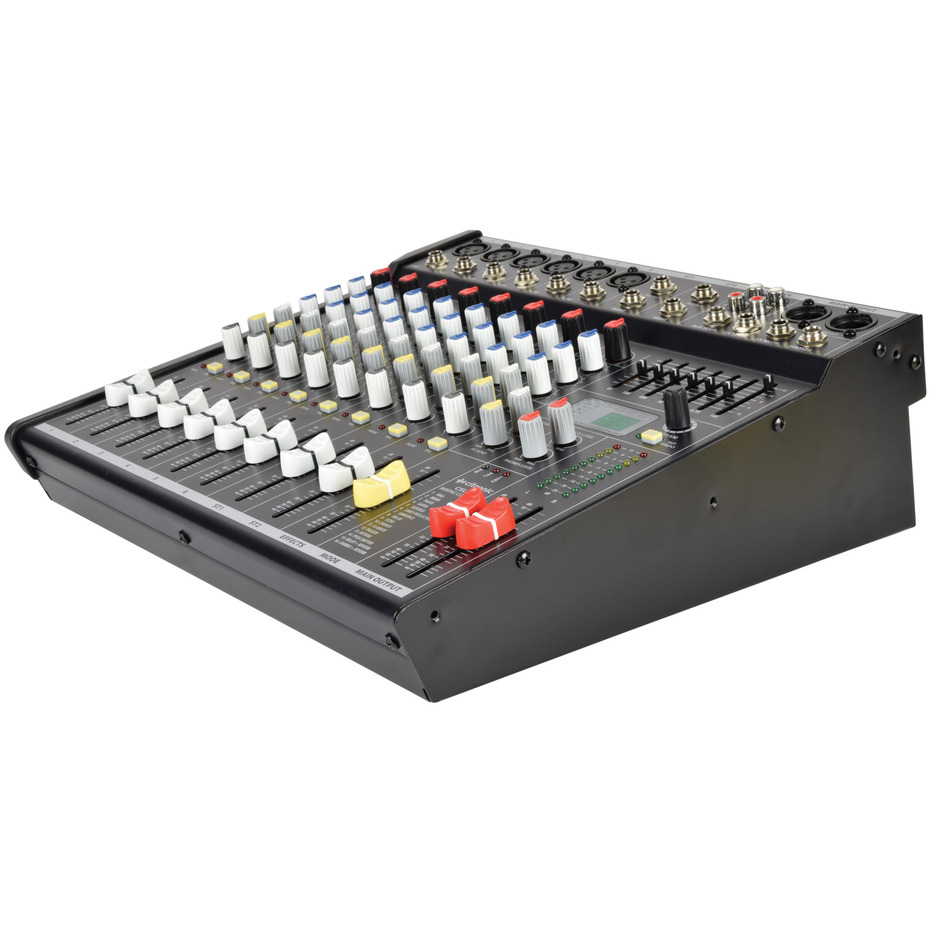

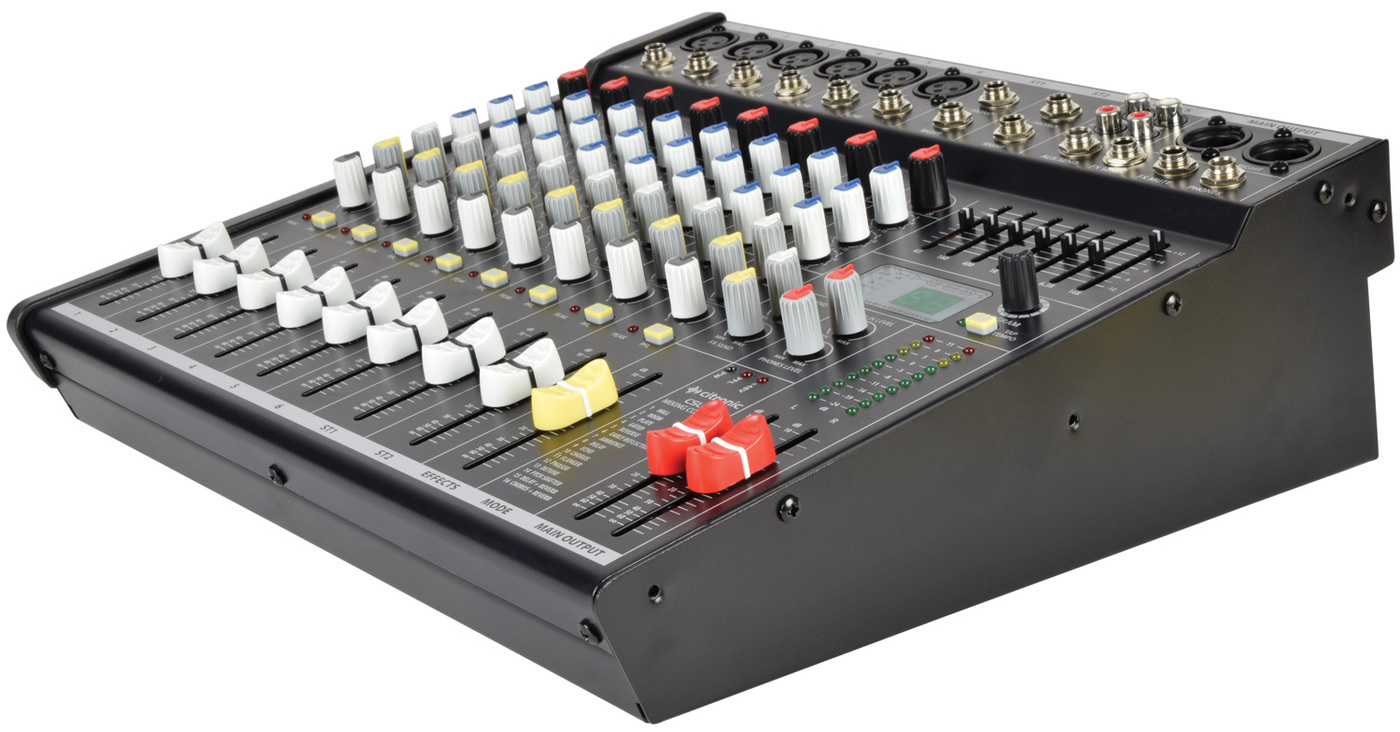

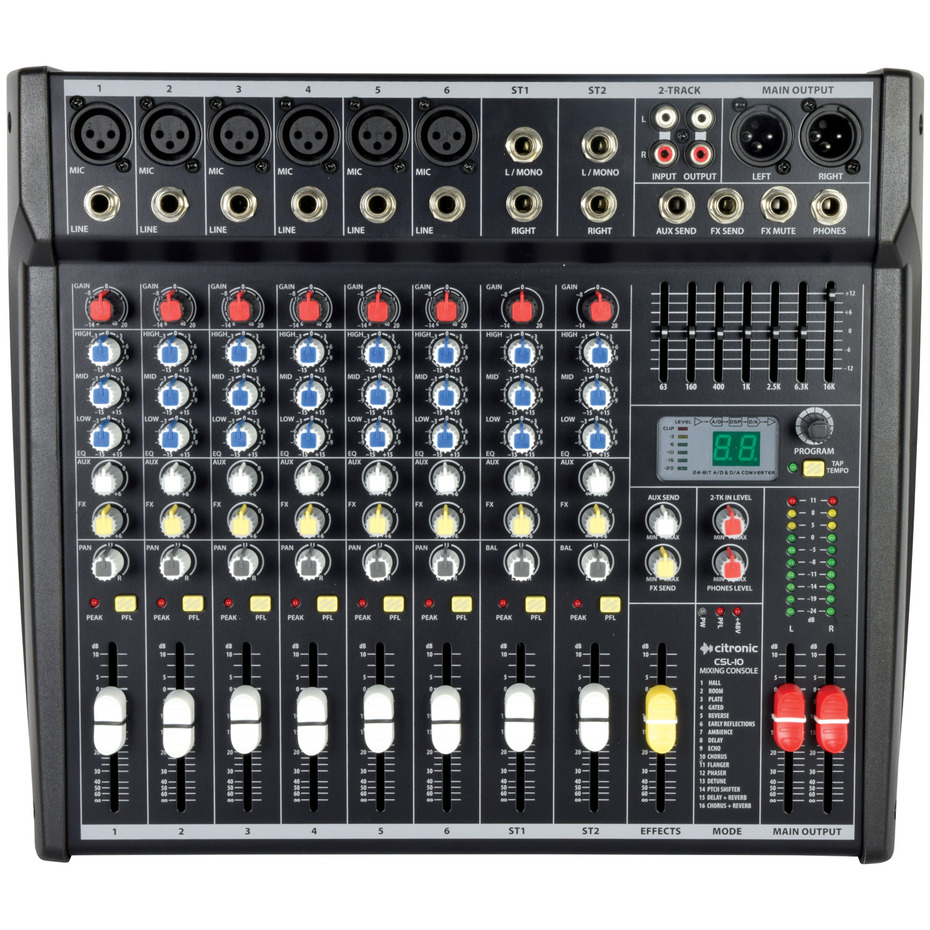

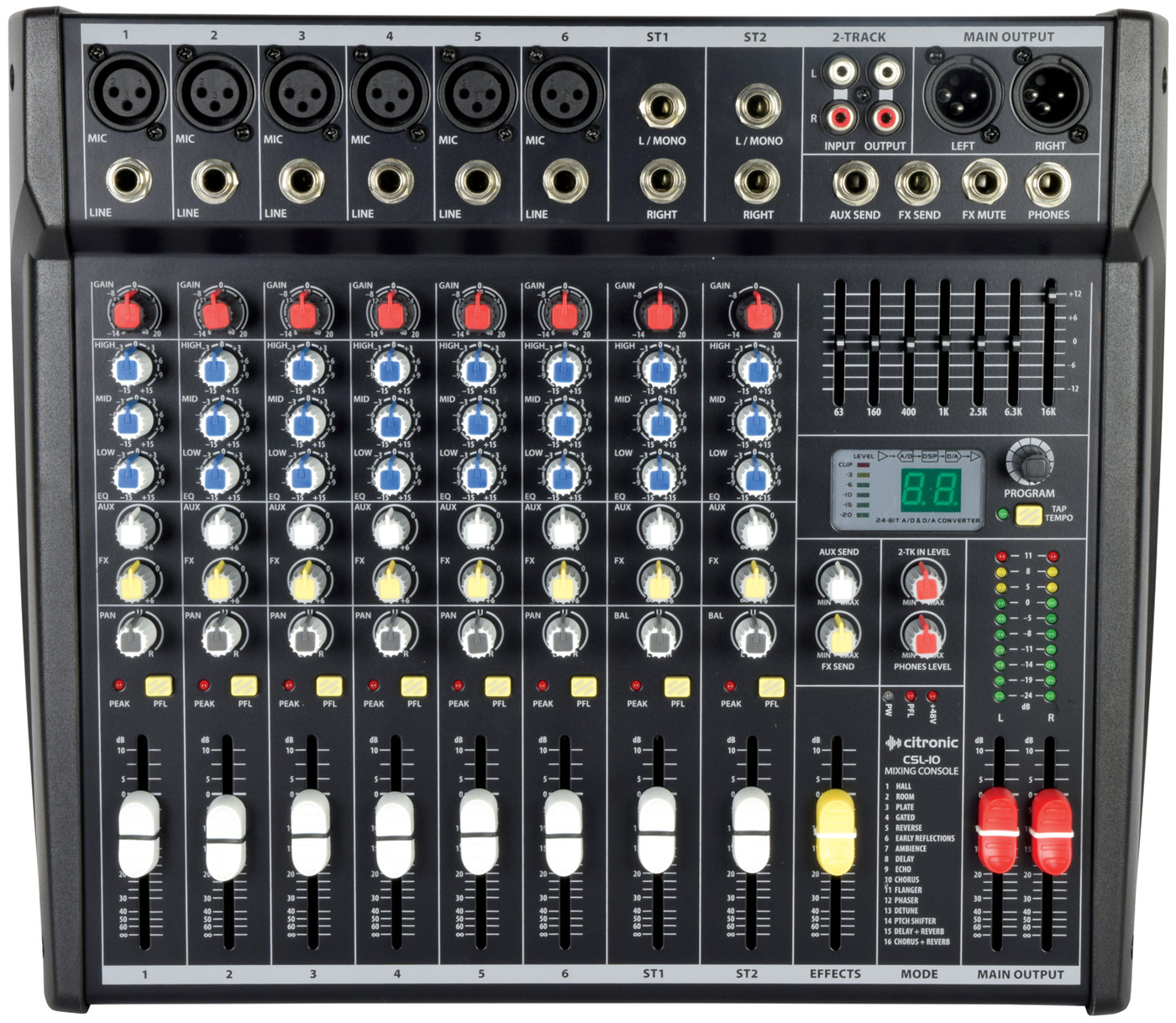

Citronic CSL-10
Compact Mixing Consoles with DSP
- 24-bit 16 program DSP effects
- 48V phantom power for XLR inputs
- 3-band EQ per channel
- 7-band global graphic EQ
- IEC mains powered
- Balanced main outputs
FULL DESCRIPTION
The Citronic CSL-10 is a compact 10-input analogue mixing console designed for live sound, mobile PA systems, and small venue applications. It features a built-in 24-bit DSP effects processor and a 7-band graphic EQ for comprehensive tone control.
TECH SPECS
- Weight 3.5kg
- Dimensions 360 x 320 x 107mm
- Inputs : Mic/Line6 x balanced XLRF/TRS jack

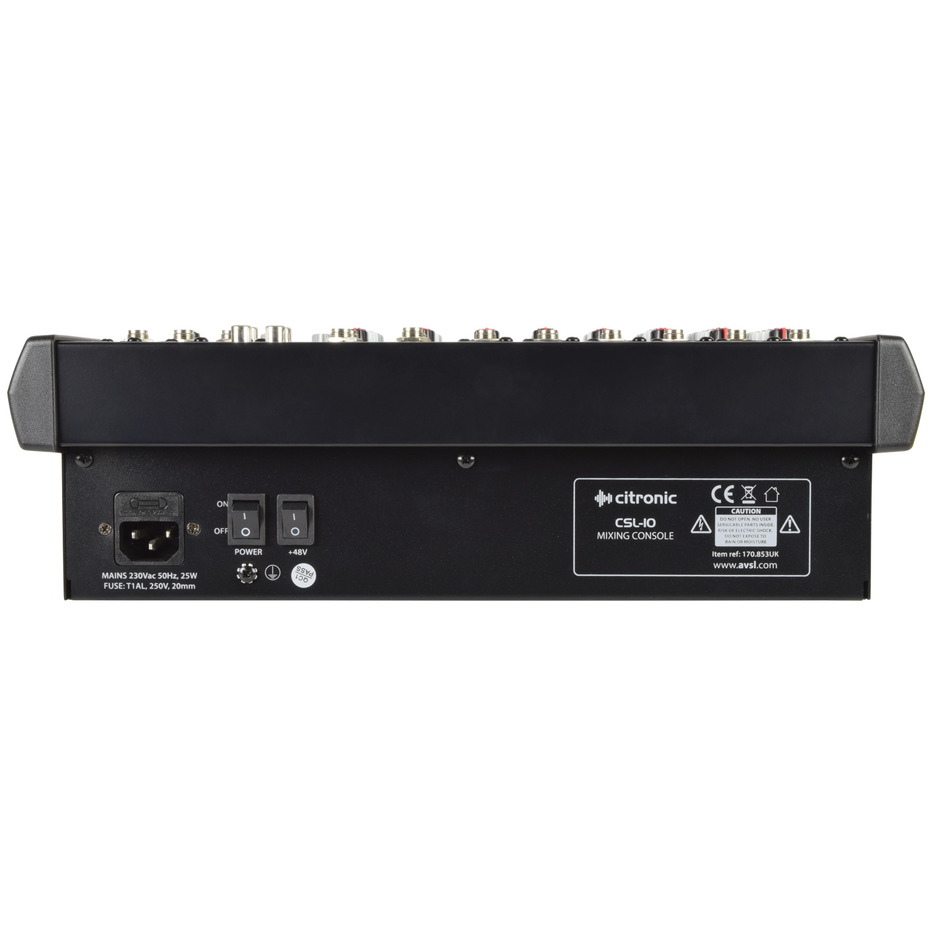

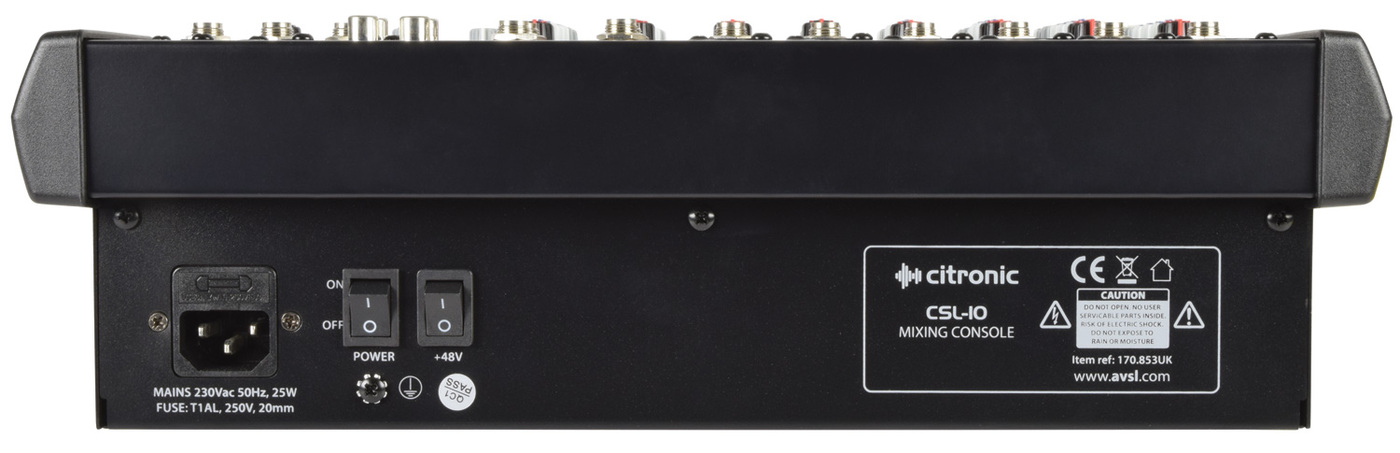

- Power supply 230Vac, 50Hz (IEC)
- Output connections Main L+R balanced XLR
- Effects 16 program DSP (24-bit sigma-delta, 40kHz)
- Phantom power +48V (XLR inputs)
- Frequency response 20Hz-30kHz (0.5dB)
- Power consumption 25W
- Fuse T1AL
- Input level +24dBu
- Output level : line +26dBu
- CMRR>74dB (mic 1kHz)
- THD +N<0.01% (channel to main out)
- Crosstalk>85dB (fader mute), >82dB (channel)
- Noise rms : 22Hz-22kHz-122dBu (EIN), -82dBu (mix)
- EQ: high12kHz ±15dB shelving
- EQ: mid2.5kHz ±15dB band pass
- EQ: low80Hz ±15dB shelving
- Input impedance : mic (balanced)2k Ohms
- Input impedance : line (balanced)10k Ohms
- Sensitivity : mic-60 to +14dBu
- Sensitivity : line-40 to +14dBu
- 2-track 2 x RCA in & out (-2dBu)
- Output impedance <75 Ohms
- Headphone output 6.3mm jack, 30-600 Ohms
