Citronic CMB-10
DSP & USB/PC/BT Player
- DSP effect section with 99 adjustable presets
- USB mp3 audio player/recorder
- Bluetooth receiver with independent volume control
- PC/Mac audio device and aux power via USB A connection
- 3-band EQ per channel
- Independent Aux send + stereo return
- Switchable +48V phantom power
- Balanced XLR/Jack mono inputs
- USB type-C power supply

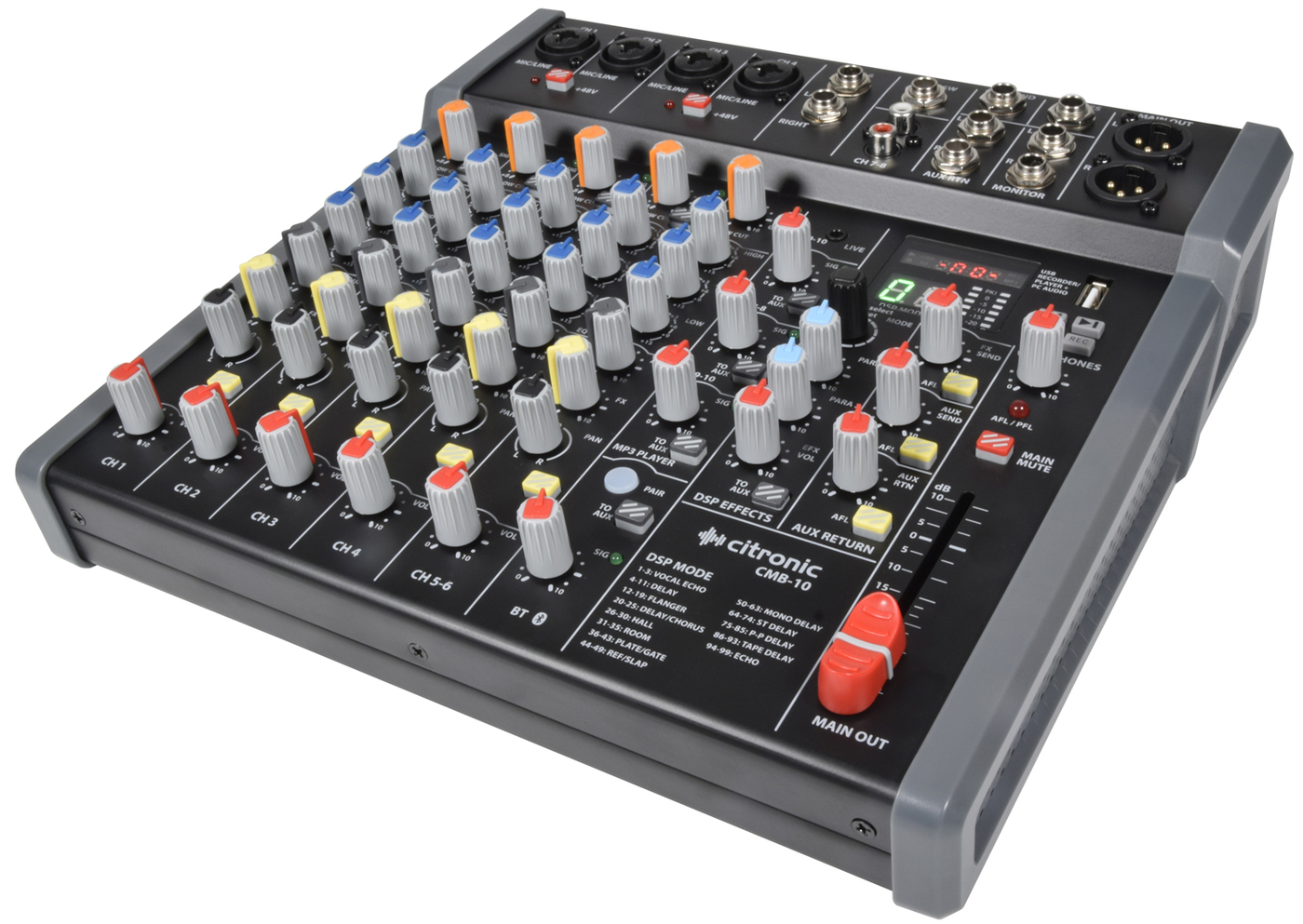

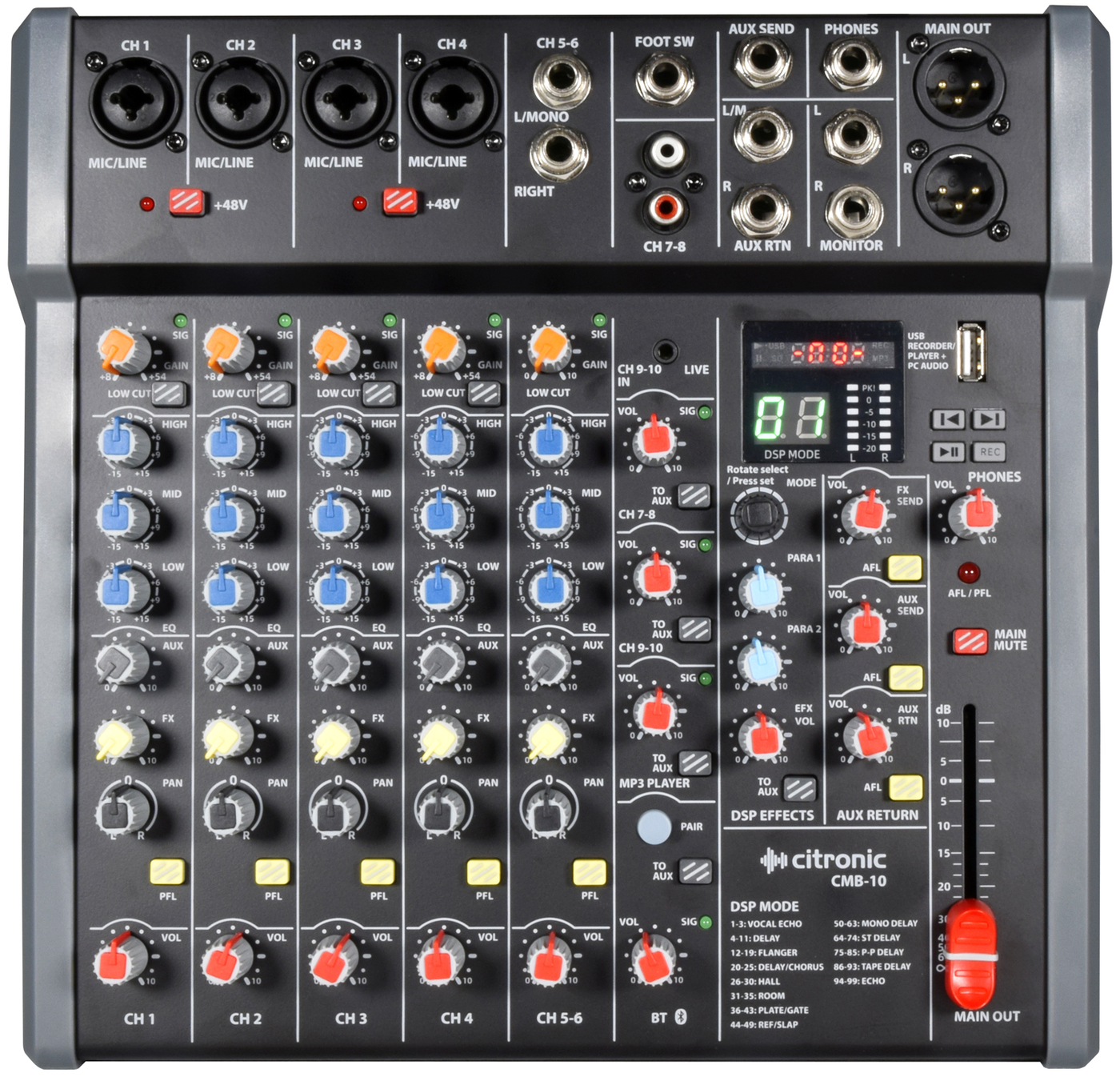

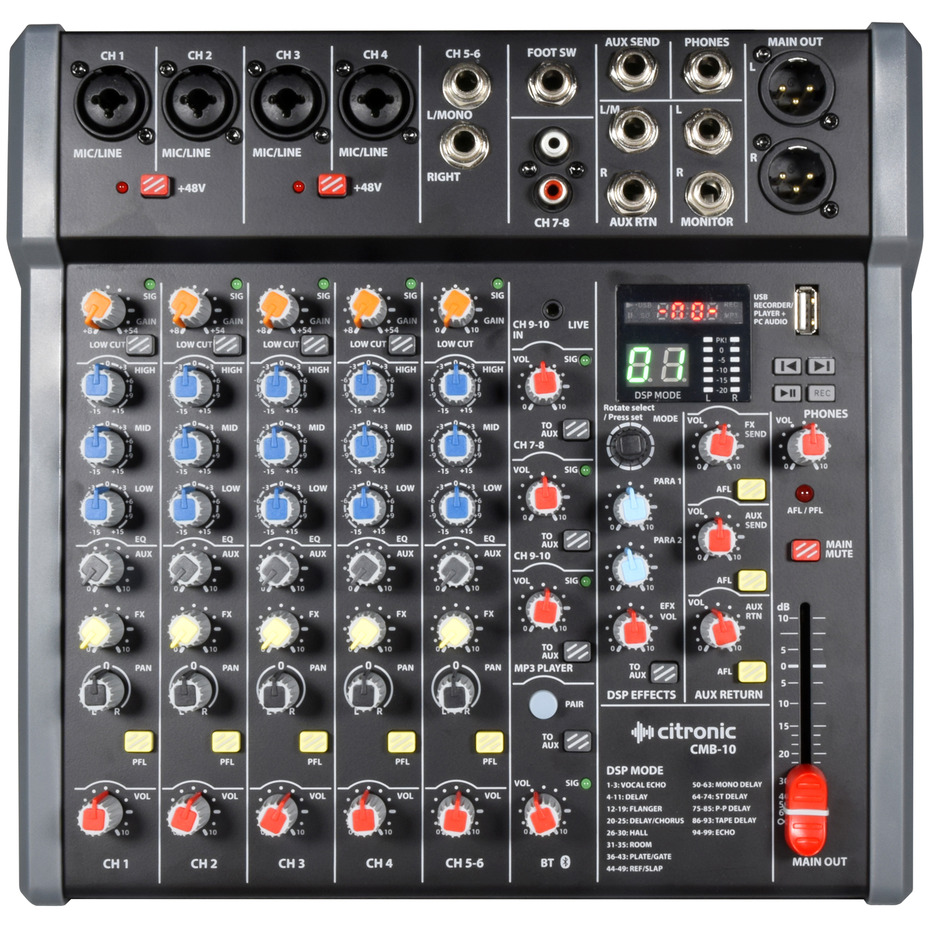

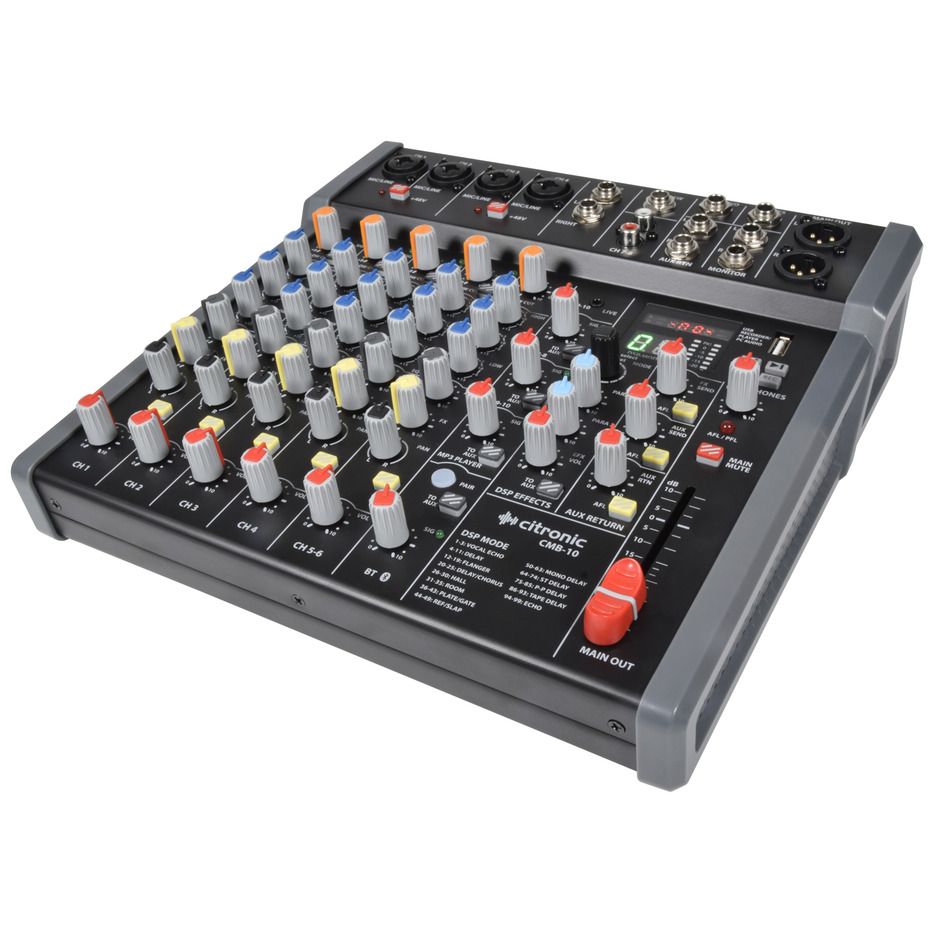

A fully featured audio mixer designed for live performers and project studios, the CMB-series combines comprehensive functionality in a compact format. It includes four mono input channels, a stereo line input, a stereo Aux input, and an additional stereo mini jack input.
Each mono mic/line channel features a combo XLR/¼" jack input with +48V phantom power, switchable in pairs for condenser microphones. Gain controls allow for precise input matching, while a low-cut filter helps eliminate rumble and handling noise. Tone shaping is provided by 3-band EQ (High, Mid, Low), along with individual controls for Aux send, FX send, and Pan.
A built-in, footswitchable DSP effects engine offers 99 editable presets, including reverb, delay, and modulation effects, with two parameter knobs for real-time adjustment.
Wireless playback is made easy via an onboard Bluetooth receiver, which includes a backlit pairing button and dedicated volume control. A top-panel USB Type-A port supports audio file playback, stereo recording directly to a USB storage device, or functioning as an external audio interface when connected to a computer.
The main outputs are available on balanced XLR (left/right), along with 6.3mm jacks for monitor and headphone outputs. The mixer also includes an Aux send and stereo return loop, offering flexible routing options.
The CMB-series brings the power and versatility of large-format consoles into a more portable and accessible design.

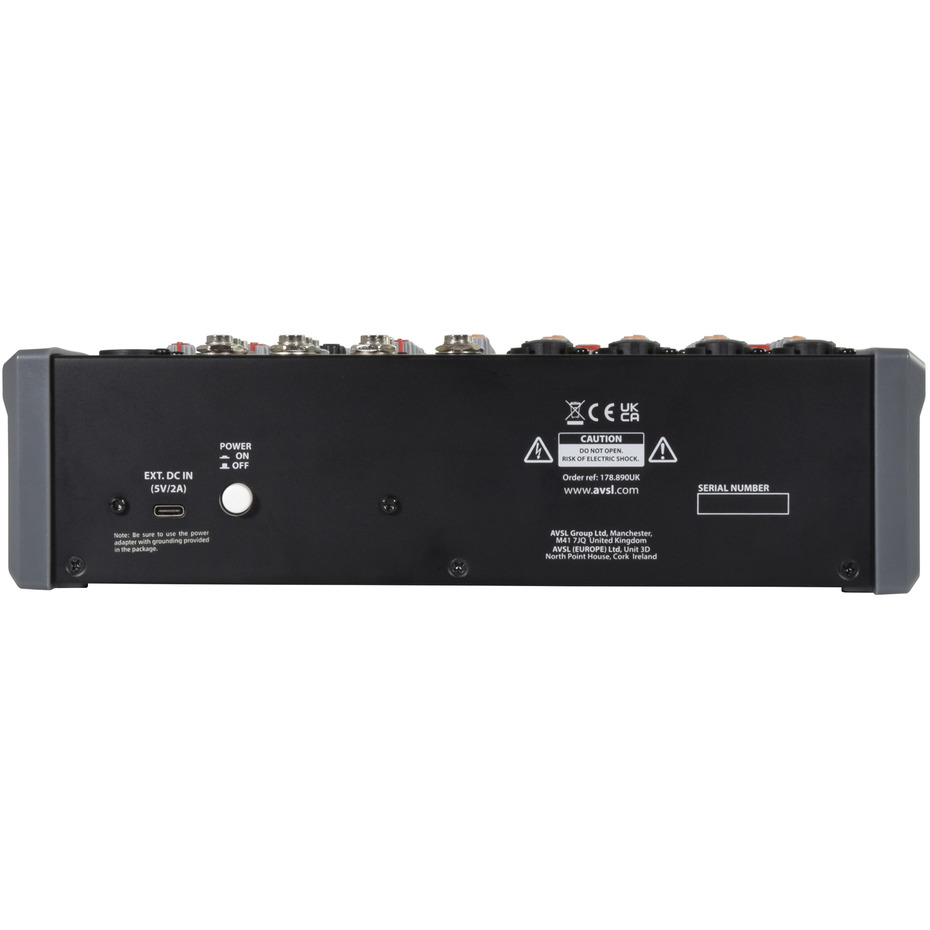

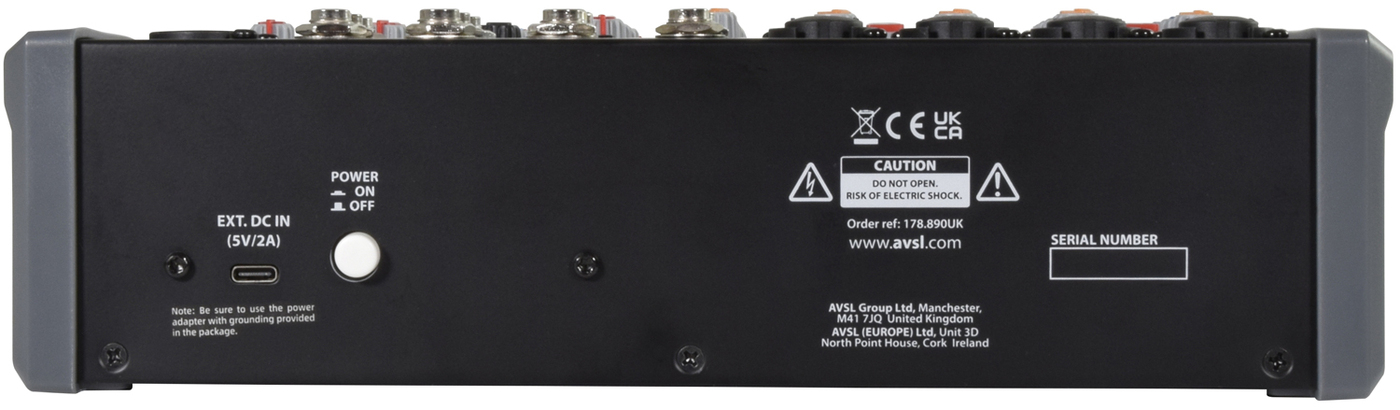

- Power supply 5Vdc 2A min. (USB-C adaptor included)
- Power consumption max. 10W
- Effects 99 program DSP (2 parameter controls)
- Inputs 4 x combo XLR/jack, stereo L+R 6.3mm, stereo RCA + stereo 3.5mm
- Audio source Bluetooth receiver, USB mp3 player/recorder
- Bluetooth versionv 5.1 (+BR+EDR+BLE)
- EQ: low±15dB @ 80Hz
- EQ: mid±15dB @ 2.5kHz
- EQ: high±15dB @ 12kHz
- Phantom power +48V switchable in pairs (XLR inputs only)
- Frequency response 20Hz - 22kHz (±1dB)
- Input level Mic +10dBu max. / Line +22dBu max.
- Input impedance Balanced XLR 2k Ohm, Balanced TRS jack 10k Ohm (unbal 20k Ohm)
- THD +N<0.05% @ 1kHz
- NoiseEIN -122dBu (22Hz - 22kHz)
- CMRR>75dB (Mic 1kHz)
- SensitivityXLR -60 to +10dBu, TRS jack -20 to +20dBu, Stereo -20 to +14dBu
- Crosstalk>80dB (1kHz fader shut off)
- Outputs Main L+R XLR, L+R Monitor 6.3mm, Headphones 6.3mm
- Max. output level XLR +22dBu, TRS +20dBu
- Sends : returns1 Aux send, L+R return
- Dimensions 270 x 260 x 74mm
- Weight 1.495kg
