ADJ Mirage Q6 Pak Black
Specification
Mirage Q6 Pak includes:
- (6) MIRAGE Q6 IP Black Fixtures
- (1) MIRAGE Q6 FC Flight Case
- (6) MIRAGE Q6 IPCB Charging bases and power supplies
- (1) UC-IR Wireless Infrared Controller
- (1) IP65 Locking Power Cable
Mirage Q6 Pak Features:
- Houses / Transports and Charges (6) MIRAGE Q6 IP™ BLACK fixtures
Mirage Q6 Pak Dimensions & Weight (with 6 fixtures):
- Length: 26.4” (671mm)
- Width: 18.2” (461mm)
- Vertical Height: 18.1” (459mm)
- Loaded Weight: 97.9 lbs. (44.4 kg)
Pak Electrical & Thermal:
- Power Input: AC100VAC~240VAC, 50/60Hz
- IP65 Power Locking Input and Output
- Max Power Consumption: 400 Watts
- Power Draw: 4A
- Charge status indicator
- 14°F to 113°F (-10°C to 45°C)
MIRAGE Q6 IP BLACK FIXTURE
Source:
- 4 x 10-Watt RGBA LEDs (4-in-1 - Red, Green, Blue & Amber)
- 50,000 Hour Average Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometrics:
- LUX: 9903 @ 2M; 2303 @ 4M
Optics:
- 11-degree beam angle
Control & Connections:
- Control protocol: WiFLY EXR Wireless DMX
- 11 DMX Channel modes: 4, 6, 7, 8, 9A, 9B, 10, 11, 12, 15 or 18 channels
- Remote control: WiFLY EXR DMX, UC-IR24 (Included)
- 5 Operation modes: RGBA Dimmer Mode; Auto Run Mode (13 programs, & 1 colour/fade combo mode); Static Colour mode; and Wireless DMX Control
- Contact Charging system. 6x Charging bases and power supplies included in flight case
Features:
- IP65 Outdoor Rated
- Built-in kickstand to angle fixture when sitting on the floor
- 4-touch button OLED display on rear panel
- Built-in WiFLY EXR wireless DMX: Up to 2,500 feet (760M) when used with ADJ’s WiFLY EXR
- Battery Transceiver
- 64 built-in Colour Macros
- Variable RGBA colour mixing offers a smooth, seemingly unlimited colour palette - Great for Wall Washing!
- LED pulse and strobe effect (0.2Hz-11Hz)
- Flicker Free Operation
- Electronic Dimming: 0 - 100% with 6 dim modes and 4 dim curves
- Run all night – No duty cycle
- Energy Save Mode
- Built-in alarm system with On/Off
- Battery charge indicator on each fixture
- Die-cast aluminium housing
Battery:
- Battery Type: Fixed lithium battery
- Battery Energy: 162.8WH (Watt Hours)
- Battery Weight: 0.84 kg.
- Battery Voltage: 14.8V
- Battery Capacity: 11000mAh (Typical Capacity)
- Total Lithium Ion Cells: 20 pieces
- Battery Wrap Material: PVC sleeving + highland barley paper
- Battery Charge Time: 7 Hours
- Battery Life: 14 hours (When colour changing in Battery Saver Mode 14); 40 hours (When set to a single colour in Battery Saver Mode 14) Battery Saver Mode 14 is available in software V1.03>
Dimensions & Weight:
- Length: 143.2mm
- Width: 143.2mm
- Vertical Height: 211mm
- Weight: 4.01kg
Electrical & Thermal:
- Power Input: DC 17.3V
- Power Draw: 2A
- 40W Max Power Consumption (each unit)
- -10°C to 45°C

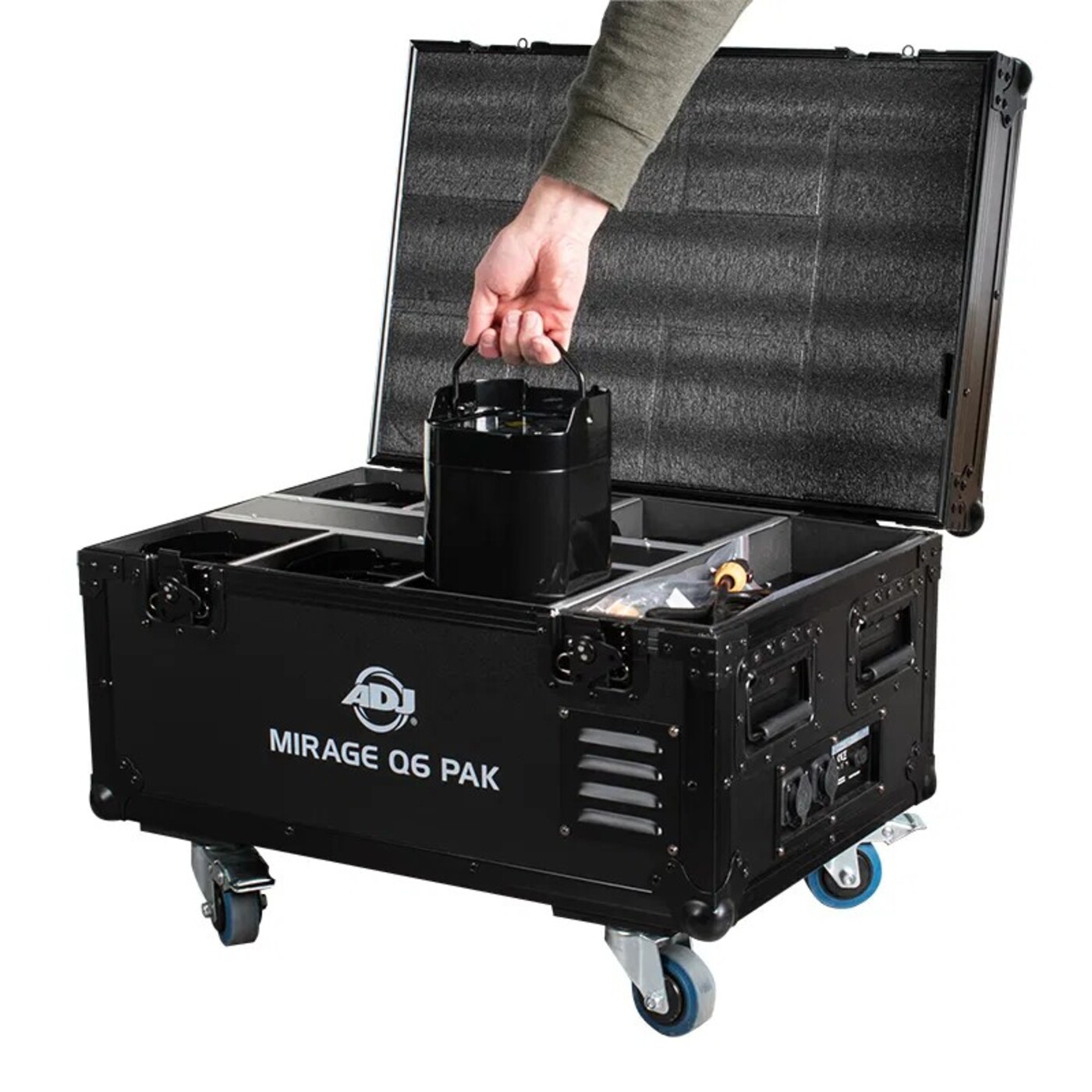

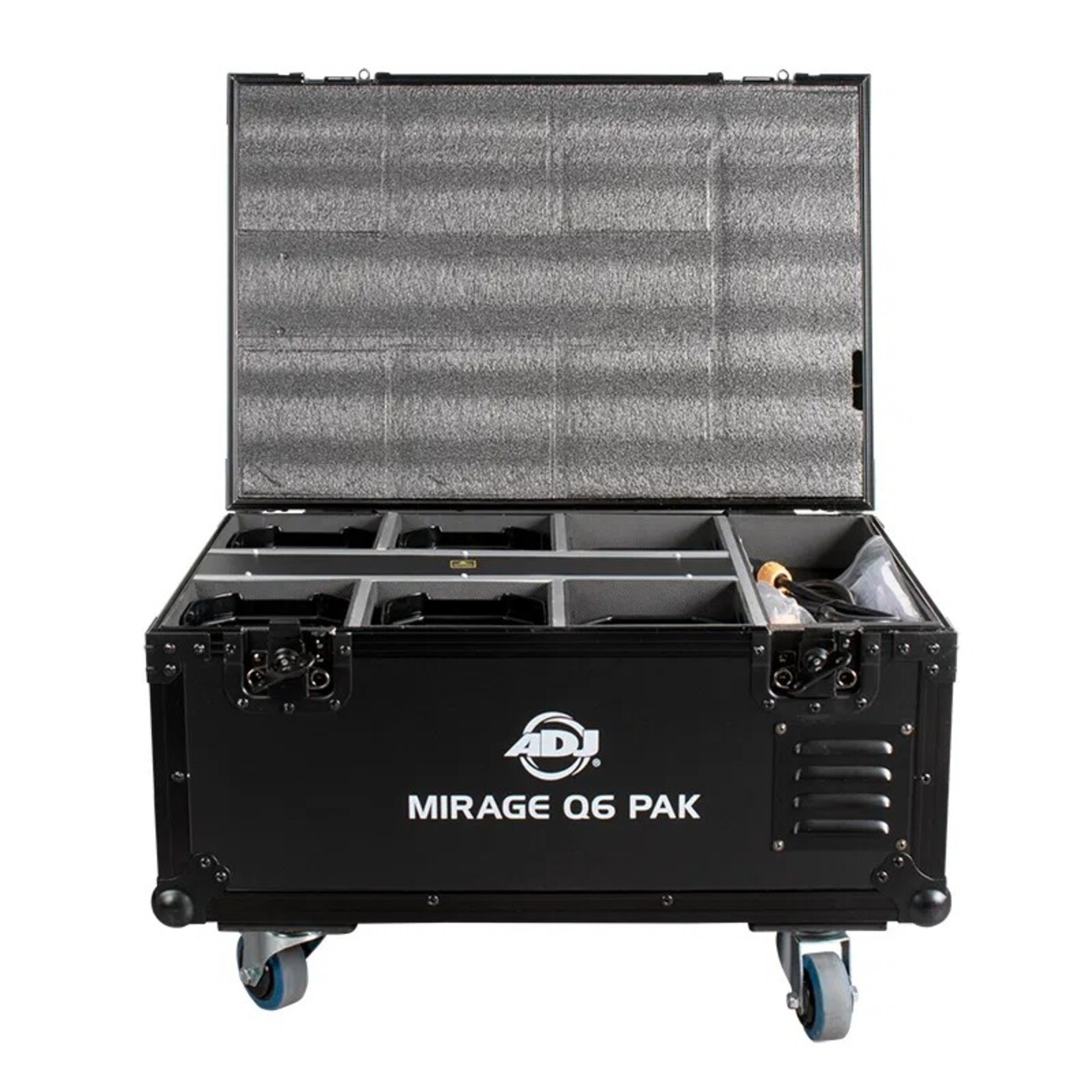

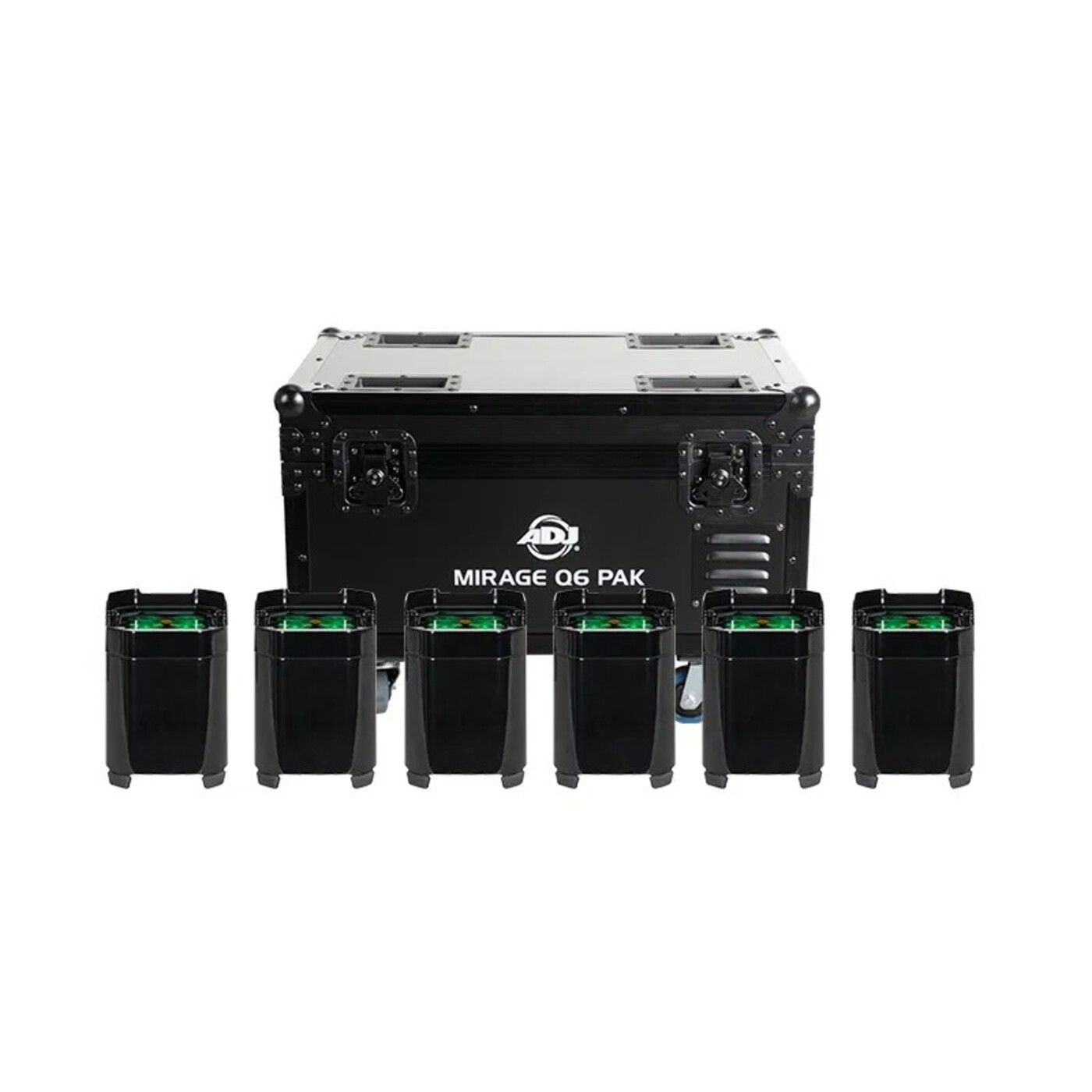

The ADJ Lighting Mirage Q6 Pak Black is a complete all-in-one event uplighting solution. It includes six (6) IP65-rated battery-powered fixtures—suitable for both indoor and outdoor use—housed in a rugged flight case with an integrated battery charging system.
Each Mirage Q6 IP Black fixture is equipped with four (4) powerful 10W RGBA LEDs, delivering an 11° beam angle. With its IP65 rating, the unit is weather-resistant, making it safe for temporary outdoor use against rain, snow, dust, and sand. Built-in WiFLY EXR wireless DMX enables communication with compatible lighting controllers at distances of up to 2,500 feet (700 m).

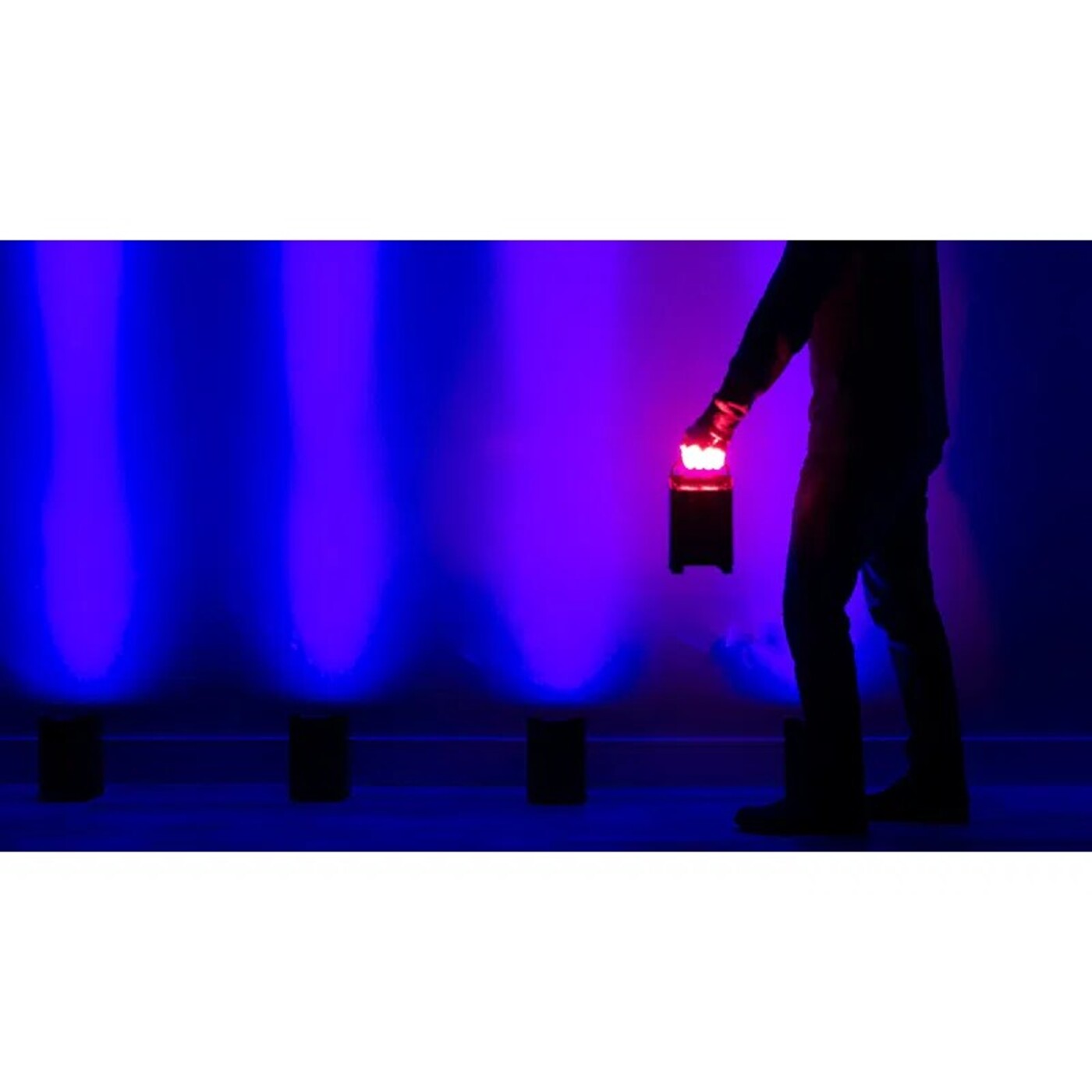

Designed for wall washing, the fixtures feature an integrated carry handle, built-in feet for quick placement, and a fold-out kickstand that angles the beam toward walls. This enhances wash intensity while reducing unwanted ceiling spill.
For added security, each fixture includes an alarm function with on/off controls. When activated, the fixture will emit a beeping sound and strobe red if moved.
The long-lasting battery provides up to 40 hours of operation on a single colour (20 hours in color-changing mode) and fully recharges in just 7 hours.
