ADJ Focus Spot 5Z
Source
Source: Cool White LED Engine
Individual LED Wattage: 200 W
Average Lifetime: ~50,000 hrs
Optics
Motorized Zoom: 11°–22° with 16-bit Fine Zoom
Motorized Focus
Prisms: Rotating 5-facet Linear & 6-facet Circular
Frost: Heavy frost for wash; Light frost for softly blurred GOBO and Prism effects
Control
Operational Modes: Program Mode or DMX control
DMX Channel Modes: 16 / 18 / 22 Channels
RDM Compatible: Remote Device Management
Internal Programs: Built-in DMX Recorder
Dimming: 16-bit, 0–100%
Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
Adjustable Gamma Brightness: 2.0 / 2.2 / 2.4 / 2.6 / 2.8
LED Refresh Rate: 900 Hz – 25 kHz (flicker-free)
Strobe Effects: Various
Display: 6-button colour LCD
Battery: Allows menu access without power
Pan: 16-bit, 540° & 630°
Tilt: 16-bit, 270°
Fans: 3 settings – Auto, High, Low Noise
Colours
Colour Wheels: 2 separate wheels, each with 7 dichroic colours + white
Includes: CTO, CTB, and UV filters
Gobos
Gobo Wheel: 6 aluminium gobos + open
Features: Removable, rotatable, indexable, Gobo Shake effect
Gobo Size: 22.5 mm (outer); 19 mm (viewable); 0.5–2 mm (thickness)
Construction
Housing: White plastic
Cooling: 2 fans
Mounting: Omega bracket with quick locks
Electrical
Voltage: 100–240V, 50/60 Hz
Power Draw: 256 W
Connections
DMX: Locking 5-pin In/Out
Power: Locking In/Out (Daisy chain: 4 units @ 120V; 10 units @ 240V)
Firmware Updates: USB port
Dimensions & Weight
Dimensions: 457 × 279 × 182 mm
Weight: 10 kg

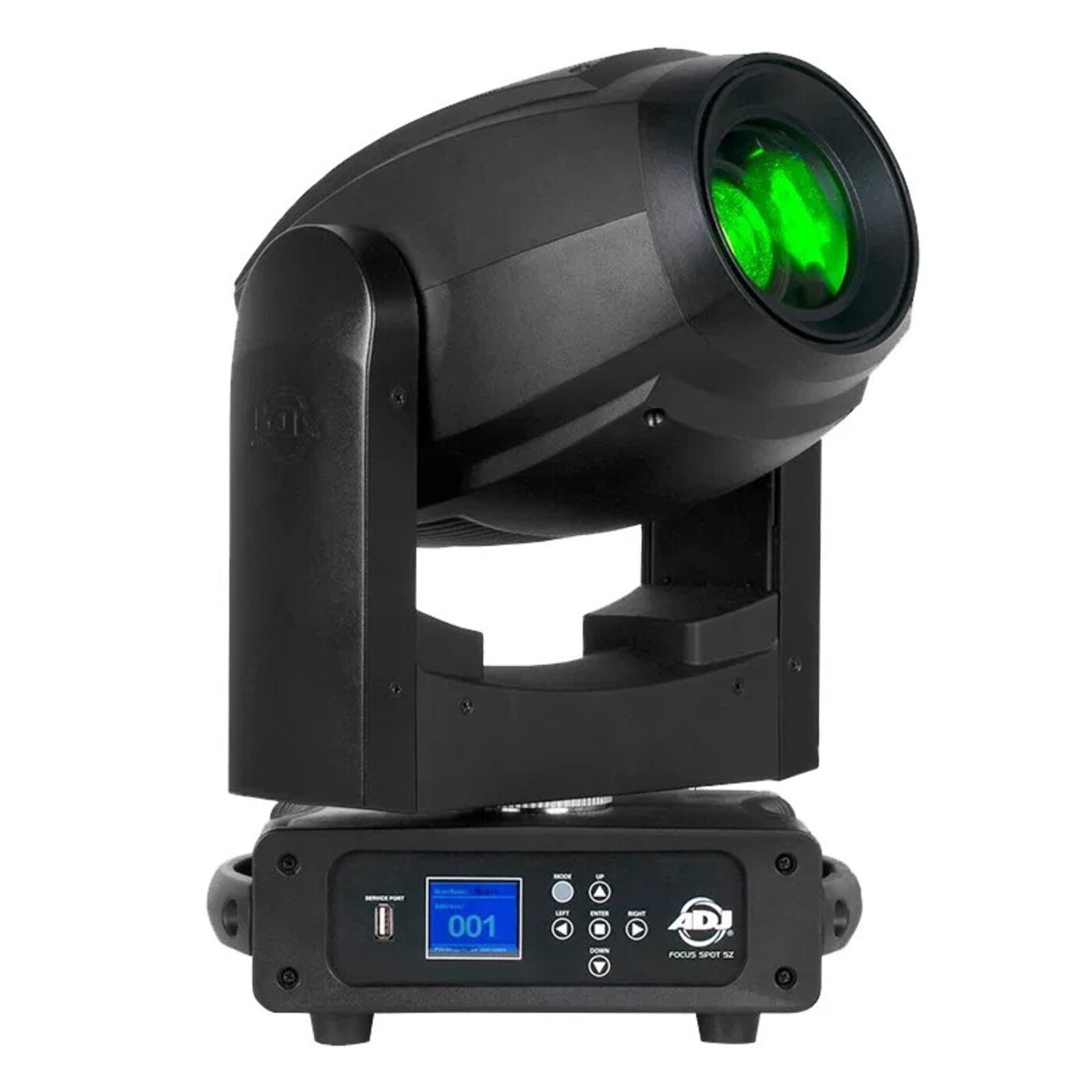

The Focus Spot 5Z features a powerful 200 W cool white LED engine and is equipped with motorised focus and zoom (11°22°), along with two frost filters (heavy and light) for versatile beam shaping. Designed for live events, nightclubs, stages, and churches, it is suitable for both temporary setups and permanent installations.
This professional fixture includes:
GOBO wheel: 7 aluminium + 1 glass GOBO, all rotatable and replaceable
Colour wheels: 2 wheels, each with 7 vibrant colours + white
Prisms: 2 rotating/indexable prisms 5-facet linear and 6-facet circular
Connectivity is simplified with locking Power In/Out for daisy-chaining and locking 5-pin DMX In/Out for signal transmission. A USB port allows for easy firmware updates. Advanced control features include 16-bit fine pan and tilt, multiple DMX modes, and 6 selectable dimming curves.
Delivering robust output in a compact, lightweight design (457 × 279 × 182 mm; 10 kg / 23 lbs), the Focus Spot 5Z combines professional performance with portability.
