ADJ Focus Spot 4Z
Source
- Cool White LED Engine, 24,000K
- 7,000 Lumens
- CRI: 76
- LED Wattage: 200W
- Average Lifetime: ~50,000 hrs
Optics
- Motorised Zoom: 11–22° + 16-bit Fine Zoom
- Motorised Focus
- Rotating 5-Facet Linear Prism
- Rotating 6-Facet Circular Prism
Control
- 2 Operational Modes: Program Mode or DMX Control
- 3 DMX Channel Modes: 16 / 18 / 22 channels
- RDM Compatible (Remote Device Management)
- Internal Programs with Built-In DMX Recorder
- 16-bit Dimming (0–100%)
- 6 Dimming Modes: Standard, Stage, TV, Architectural, Theatre, Stage 2
- Adjustable Gamma Brightness: 2.0 / 2.2 / 2.4 / 2.6 / 2.8
- Adjustable LED Refresh Rate: 900 Hz – 25 kHz (flicker-free operation)
- Multiple Strobe Effects
- 6-Button Color Display
- Onboard Battery: Access menu without power connection
- 16-bit Pan: 540° & 630°
- 16-bit Tilt: 270°
- 3 Fan Settings: Auto / High / Low Noise
Colours
1 Color Wheel with 8 Dichroic Colors + White
Gobos
- 1 GOBO Wheel with 6 Aluminium GOBOs + Open
- All GOBOs Removable, Rotatable, and Indexable
- GOBO Shake Effect
- GOBO Size: 22.5 mm (outer) / 19 mm (viewable) / 0.5–2 mm (thickness)
Construction
- Durable Plastic Housing
- 2 Cooling Fans
- Omega Bracket with Quick Locks
Electrical
- Multi-Voltage: 100–240V, 50/60 Hz
- Power Draw: 256W
Connections
- Locking 3-Pin DMX In/Out
- Locking Power In/Out (Daisy Chain: 4 units @ 120V / 10 units @ 240V)
- USB Firmware Update Port
Dimensions & Weight
- Dimensions: 457 × 279 × 182 mm
- Weight: 10 kg

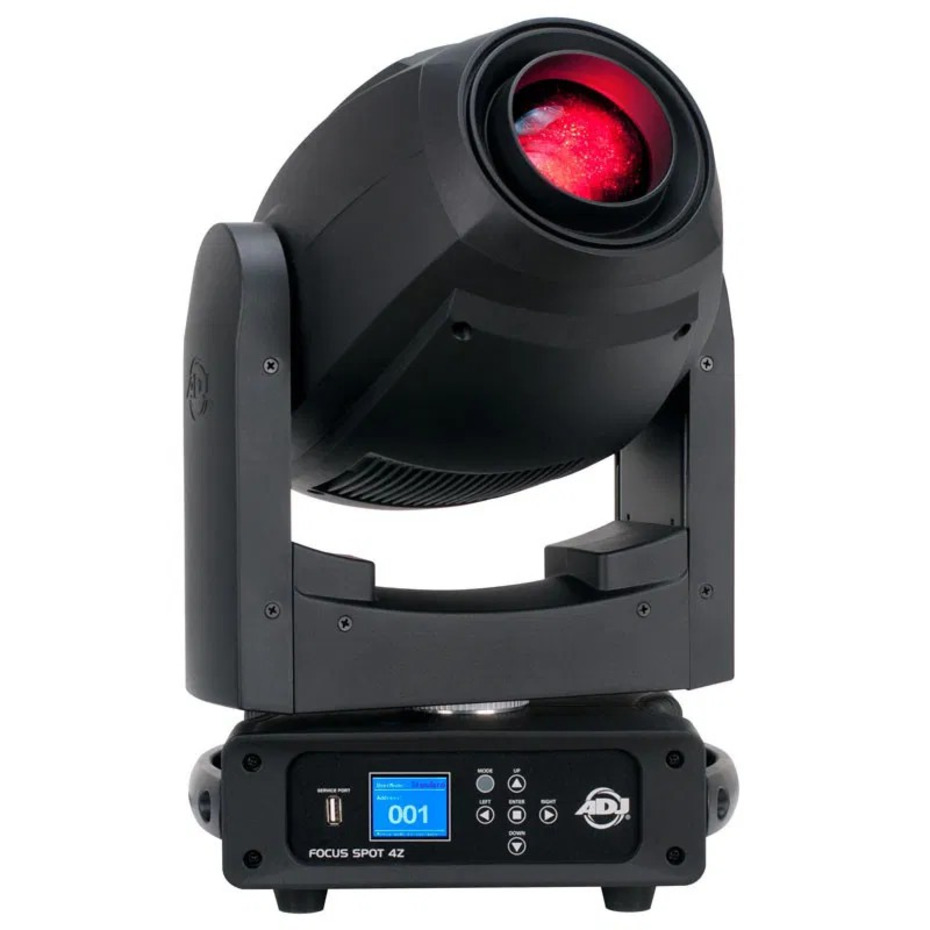

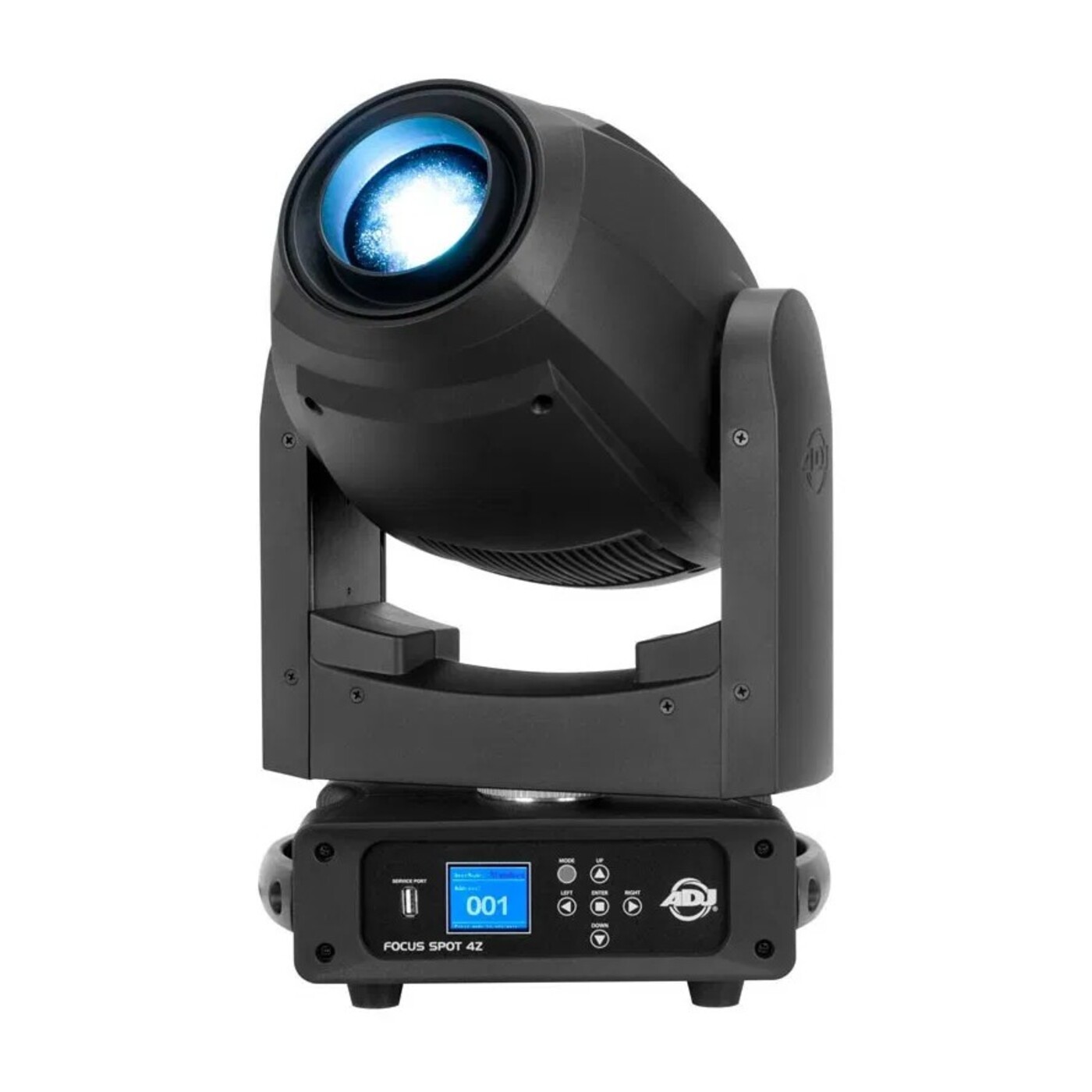

The Focus Spot 4Z delivers powerful performance with its 200W cool white LED engine, offering crisp output and versatility for both temporary live events and fixed installations in nightclubs, stages, and houses of worship. Its motorised focus and 1122° zoom provide precise control, while a rich feature set ensures maximum creative flexibility.
Equipped with a rotating/replaceable GOBO wheel (6 GOBOS), 8 vibrant colours plus white, and dual prisms (5-facet linear and 6-facet circular), the 4Z is built to enhance any lighting design.
For professional connectivity, it includes locking Power In/Out connectors for power daisy-chaining, locking 3-pin DMX In/Out for reliable signal transmission, and a USB firmware update port for easy upgrades. Advanced features include 16-bit fine pan/tilt control, multiple DMX modes, and 6 dimming curves for smooth performance.
Compact yet powerful, the Focus Spot 4Z stands 18 inches tall, weighs just 23 lbs, and packs a robust output into a lightweight, portable design making it a flexible solution for lighting professionals.
