Playback & Controls
- 10 × 60 mm playback faders, each with 4 × function-assignable buttons
- 8 × customizable multi-function keys
- Playback Select button
- Master Go section with Go, Pause, Snap, Release
- 4 × digital rotary encoders with push function and status LED for fixture parameter control
- 4 × screen-mounted digital rotary encoders with push
- 3.5" RGB touchscreen for parameter groups, effect parameters, fanning, and global timings
- Grand Master rotary fader and button
- Blind / HighLight / Last / Next buttons
- Full numerical keypad and command keys
Hardware
- 15.6" industrial TFT touchscreen, 16:9 (1920×1080 px)
- 500 GB NVMe M.2 storage drive
- Industrial motherboard with Intel i5 Hexa-Core CPU
- Quiet thermal design with advanced copper heat-pipe cooling
- 16 GB DDR4 RAM
- Integrated graphics processor
- Windows 11 IoT Embedded operating system
- OS installation via USB 3.0 storage device
- Supports Windows USB touchscreens

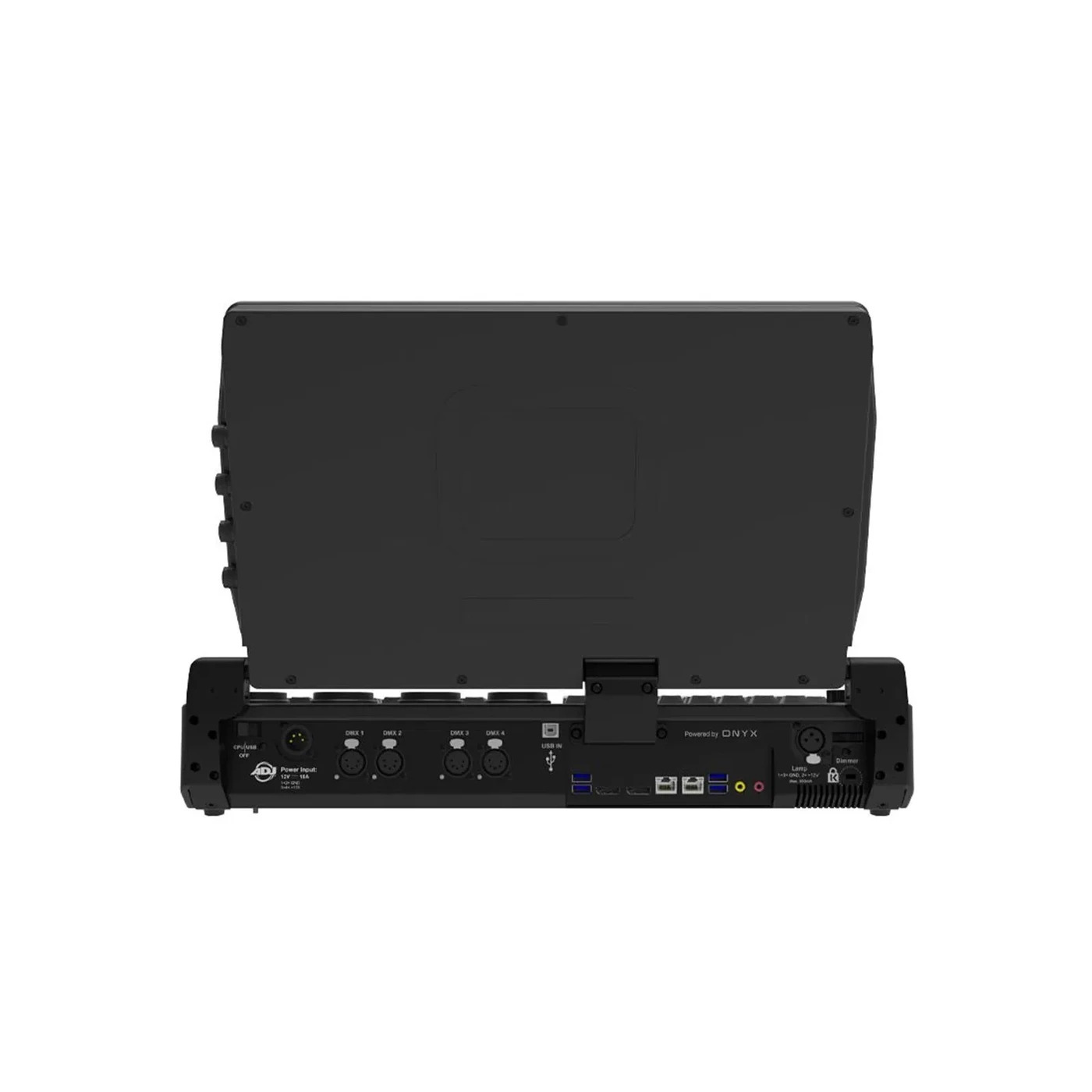

Connections
- 4 × DMX/RDM Universes In/Out via 5-pin locking XLR
- External Display: 2 × DisplayPort (up to 4K)
- Network: 2 × Gigabit Ethernet for Art-Net, sACN, and ONYX X-Net
- USB: 4 × USB 3.0, 1 × USB 2.0
- Audio: Audio Out & Mic In (2 × 3.5 mm jack)
- MIDI In/Out/Thru (MIDI Show Control, MIDI Notes, MIDI Timecode) — 5-pin DIN
- SMPTE Timecode In/Out — 3-pin XLR
- 12 VDC power input — 4-pin XLR
- Desk lamp: 12 V XLR
Supplied with:
- RGB LED desk lamp, angular XLR connector, 13"
- Dust Cover
- USB Cable
- External PSU (12V 11A)
- 1.5m IEC power cable
- USB Recovery Flash Drive
- Installation Manual

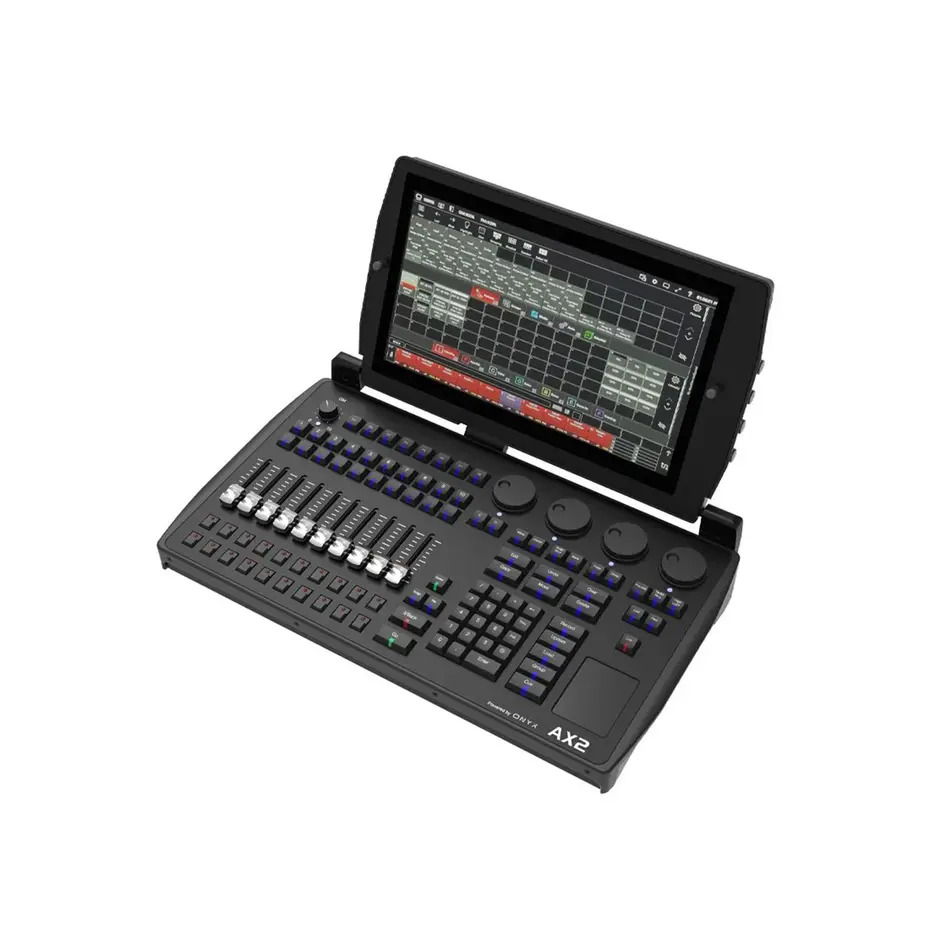

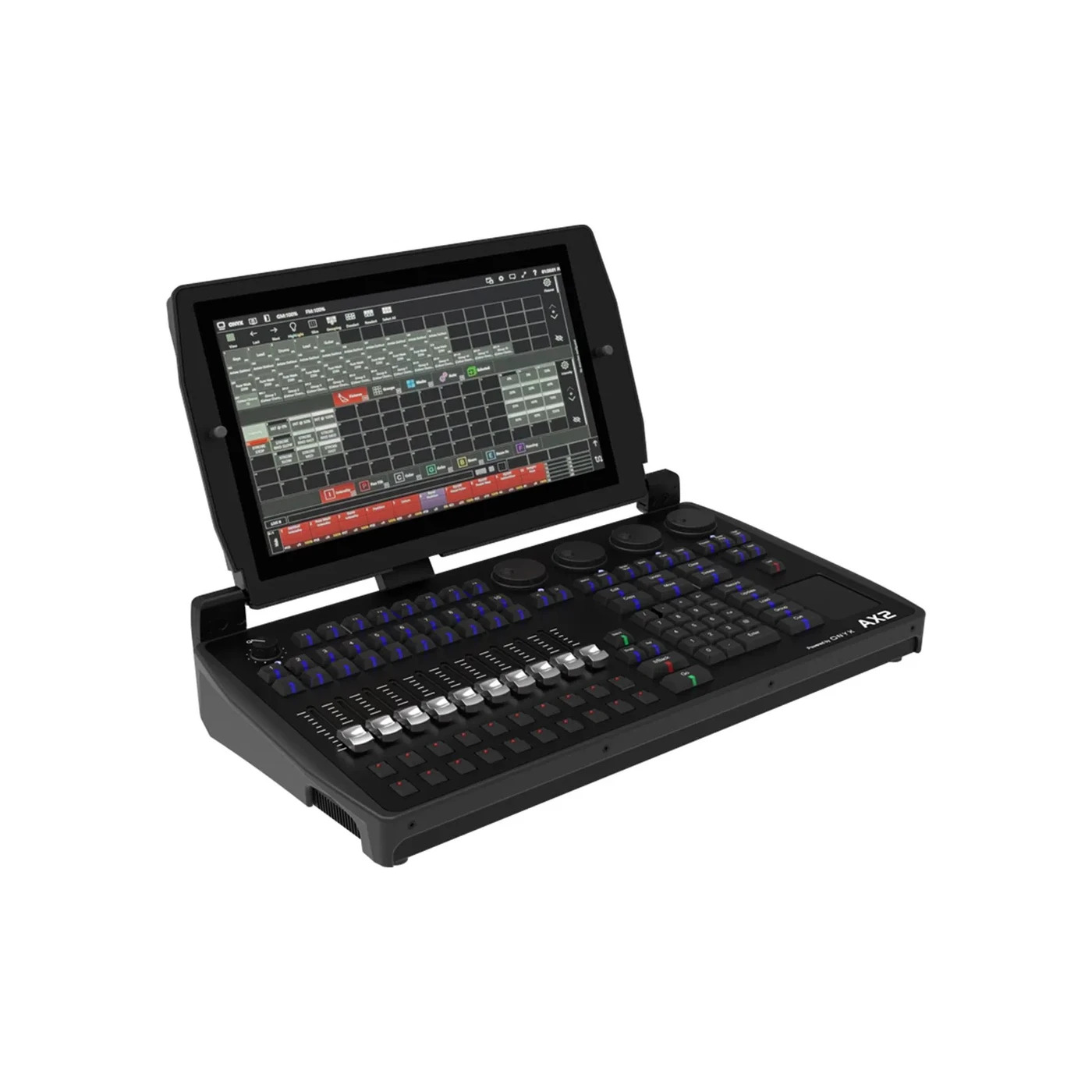

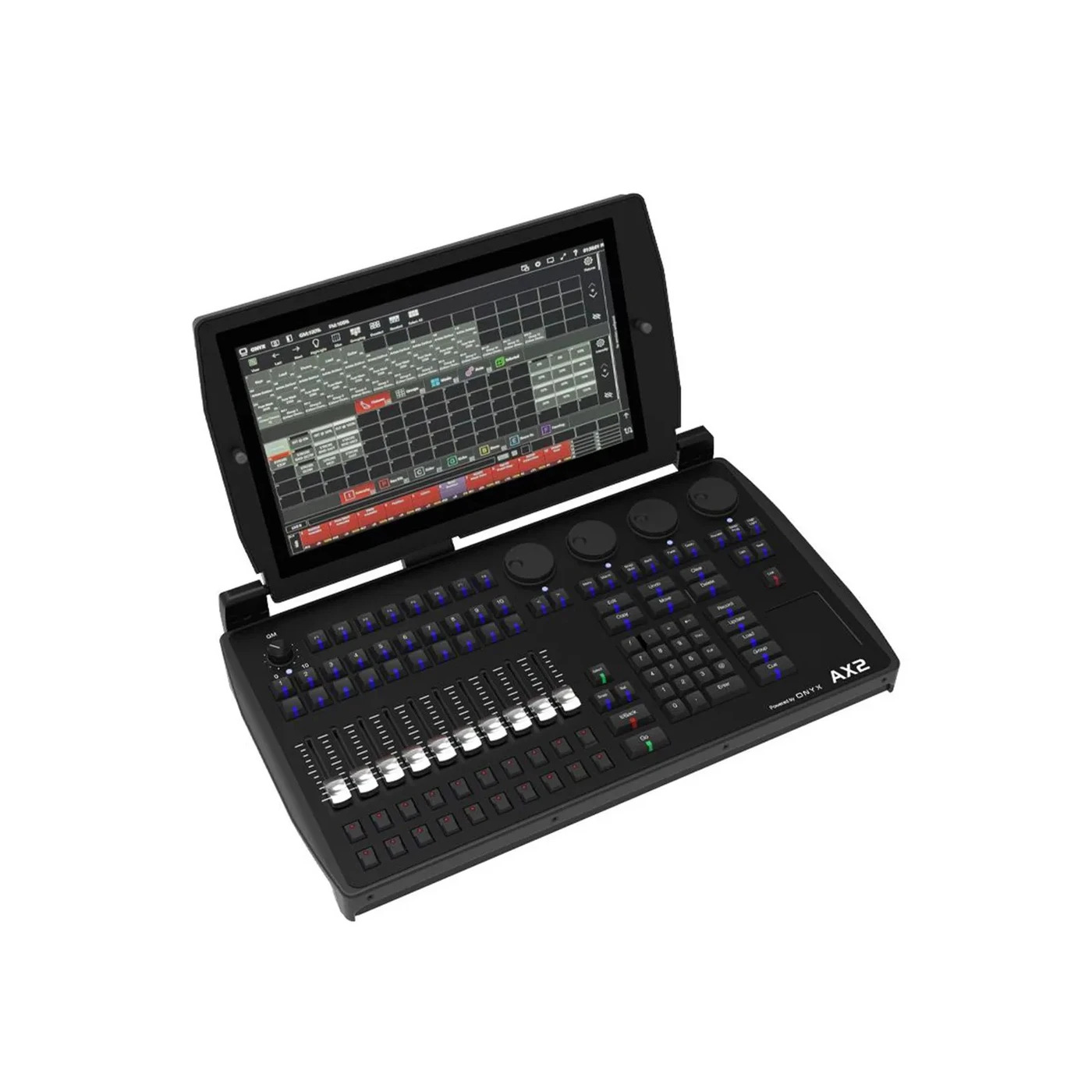

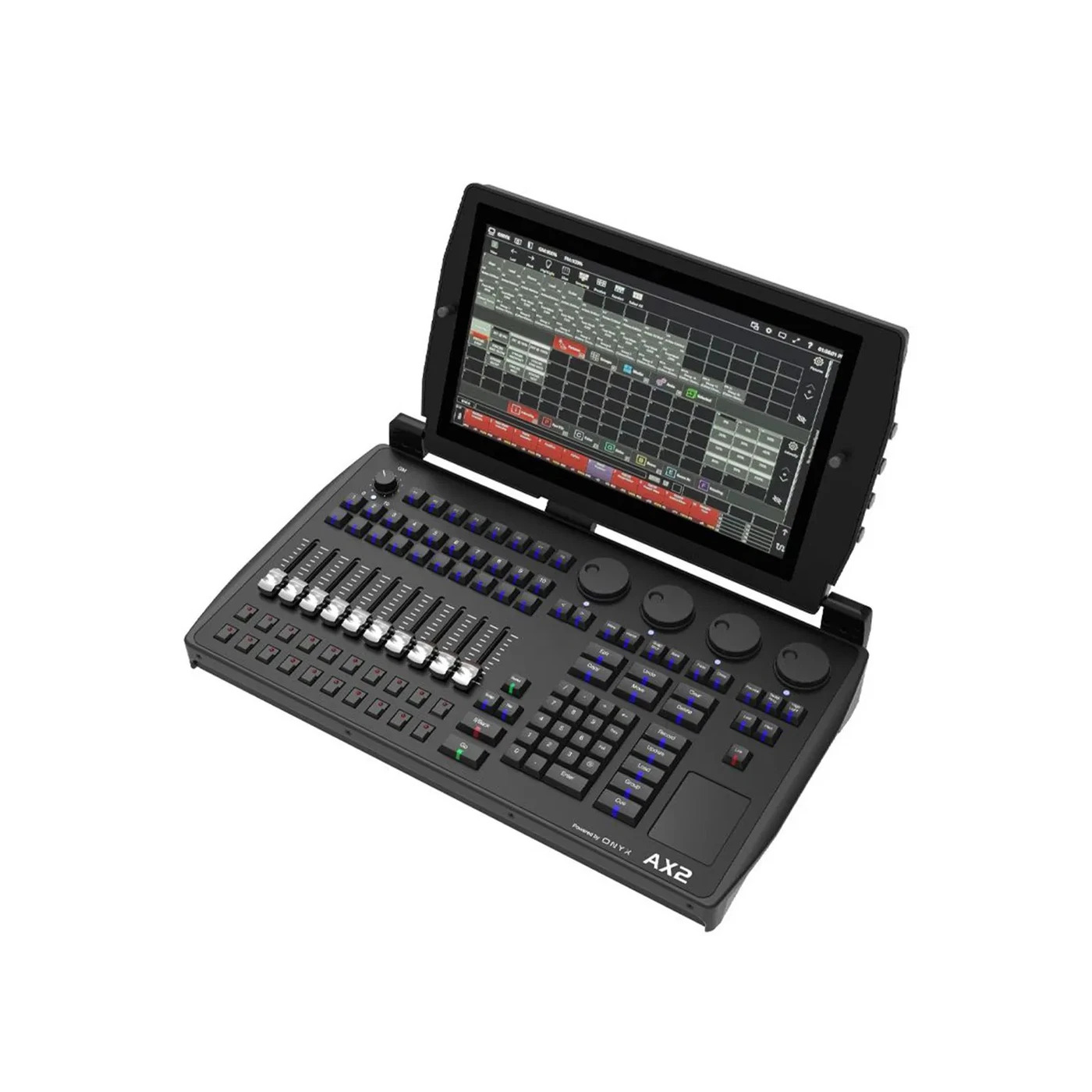

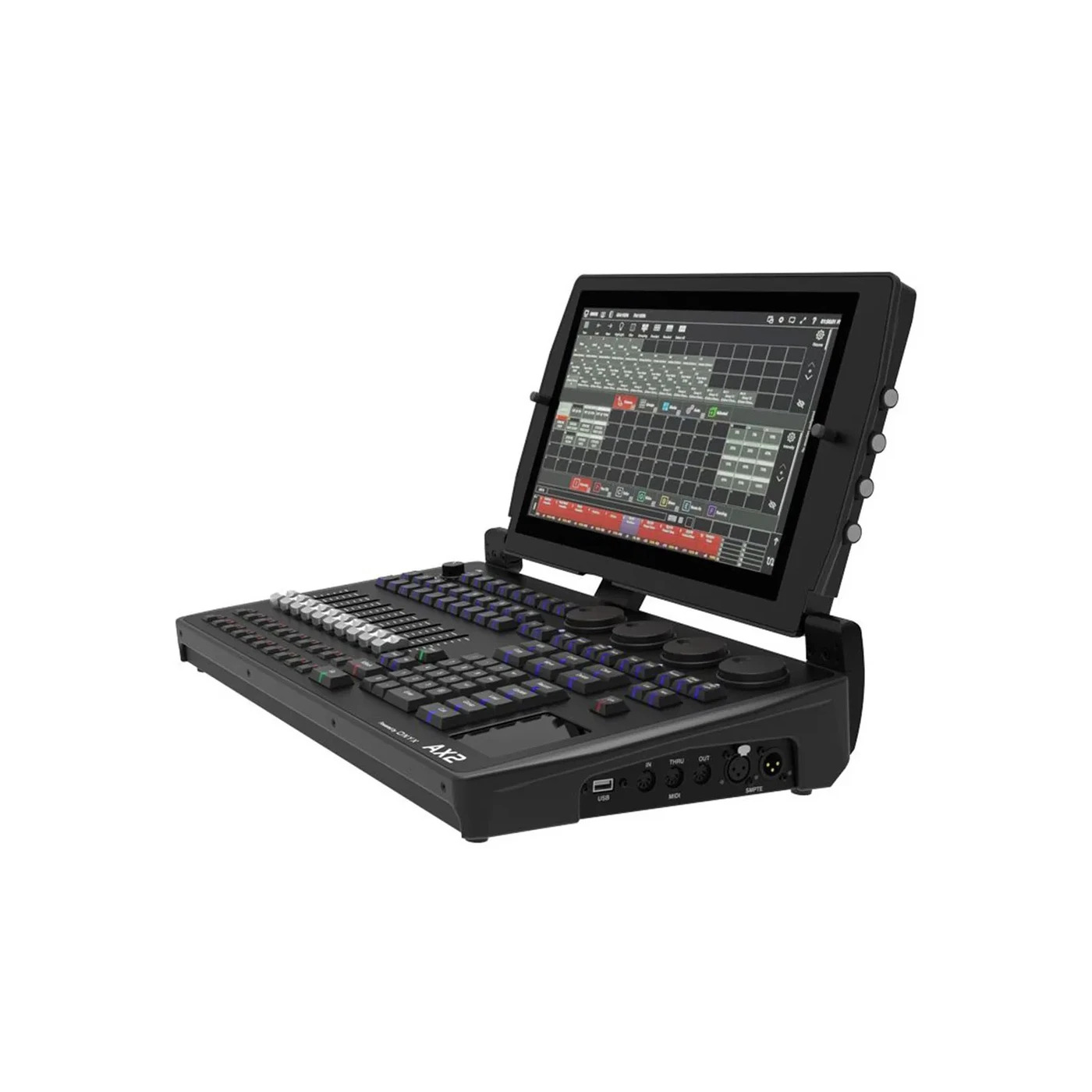

The AX2 is a compact yet exceptionally powerful all-in-one lighting controller, marking the first ADJ console built on the innovative ONYX platform. It features a high-brightness Full HD multi-touch display, eight assignable parameter encoders, an auxiliary mini touchscreen, a full command keypad, a dedicated grand master, and ten playbackseach with four freely assignable buttons.
Engineered with modern industrial-grade components, the AX2 is powered by an Intel Hexa-Core processor, a high-speed NVMe SSD, and 16 GB of DDR4 RAM. The result is rapid boot performance, instantaneous responsiveness, and the capability to natively handle 32 universes without relying on external processing hardwaredelivering remarkable performance in a compact footprint.
Ergonomically designed, the AX2 offers a streamlined workspace with its full ONYX command section, tactile keypad, and bright adjustable HD touchscreen. Always ready for demanding productions, it delivers reliable power for large events at a moments notice.
Connectivity is extensive, with four DMX ports, Timecode, MIDI, and dual Gigabit Ethernet supporting up to 32 universes via Art-Net, sACN, and ONYX X-Net. The console also supports two external 4K touch displays, offering even greater hands-on control whenever needed.
- Power consumption: 132W
- Power supply: DC 12V, 11A (adaptor included)
- Dimensions (H x W x D): 121 x 540 x 300mm
- Weight: 4.6kg
