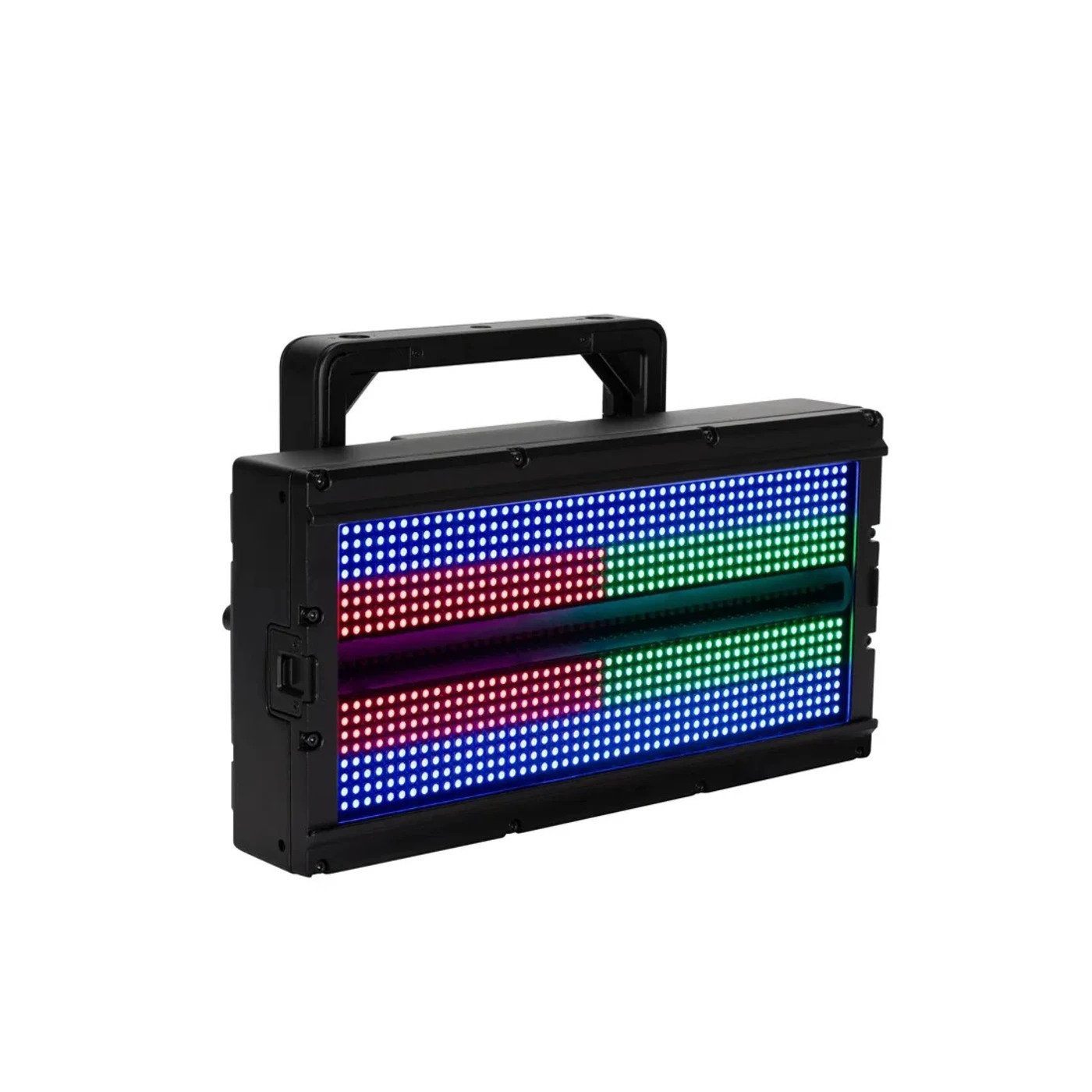

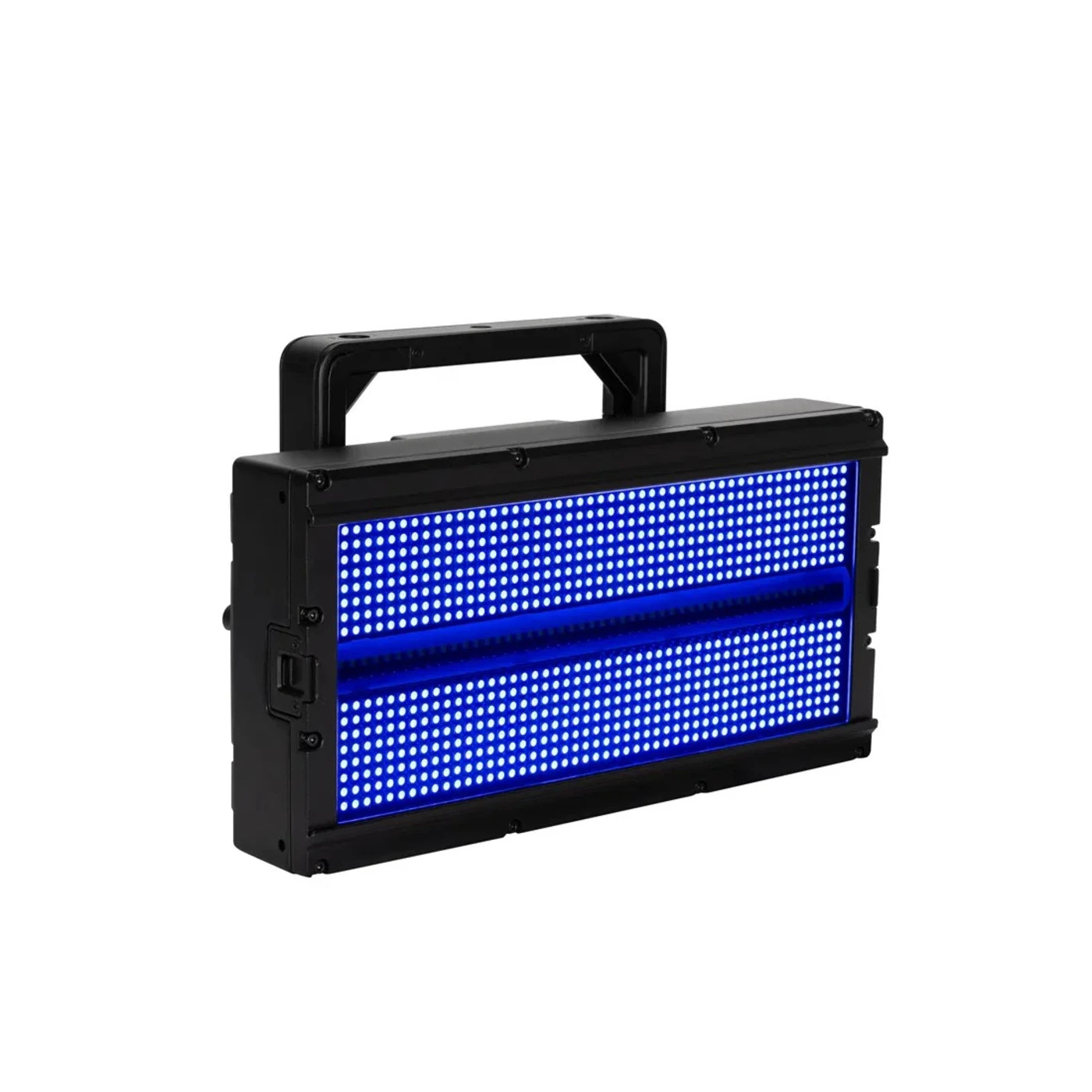

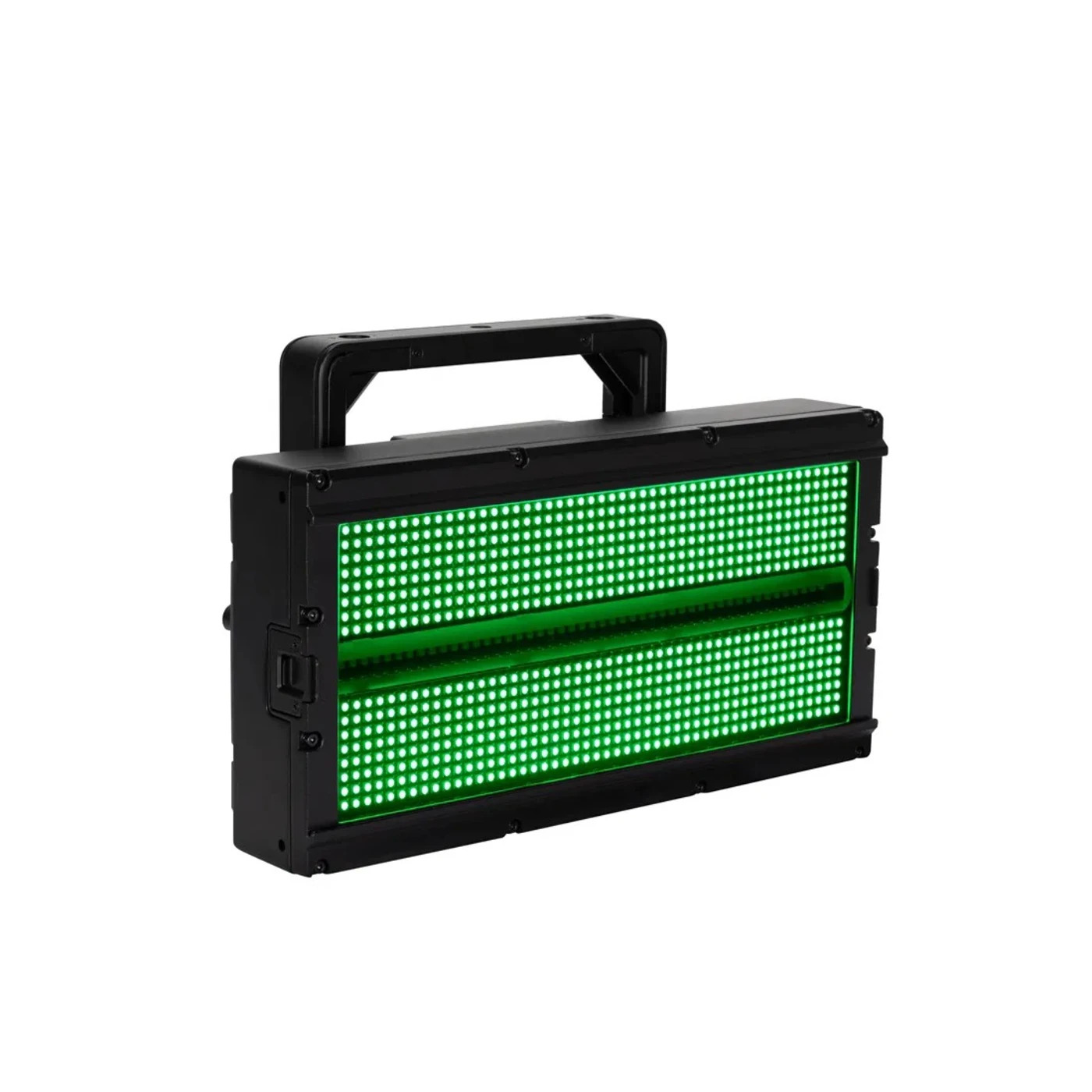

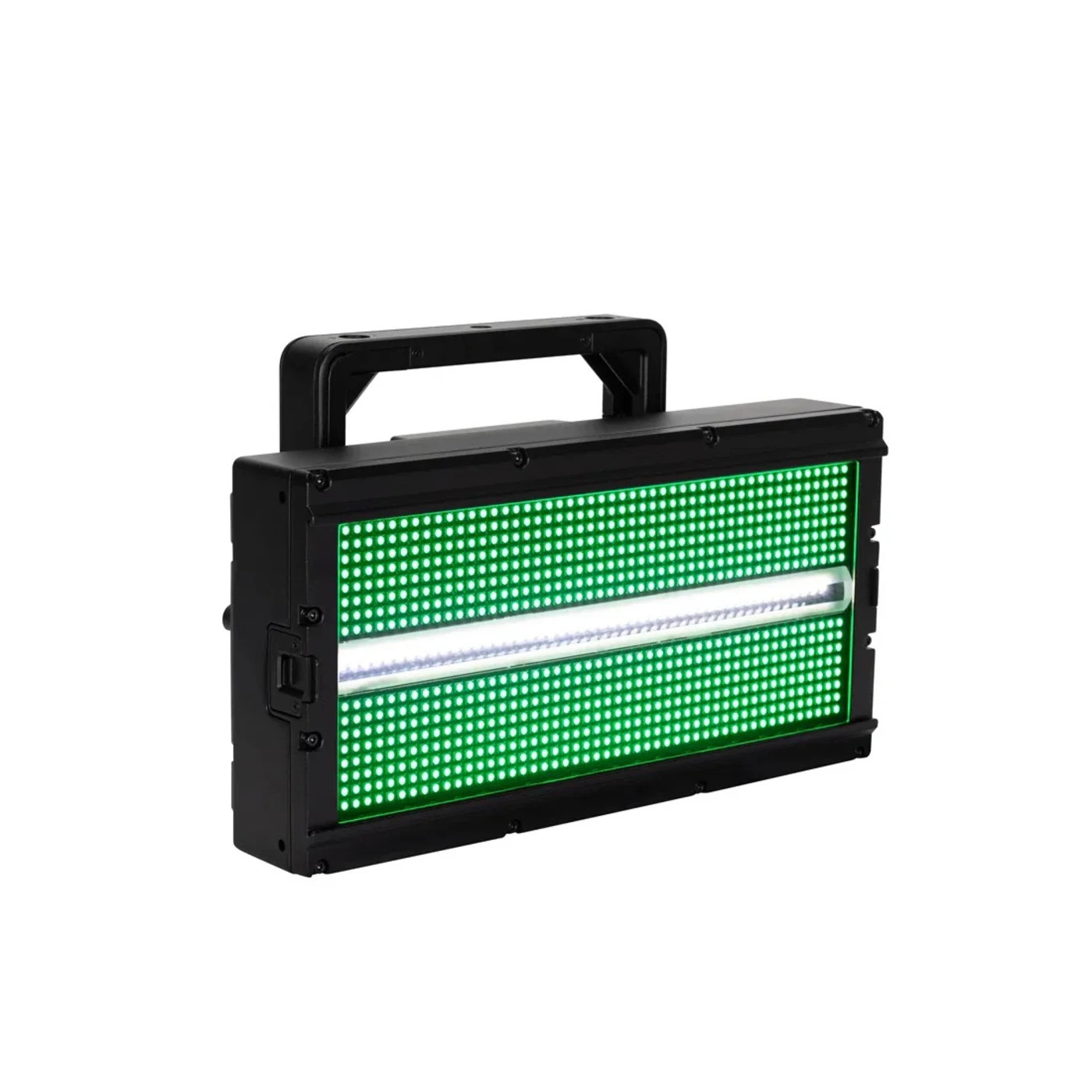

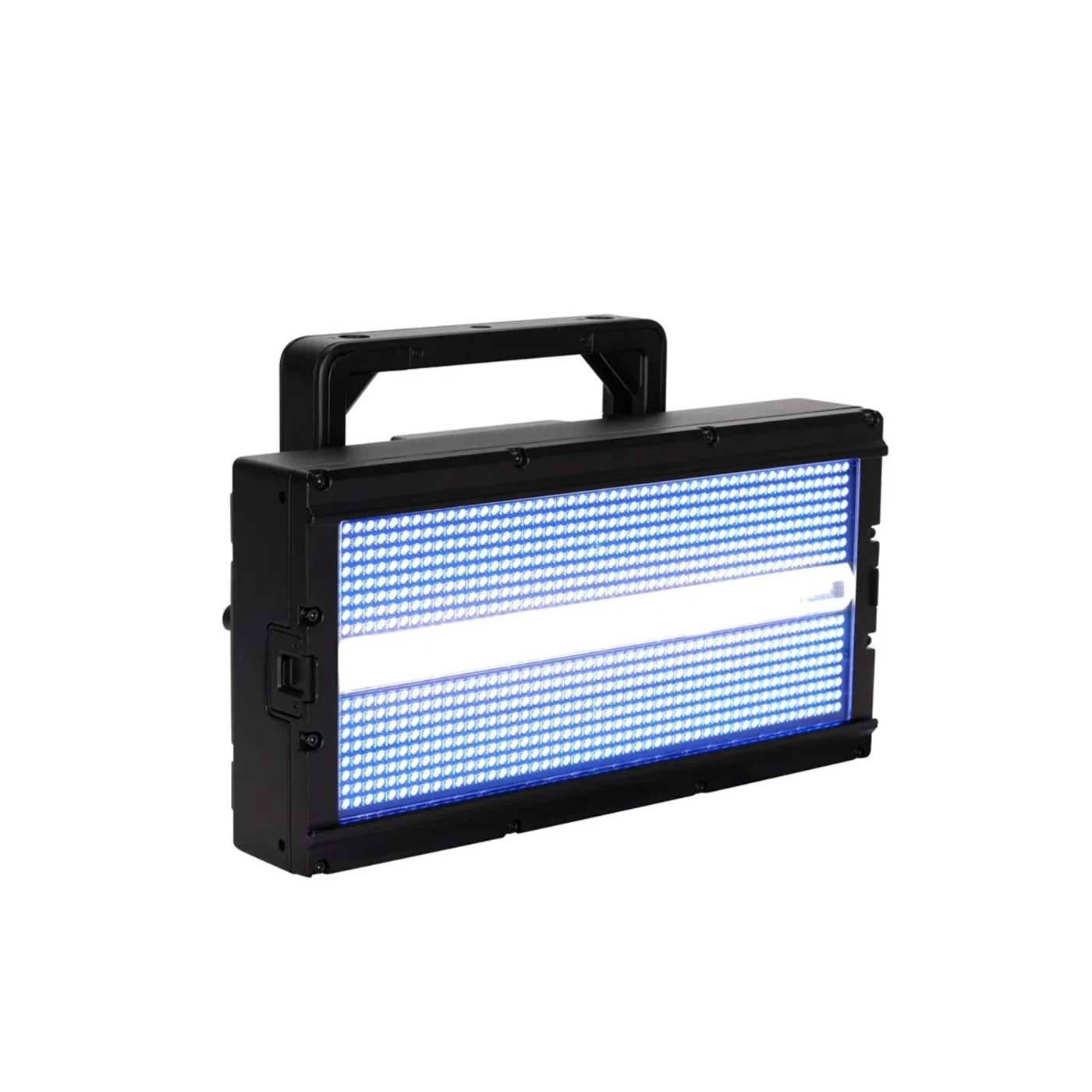

ADJ Jolt Panel FXIP
Versatile IP65 Outdoor Strobe/Wash FX Light
LIGHT SOURCE:
- 800 x 0.5-Watt RGB SMD LEDs + 48 x 5-Watt Cool White SMD LEDs
- Beam Angle: 73°
- Field Angle: 111°
- RGB LED Specs: Red: 620-630nm; Green: 515-530nm; Blue: 460-470nm
- White LEDs CCT: Typical 7400K (Min. 6900 - Max 8000), 472nm
- CRI: 69.4
- 50,000 Hour Average LED Life
FEATURES:
- Aria X2 Wireless Management System
- 40 x RGB LED Zones (126, 141 and 143 ch modes)
- 6 x Cool White LED Zones (51, 81, 83, 126, 141 and 143 ch modes)
- 67 Built-In Colour Temperature Presets (2300K-8900K)
- 25 Built-in RGB LED Program Macros
- 9 Built-in Cool White LED Program Macros
- IP65-Rated for temporary outdoor and indoor use
- Channel for Light Shaping Filters (to Blur Pixel Dots)
- Built-in Holes to Connect an Omega Bracket (sold separately)
CONTROL:
- Control Protocols: DMX, Aria X2 and RDM
- 10 DMX Channel Modes: 6, 9, 13, 18, 36, 41, 51, 81, 126 and 141 channel modes
- Dim Modes: 6 Presets (Standard, Stage, TV, Architectural, Theatre & Stage 2)
- Dim Curves: 4 Presets (Linear, Square Law, Inv Square Law & S Curve)
- 0-100% Smooth Dimming
- Strobe, Shutter & Pulse Control
- Max Strobe Rate: 20Hz; Min Strobe Rate: 1Hz
- Refresh Rate: 900Hz - 25kHz
- Display: OLED Display with 4-Button Touch Menu
CONNECTIONS:
- Data: IP65-rated Locking 5-pin DMX In/Out
- Power: IP65 Locking Power In/Out
ELECTRICAL:
- Multi-voltage operation: AC100-240V, 50/60Hz (Auto Sensing)
- Max Power Consumption: 208W @230V
- Max Power Link: 12pcs @230V
- Fuse Protected: T5A/250V Glass Fuse (5x20MM)
DIMENSIONS / WEIGHT:
- Length: 417mm
- Width: 280mm
- Height: 213mm
- Weight: 9.1 kg
WHAT'S INCLUDED:
- 1x IP65 locking power cable
- Diffusion filter
OPTIONAL ACCESSORIES:
- 180mm Omega Bracket Hydro (SKU 9900026435)
- Jolt Panel FX BLKF
- Jolt Panel FX 1x60 LF (60x1° Beam Shape filter)
- Jolt Panel FX 60x1 LF (1x60° Beam Shape filter)
APPROVALS / RATINGS:
- IP65
The ADJ Lighting Jolt Panel FXIP is a versatile, high-performance fixture designed for strobe, wash, and eye candy effects. It features 800 x 0.5-Watt RGB SMD LEDs, perfect for vibrant color strobes and washes, and 48 x 5-Watt white SMD LEDs in the center for traditional strobe effects. These LEDs are arranged into independently controllable zones (6 white and 40 color), allowing for dynamic chase patterns and stunning visual effects. With its powerful output, the Jolt Panel FXIP is ideal for large stages, nightclubs, live events, and touring.
Building on the success of the original Jolt Panel FX, the new Jolt Panel FXIP introduces several enhancements that give lighting designers more creative flexibility. It’s IP65-rated for both temporary indoor and outdoor use, and features built-in ADJ’s Aria X2 wireless DMX (compatible with ADJ’s WiFLY EXR), enabling wireless data distribution. A convenient channel system on the front of the unit allows for the easy attachment of light shaping filters, which soften the pixel dots and offer designers even more creative possibilities.
The Jolt Panel FXIP also simplifies operation with a user-friendly LCD display and 4-button menu system. From here, users can adjust dimming modes, speed, programs, color macros, LED refresh rate, gamma settings, and DMX address/channel modes. The rear panel includes IP65-rated 5-pin DMX in/out connections and locking power in/out sockets for daisy chaining. Additionally, the fixture has holes for attaching an omega bracket, providing an alternative to the adjustable angle bracket.
- Manufacturer Part Number: 1226200074
- Dimensions (L x W x H): 42.0 x 15.0 x 26.0cm
